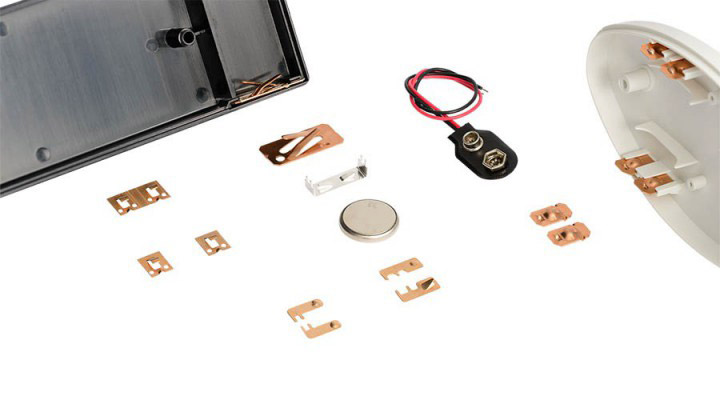

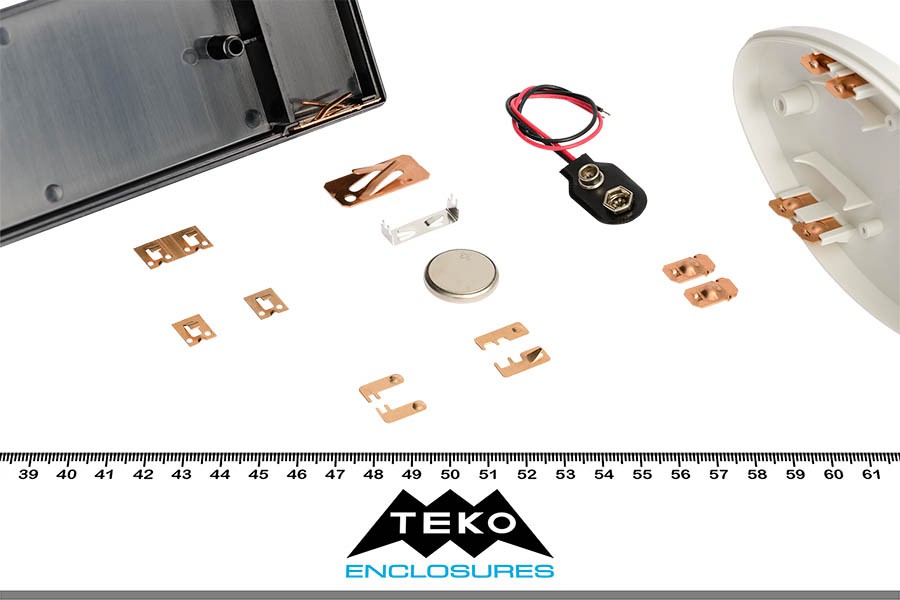

BATTERY CONTACTS

Family Accessories - Electronic enclosures - Plastic

Description

BATTERY CONTACTS

Products

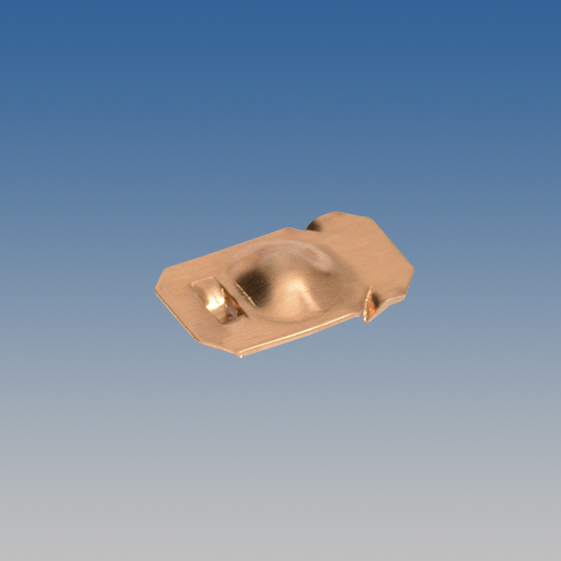

Model AB1,5 (1).0
L (mm)28
W (mm)14
H (mm)0,5
Color (Ral)  -
Material CW453K
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
BatteryAA
Accessories
Drawings PDF
DWG
Other
View

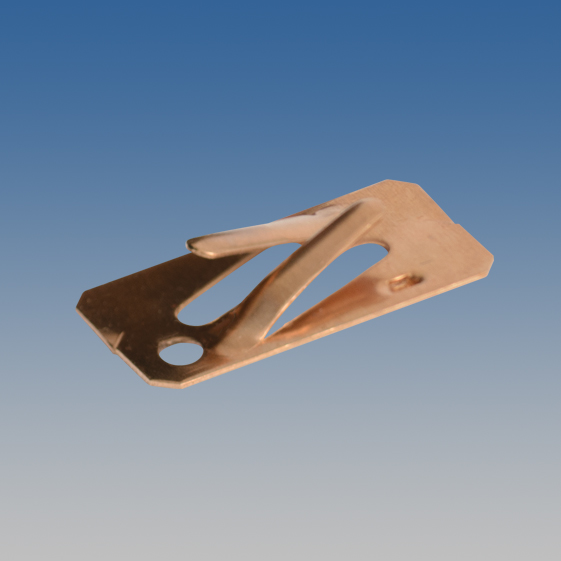

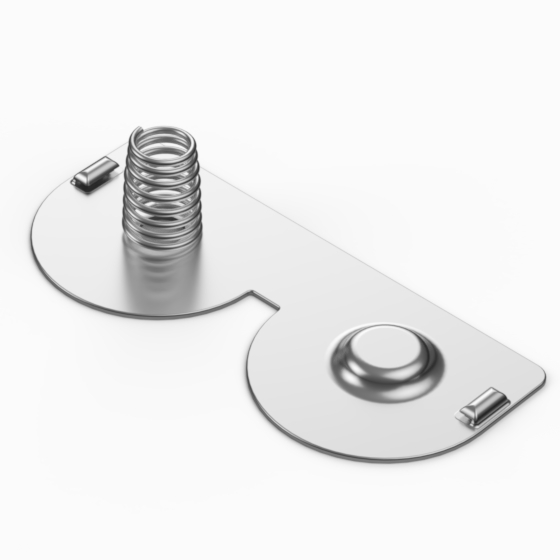

Model AB1,5 (2).0
L (mm)13,85
W (mm)8
H (mm)0,4
Color (Ral)  -
Material CW453K
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
Battery2 X AA
Accessories
Drawings PDF
DWG
Other
View

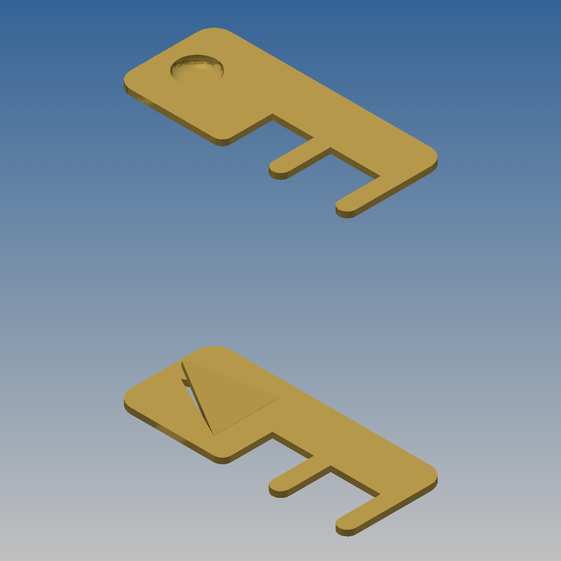

Model AB12.0
L (mm)14
W (mm)6
H (mm)0,2
Color (Ral)  -
Material CW453K
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
BatteryA23 / MN21
Accessories
Drawings PDF
DWG
Other
View

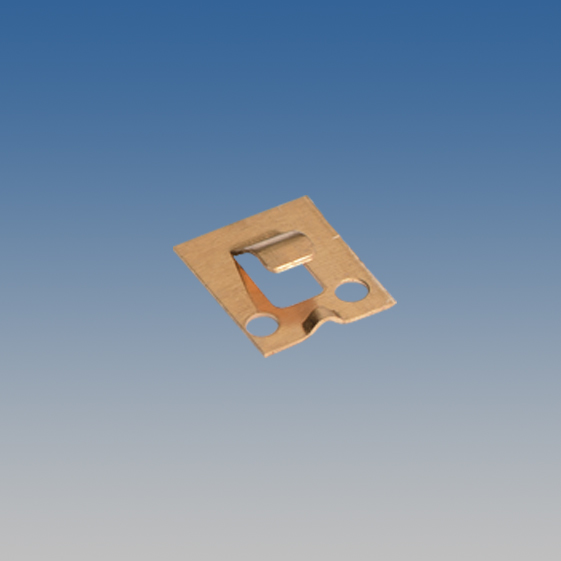

Model AB2.0
NEW
L (mm)10
W (mm)7,9
H (mm)2,7
Color (Ral)  -
Material CW453K
MAX PCB L (mm)
MAX PCB W (mm)
Screws
BatteryAAA
Accessories
Drawings PDF
DWG
Other
View

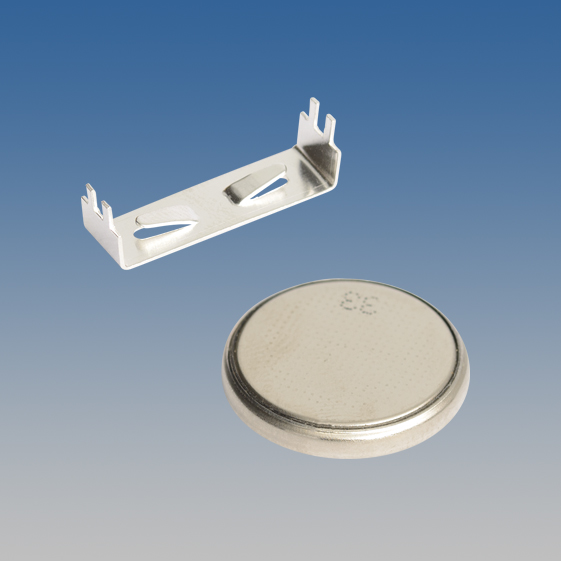

Model AB2032.0
L (mm)21,4
W (mm)6
H (mm)6,20
Color (Ral)  -
Material CW453K
MAX PCB L (mm)
MAX PCB W (mm)
Screws
BatteryCR2032
Accessories
Drawings PDF
DWG
Other
View

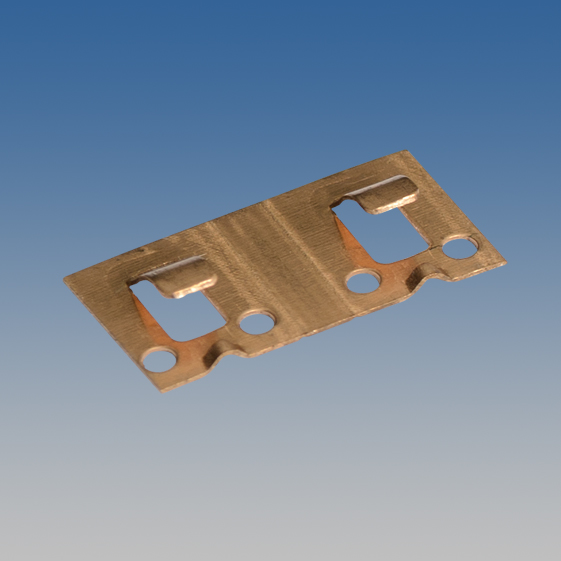

Model AB22.0
NEW
L (mm)10
W (mm)18,75
H (mm)2,7
Color (Ral)  -
Material CW453K
MAX PCB L (mm)
MAX PCB W (mm)
Screws
Battery2 X AAA
Accessories
Drawings PDF
DWG
Other
View

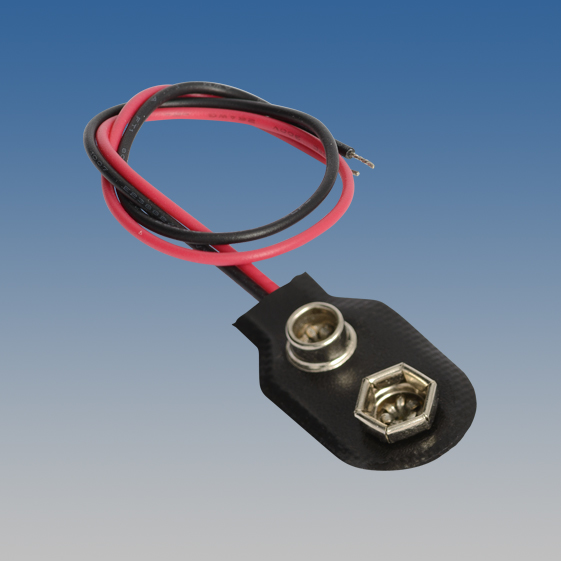

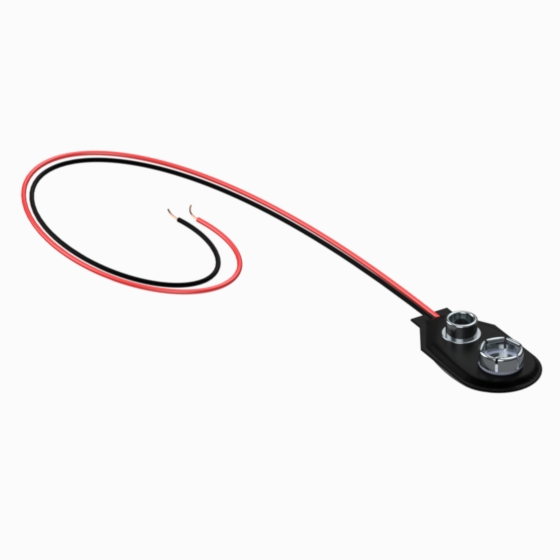

Model AB9.0
L (mm)15
W (mm)30
H (mm)7
Color (Ral)  -
Material
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
Battery6LR61 / MN1604
Accessories
Drawings PDF
DWG
Other
View

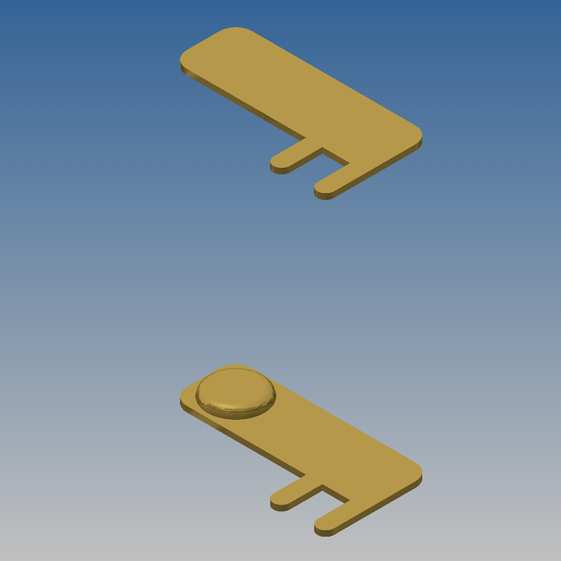

Model ABM.0
L (mm)12
W (mm)6,5
H (mm)0,2
Color (Ral)  -
Material CW453K
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
BatteryA23 / MN21
Accessories
Drawings PDF
DWG
Other
View
Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
AB1,5 (1).0 28 14 0,5  -
CW453K - - - AA PDF
DWG
View
AB1,5 (2).0 13,85 8 0,4  -
CW453K - - - 2 X AA PDF
DWG
View
AB12.0 14 6 0,2  -
CW453K - - - A23 / MN21 PDF
DWG
View
AB2.0
NEW
10 7,9 2,7  -
CW453K       AAA PDF
DWG
View
AB2032.0 21,4 6 6,20  -
CW453K       CR2032 PDF
DWG
View
AB22.0
NEW
10 18,75 2,7  -
CW453K       2 X AAA PDF
DWG
View
AB9.0 15 30 7  -
- - - 6LR61 / MN1604 PDF
DWG
View
ABM.0 12 6,5 0,2  -
CW453K - - - A23 / MN21 PDF
DWG
View
