Description

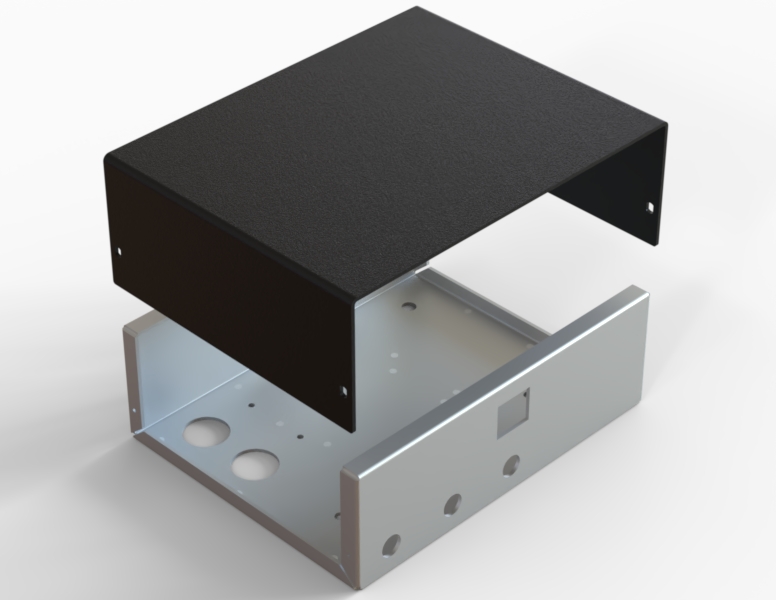

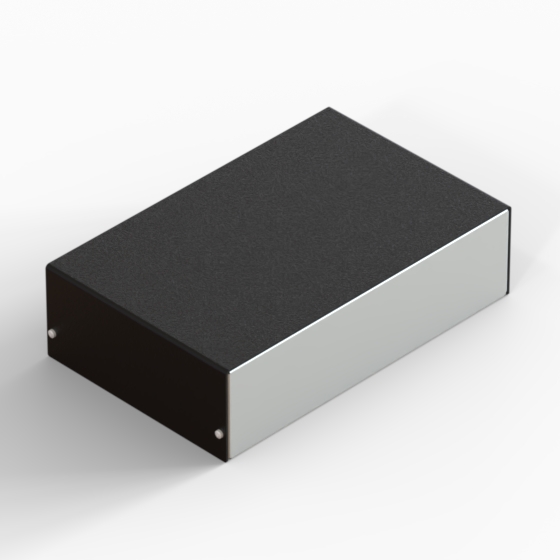

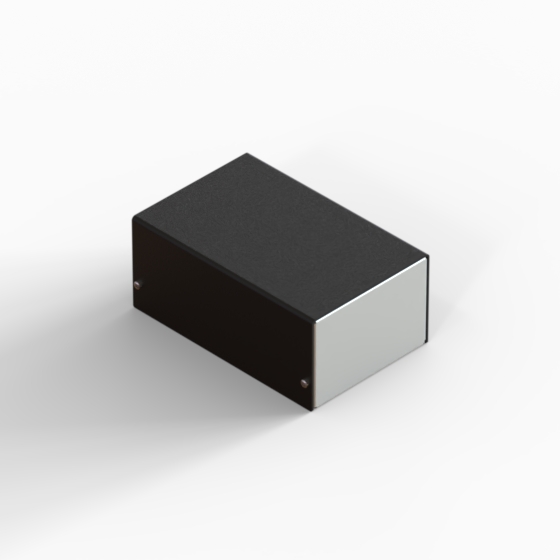

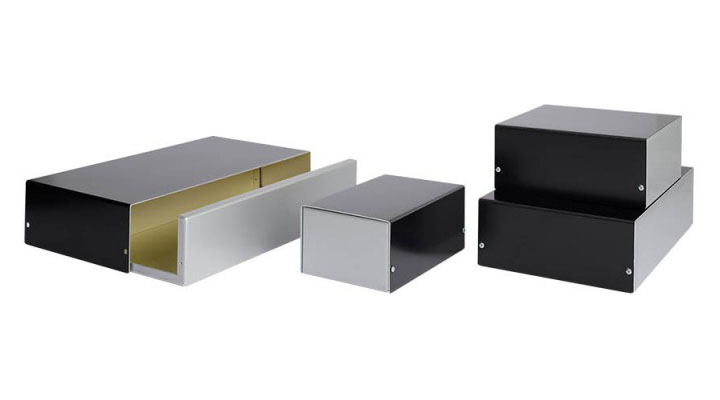

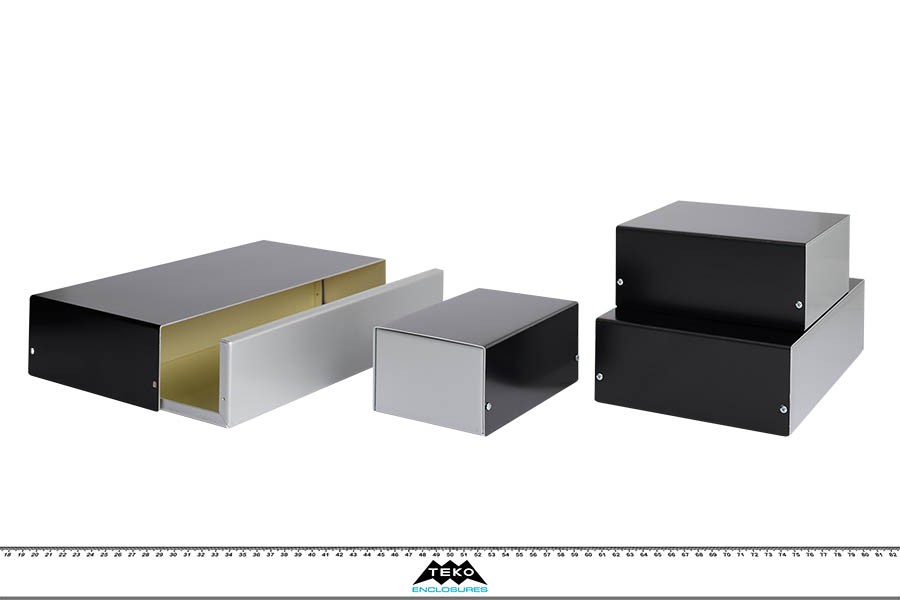

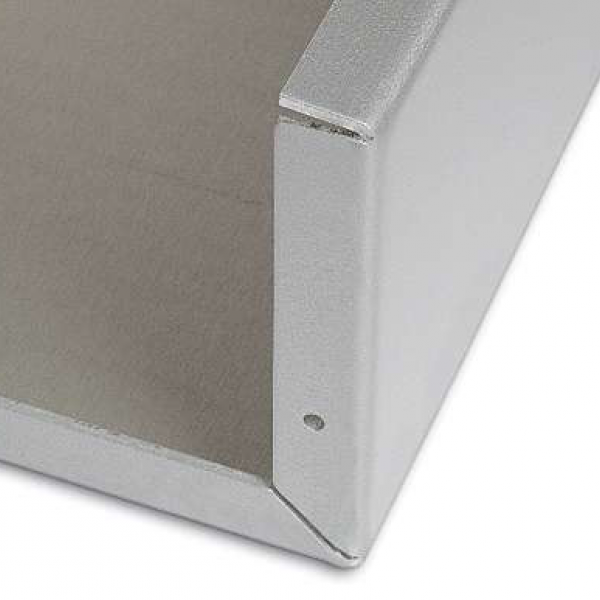

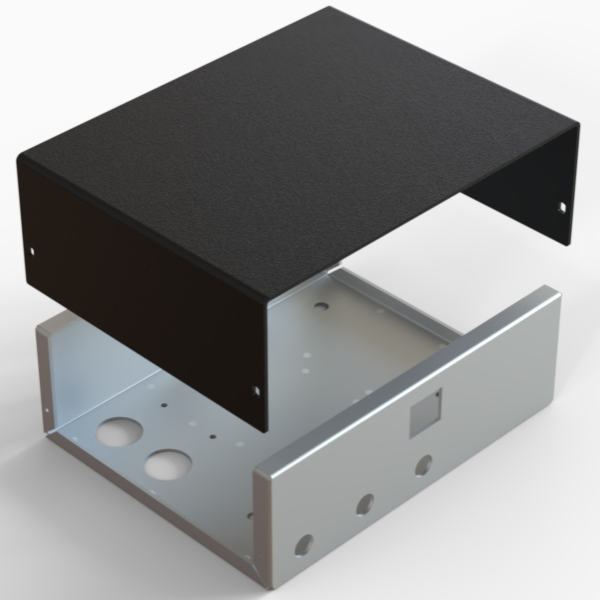

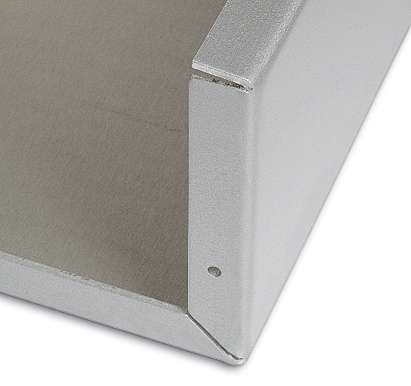

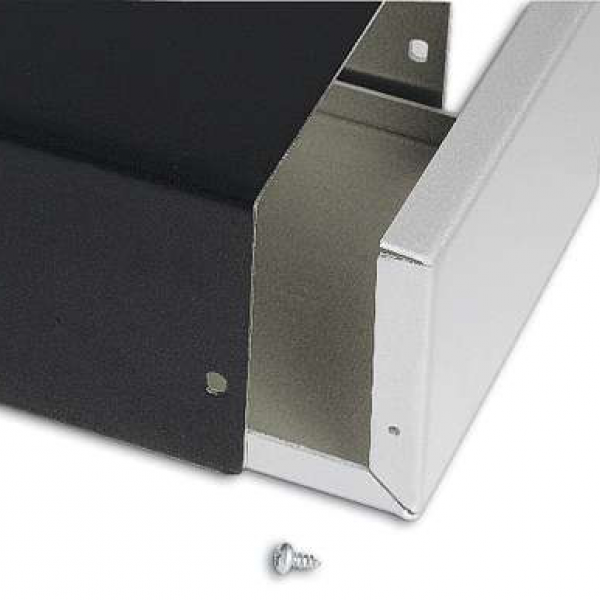

Aluminium enclosures with silver metalised base and black cover. Simple and speedy to assemble, with four screws to put in place.
Details
.jpg)
.jpg)
Products
| |
|---|---|

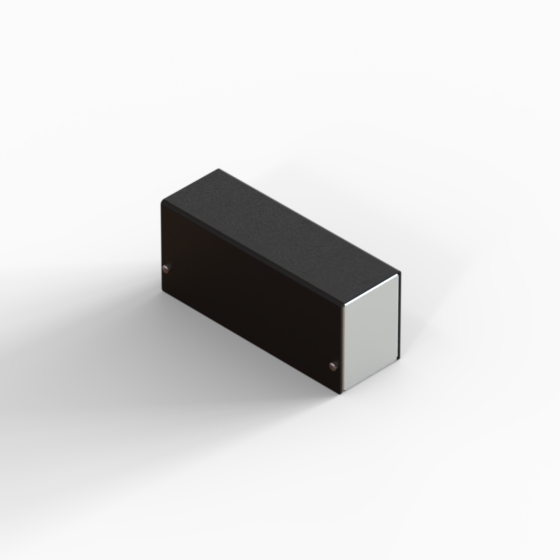

| Model | 381.18 |
| L (mm) | 53,5 |
| W (mm) | 160 |
| H (mm) | 69,5 |
| Color (Ral) |
9004 9006 |
| Material | EN AW-5010 H42 - AW-3105 H46 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 382.18 |
| L (mm) | 104 |
| W (mm) | 160 |
| H (mm) | 69,5 |
| Color (Ral) |
9004 9006 |
| Material | EN AW-5010 H42 - AW-3105 H46 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

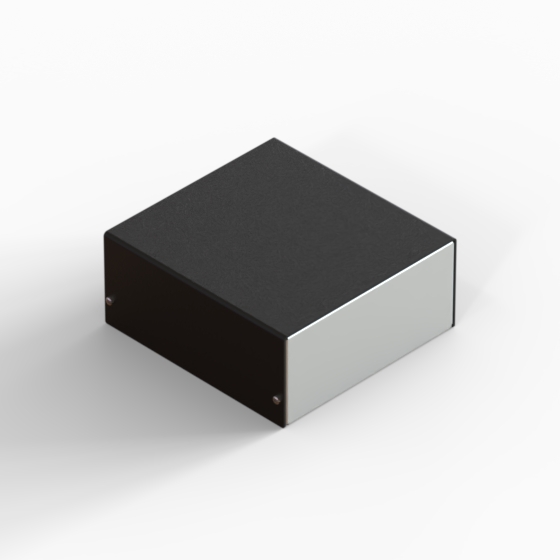

| Model | 383.18 |
| L (mm) | 153 |
| W (mm) | 160 |
| H (mm) | 69,5 |
| Color (Ral) |
9004 9006 |
| Material | EN AW-5010 H42 - AW-3105 H46 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 384.18 |
| L (mm) | 203 |
| W (mm) | 160 |
| H (mm) | 69,5 |
| Color (Ral) |
9004 9006 |
| Material | EN AW-5010 H42 - AW-3105 H46 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 385.18 |
| L (mm) | 253 |
| W (mm) | 160 |
| H (mm) | 69,5 |
| Color (Ral) |
9004 9006 |
| Material | EN AW-5010 H42 - AW-3105 H46 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

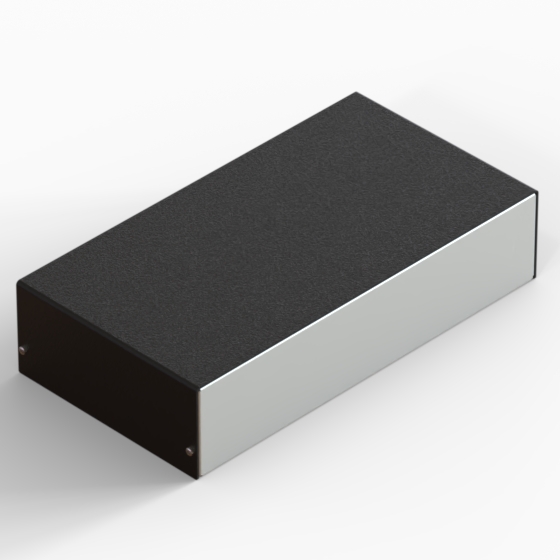

| Model | 386.18 |
| L (mm) | 303 |
| W (mm) | 160 |
| H (mm) | 69,5 |
| Color (Ral) |
9004 9006 |
| Material | EN AW-5010 H42 - AW-3105 H46 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
381.18 | 53,5 | 160 | 69,5 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|
|
382.18 | 104 | 160 | 69,5 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|
|
383.18 | 153 | 160 | 69,5 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|
|
384.18 | 203 | 160 | 69,5 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|
|
385.18 | 253 | 160 | 69,5 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|
|
386.18 | 303 | 160 | 69,5 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
