Description
Aluminium enclosures with silver metalised base and black cover. Simple and speedy to assemble, with four screws to put in place. Model 424.18 is available on request.
Products
![]() | |
---|---|

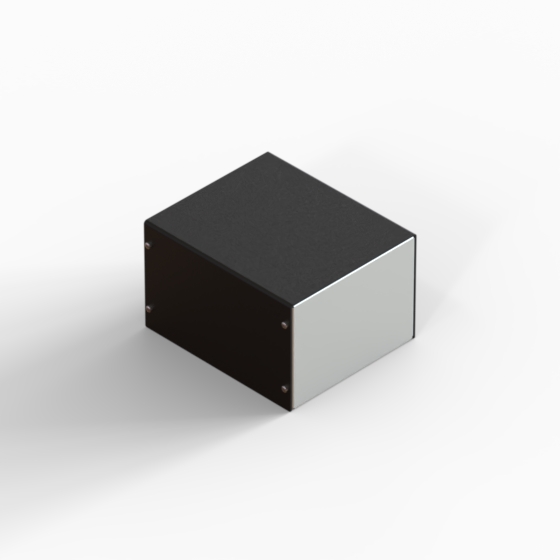

Model | 422.18 |
L (mm) | 137 |
W (mm) | 160 |
H (mm) | 100 |
Color (Ral) |
9004 9006 |
Material | EN AW-5010 H42 - AW-3105 H46 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 8 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |
Model | 424.18 |
L (mm) | 237 |
W (mm) | 160 |
H (mm) | 100 |
Color (Ral) |
9004 9006 |
Material | EN AW-5010 H42 - AW-3105 H46 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 8 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

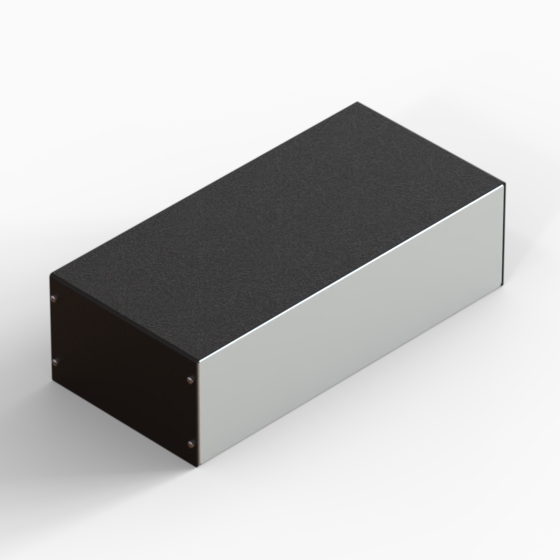

Model | 426.18 |
L (mm) | 337 |
W (mm) | 160 |
H (mm) | 100 |
Color (Ral) |
9004 9006 |
Material | EN AW-5010 H42 - AW-3105 H46 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 8 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

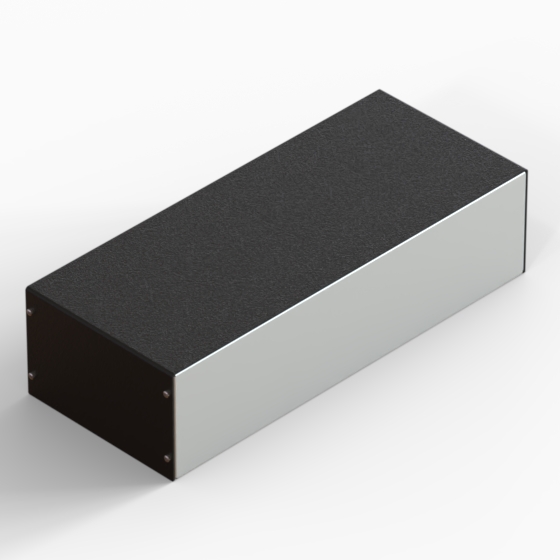

Model | 427.18 |
L (mm) | 387 |
W (mm) | 160 |
H (mm) | 100 |
Color (Ral) |
9004 9006 |
Material | EN AW-5010 H42 - AW-3105 H46 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 8 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
422.18 | 137 | 160 | 100 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 8 | - |
PDF DWG |
View
|
|
![]() |
424.18 | 237 | 160 | 100 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 8 | - |
PDF DWG |
View
|
|
![]() |
426.18 | 337 | 160 | 100 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 8 | - |
PDF DWG |
View
|
|
![]() |
427.18 | 387 | 160 | 100 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 8 | - |
PDF DWG |
View
|
