Description

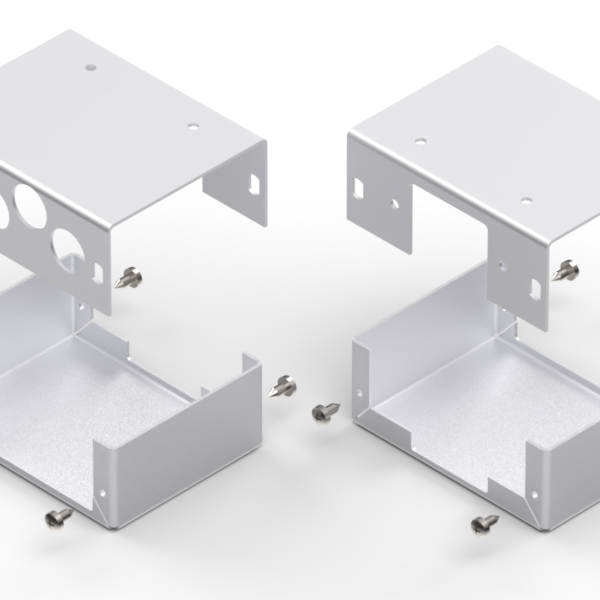

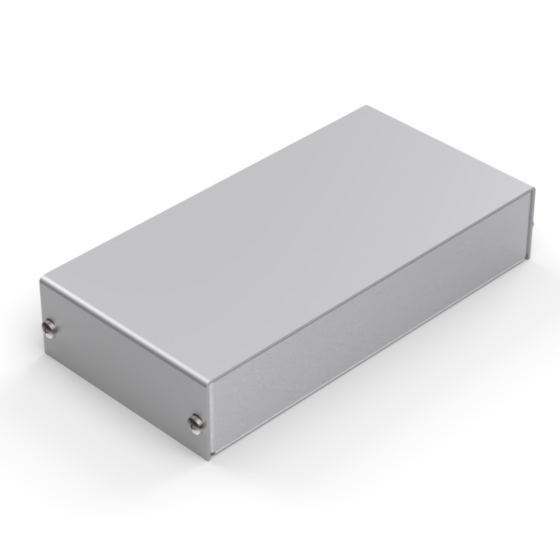

Aluminium enclosures with silver metalised base and cover. Simple and speedy to assemble, with four screws to put in place.
Products
![]() | |
---|---|

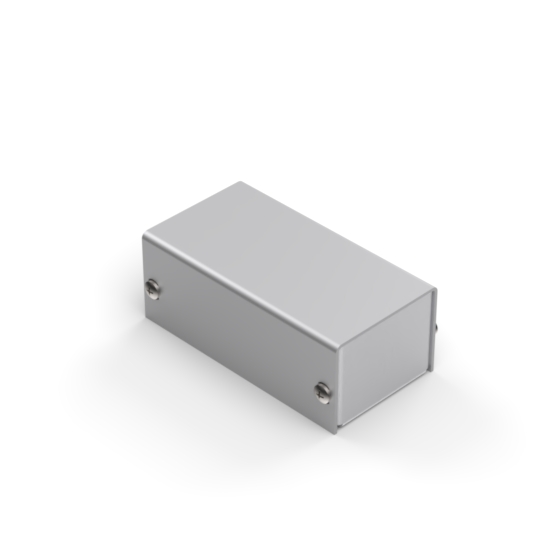

Model | 1/A.1 |
L (mm) | 38 |
W (mm) | 72 |
H (mm) | 28 |
Color (Ral) |
9006 |
Material | EN AW-5010 H42 - AW-3105 H46 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

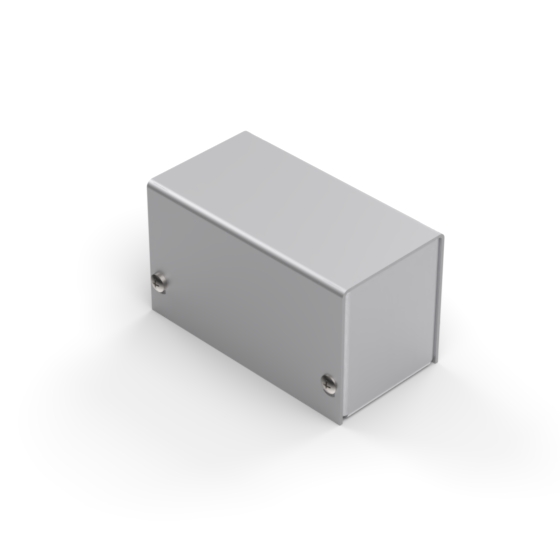

Model | 1/B.1 |
L (mm) | 38 |
W (mm) | 72 |
H (mm) | 43 |
Color (Ral) |
9006 |
Material | EN AW-5010 H42 - AW-3105 H46 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

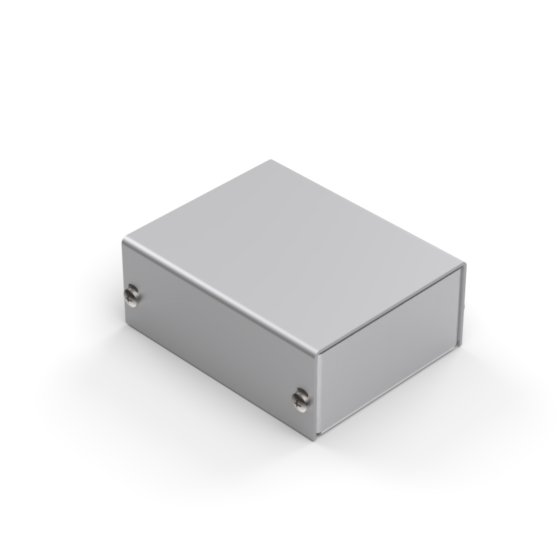

Model | 2/A.1 |
L (mm) | 57,5 |
W (mm) | 72 |
H (mm) | 28 |
Color (Ral) |
9006 |
Material | EN AW-5010 H42 - AW-3105 H46 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

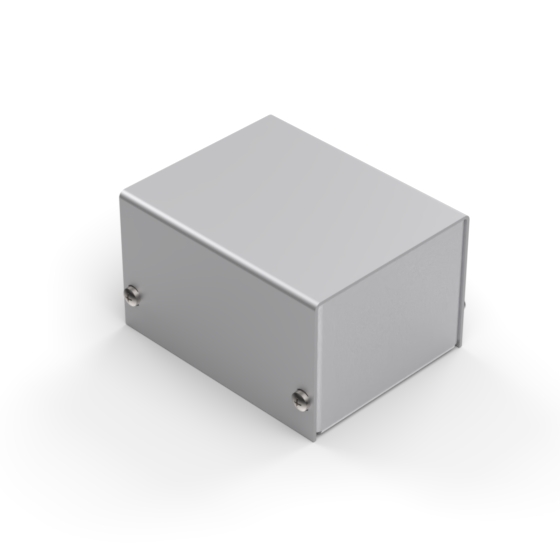

Model | 2/B.1 |
L (mm) | 57,5 |
W (mm) | 72 |
H (mm) | 43 |
Color (Ral) |
9006 |
Material | EN AW-5010 H42 - AW-3105 H46 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

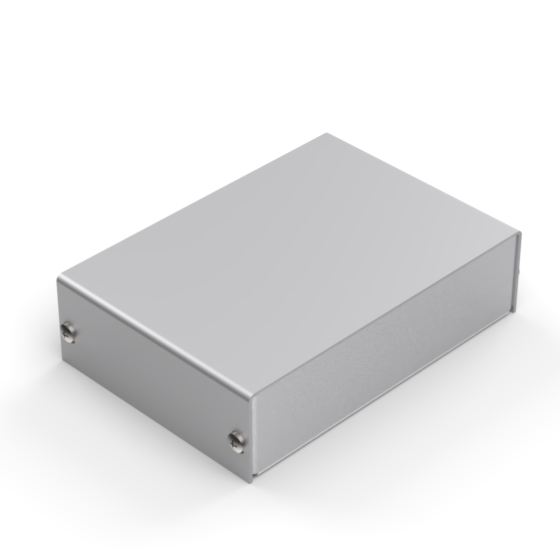

Model | 3/A.1 |
L (mm) | 103 |
W (mm) | 72 |
H (mm) | 28 |
Color (Ral) |
9006 |
Material | EN AW-5010 H42 - AW-3105 H46 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

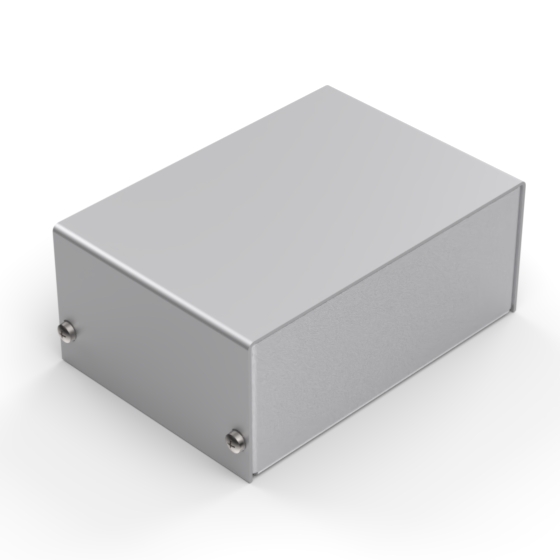

Model | 3/B.1 |
L (mm) | 103 |
W (mm) | 72 |
H (mm) | 43 |
Color (Ral) |
9006 |
Material | EN AW-5010 H42 - AW-3105 H46 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |
Model | 4/A.1 |
L (mm) | 143 |
W (mm) | 72 |
H (mm) | 28 |
Color (Ral) |
9006 |
Material | EN AW-5010 H42 - AW-3105 H46 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

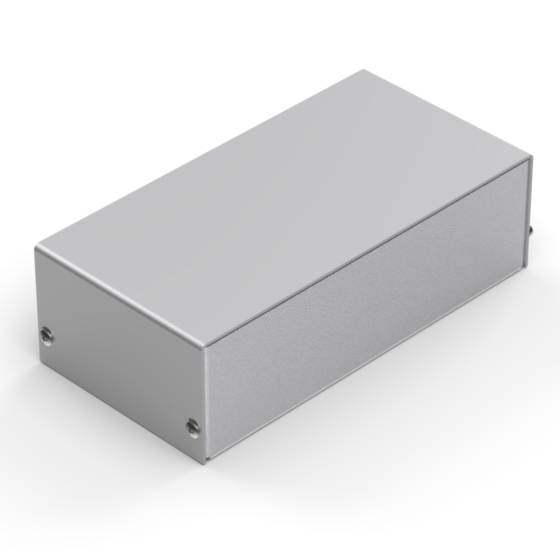

Model | 4/B.1 |
L (mm) | 143 |
W (mm) | 72 |
H (mm) | 43 |
Color (Ral) |
9006 |
Material | EN AW-5010 H42 - AW-3105 H46 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
1/A.1 | 38 | 72 | 28 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
![]() |
1/B.1 | 38 | 72 | 43 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
![]() |
2/A.1 | 57,5 | 72 | 28 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
![]() |
2/B.1 | 57,5 | 72 | 43 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
![]() |
3/A.1 | 103 | 72 | 28 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
![]() |
3/B.1 | 103 | 72 | 43 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
![]() |
4/A.1 | 143 | 72 | 28 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
![]() |
4/B.1 | 143 | 72 | 43 |
9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
