Description

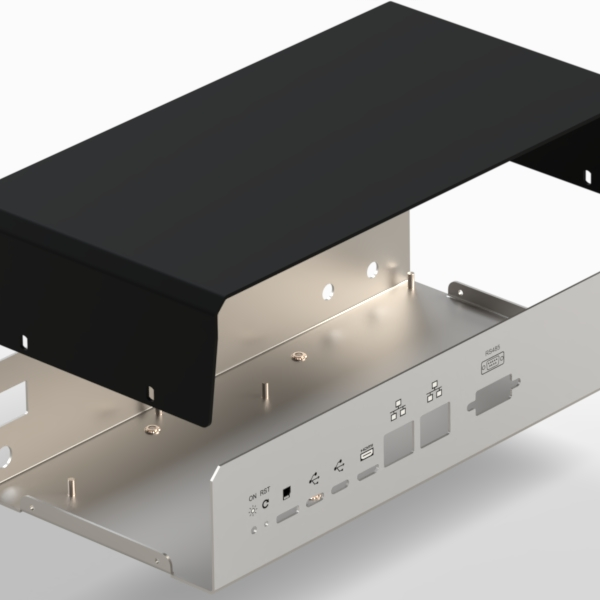

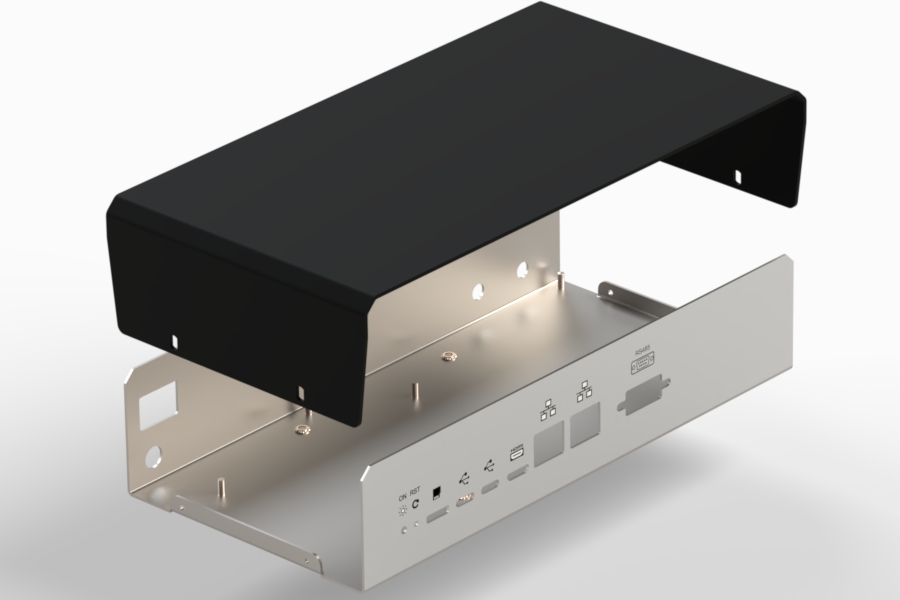

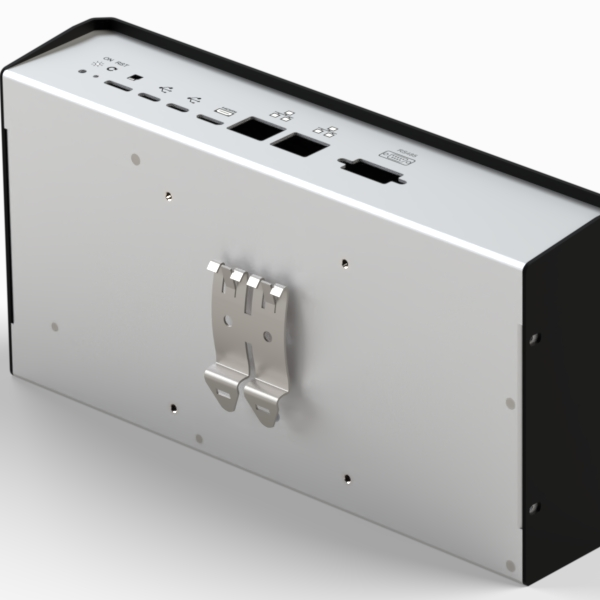

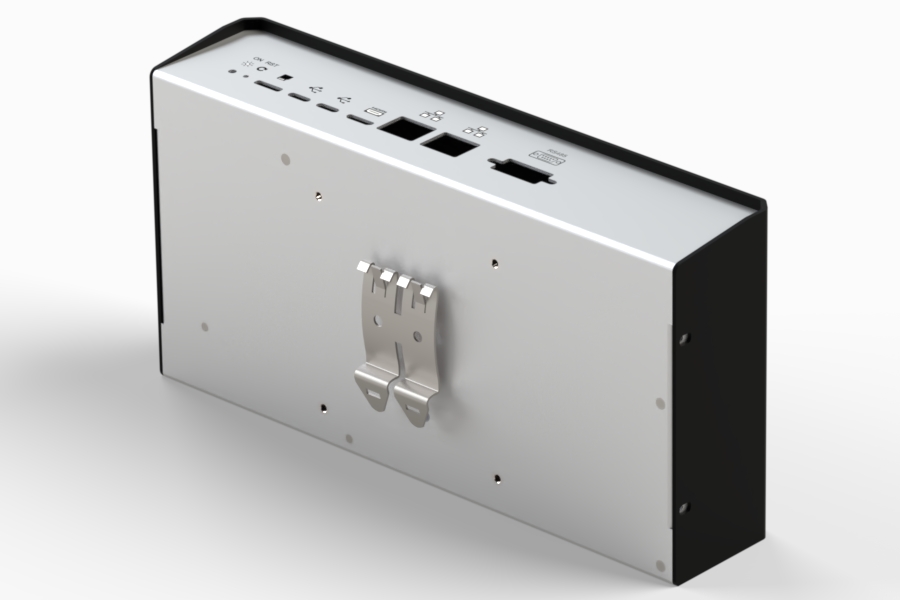

Aluminium enclosures with silver metalised base and black cover. Simple and speedy to assemble, with four screws to put in place.
Details
.jpg)
.jpg)
Products
| |
|---|---|

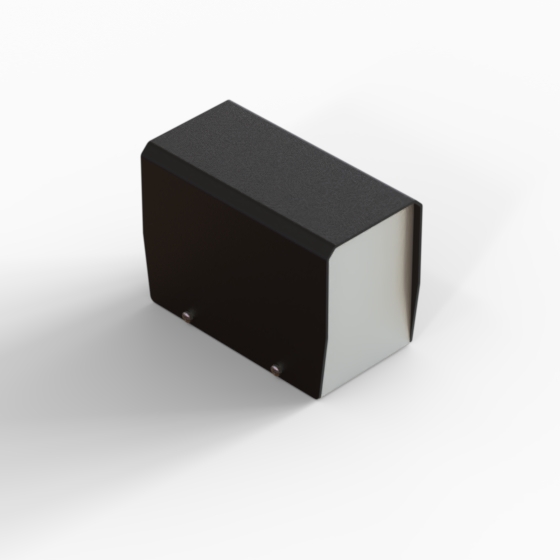

| Model | BC/1.18 |
| L (mm) | 61 |
| W (mm) | 118 |
| H (mm) | 84 |
| Color (Ral) |
9004 9006 |
| Material | EN AW-5010 H42 - AW-3105 H46 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

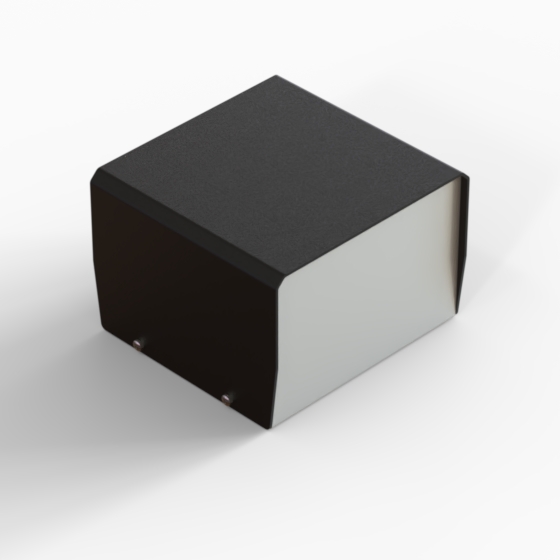

| Model | BC/2.18 |
| L (mm) | 124 |
| W (mm) | 118 |
| H (mm) | 84 |
| Color (Ral) |
9004 9006 |
| Material | EN AW-5010 H42 - AW-3105 H46 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

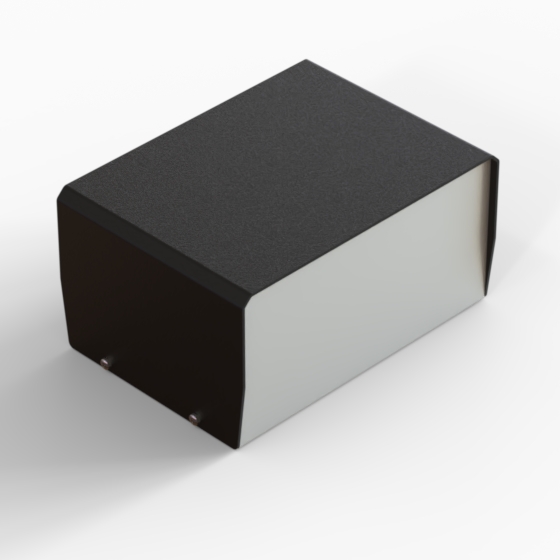

| Model | BC/3.18 |
| L (mm) | 163 |
| W (mm) | 118 |
| H (mm) | 84 |
| Color (Ral) |
9004 9006 |
| Material | EN AW-5010 H42 - AW-3105 H46 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

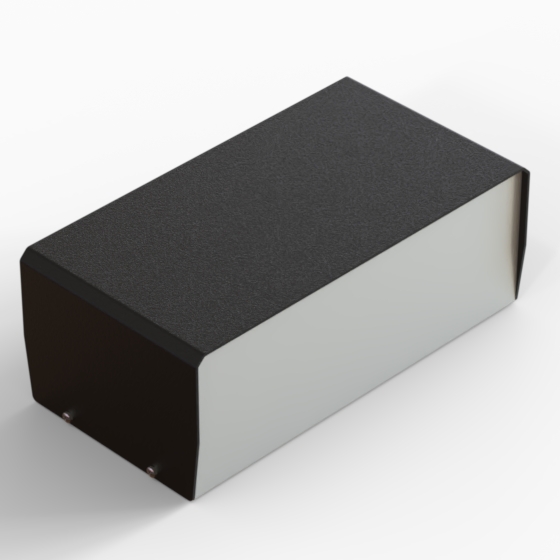

| Model | BC/4.18 |
| L (mm) | 223 |
| W (mm) | 118 |
| H (mm) | 84 |
| Color (Ral) |
9004 9006 |
| Material | EN AW-5010 H42 - AW-3105 H46 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

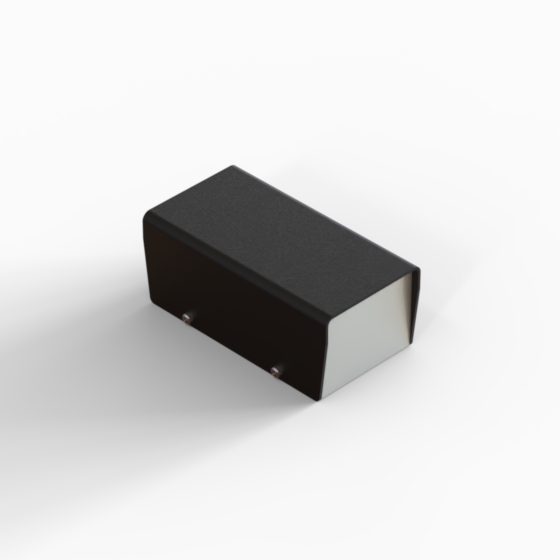

| Model | CH/1.18 |
| L (mm) | 61 |
| W (mm) | 118 |
| H (mm) | 48 |
| Color (Ral) |
9004 9006 |
| Material | EN AW-5010 H42 - AW-3105 H46 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

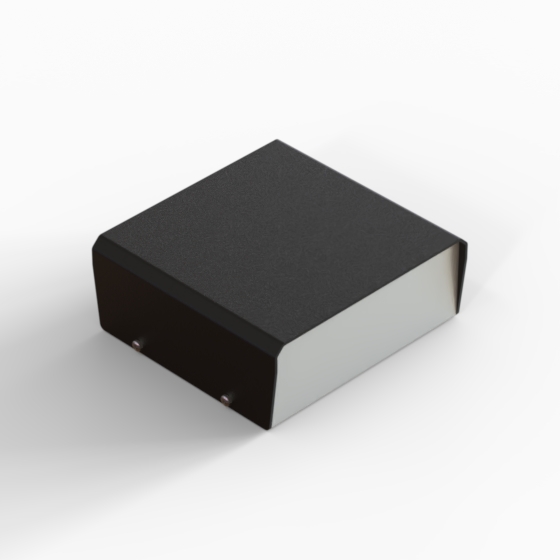

| Model | CH/2.18 |
| L (mm) | 124 |
| W (mm) | 118 |
| H (mm) | 48 |
| Color (Ral) |
9004 9006 |
| Material | EN AW-5010 H42 - AW-3105 H46 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

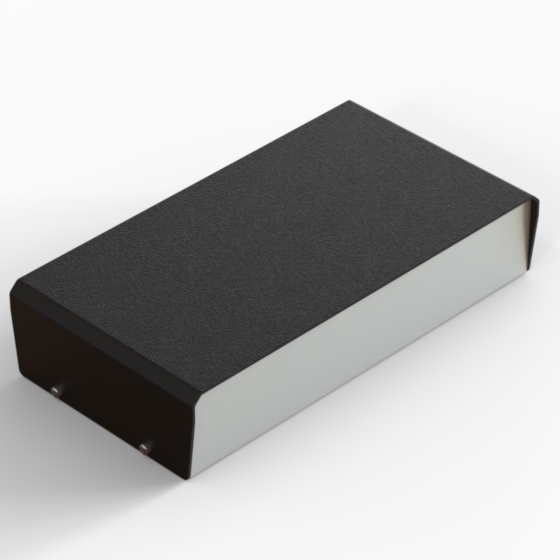

| Model | CH/4.18 |
| L (mm) | 223 |
| W (mm) | 118 |
| H (mm) | 48 |
| Color (Ral) |
9004 9006 |
| Material | EN AW-5010 H42 - AW-3105 H46 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
BC/1.18 | 61 | 118 | 84 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|
|
BC/2.18 | 124 | 118 | 84 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|
|
BC/3.18 | 163 | 118 | 84 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|
|
BC/4.18 | 223 | 118 | 84 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|
|
CH/1.18 | 61 | 118 | 48 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|
|
CH/2.18 | 124 | 118 | 48 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
|
|
|
CH/4.18 | 223 | 118 | 48 |
9004 9006 |
EN AW-5010 H42 - AW-3105 H46 | - | - | 4 | - |
PDF DWG |
View
|
