TEKAL 3

Family Aluminium - Electronic enclosures - Metal

Description

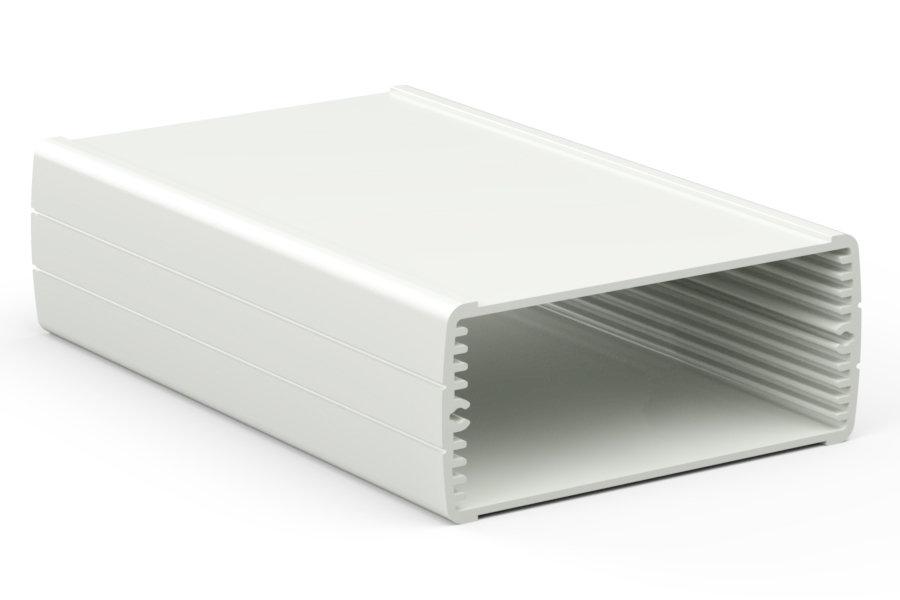

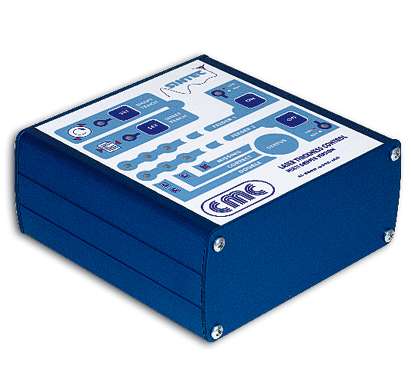

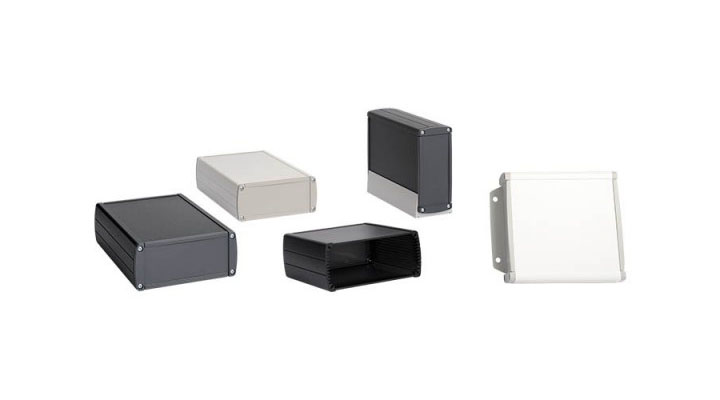

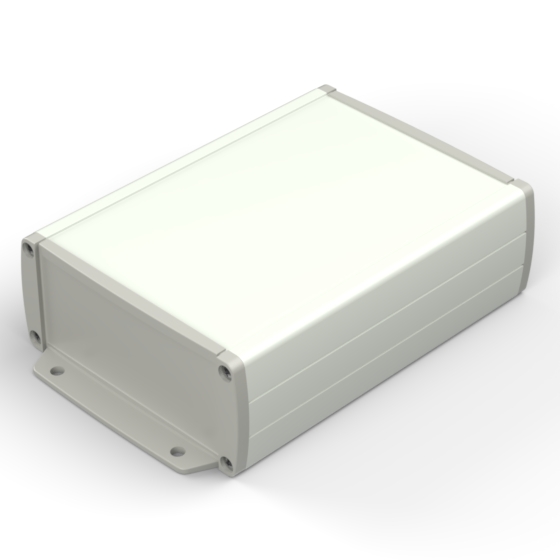

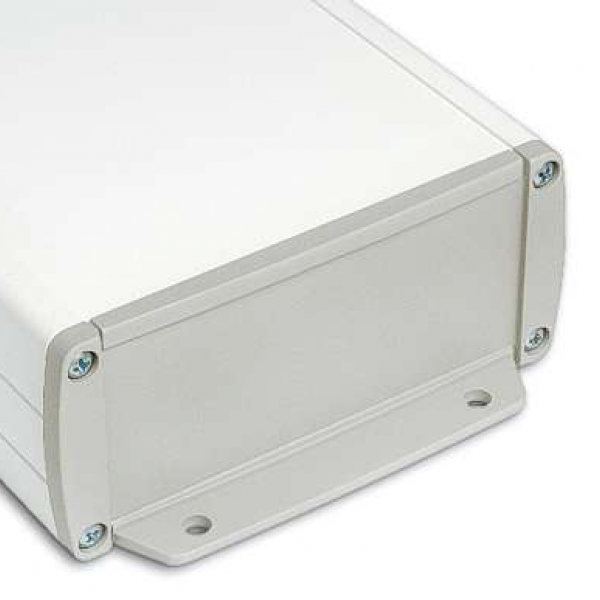

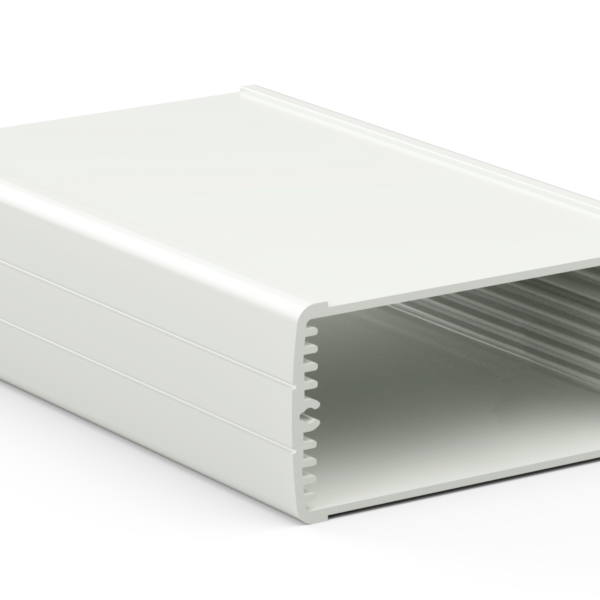

Extruded aluminium cases with high quality painted finishing. Two ABS front panels, internal slots for PCB’s and a recessed area for a keypad membrane. Six standard models are available with different sizes. The models with “-E” have mounting wall panels. Closing by eight screws

Details

Products

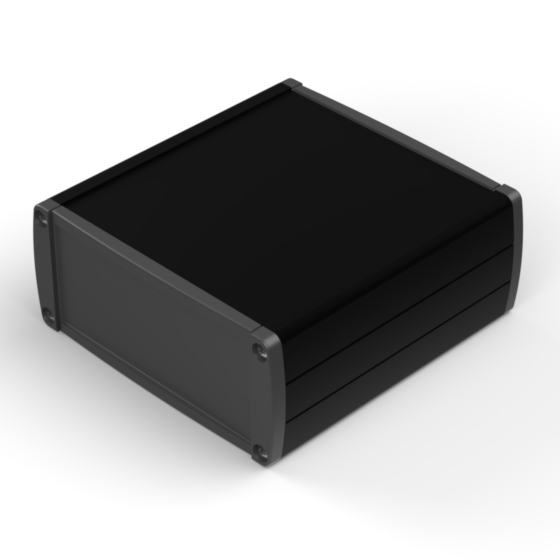

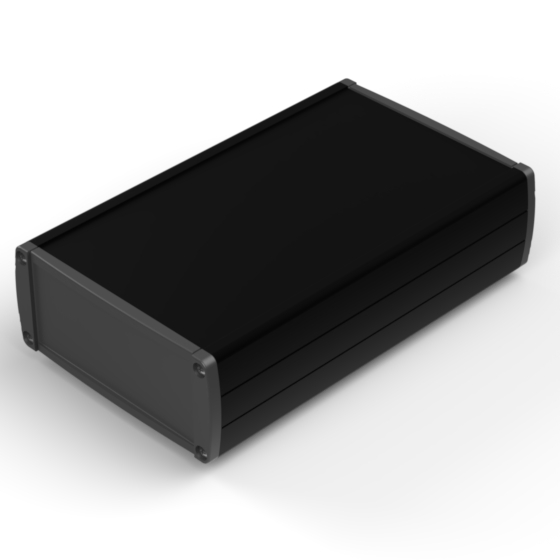

Model TEKAL-31.29
L (mm)110
W (mm)106
H (mm)46
Color (Ral) 9004 7012
Material ALLOY 6060  -  1640 AS
MAX PCB L (mm)100
MAX PCB W (mm)100,5
Screws8
Battery-

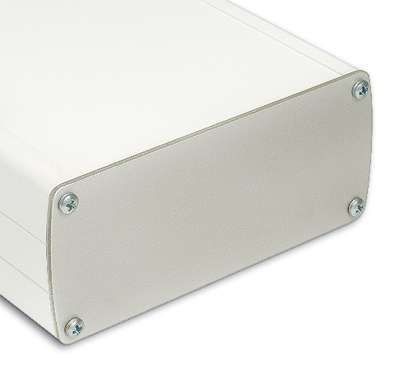

Accessories ALP-3
PPMT3
VS1
Drawings PDF
DWG
Other
View

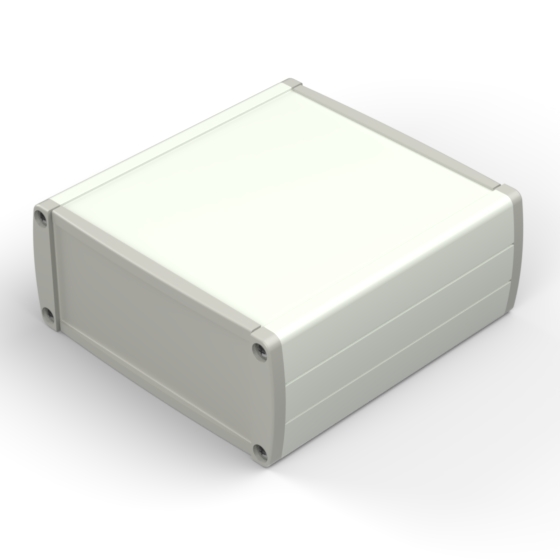

Model TEKAL-31.30
L (mm)110
W (mm)106
H (mm)46
Color (Ral) 9002 9018
Material ALLOY 6060  -  1640 AS
MAX PCB L (mm)100
MAX PCB W (mm)100,5
Screws8
Battery-
Accessories ALP-3
PPMT3
VS1
Drawings PDF
DWG
Other
View

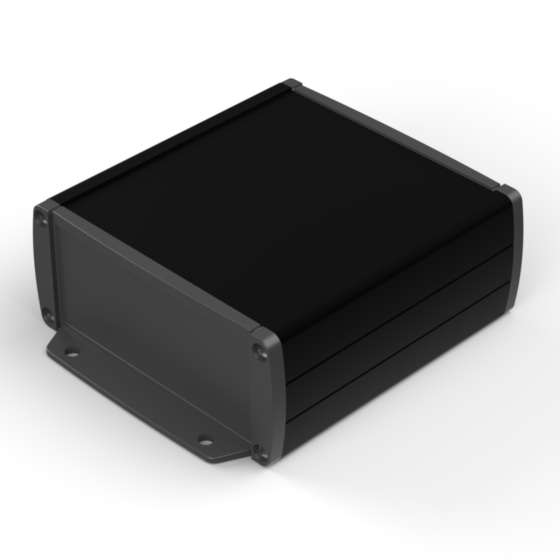

Model TEKAL-31/E.29
L (mm)110
W (mm)106
H (mm)46
Color (Ral) 9004 7012
Material ALLOY 6060  -  1640 AS
MAX PCB L (mm)100
MAX PCB W (mm)100,5
Screws8
Battery-
Accessories ALP-3
VS1
Drawings PDF
DWG
Other
View
Model TEKAL-31/E.30
L (mm)110
W (mm)106
H (mm)46
Color (Ral) 9002 9018
Material ALLOY 6060  -  1640 AS
MAX PCB L (mm)100
MAX PCB W (mm)100,5
Screws8
Battery-
Accessories ALP-3
VS1
Drawings PDF
DWG
Other
View
Model TEKAL-32.29
L (mm)145
W (mm)106
H (mm)46
Color (Ral) 9004 7012
Material ALLOY 6060  -  1640 AS
MAX PCB L (mm)135
MAX PCB W (mm)100,5
Screws8
Battery-
Accessories ALP-3
PPMT3
VS2
Drawings PDF
DWG
Other
View

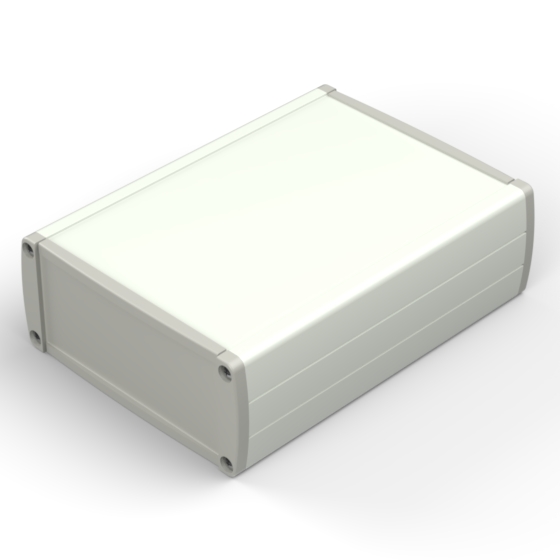

Model TEKAL-32.30
L (mm)145
W (mm)106
H (mm)46
Color (Ral) 9002 9018
Material ALLOY 6060  -  1640 AS
MAX PCB L (mm)135
MAX PCB W (mm)100,5
Screws8
Battery-
Accessories ALP-3
PPMT3
VS2
Drawings PDF
DWG
Other
View
Model TEKAL-32/E.29
L (mm)145
W (mm)106
H (mm)46
Color (Ral) 9004 7012
Material ALLOY 6060  -  1640 AS
MAX PCB L (mm)135
MAX PCB W (mm)100,5
Screws8
Battery-
Accessories ALP-3
VS2
Drawings PDF
DWG
Other
View
Model TEKAL-32/E.30
L (mm)145
W (mm)106
H (mm)46
Color (Ral) 9002 9018
Material ALLOY 6060  -  1640 AS
MAX PCB L (mm)135
MAX PCB W (mm)100,5
Screws8
Battery-
Accessories ALP-3
VS2
Drawings PDF
DWG
Other
View
Model TEKAL-33.29
L (mm)175
W (mm)106
H (mm)46
Color (Ral) 9004 7012
Material ALLOY 6060  -  1640 AS
MAX PCB L (mm)165
MAX PCB W (mm)100,5
Screws8
Battery-
Accessories ALP-3
PPMT3
VS3
Drawings PDF
DWG
Other
View

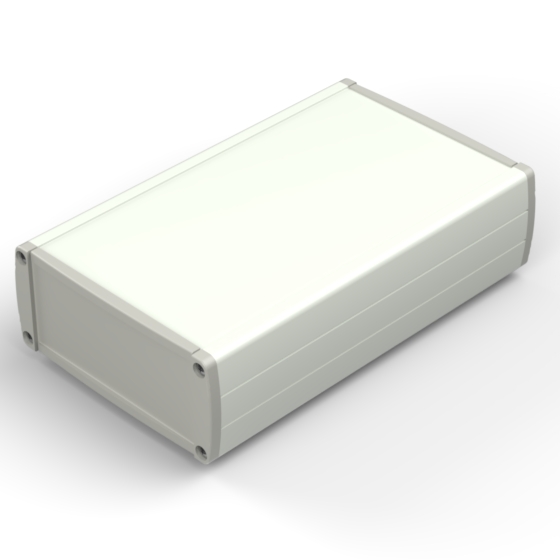

Model TEKAL-33.30
L (mm)175
W (mm)106
H (mm)46
Color (Ral) 9002 9018
Material ALLOY 6060  -  1640 AS
MAX PCB L (mm)165
MAX PCB W (mm)100,5
Screws8
Battery-
Accessories ALP-3
PPMT3
VS3
Drawings PDF
DWG
Other
View

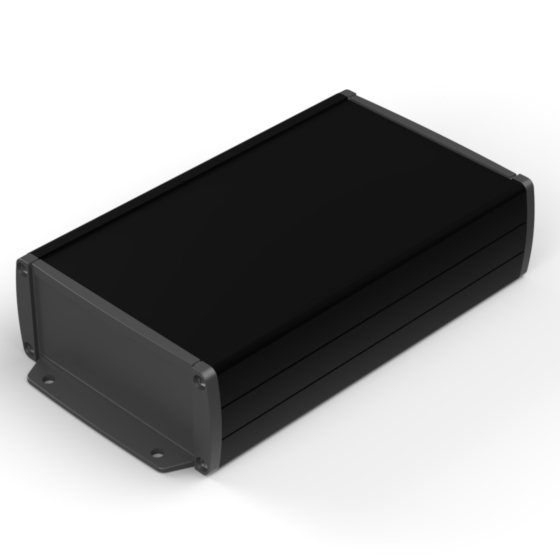

Model TEKAL-33/E.29
L (mm)175
W (mm)106
H (mm)46
Color (Ral) 9004 7012
Material ALLOY 6060  -  1640 AS
MAX PCB L (mm)165
MAX PCB W (mm)100,5
Screws8
Battery-
Accessories ALP-3
VS3
Drawings PDF
DWG
Other
View

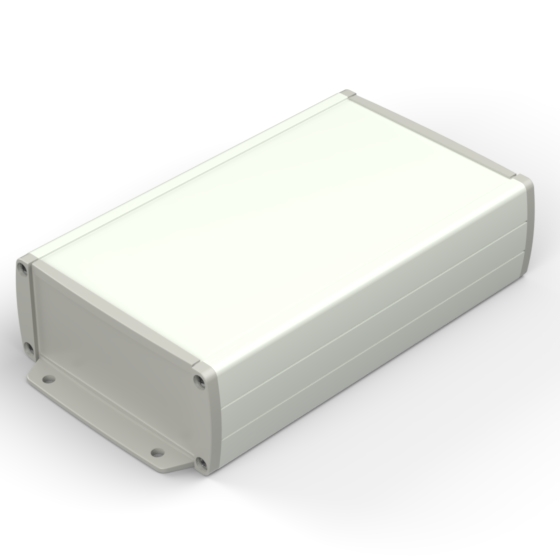

Model TEKAL-33/E.30
L (mm)175
W (mm)106
H (mm)46
Color (Ral) 9002 9018
Material ALLOY 6060  -  1640 AS
MAX PCB L (mm)165
MAX PCB W (mm)100,5
Screws8
Battery-
Accessories ALP-3
VS3
Drawings PDF
DWG
Other
View
Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
TEKAL-31.29 110 106 46 9004 7012
ALLOY 6060  -  1640 AS 100 100,5 8 - ALP-3
PPMT3
VS1
PDF
DWG
View
TEKAL-31.30 110 106 46 9002 9018
ALLOY 6060  -  1640 AS 100 100,5 8 - ALP-3
PPMT3
VS1
PDF
DWG
View
TEKAL-31/E.29 110 106 46 9004 7012
ALLOY 6060  -  1640 AS 100 100,5 8 - ALP-3
VS1
PDF
DWG
View
TEKAL-31/E.30 110 106 46 9002 9018
ALLOY 6060  -  1640 AS 100 100,5 8 - ALP-3
VS1
PDF
DWG
View
TEKAL-32.29 145 106 46 9004 7012
ALLOY 6060  -  1640 AS 135 100,5 8 - ALP-3
PPMT3
VS2
PDF
DWG
View
TEKAL-32.30 145 106 46 9002 9018
ALLOY 6060  -  1640 AS 135 100,5 8 - ALP-3
PPMT3
VS2
PDF
DWG
View
TEKAL-32/E.29 145 106 46 9004 7012
ALLOY 6060  -  1640 AS 135 100,5 8 - ALP-3
VS2
PDF
DWG
View
TEKAL-32/E.30 145 106 46 9002 9018
ALLOY 6060  -  1640 AS 135 100,5 8 - ALP-3
VS2
PDF
DWG
View
TEKAL-33.29 175 106 46 9004 7012
ALLOY 6060  -  1640 AS 165 100,5 8 - ALP-3
PPMT3
VS3
PDF
DWG
View
TEKAL-33.30 175 106 46 9002 9018
ALLOY 6060  -  1640 AS 165 100,5 8 - ALP-3
PPMT3
VS3
PDF
DWG
View
TEKAL-33/E.29 175 106 46 9004 7012
ALLOY 6060  -  1640 AS 165 100,5 8 - ALP-3
VS3
PDF
DWG
View
TEKAL-33/E.30 175 106 46 9002 9018
ALLOY 6060  -  1640 AS 165 100,5 8 - ALP-3
VS3
PDF
DWG
View
12 product families, 152 series. You can't find what you're looking for? Contact us
