Description

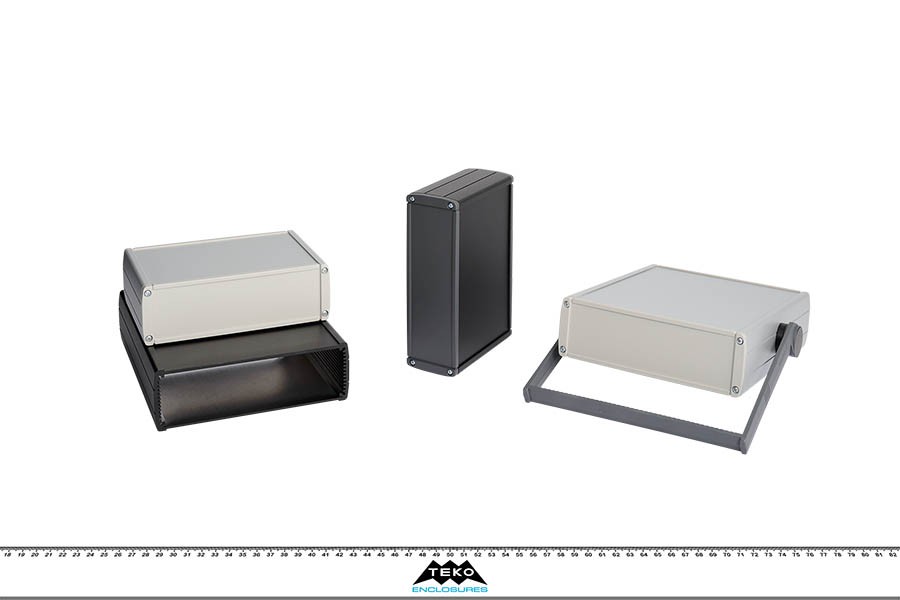

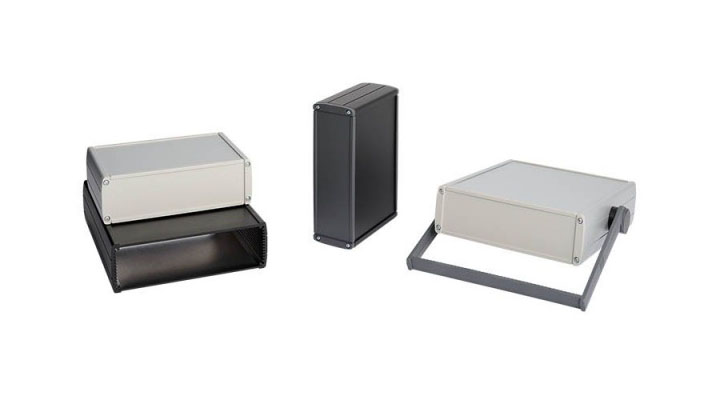

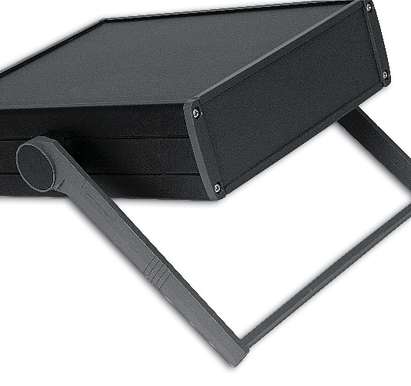

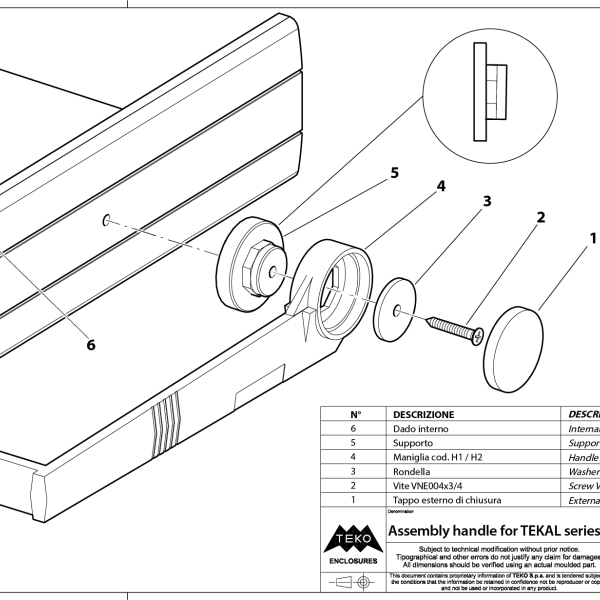

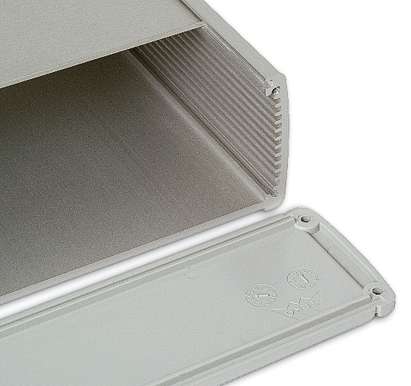

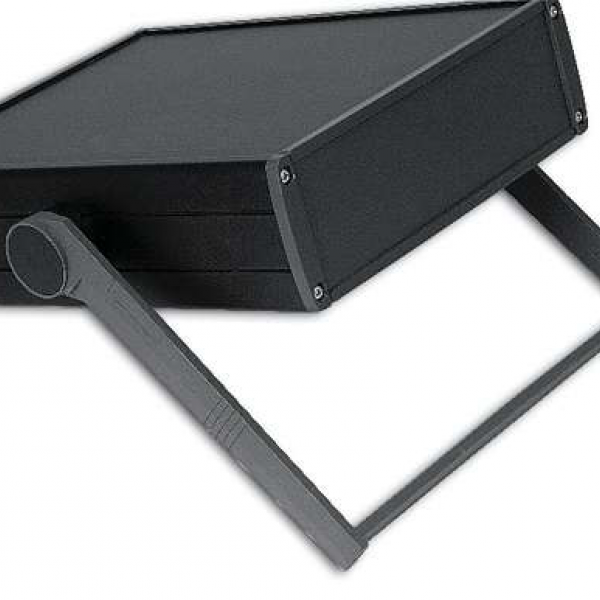

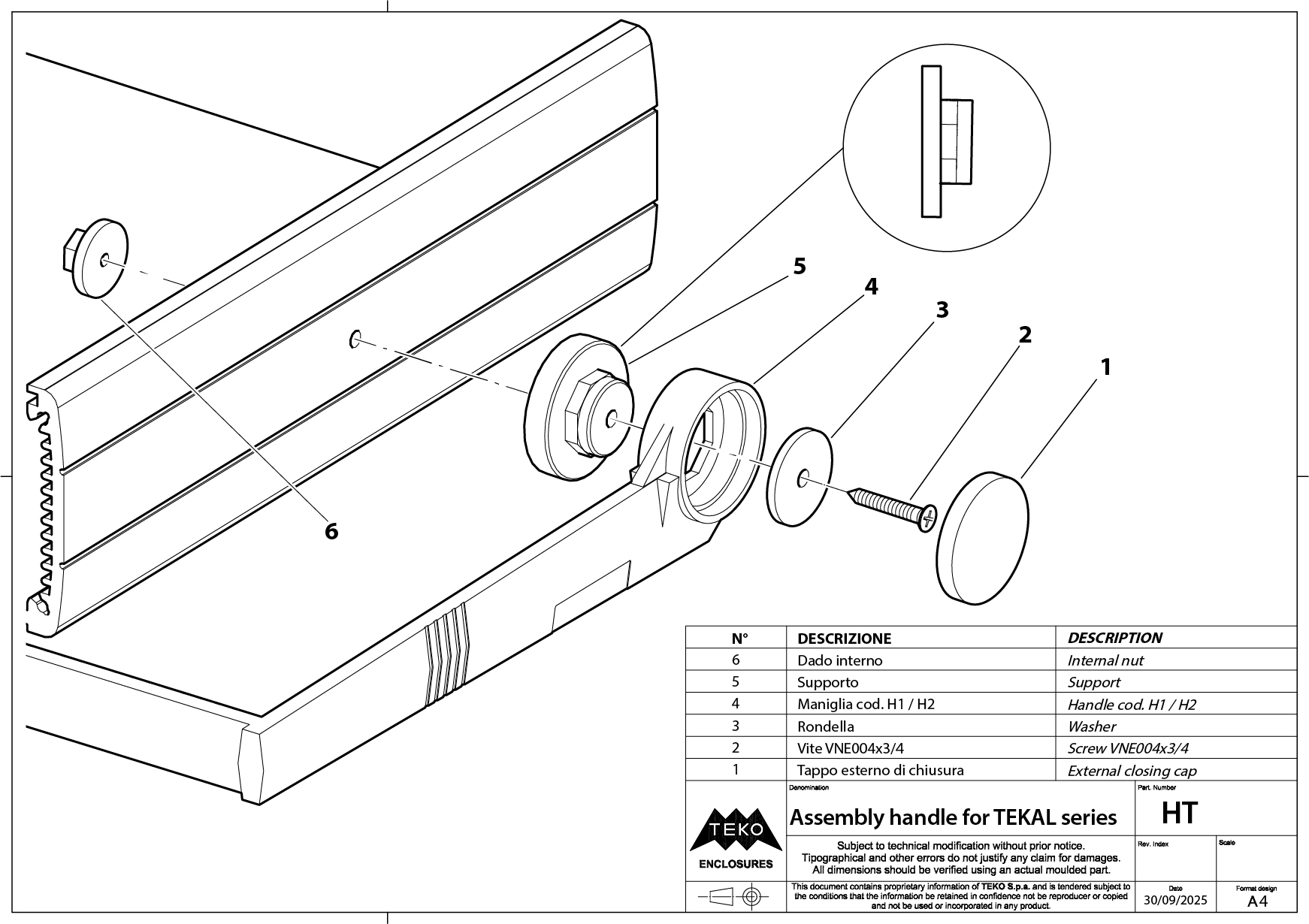

Extruded aluminium cases with high quality painted finishing and sliding cover aluminium panel. Two ABS front panels, internal slots for PCB’s. The models with “-H” have a plastic handle bar with eight position locking. Two different lengths. Closing by eight screws.
Products

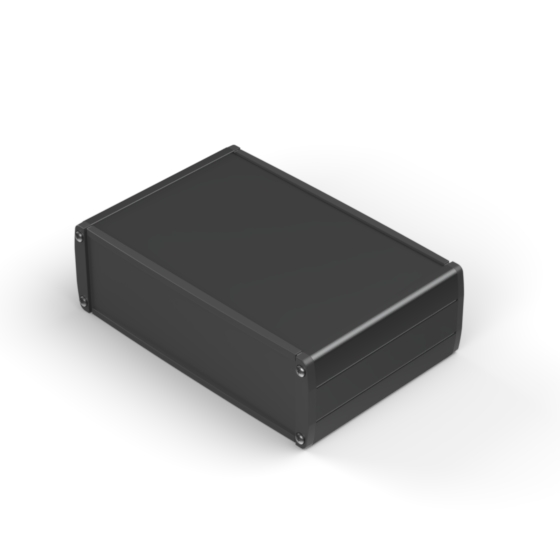

Model | TEKAL-41.29 |
L (mm) | 110 |
W (mm) | 167 |
H (mm) | 53 |
Color (Ral) |
9004 7012 |
Material | ALLOY 6060 - 1640 AS |
MAX PCB L (mm) | 100 |
MAX PCB W (mm) | 160 |
Screws | 8 |
Battery | - |
Accessories |
H2 ALP-4 |
Drawings |
PDF DWG |
Other |
View
|

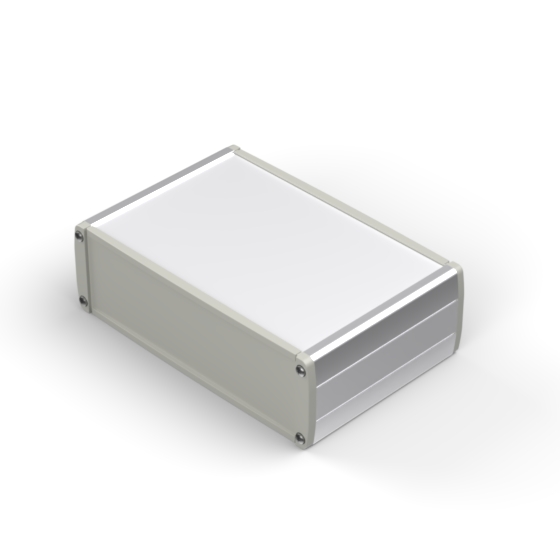

Model | TEKAL-41.31 |
L (mm) | 110 |
W (mm) | 167 |
H (mm) | 53 |
Color (Ral) |
9006 9018 |
Material | ALLOY 6060 - 1640 AS |
MAX PCB L (mm) | 100 |
MAX PCB W (mm) | 160 |
Screws | 8 |
Battery | - |
Accessories |
H2 ALP-4 |
Drawings |
PDF DWG |
Other |
View
|

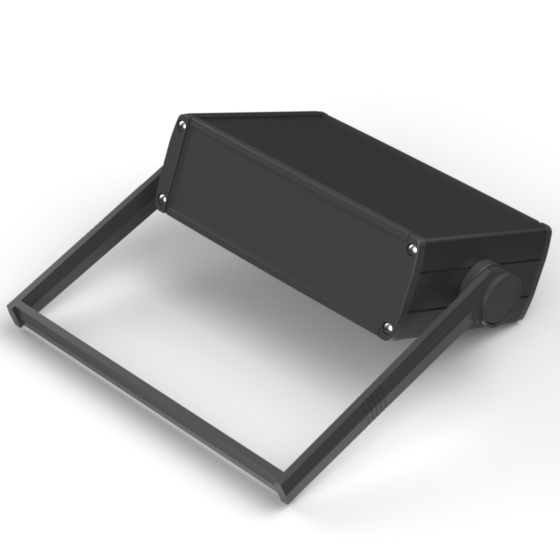

Model | TEKAL-41/H.29 |
L (mm) | 110 |
W (mm) | 167 |
H (mm) | 53 |
Color (Ral) |
9004 7012 |
Material | ALLOY 6060 - 1640 AS |
MAX PCB L (mm) | 100 |
MAX PCB W (mm) | 160 |
Screws | 8 |
Battery | - |
Accessories |
ALP-4 |
Drawings |
PDF DWG |
Other |
View
|

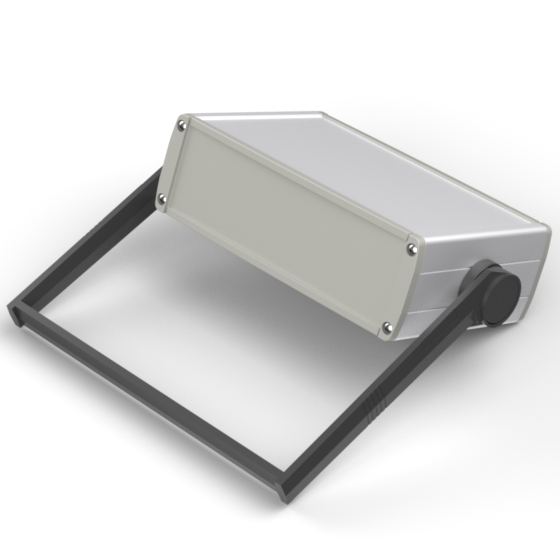

Model | TEKAL-41/H.31 |
L (mm) | 110 |
W (mm) | 167 |
H (mm) | 53 |
Color (Ral) |
9006 9018 |
Material | ALLOY 6060 - 1640 AS |
MAX PCB L (mm) | 100 |
MAX PCB W (mm) | 160 |
Screws | 8 |
Battery | - |
Accessories |
ALP-4 |
Drawings |
PDF DWG |
Other |
View
|

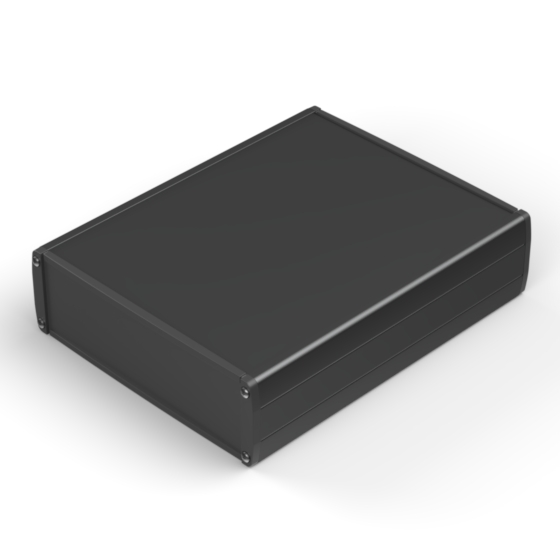

Model | TEKAL-42.29 |
L (mm) | 210 |
W (mm) | 167 |
H (mm) | 53 |
Color (Ral) |
9004 7012 |
Material | ALLOY 6060 - 1640 AS |
MAX PCB L (mm) | 200 |
MAX PCB W (mm) | 160 |
Screws | 8 |
Battery | - |
Accessories |
H2 ALP-4 |
Drawings |
PDF DWG |
Other |
View
|

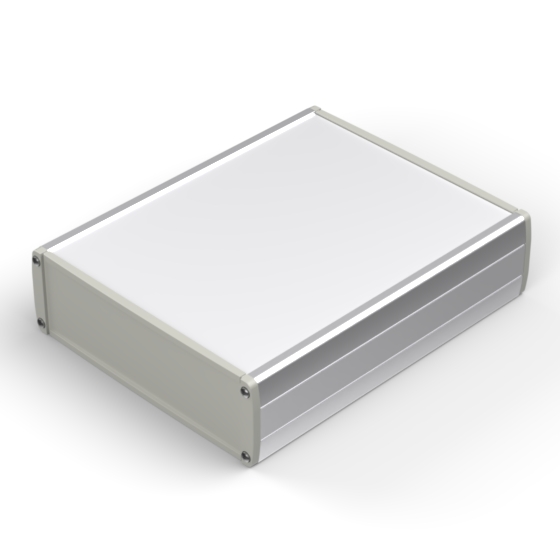

Model | TEKAL-42.31 |
L (mm) | 210 |
W (mm) | 167 |
H (mm) | 53 |
Color (Ral) |
9006 9018 |
Material | ALLOY 6060 - 1640 AS |
MAX PCB L (mm) | 200 |
MAX PCB W (mm) | 160 |
Screws | 8 |
Battery | - |
Accessories |
H2 ALP-4 |
Drawings |
PDF DWG |
Other |
View
|

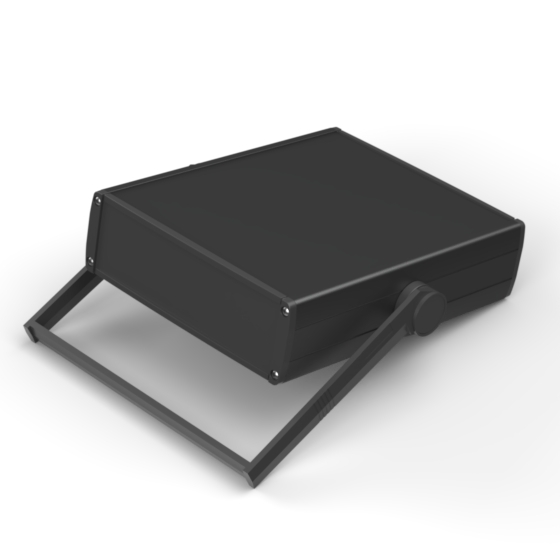

Model | TEKAL-42/H.29 |
L (mm) | 210 |
W (mm) | 167 |
H (mm) | 53 |
Color (Ral) |
9004 7012 |
Material | ALLOY 6060 - 1640 AS |
MAX PCB L (mm) | 200 |
MAX PCB W (mm) | 160 |
Screws | 8 |
Battery | - |
Accessories |
ALP-4 |
Drawings |
PDF DWG |
Other |
View
|

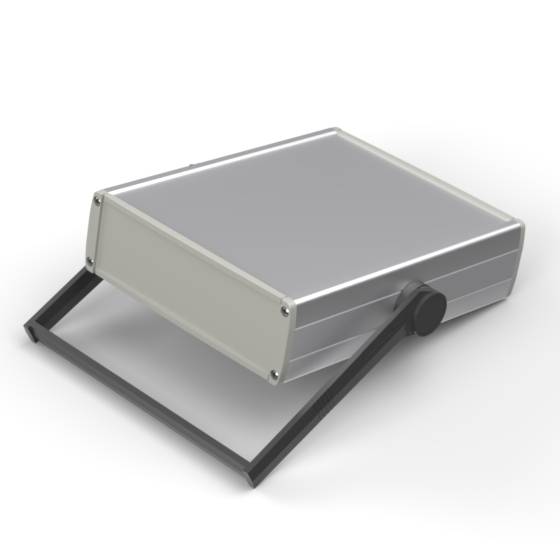

Model | TEKAL-42/H.31 |
L (mm) | 210 |
W (mm) | 167 |
H (mm) | 53 |
Color (Ral) |
9006 9018 |
Material | ALLOY 6060 - 1640 AS |
MAX PCB L (mm) | 200 |
MAX PCB W (mm) | 160 |
Screws | 8 |
Battery | - |
Accessories |
ALP-4 |
Drawings |
PDF DWG |
Other |
View
|
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TEKAL-41.29 | 110 | 167 | 53 |
9004 7012 |
ALLOY 6060 - 1640 AS | 100 | 160 | 8 | - |
H2 ALP-4 |
PDF DWG |
View
|
|
TEKAL-41.31 | 110 | 167 | 53 |
9006 9018 |
ALLOY 6060 - 1640 AS | 100 | 160 | 8 | - |
H2 ALP-4 |
PDF DWG |
View
|
|
TEKAL-41/H.29 | 110 | 167 | 53 |
9004 7012 |
ALLOY 6060 - 1640 AS | 100 | 160 | 8 | - |
ALP-4 |
PDF DWG |
View
|
|
TEKAL-41/H.31 | 110 | 167 | 53 |
9006 9018 |
ALLOY 6060 - 1640 AS | 100 | 160 | 8 | - |
ALP-4 |
PDF DWG |
View
|
|
TEKAL-42.29 | 210 | 167 | 53 |
9004 7012 |
ALLOY 6060 - 1640 AS | 200 | 160 | 8 | - |
H2 ALP-4 |
PDF DWG |
View
|
|
TEKAL-42.31 | 210 | 167 | 53 |
9006 9018 |
ALLOY 6060 - 1640 AS | 200 | 160 | 8 | - |
H2 ALP-4 |
PDF DWG |
View
|
|
TEKAL-42/H.29 | 210 | 167 | 53 |
9004 7012 |
ALLOY 6060 - 1640 AS | 200 | 160 | 8 | - |
ALP-4 |
PDF DWG |
View
|
|
TEKAL-42/H.31 | 210 | 167 | 53 |
9006 9018 |
ALLOY 6060 - 1640 AS | 200 | 160 | 8 | - |
ALP-4 |
PDF DWG |
View
|
12 product families, 152 series. You can't find what you're looking for? Contact us
