Description

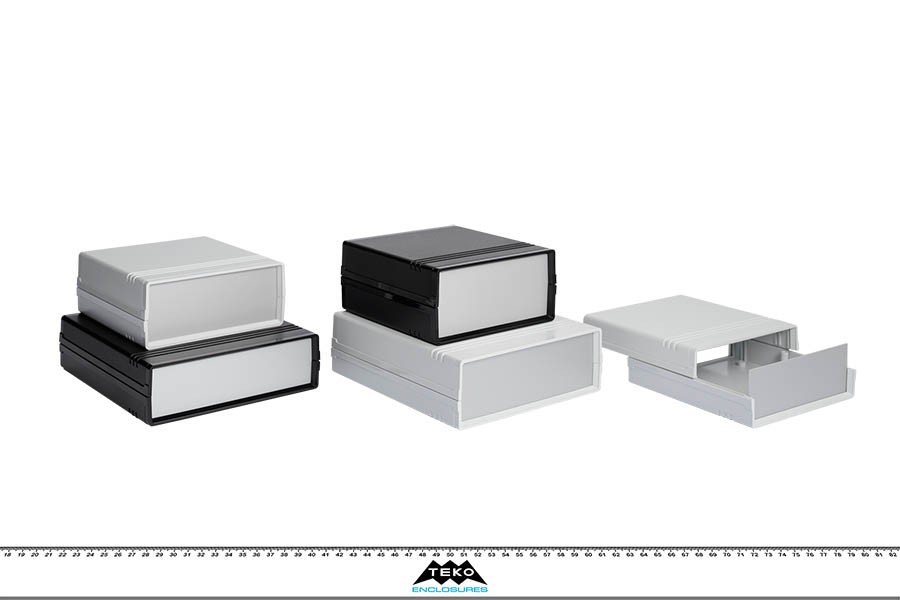

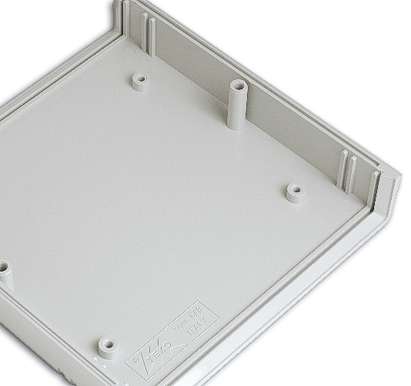

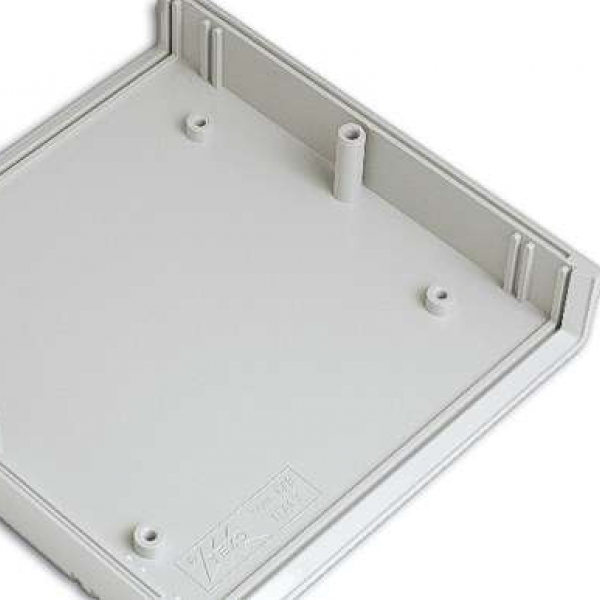

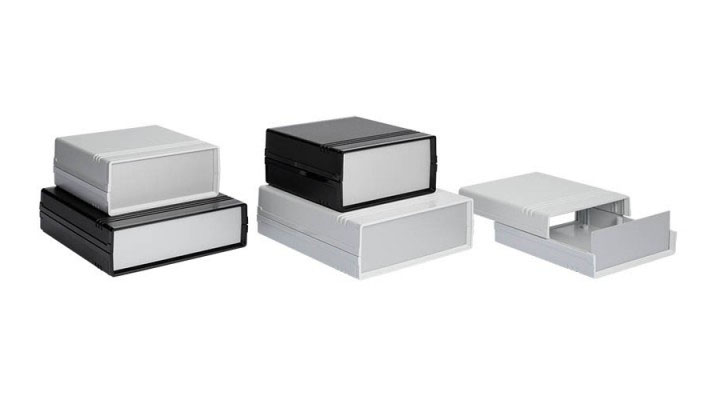

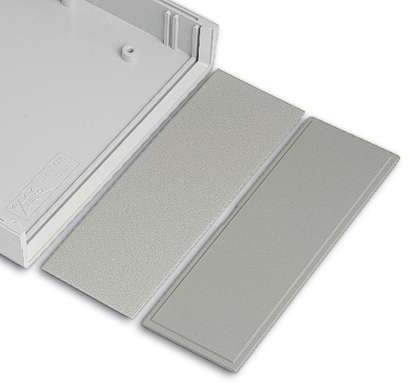

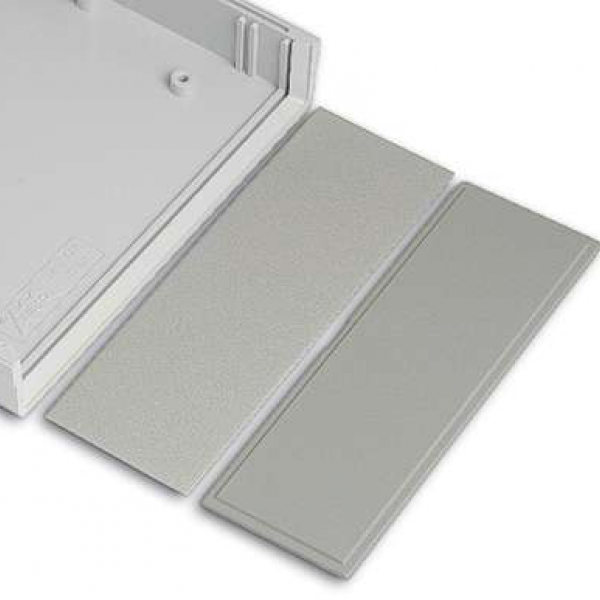

An ABS enclosure with two 1 mm aluminium panels. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by only two screws. Available also front and rear panels manufactured from ABS (.13).
Details
Products
| |
|---|---|

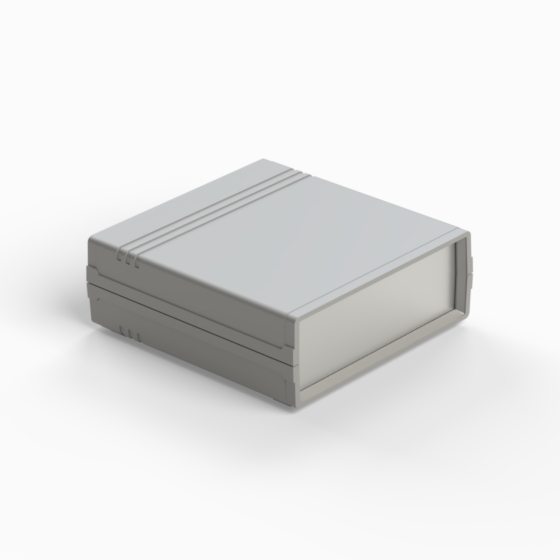

| Model | 011.5 |
| L (mm) | 134 |
| W (mm) | 129 |
| H (mm) | 47 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 116 |
| MAX PCB W (mm) | 115 |
| Screws | 2 |
| Battery | - |
| Accessories |
PP11 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

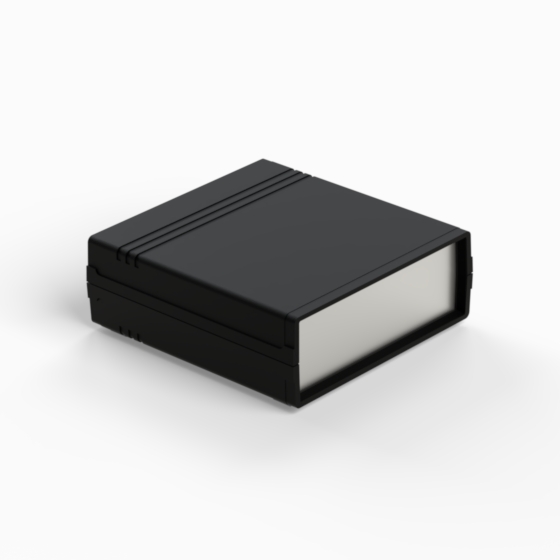

| Model | 011.9 |
| L (mm) | 134 |
| W (mm) | 129 |
| H (mm) | 47 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 116 |
| MAX PCB W (mm) | 115 |
| Screws | 2 |
| Battery | - |
| Accessories |
PP11 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 012.5 |
| L (mm) | 134 |
| W (mm) | 129 |
| H (mm) | 54 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 116 |
| MAX PCB W (mm) | 115 |
| Screws | 2 |
| Battery | - |
| Accessories |
PP12 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

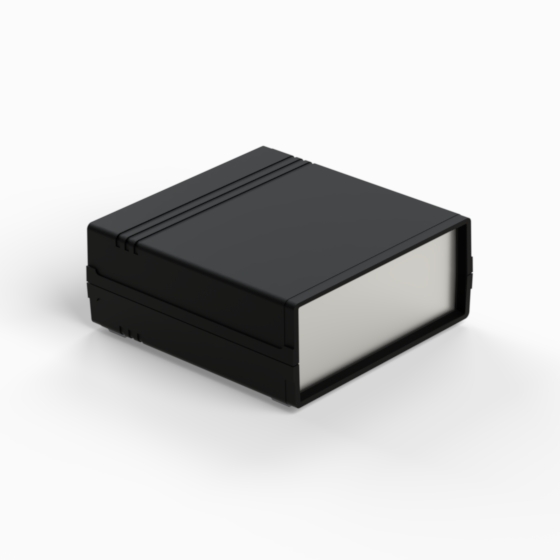

| Model | 012.9 |
| L (mm) | 134 |
| W (mm) | 129 |
| H (mm) | 54 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 116 |
| MAX PCB W (mm) | 115 |
| Screws | 2 |
| Battery | - |
| Accessories |
PP12 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

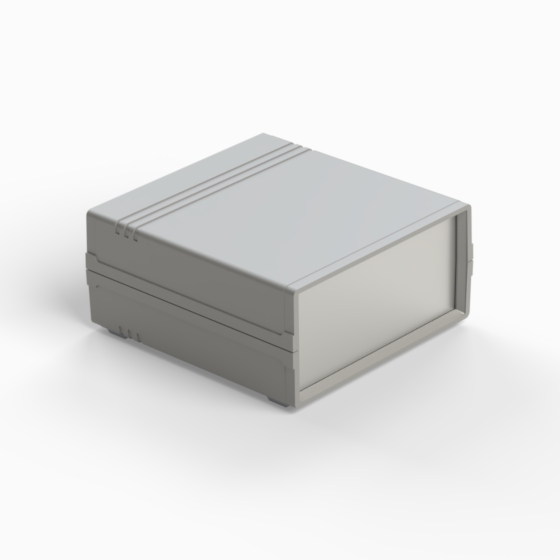

| Model | 022.5 |
| L (mm) | 134 |
| W (mm) | 129 |
| H (mm) | 61 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 116 |
| MAX PCB W (mm) | 115 |
| Screws | 2 |
| Battery | - |
| Accessories |
PP22 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

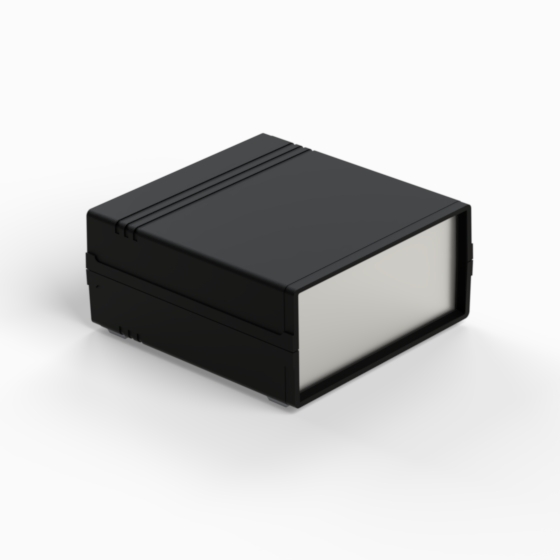

| Model | 022.9 |
| L (mm) | 134 |
| W (mm) | 129 |
| H (mm) | 61 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 116 |
| MAX PCB W (mm) | 115 |
| Screws | 2 |
| Battery | - |
| Accessories |
PP22 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

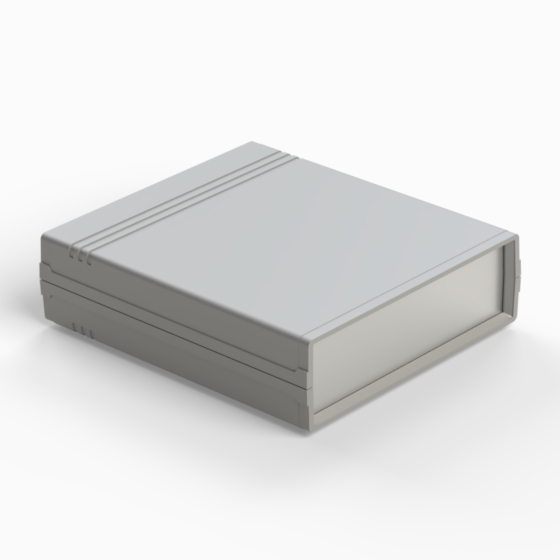

| Model | 222.5 |
| L (mm) | 173 |
| W (mm) | 154 |
| H (mm) | 47 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 140 |
| Screws | 2 |
| Battery | - |
| Accessories |
PP222 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

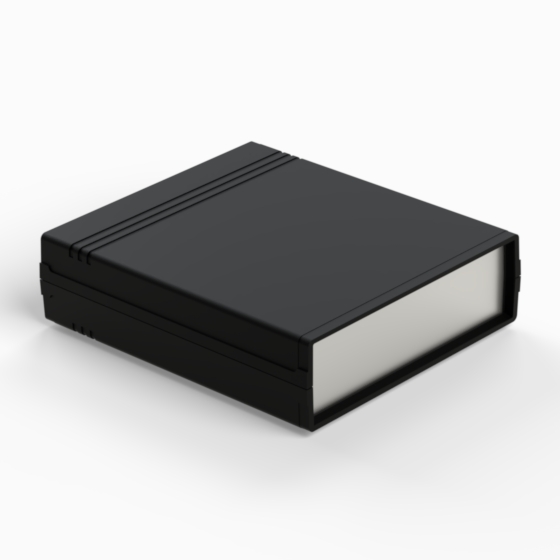

| Model | 222.9 |
| L (mm) | 173 |
| W (mm) | 154 |
| H (mm) | 47 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 140 |
| Screws | 2 |
| Battery | - |
| Accessories |
PP222 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

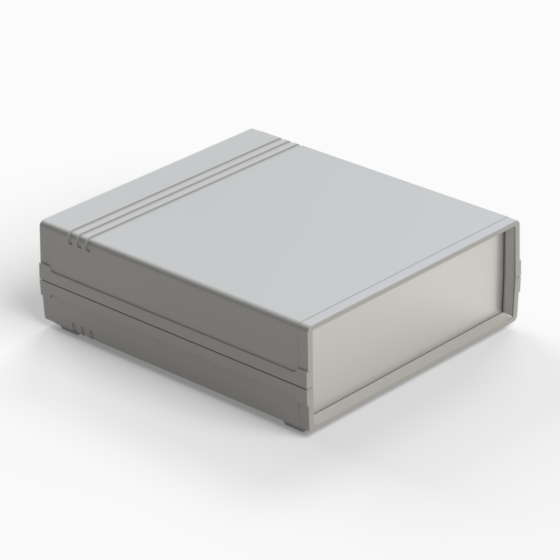

| Model | 223.5 |
| L (mm) | 173 |
| W (mm) | 154 |
| H (mm) | 54 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 140 |
| Screws | 2 |
| Battery | - |
| Accessories |
PP223 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

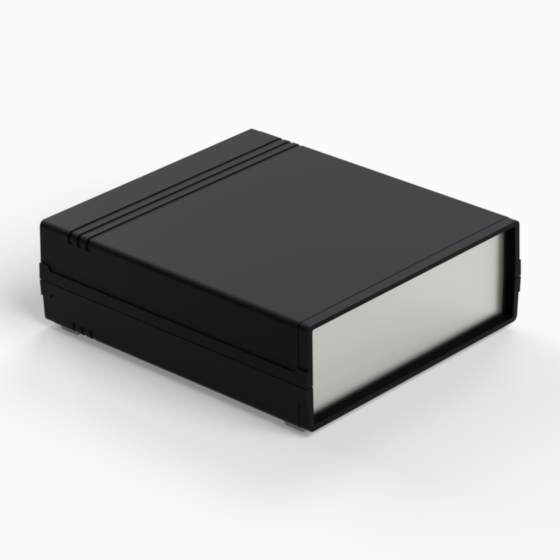

| Model | 223.9 |
| L (mm) | 173 |
| W (mm) | 154 |
| H (mm) | 54 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 140 |
| Screws | 2 |
| Battery | - |
| Accessories |
PP223 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 233.5 |
| L (mm) | 173 |
| W (mm) | 154 |
| H (mm) | 61 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 140 |
| Screws | 2 |
| Battery | - |
| Accessories |
PP233 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

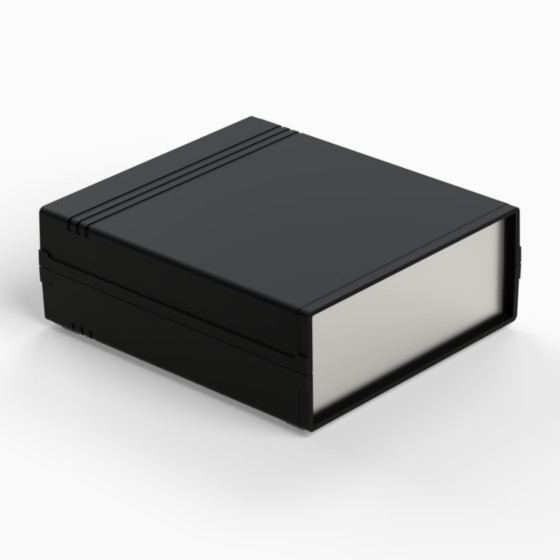

| Model | 233.9 |
| L (mm) | 173 |
| W (mm) | 154 |
| H (mm) | 61 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 140 |
| Screws | 2 |
| Battery | - |
| Accessories |
PP233 |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
011.5 | 134 | 129 | 47 |
9018 |
AG-ATY | 116 | 115 | 2 | - |
PP11 |
PDF DWG |
View
|
|
|
011.9 | 134 | 129 | 47 |
9004 |
P2H-AT | 116 | 115 | 2 | - |
PP11 |
PDF DWG |
View
|
|
|
012.5 | 134 | 129 | 54 |
9018 |
AG-ATY | 116 | 115 | 2 | - |
PP12 |
PDF DWG |
View
|
|
|
012.9 | 134 | 129 | 54 |
9004 |
P2H-AT | 116 | 115 | 2 | - |
PP12 |
PDF DWG |
View
|
|
|
022.5 | 134 | 129 | 61 |
9018 |
AG-ATY | 116 | 115 | 2 | - |
PP22 |
PDF DWG |
View
|
|
|
022.9 | 134 | 129 | 61 |
9004 |
P2H-AT | 116 | 115 | 2 | - |
PP22 |
PDF DWG |
View
|
|
|
222.5 | 173 | 154 | 47 |
9018 |
AG-ATY | 154 | 140 | 2 | - |
PP222 |
PDF DWG |
View
|
|
|
222.9 | 173 | 154 | 47 |
9004 |
P2H-AT | 154 | 140 | 2 | - |
PP222 |
PDF DWG |
View
|
|
|
223.5 | 173 | 154 | 54 |
9018 |
AG-ATY | 154 | 140 | 2 | - |
PP223 |
PDF DWG |
View
|
|
|
223.9 | 173 | 154 | 54 |
9004 |
P2H-AT | 154 | 140 | 2 | - |
PP223 |
PDF DWG |
View
|
|
|
233.5 | 173 | 154 | 61 |
9018 |
AG-ATY | 154 | 140 | 2 | - |
PP233 |
PDF DWG |
View
|
|
|
233.9 | 173 | 154 | 61 |
9004 |
P2H-AT | 154 | 140 | 2 | - |
PP233 |
PDF DWG |
View
|
12 product families, 152 series. You can't find what you're looking for? Contact us
