DESIGNER

Family Front Panel - Electronic enclosures - Plastic

Description

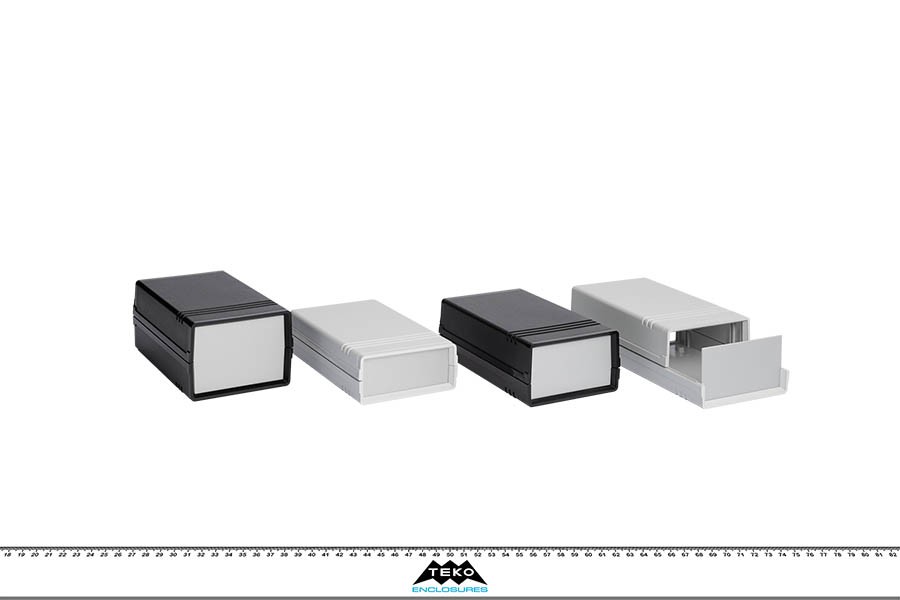

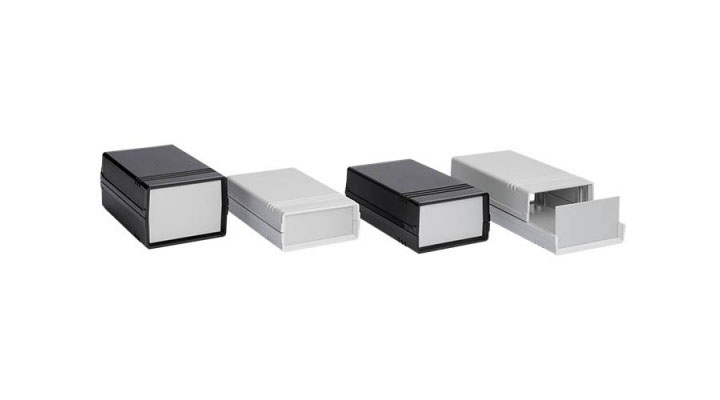

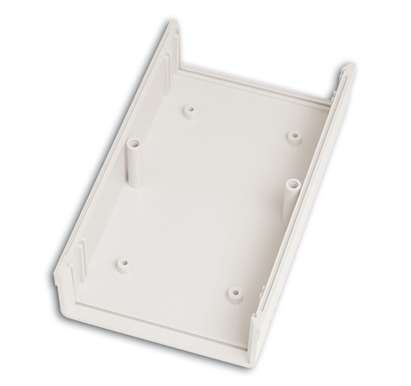

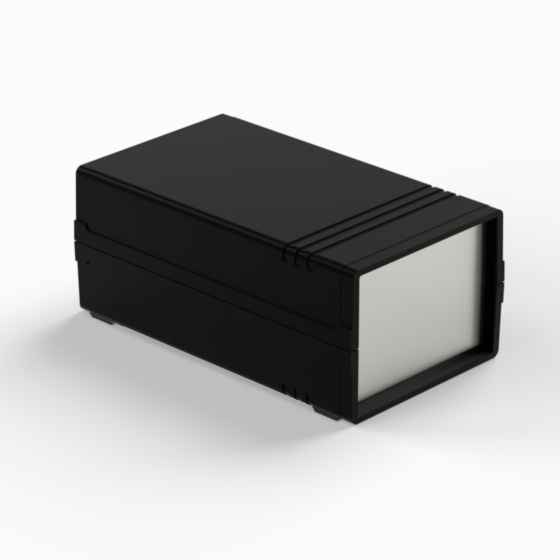

An ABS enclosure with two 1 mm aluminium panels. Each half-shells has mounting studs. Matt surface finish. Closing by only two screws. Available with plastic panels (Mod. PPD1. PPD2, PPD3).

Details

Products

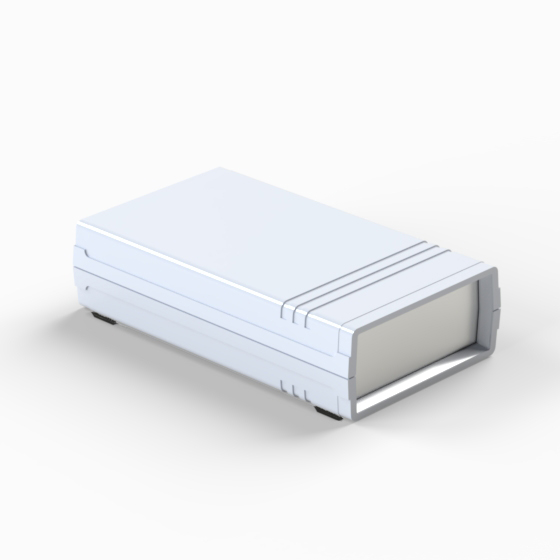

Model 10001.5
L (mm)145
W (mm)85
H (mm)37
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)126
MAX PCB W (mm)72
Screws2
Battery-
Accessories PPD1
Drawings PDF
DWG
Other
View

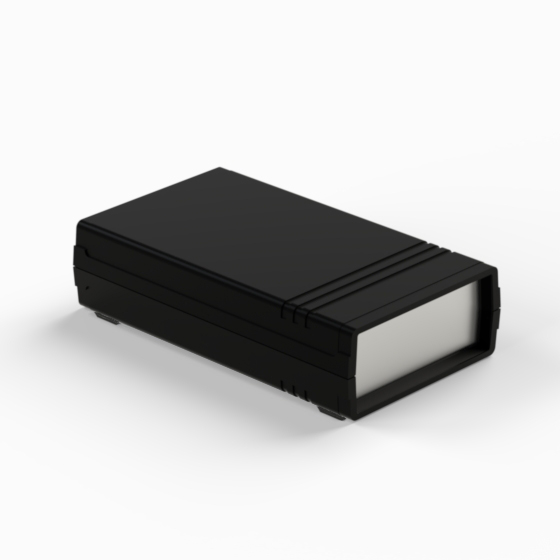

Model 10001.9
L (mm)145
W (mm)85
H (mm)37
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)126
MAX PCB W (mm)72
Screws2
Battery-
Accessories PPD1
Drawings PDF
DWG
Other
View

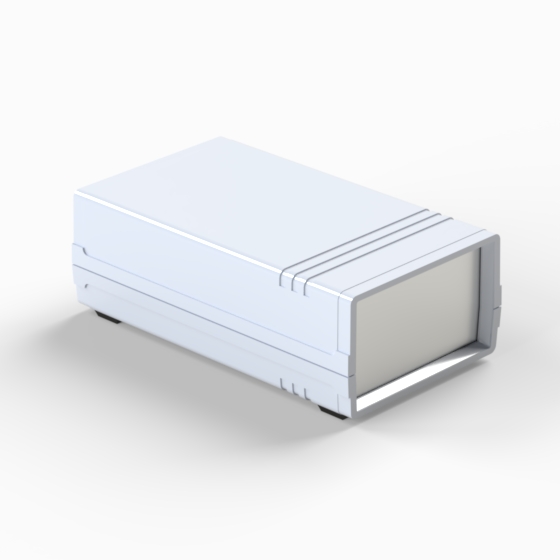

Model 10002.5
L (mm)145
W (mm)85
H (mm)49
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)126
MAX PCB W (mm)72
Screws2
Battery-
Accessories PPD2
Drawings PDF
DWG
Other
View

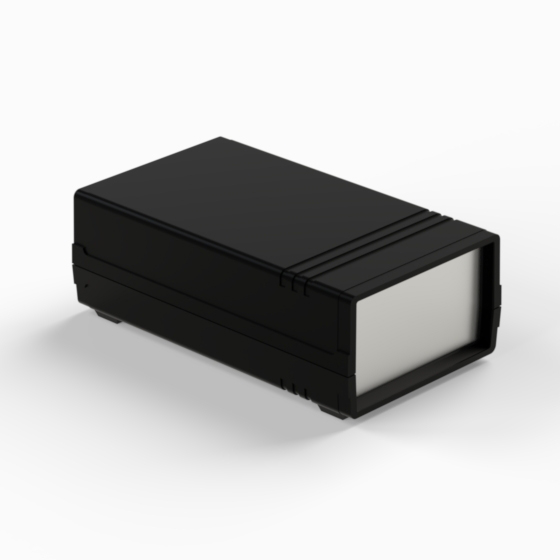

Model 10002.9
L (mm)145
W (mm)85
H (mm)49
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)126
MAX PCB W (mm)72
Screws2
Battery-
Accessories PPD2
Drawings PDF
DWG
Other
View

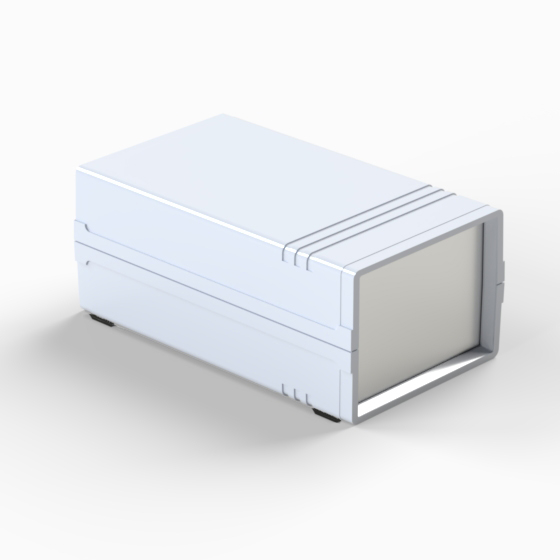

Model 10003.5
L (mm)145
W (mm)85
H (mm)61
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)126
MAX PCB W (mm)72
Screws2
Battery-
Accessories PPD3
Drawings PDF
DWG
Other
View
Model 10003.9
L (mm)145
W (mm)85
H (mm)61
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)126
MAX PCB W (mm)72
Screws2
Battery-
Accessories PPD3
Drawings PDF
DWG
Other
View
Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
10001.5 145 85 37 9018
AG-ATY 126 72 2 - PPD1
PDF
DWG
View
10001.9 145 85 37 9004
P2H-AT 126 72 2 - PPD1
PDF
DWG
View
10002.5 145 85 49 9018
AG-ATY 126 72 2 - PPD2
PDF
DWG
View
10002.9 145 85 49 9004
P2H-AT 126 72 2 - PPD2
PDF
DWG
View
10003.5 145 85 61 9018
AG-ATY 126 72 2 - PPD3
PDF
DWG
View
10003.9 145 85 61 9004
P2H-AT 126 72 2 - PPD3
PDF
DWG
View
12 product families, 152 series. You can't find what you're looking for? Contact us
