Description

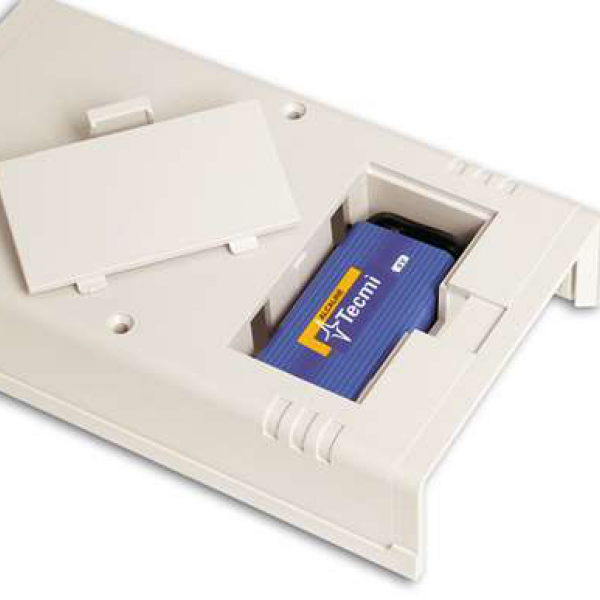

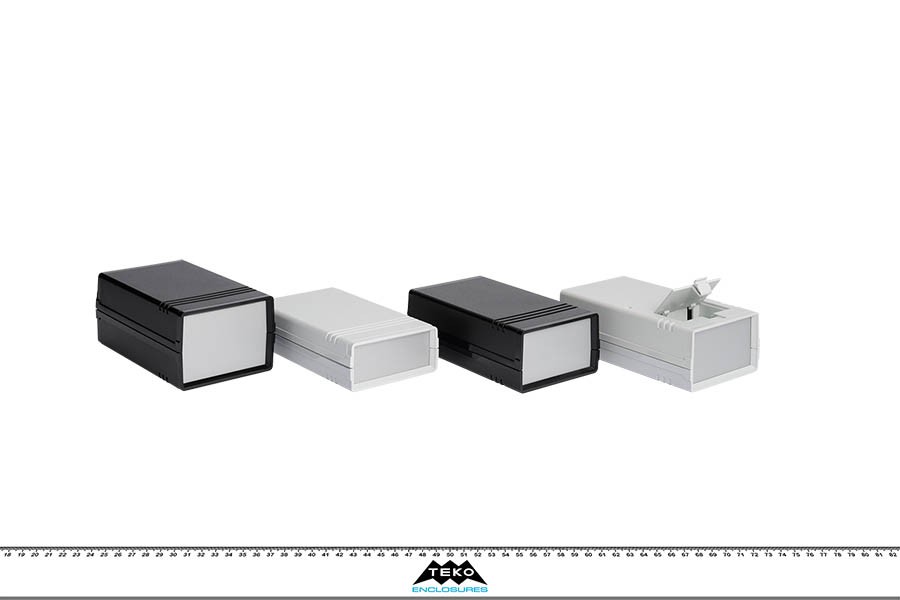

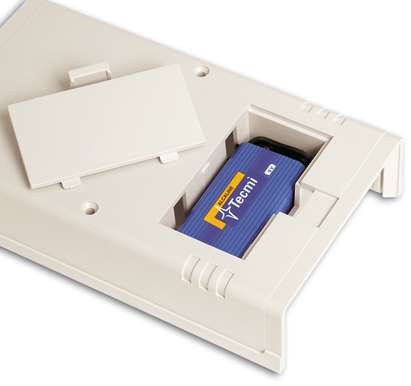

An ABS enclosure with two 1 mm aluminium panels. A 9V battery compartment with a Snap-On lid. Each half-shells has mounting studs. Mat surface finish. Closing by only two screws. Available with plastic panels (Mod. PPD1. PPD2, PPD3).
Details
Products
| |
|---|---|

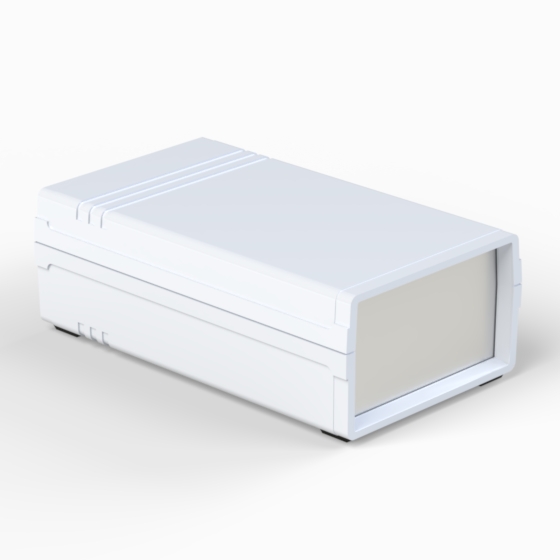

| Model | 10002-B.5 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 49 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 126 |
| MAX PCB W (mm) | 72 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
PPD2 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

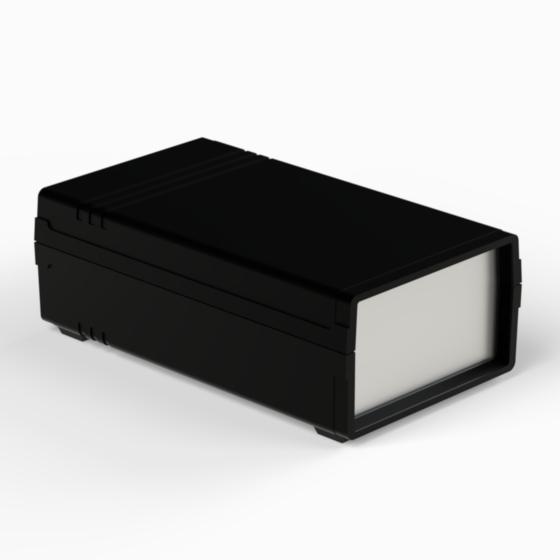

| Model | 10002-B.9 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 49 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 126 |
| MAX PCB W (mm) | 72 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
PPD2 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

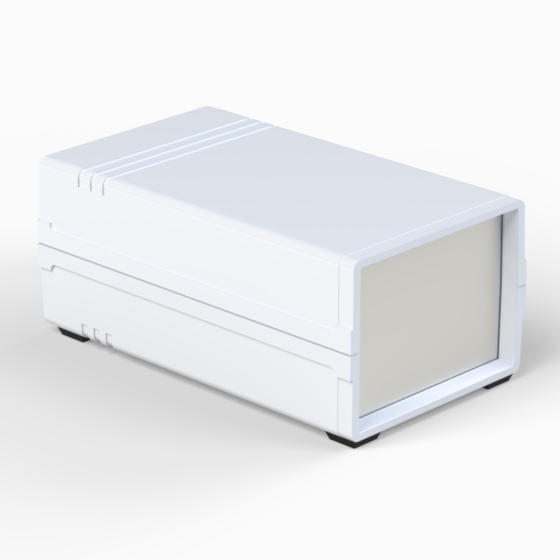

| Model | 10003-B.5 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 61 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 126 |
| MAX PCB W (mm) | 72 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
PPD3 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

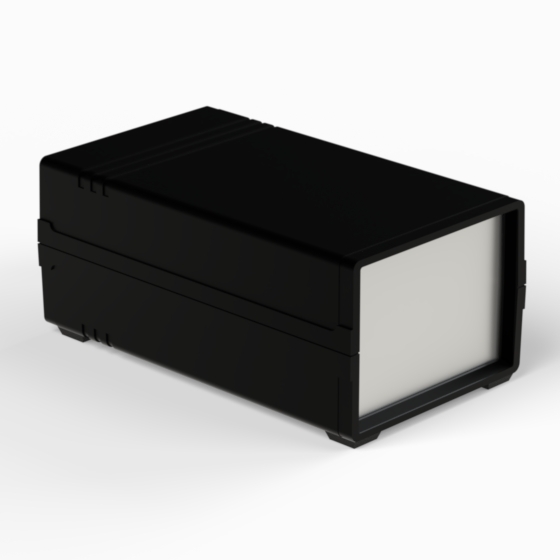

| Model | 10003-B.9 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 61 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 126 |
| MAX PCB W (mm) | 72 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
PPD3 |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
10002-B.5 | 145 | 85 | 49 |
9018 |
AG-ATY | 126 | 72 | 2 | 1 x 9V |
PPD2 |
PDF DWG |
View
|
|
|
10002-B.9 | 145 | 85 | 49 |
9004 |
P2H-AT | 126 | 72 | 2 | 1 x 9V |
PPD2 |
PDF DWG |
View
|
|
|
10003-B.5 | 145 | 85 | 61 |
9018 |
AG-ATY | 126 | 72 | 2 | 1 x 9V |
PPD3 |
PDF DWG |
View
|
|
|
10003-B.9 | 145 | 85 | 61 |
9004 |
P2H-AT | 126 | 72 | 2 | 1 x 9V |
PPD3 |
PDF DWG |
View
|
