DIGITAL

Family Front Panel - Electronic enclosures - Plastic

Description

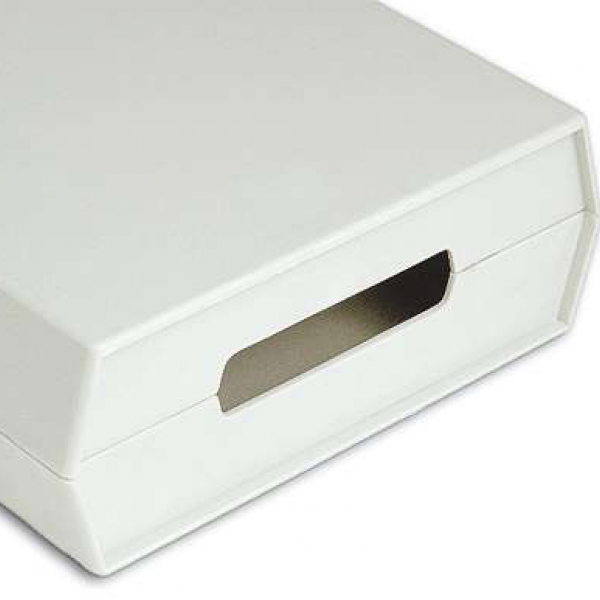

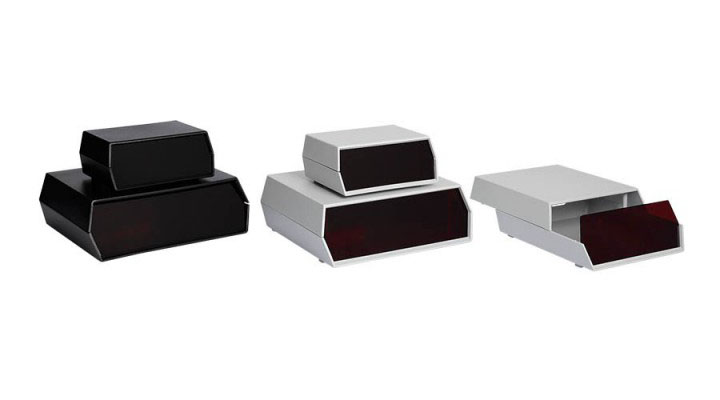

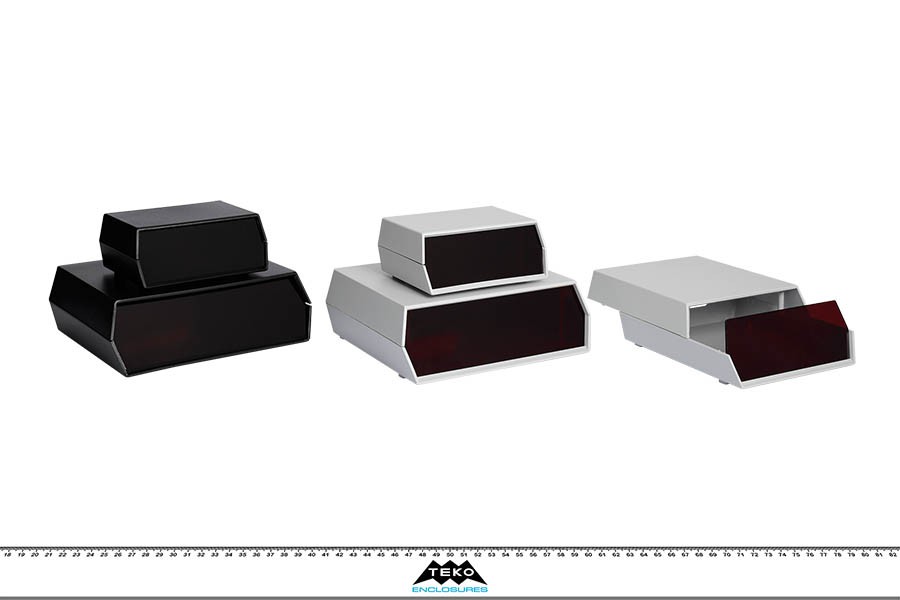

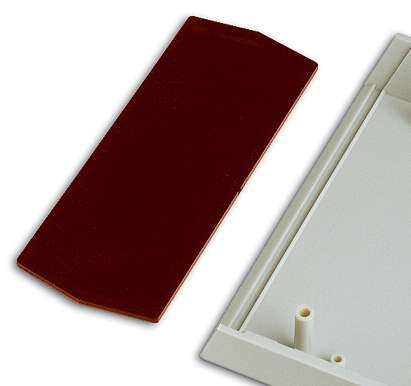

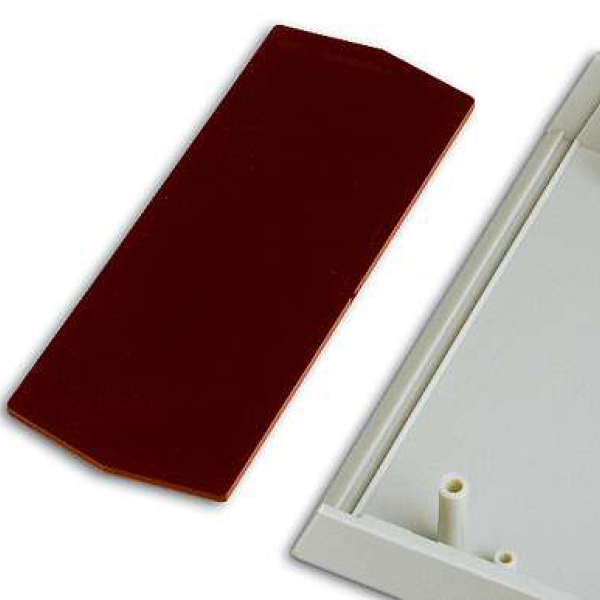

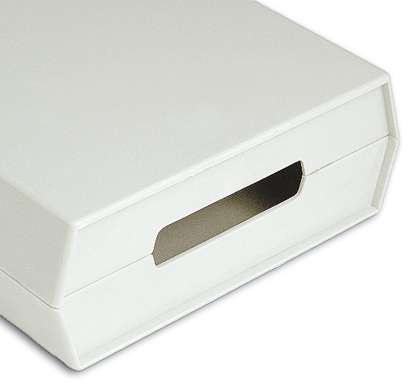

A polystyrene enclosure with a red polystyrene 20° inclined panel. Each half-shell has integral PCB mounting studs. The models “D/13” and “D/14” have in the rear side a cutout for cabling. Matt surface finish. Closing by four screws.

Details

Products

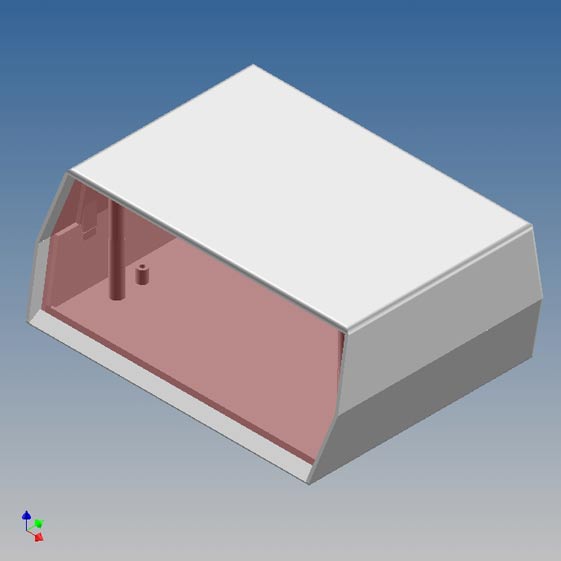

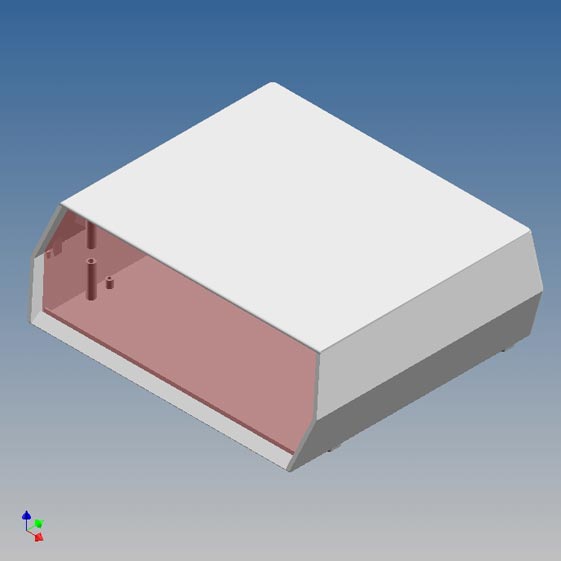

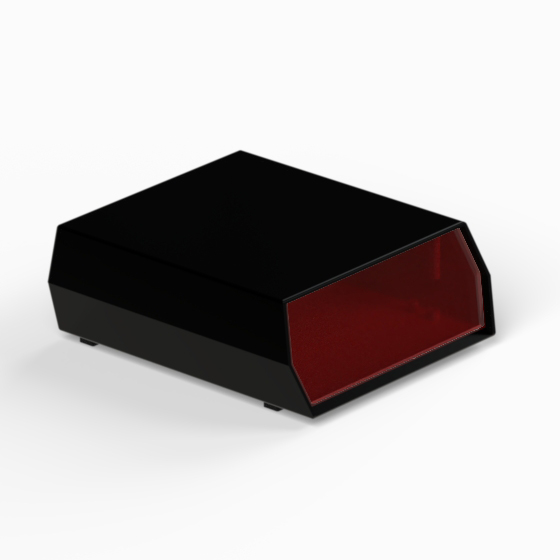

Model D-12.5
L (mm)119,5
W (mm)89
H (mm)50
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws4
Battery-
Accessories
Drawings PDF
DWG
Other
View

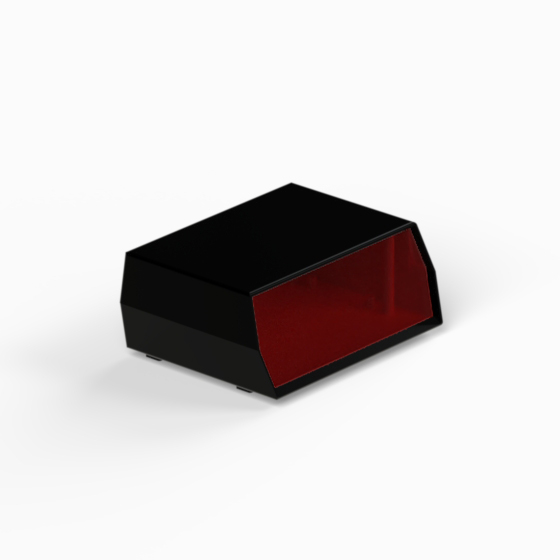

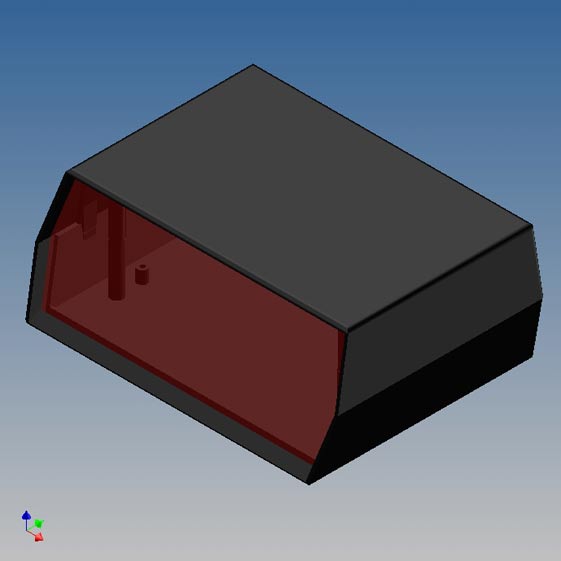

Model D-12.9
L (mm)119,5
W (mm)89
H (mm)50
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws4
Battery-
Accessories
Drawings PDF
DWG
Other
View

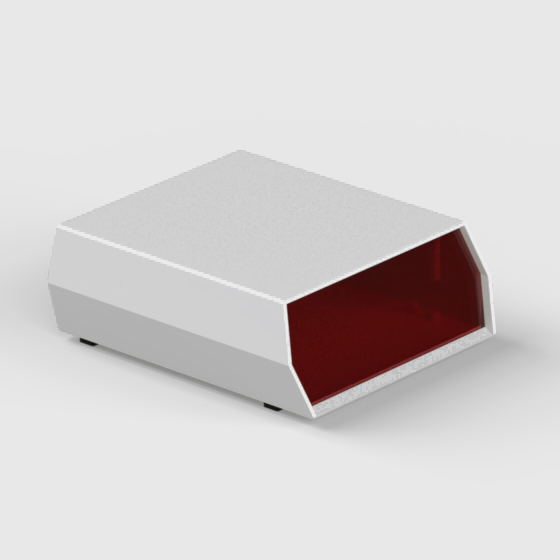

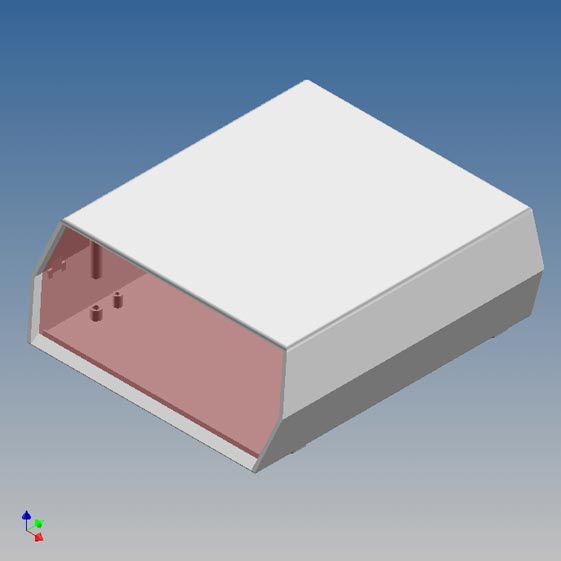

Model D-13.5
L (mm)135
W (mm)150
H (mm)54
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws4
Battery-
Accessories
Drawings PDF
DWG
Other
View

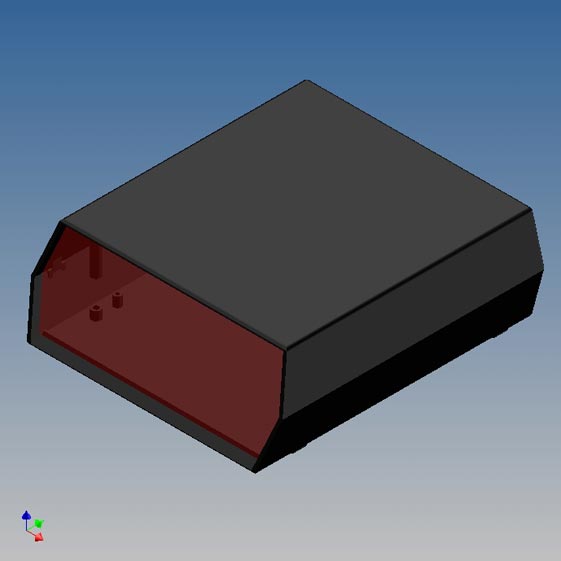

Model D-13.9
L (mm)135
W (mm)150
H (mm)54
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws4
Battery-
Accessories
Drawings PDF
DWG
Other
View
Model D-14.5
L (mm)181
W (mm)155
H (mm)60
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws4
Battery-
Accessories
Drawings PDF
DWG
Other
View

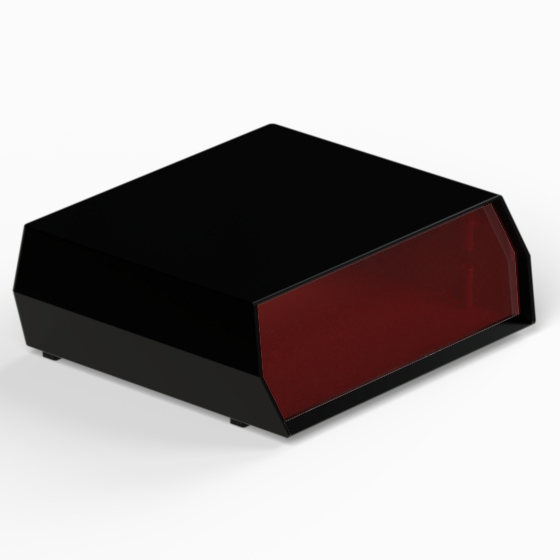

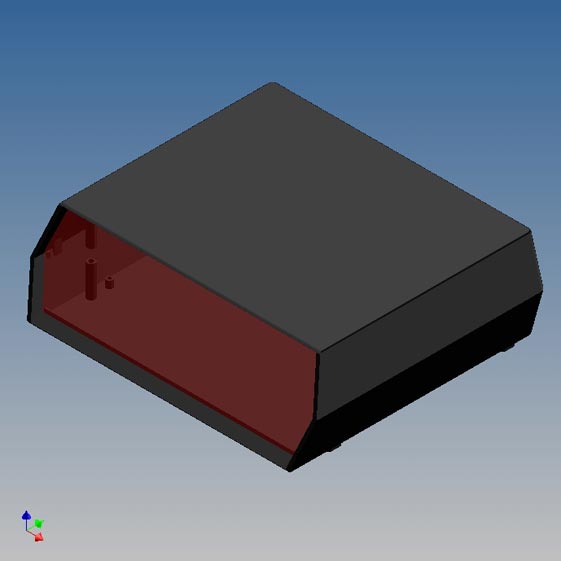

Model D-14.9
L (mm)181
W (mm)155
H (mm)60
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws4
Battery-
Accessories
Drawings PDF
DWG
Other
View
Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
D-12.5 119,5 89 50 9018
AG-ATY - - 4 - PDF
DWG
View
D-12.9 119,5 89 50 9004
P2H-AT - - 4 - PDF
DWG
View
D-13.5 135 150 54 9018
AG-ATY - - 4 - PDF
DWG
View
D-13.9 135 150 54 9004
P2H-AT - - 4 - PDF
DWG
View
D-14.5 181 155 60 9018
AG-ATY - - 4 - PDF
DWG
View
D-14.9 181 155 60 9004
P2H-AT - - 4 - PDF
DWG
View
12 product families, 152 series. You can't find what you're looking for? Contact us
