Description

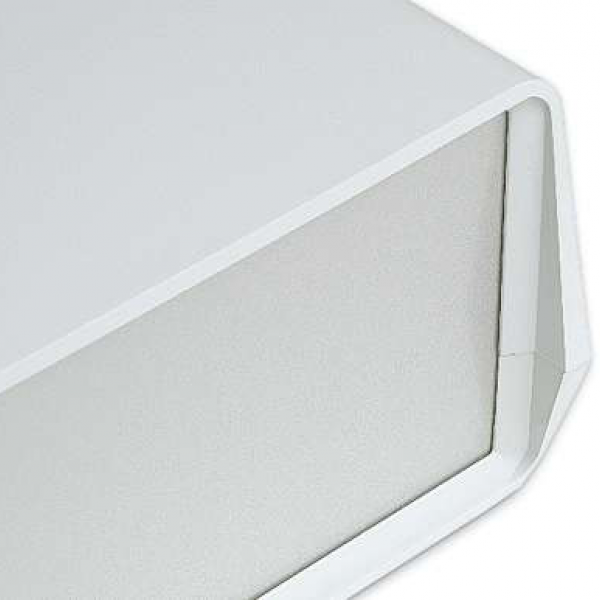

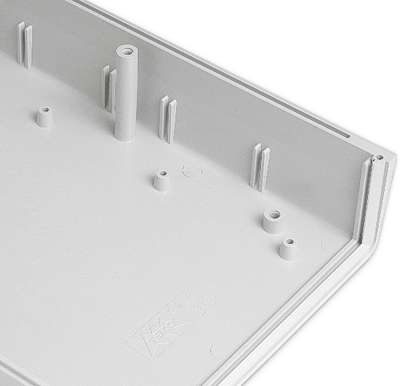

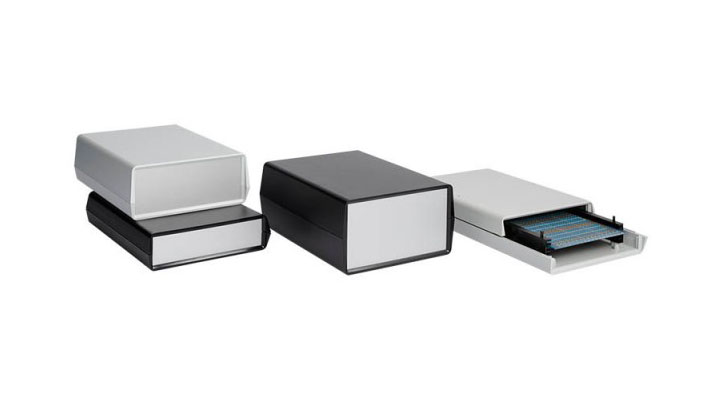

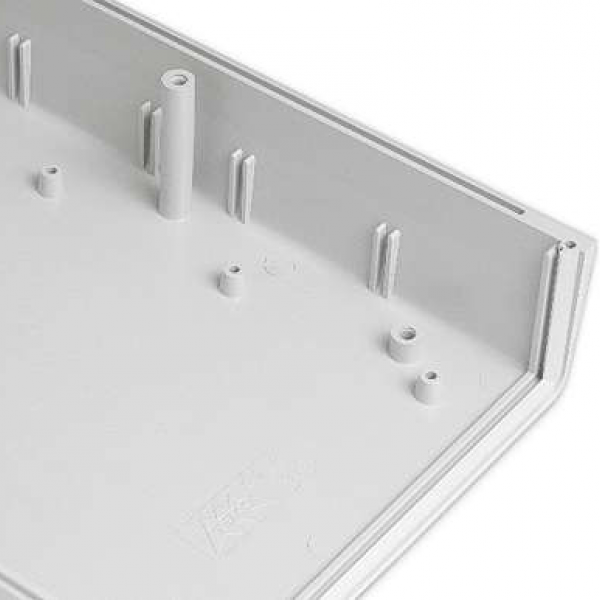

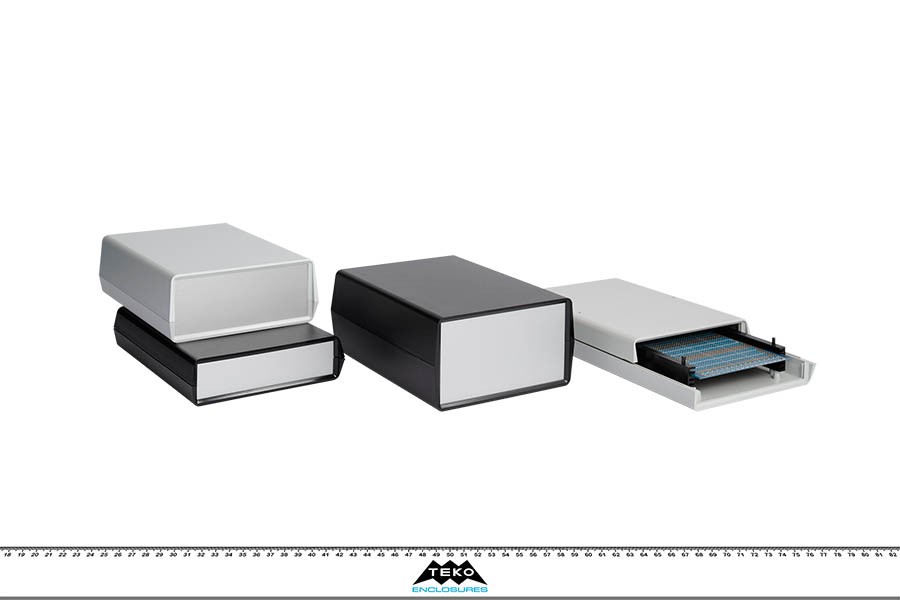

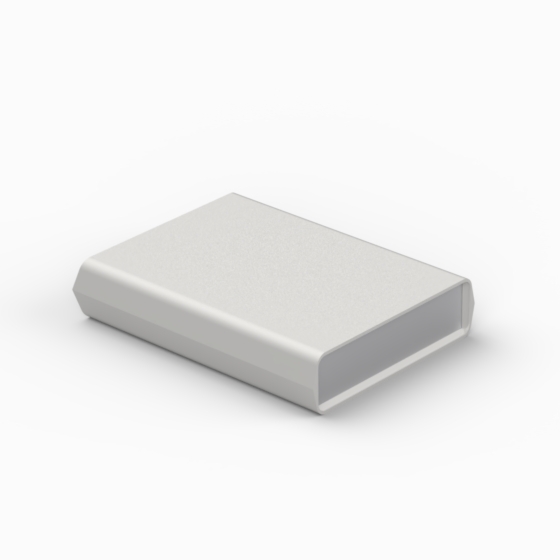

ABS enclosures with two 1 mm aluminium panels. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by only two screws.
Products
![]() | |
---|---|
Model | 931.5 |
L (mm) | 178 |
W (mm) | 131,5 |
H (mm) | 36 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 158 |
MAX PCB W (mm) | 116 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

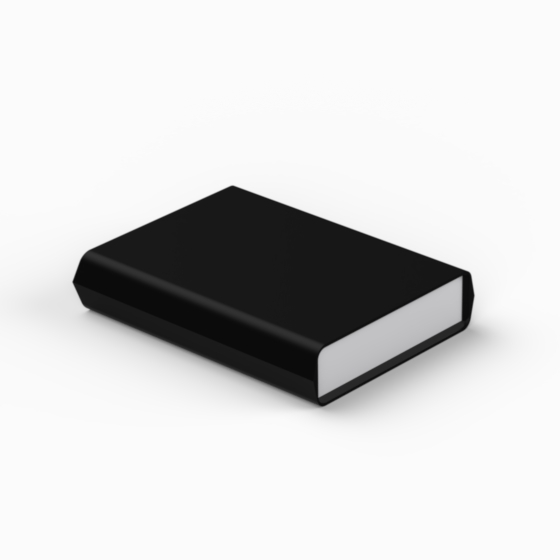

Model | 931.9 |
L (mm) | 178 |
W (mm) | 131,5 |
H (mm) | 36 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 158 |
MAX PCB W (mm) | 116 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |
Model | 931-C.5 |
L (mm) | 178 |
W (mm) | 131,5 |
H (mm) | 36 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 158 |
MAX PCB W (mm) | 116 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |
Model | 931-C.9 |
L (mm) | 178 |
W (mm) | 131,5 |
H (mm) | 36 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 158 |
MAX PCB W (mm) | 116 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

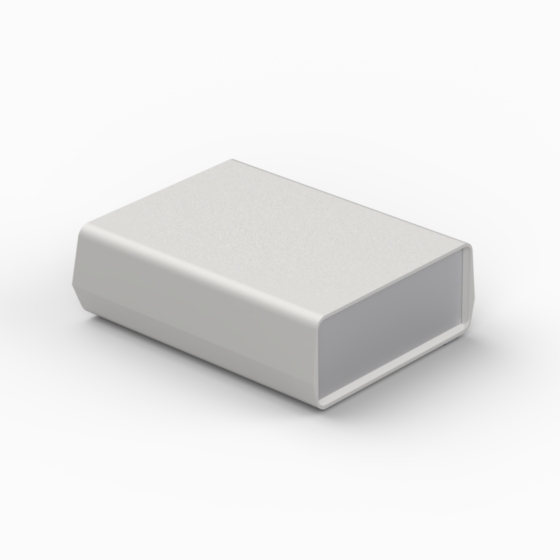

Model | 932.5 |
L (mm) | 178 |
W (mm) | 131,5 |
H (mm) | 54 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 158 |
MAX PCB W (mm) | 116 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |
Model | 932.9 |
L (mm) | 178 |
W (mm) | 131,5 |
H (mm) | 54 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 158 |
MAX PCB W (mm) | 116 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

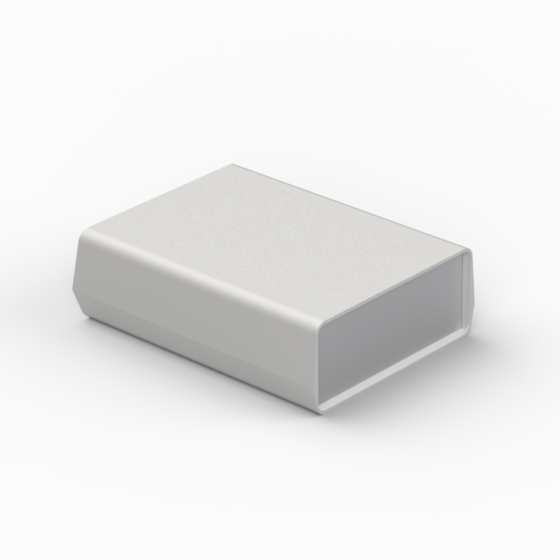

Model | 932-C.5 |
L (mm) | 178 |
W (mm) | 131,5 |
H (mm) | 54 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 158 |
MAX PCB W (mm) | 116 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |
Model | 932-C.9 |
L (mm) | 178 |
W (mm) | 131,5 |
H (mm) | 54 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 158 |
MAX PCB W (mm) | 116 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

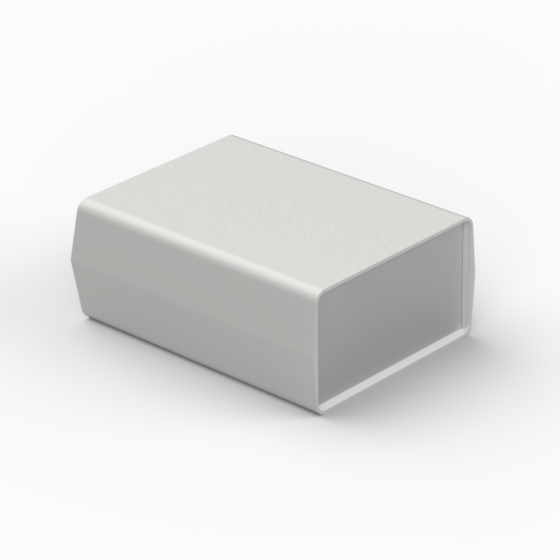

Model | 933.5 |
L (mm) | 178 |
W (mm) | 131,5 |
H (mm) | 72 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 158 |
MAX PCB W (mm) | 116 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

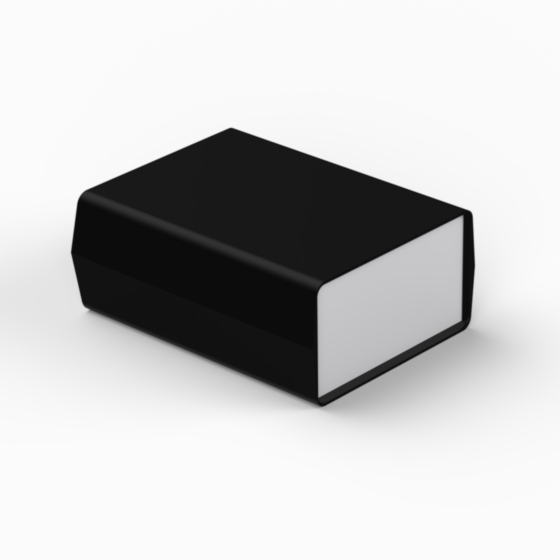

Model | 933.9 |
L (mm) | 178 |
W (mm) | 131,5 |
H (mm) | 72 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 158 |
MAX PCB W (mm) | 116 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |
Model | 933-C.5 |
L (mm) | 178 |
W (mm) | 131,5 |
H (mm) | 72 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 158 |
MAX PCB W (mm) | 116 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |
Model | 933-C.9 |
L (mm) | 178 |
W (mm) | 131,5 |
H (mm) | 72 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 158 |
MAX PCB W (mm) | 116 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

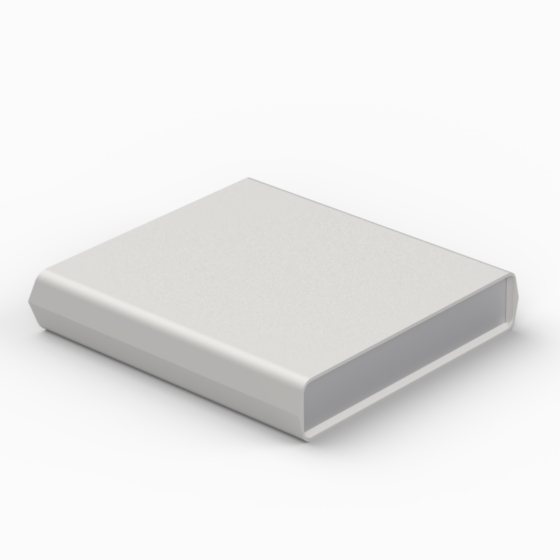

Model | 934.5 |
L (mm) | 198 |
W (mm) | 178 |
H (mm) | 36 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 178 |
MAX PCB W (mm) | 162 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

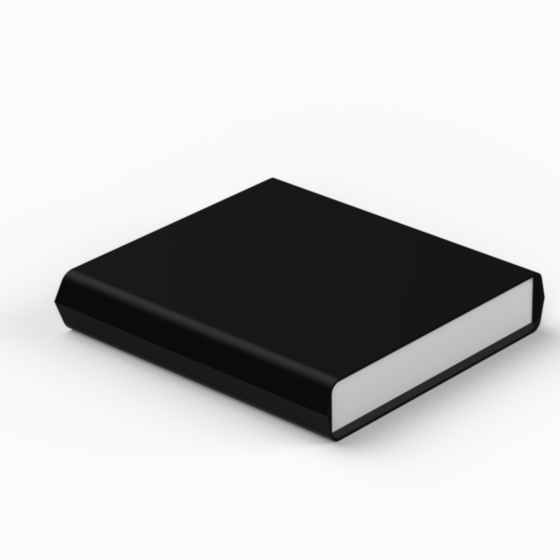

Model | 934.9 |
L (mm) | 198 |
W (mm) | 178 |
H (mm) | 36 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 178 |
MAX PCB W (mm) | 162 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

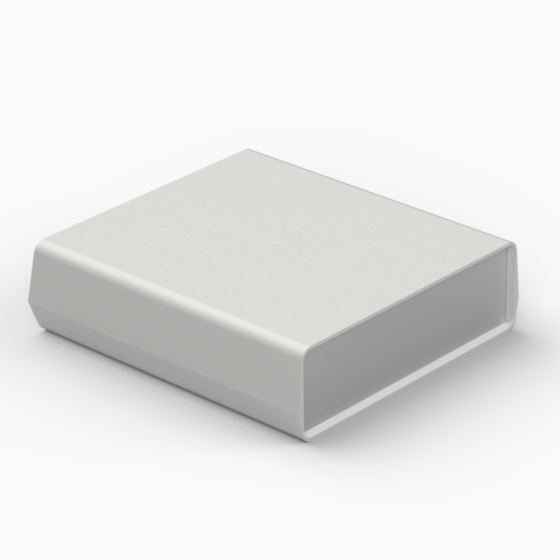

Model | 935.5 |
L (mm) | 198 |
W (mm) | 178 |
H (mm) | 54 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 178 |
MAX PCB W (mm) | 162 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

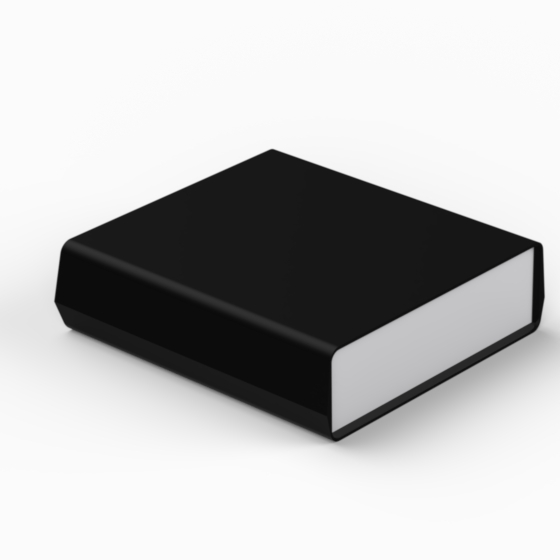

Model | 935.9 |
L (mm) | 198 |
W (mm) | 178 |
H (mm) | 54 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 178 |
MAX PCB W (mm) | 162 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

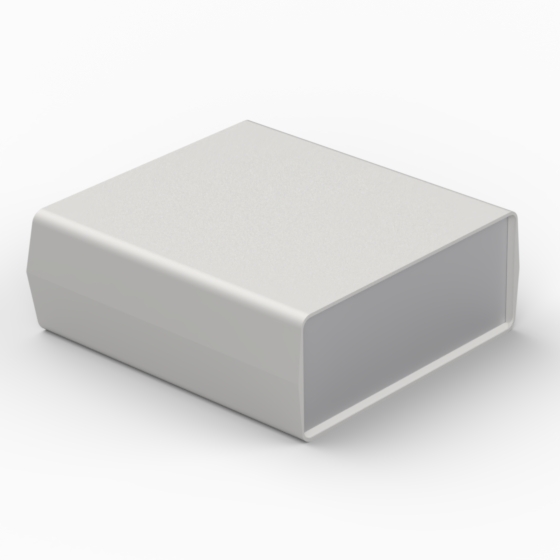

Model | 936.5 |
L (mm) | 198 |
W (mm) | 178 |
H (mm) | 72 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 178 |
MAX PCB W (mm) | 162 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

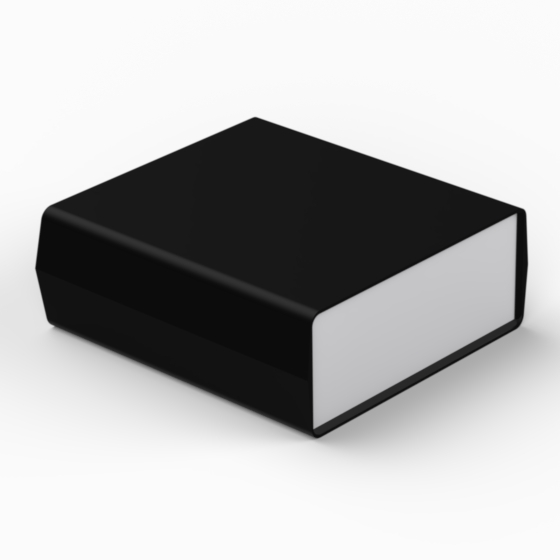

Model | 936.9 |
L (mm) | 198 |
W (mm) | 178 |
H (mm) | 72 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 178 |
MAX PCB W (mm) | 162 |
Screws | 2 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
931.5 | 178 | 131,5 | 36 |
9018 |
AG-ATY | 158 | 116 | 2 | - |
PDF DWG |
View
|
|
![]() |
931.9 | 178 | 131,5 | 36 |
9004 |
P2H-AT | 158 | 116 | 2 | - |
PDF DWG |
View
|
|
![]() |
931-C.5 | 178 | 131,5 | 36 |
9018 |
AG-ATY | 158 | 116 | 2 | - |
PDF DWG |
View
|
|
![]() |
931-C.9 | 178 | 131,5 | 36 |
9004 |
P2H-AT | 158 | 116 | 2 | - |
PDF DWG |
View
|
|
![]() |
932.5 | 178 | 131,5 | 54 |
9018 |
AG-ATY | 158 | 116 | 2 | - |
PDF DWG |
View
|
|
![]() |
932.9 | 178 | 131,5 | 54 |
9004 |
P2H-AT | 158 | 116 | 2 | - |
PDF DWG |
View
|
|
![]() |
932-C.5 | 178 | 131,5 | 54 |
9018 |
AG-ATY | 158 | 116 | 2 | - |
PDF DWG |
View
|
|
![]() |
932-C.9 | 178 | 131,5 | 54 |
9004 |
P2H-AT | 158 | 116 | 2 | - |
PDF DWG |
View
|
|
![]() |
933.5 | 178 | 131,5 | 72 |
9018 |
AG-ATY | 158 | 116 | 2 | - |
PDF DWG |
View
|
|
![]() |
933.9 | 178 | 131,5 | 72 |
9004 |
P2H-AT | 158 | 116 | 2 | - |
PDF DWG |
View
|
|
![]() |
933-C.5 | 178 | 131,5 | 72 |
9018 |
AG-ATY | 158 | 116 | 2 | - |
PDF DWG |
View
|
|
![]() |
933-C.9 | 178 | 131,5 | 72 |
9004 |
P2H-AT | 158 | 116 | 2 | - |
PDF DWG |
View
|
|
![]() |
934.5 | 198 | 178 | 36 |
9018 |
AG-ATY | 178 | 162 | 2 | - |
PDF DWG |
View
|
|
![]() |
934.9 | 198 | 178 | 36 |
9004 |
P2H-AT | 178 | 162 | 2 | - |
PDF DWG |
View
|
|
![]() |
935.5 | 198 | 178 | 54 |
9018 |
AG-ATY | 178 | 162 | 2 | - |
PDF DWG |
View
|
|
![]() |
935.9 | 198 | 178 | 54 |
9004 |
P2H-AT | 178 | 162 | 2 | - |
PDF DWG |
View
|
|
![]() |
936.5 | 198 | 178 | 72 |
9018 |
AG-ATY | 178 | 162 | 2 | - |
PDF DWG |
View
|
|
![]() |
936.9 | 198 | 178 | 72 |
9004 |
P2H-AT | 178 | 162 | 2 | - |
PDF DWG |
View
|
12 product families, 152 series. You can't find what you're looking for? Contact us
