Description

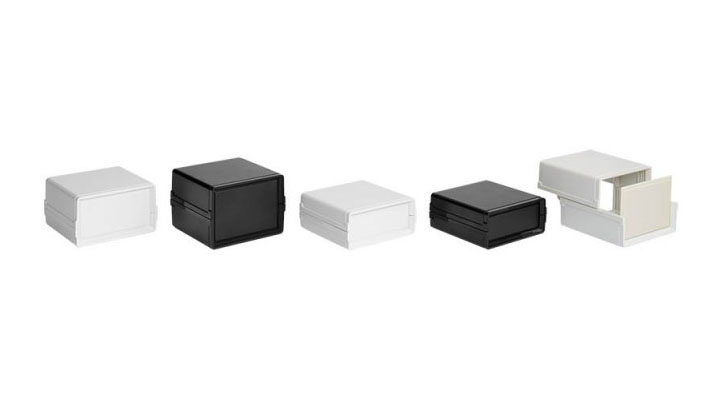

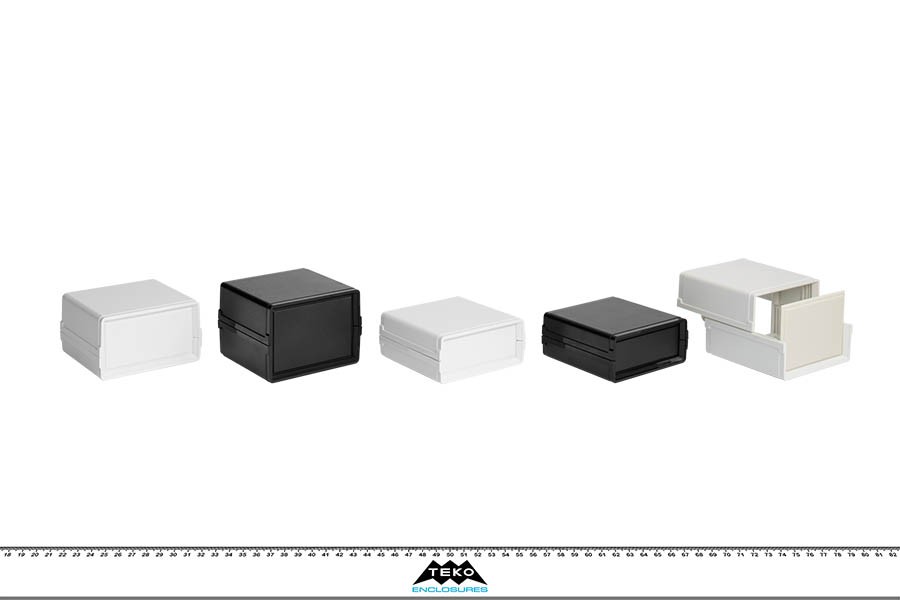

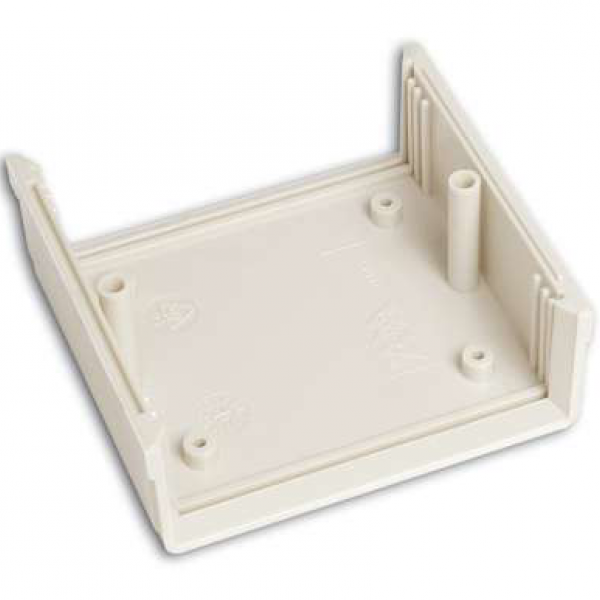

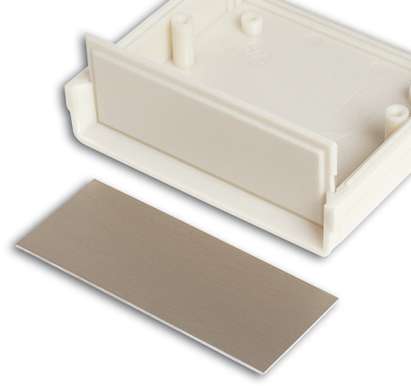

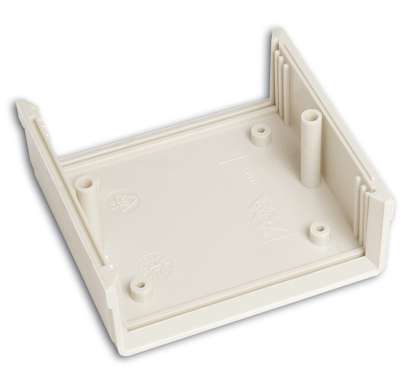

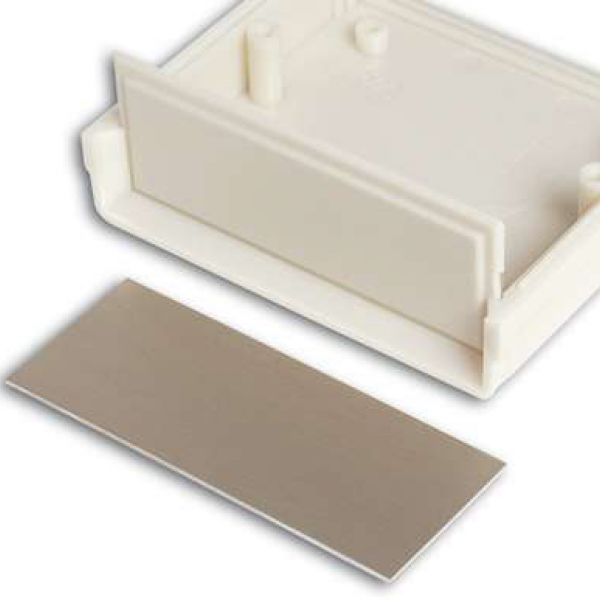

A small Polystyrene enclosure with a front and rear panel. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by only two screws. Upon request aluminium panels (Mod. AP11, AP12, AP22).
Details
Products
| |
|---|---|

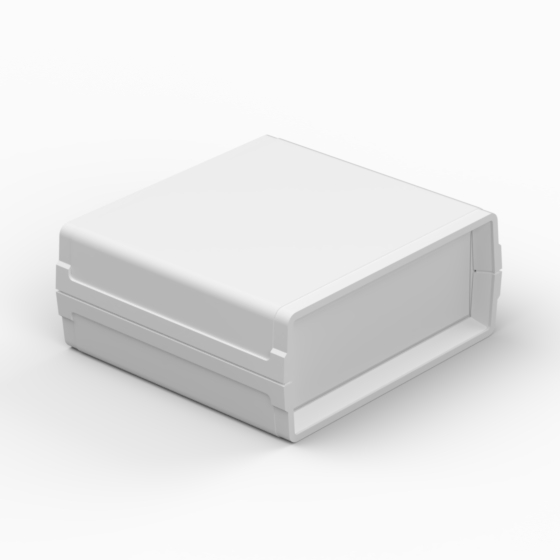

| Model | MC11.7 |
| L (mm) | 85 |
| W (mm) | 80 |
| H (mm) | 36 |
| Color (Ral) |
9002 |
| Material | L320 |
| MAX PCB L (mm) | 72 |
| MAX PCB W (mm) | 62 |
| Screws | 2 |
| Battery | - |
| Accessories |
AP11 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

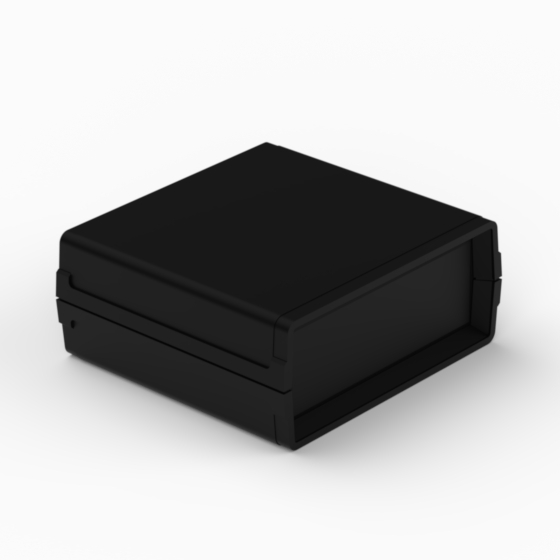

| Model | MC11.9 |
| L (mm) | 85 |
| W (mm) | 80 |
| H (mm) | 36 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 72 |
| MAX PCB W (mm) | 62 |
| Screws | 2 |
| Battery | - |
| Accessories |
AP11 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

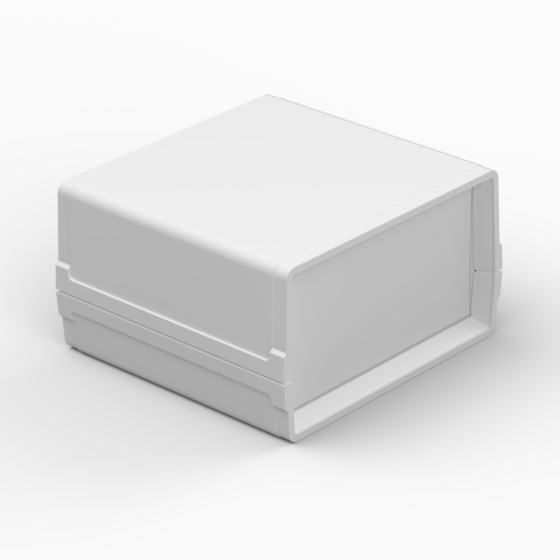

| Model | MC12.7 |
| L (mm) | 85 |
| W (mm) | 80 |
| H (mm) | 48 |
| Color (Ral) |
9002 |
| Material | L320 |
| MAX PCB L (mm) | 72 |
| MAX PCB W (mm) | 62 |
| Screws | 2 |
| Battery | - |
| Accessories |
AP12 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

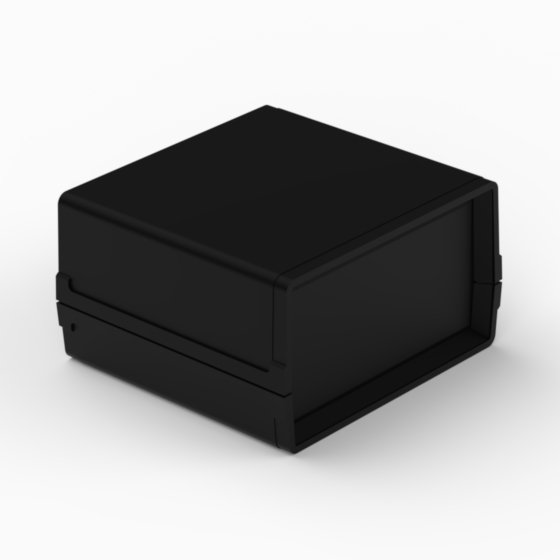

| Model | MC12.9 |
| L (mm) | 85 |
| W (mm) | 80 |
| H (mm) | 48 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 72 |
| MAX PCB W (mm) | 62 |
| Screws | 2 |
| Battery | - |
| Accessories |
AP12 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

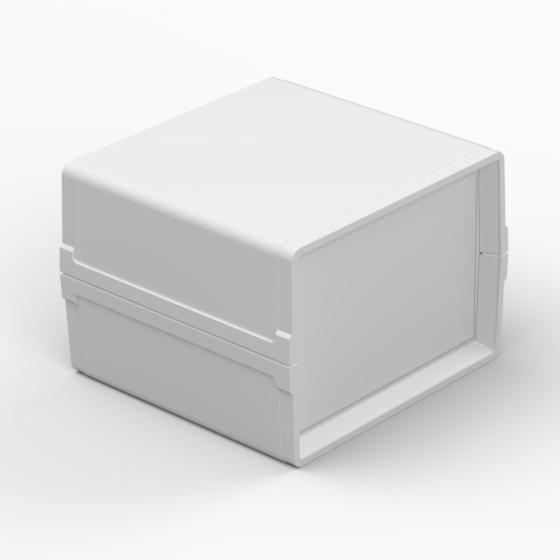

| Model | MC22.7 |
| L (mm) | 85 |
| W (mm) | 80 |
| H (mm) | 60 |
| Color (Ral) |
9002 |
| Material | L320 |
| MAX PCB L (mm) | 72 |
| MAX PCB W (mm) | 62 |
| Screws | 2 |
| Battery | - |
| Accessories |
AP22 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

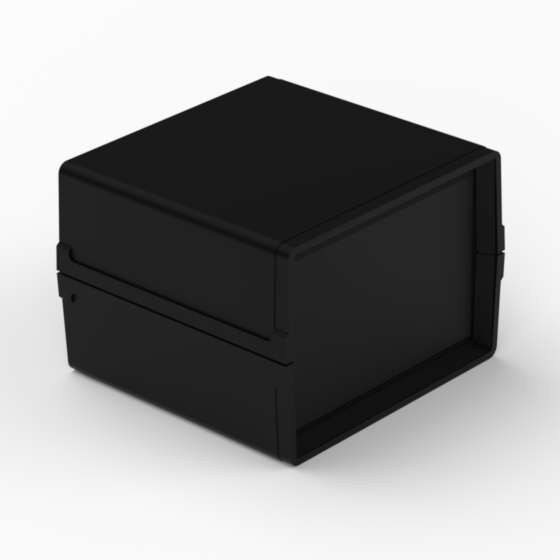

| Model | MC22.9 |
| L (mm) | 85 |
| W (mm) | 80 |
| H (mm) | 60 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 72 |
| MAX PCB W (mm) | 62 |
| Screws | 2 |
| Battery | - |
| Accessories |
AP22 |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MC11.7 | 85 | 80 | 36 |
9002 |
L320 | 72 | 62 | 2 | - |
AP11 |
PDF DWG |
View
|
|
|
MC11.9 | 85 | 80 | 36 |
9004 |
P2H-AT | 72 | 62 | 2 | - |
AP11 |
PDF DWG |
View
|
|
|
MC12.7 | 85 | 80 | 48 |
9002 |
L320 | 72 | 62 | 2 | - |
AP12 |
PDF DWG |
View
|
|
|
MC12.9 | 85 | 80 | 48 |
9004 |
P2H-AT | 72 | 62 | 2 | - |
AP12 |
PDF DWG |
View
|
|
|
MC22.7 | 85 | 80 | 60 |
9002 |
L320 | 72 | 62 | 2 | - |
AP22 |
PDF DWG |
View
|
|
|
MC22.9 | 85 | 80 | 60 |
9004 |
P2H-AT | 72 | 62 | 2 | - |
AP22 |
PDF DWG |
View
|
