Description
ABS enclosures with two 1 mm aluminium panels. Each base and cover have integral PCB guides (Eurocard 100 x 160 mm) inside. Matt surface finish. Snap-together closing, no screws required.
Details
Products
| |
|---|---|

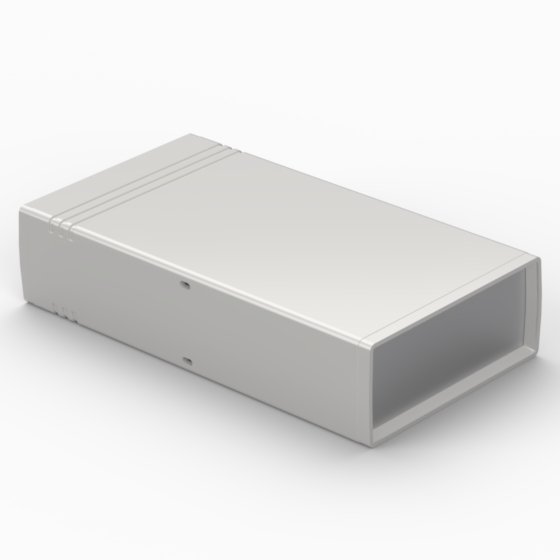

| Model | 10004.5 |
| L (mm) | 199,5 |
| W (mm) | 110 |
| H (mm) | 46,5 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 152,5 |
| MAX PCB W (mm) | 101,6 |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

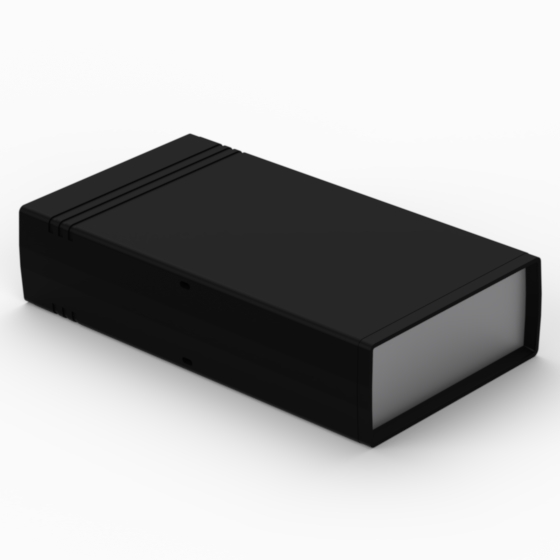

| Model | 10004.9 |
| L (mm) | 199,5 |
| W (mm) | 110 |
| H (mm) | 46,5 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 152,5 |
| MAX PCB W (mm) | 101,6 |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

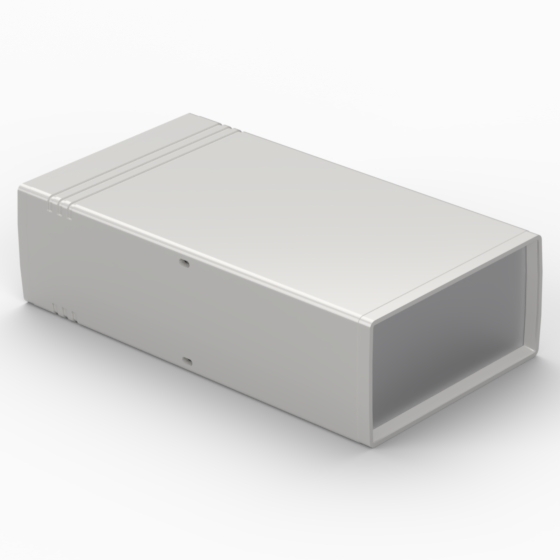

| Model | 10005.5 |
| L (mm) | 199,5 |
| W (mm) | 110 |
| H (mm) | 56,5 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 152,5 |
| MAX PCB W (mm) | 101,6 |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

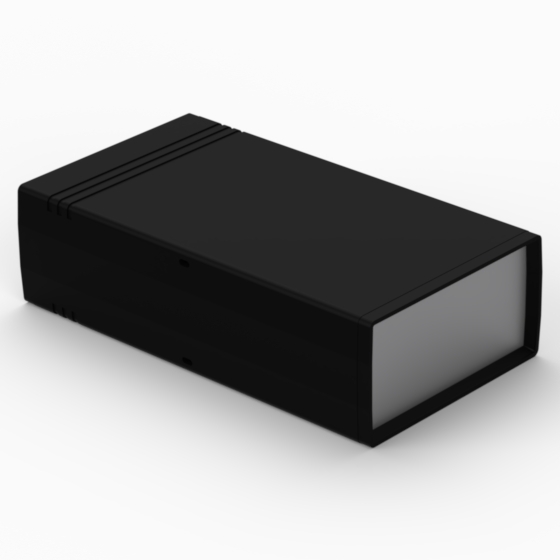

| Model | 10005.9 |
| L (mm) | 199,5 |
| W (mm) | 110 |
| H (mm) | 56,5 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 152,5 |
| MAX PCB W (mm) | 101,6 |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
10004.5 | 199,5 | 110 | 46,5 |
9018 |
AG-ATY | 152,5 | 101,6 | - | - |
PDF DWG |
View
|
|
|
|
10004.9 | 199,5 | 110 | 46,5 |
9004 |
P2H-AT | 152,5 | 101,6 | - | - |
PDF DWG |
View
|
|
|
|
10005.5 | 199,5 | 110 | 56,5 |
9018 |
AG-ATY | 152,5 | 101,6 | - | - |
PDF DWG |
View
|
|
|
|
10005.9 | 199,5 | 110 | 56,5 |
9004 |
P2H-AT | 152,5 | 101,6 | - | - |
PDF DWG |
View
|
