Description

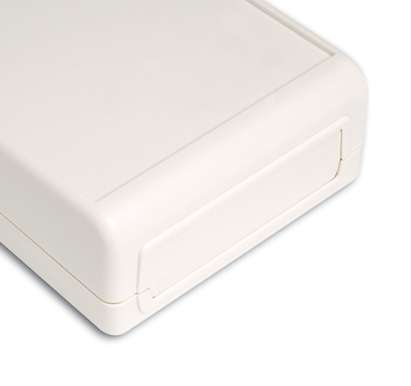

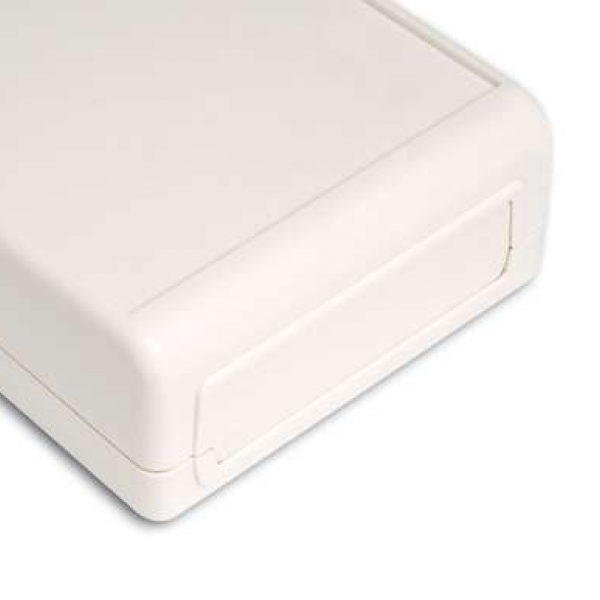

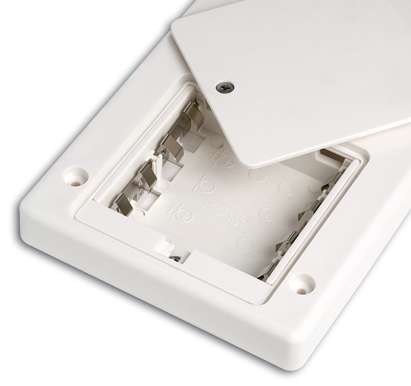

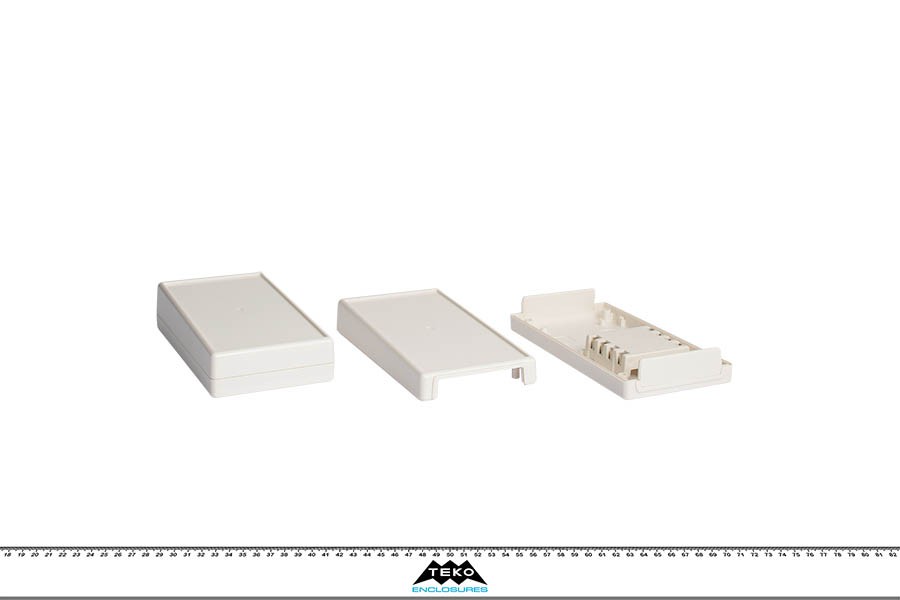

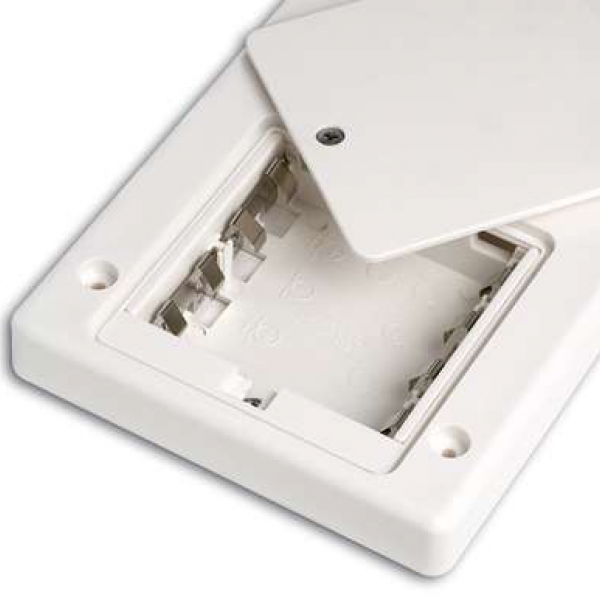

Hand-held enclosures are moulded in polycarbonate and consist of two halves closed by four stainless steel screws. The cover has a recessed area suitable for a membrane keypad. Ten models available. The version “W” has a front and a rear panel, the version “-B” has a compartment for four battery 1.5V. The models with “K” are available with a sealing kit for IP65 protection.
Products

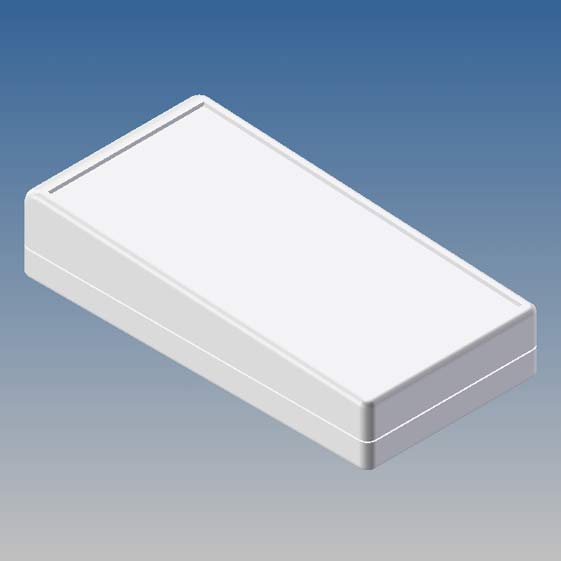

Model | HS.3 |
L (mm) | 200 |
W (mm) | 100 |
H (mm) | 44,5 |
Color (Ral) |
9003 |
Material | 2405 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

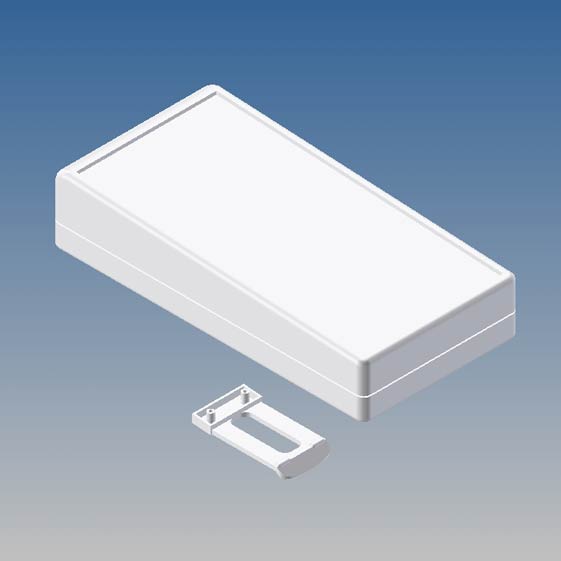

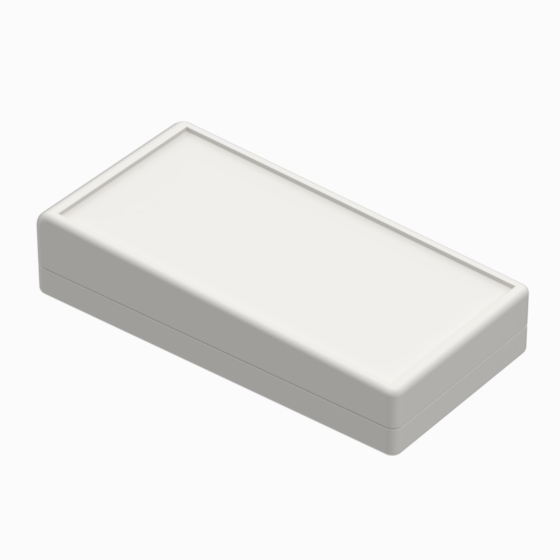

Model | HS-B.3 |
L (mm) | 200 |
W (mm) | 100 |
H (mm) | 44,5 |
Color (Ral) |
9003 |
Material | 2405 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 4 |
Battery | 4 x AA |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | HSK.3 |
L (mm) | 200 |
W (mm) | 100 |
H (mm) | 44,5 |
Color (Ral) |
9003 |
Material | 2405 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

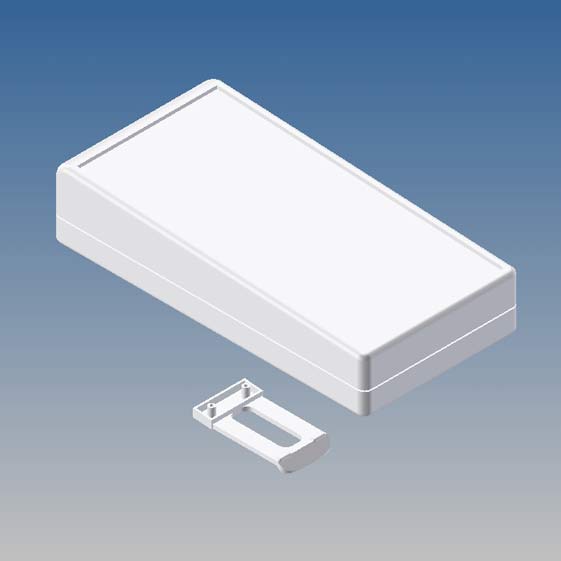

Model | HSK-B.3 |
L (mm) | 200 |
W (mm) | 100 |
H (mm) | 44,5 |
Color (Ral) |
9003 |
Material | 2405 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 4 |
Battery | 4 x AA |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

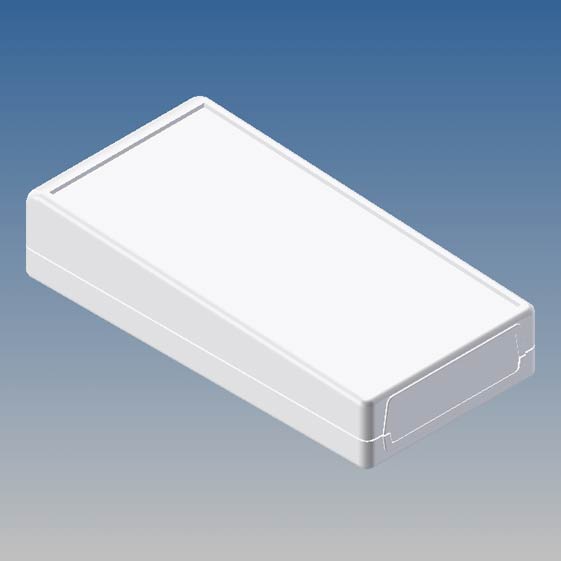

Model | HSW.3 |
L (mm) | 200 |
W (mm) | 100 |
H (mm) | 44,5 |
Color (Ral) |
9003 |
Material | 2405 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

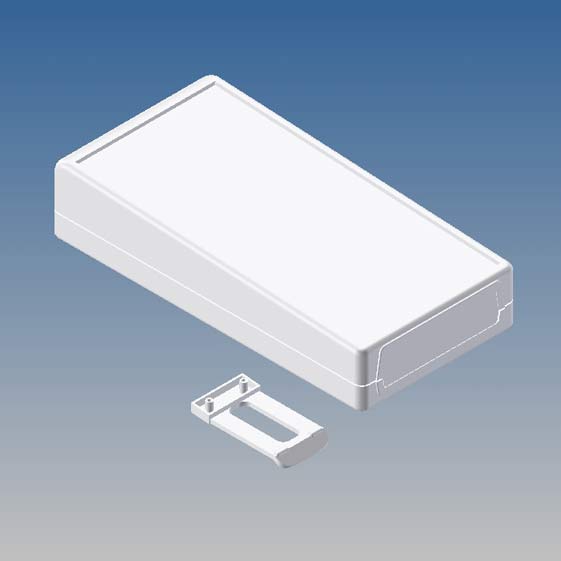

Model | HSW-B.3 |
L (mm) | 200 |
W (mm) | 100 |
H (mm) | 44,5 |
Color (Ral) |
9003 |
Material | 2405 |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 4 |
Battery | 4 x AA |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HS.3 | 200 | 100 | 44,5 |
9003 |
2405 | - | - | 4 | - |
PDF DWG |
View
|
||
HS-B.3 | 200 | 100 | 44,5 |
9003 |
2405 | - | - | 4 | 4 x AA |
PDF DWG |
View
|
||
HSK.3 | 200 | 100 | 44,5 |
9003 |
2405 | - | - | 4 | - |
PDF DWG |
View
|
||
HSK-B.3 | 200 | 100 | 44,5 |
9003 |
2405 | - | - | 4 | 4 x AA |
PDF DWG |
View
|
||
HSW.3 | 200 | 100 | 44,5 |
9003 |
2405 | - | - | 4 | - |
PDF DWG |
View
|
||
HSW-B.3 | 200 | 100 | 44,5 |
9003 |
2405 | - | - | 4 | 4 x AA |
PDF DWG |
View
|
