Description

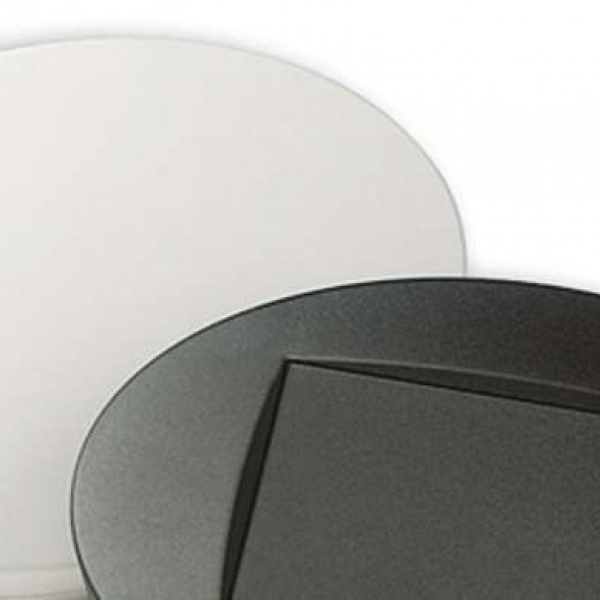

Ergonomically shaped ABS enclosures, especially designed for use as hand-held instruments enclosures. The Model “OK-2” has on the cover a recessed area suitable for a keypad membrane or a wide screen 4,3 “ TFT Display. The models with “-B” have a battery compartment for two 1,5V (AA) or one 9V flat battery (PP3) while the models with “B2” have a battery compartment for four 1,5V (AA) or two 9V flat batteries (PP3). Matt surface finish. Closing by four screws.
Products
Model | OK1.7 |
L (mm) | 165,3 |
W (mm) | 103,2 |
H (mm) | 38,5 |
Color (Ral) |
9002 |
Material | UG UV 0120 |
MAX PCB L (mm) | 114 |
MAX PCB W (mm) | 95 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | OK1.9 |
L (mm) | 165,3 |
W (mm) | 103,2 |
H (mm) | 38,5 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 114 |
MAX PCB W (mm) | 95 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | OK1-B.7 |
L (mm) | 165,3 |
W (mm) | 103,2 |
H (mm) | 38,5 |
Color (Ral) |
9002 |
Material | UG UV 0120 |
MAX PCB L (mm) | 114 |
MAX PCB W (mm) | 95 |
Screws | 4 |
Battery | 2 x AA / 1 x 9V |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | OK1-B.9 |
L (mm) | 165,3 |
W (mm) | 103,2 |
H (mm) | 38,5 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 114 |
MAX PCB W (mm) | 95 |
Screws | 4 |
Battery | 2 x AA / 1 x 9V |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | OK1-B2.7 |
L (mm) | 165,3 |
W (mm) | 103,2 |
H (mm) | 38,5 |
Color (Ral) |
9002 |
Material | UG UV 0120 |
MAX PCB L (mm) | 114 |
MAX PCB W (mm) | 95 |
Screws | 4 |
Battery | 4 x AA / 2 x 9V |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | OK1-B2.9 |
L (mm) | 165,3 |
W (mm) | 103,2 |
H (mm) | 38,5 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 114 |
MAX PCB W (mm) | 95 |
Screws | 4 |
Battery | 4 x AA / 2 x 9V |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

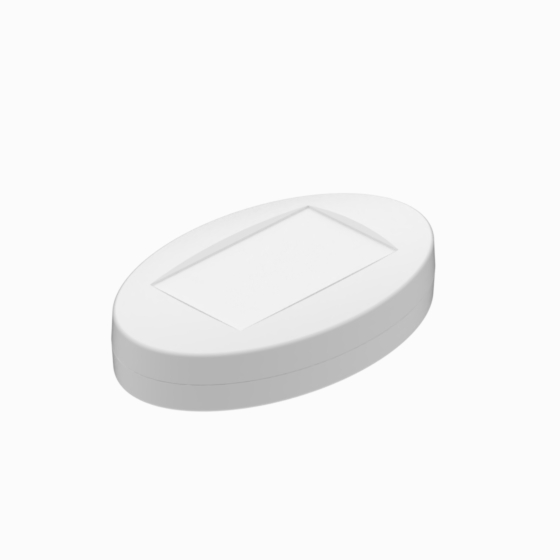

Model | OK2.7 |
L (mm) | 165,3 |
W (mm) | 103,2 |
H (mm) | 38,5 |
Color (Ral) |
9002 |
Material | UG UV 0120 |
MAX PCB L (mm) | 114 |
MAX PCB W (mm) | 95 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | OK2.9 |
L (mm) | 165,3 |
W (mm) | 103,2 |
H (mm) | 38,5 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 114 |
MAX PCB W (mm) | 95 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | OK2-B.7 |
L (mm) | 165,3 |
W (mm) | 103,2 |
H (mm) | 38,5 |
Color (Ral) |
9002 |
Material | UG UV 0120 |
MAX PCB L (mm) | 114 |
MAX PCB W (mm) | 95 |
Screws | 4 |
Battery | 2 x AA / 1 x 9V |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | OK2-B.9 |
L (mm) | 165,3 |
W (mm) | 103,2 |
H (mm) | 38,5 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 114 |
MAX PCB W (mm) | 95 |
Screws | 4 |
Battery | 2 x AA / 1 x 9V |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | OK2-B2.7 |
L (mm) | 165,3 |
W (mm) | 103,2 |
H (mm) | 38,5 |
Color (Ral) |
9002 |
Material | UG UV 0120 |
MAX PCB L (mm) | 114 |
MAX PCB W (mm) | 95 |
Screws | 4 |
Battery | 4 x AA / 2 x 9V |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

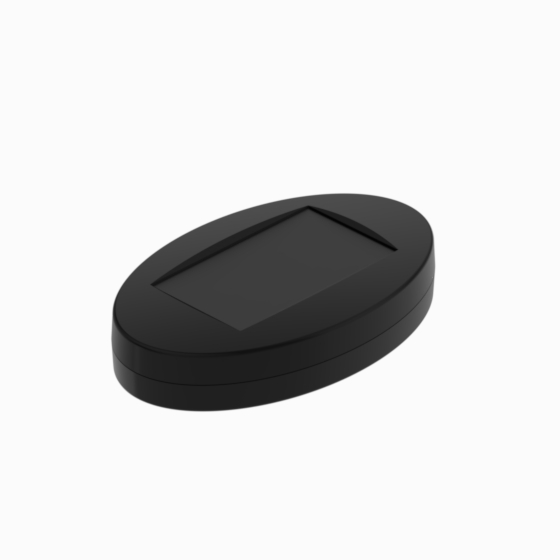

Model | OK2-B2.9 |
L (mm) | 165,3 |
W (mm) | 103,2 |
H (mm) | 38,5 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | 114 |
MAX PCB W (mm) | 95 |
Screws | 4 |
Battery | 4 x AA / 2 x 9V |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OK1.7 | 165,3 | 103,2 | 38,5 |
9002 |
UG UV 0120 | 114 | 95 | 4 | - |
PDF DWG |
View
|
||
OK1.9 | 165,3 | 103,2 | 38,5 |
9004 |
P2H-AT | 114 | 95 | 4 | - |
PDF DWG |
View
|
||
OK1-B.7 | 165,3 | 103,2 | 38,5 |
9002 |
UG UV 0120 | 114 | 95 | 4 | 2 x AA / 1 x 9V |
PDF DWG |
View
|
||
OK1-B.9 | 165,3 | 103,2 | 38,5 |
9004 |
P2H-AT | 114 | 95 | 4 | 2 x AA / 1 x 9V |
PDF DWG |
View
|
||
OK1-B2.7 | 165,3 | 103,2 | 38,5 |
9002 |
UG UV 0120 | 114 | 95 | 4 | 4 x AA / 2 x 9V |
PDF DWG |
View
|
||
OK1-B2.9 | 165,3 | 103,2 | 38,5 |
9004 |
P2H-AT | 114 | 95 | 4 | 4 x AA / 2 x 9V |
PDF DWG |
View
|
||
OK2.7 | 165,3 | 103,2 | 38,5 |
9002 |
UG UV 0120 | 114 | 95 | 4 | - |
PDF DWG |
View
|
||
OK2.9 | 165,3 | 103,2 | 38,5 |
9004 |
P2H-AT | 114 | 95 | 4 | - |
PDF DWG |
View
|
||
OK2-B.7 | 165,3 | 103,2 | 38,5 |
9002 |
UG UV 0120 | 114 | 95 | 4 | 2 x AA / 1 x 9V |
PDF DWG |
View
|
||
OK2-B.9 | 165,3 | 103,2 | 38,5 |
9004 |
P2H-AT | 114 | 95 | 4 | 2 x AA / 1 x 9V |
PDF DWG |
View
|
||
OK2-B2.7 | 165,3 | 103,2 | 38,5 |
9002 |
UG UV 0120 | 114 | 95 | 4 | 4 x AA / 2 x 9V |
PDF DWG |
View
|
||
OK2-B2.9 | 165,3 | 103,2 | 38,5 |
9004 |
P2H-AT | 114 | 95 | 4 | 4 x AA / 2 x 9V |
PDF DWG |
View
|
