Description

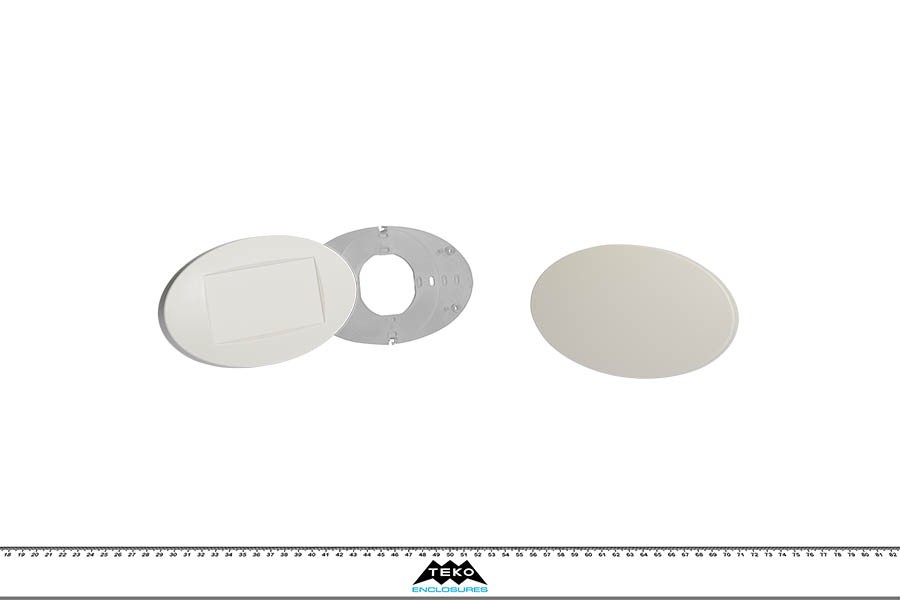

ABS enclosure with matt surface finish. Model MOK1 has a recessed area for keypad membrane or display. Base and cover have integral mounting studs for PCB. The bottom is manufactured by transparent Bayblend® and it is suitable for fixing on a 2 / 6-module standard box 503. Snap-on closing.
Products
| |
|---|---|
| Model | MOK1.7 |
| L (mm) | 165,3 |
| W (mm) | 103,2 |
| H (mm) | 20,3 |
| Color (Ral) |
9002 |
| Material | UG UV 0120 |
| MAX PCB L (mm) | 112 |
| MAX PCB W (mm) | 95 |
| Screws | |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | MOK2.7 |
| L (mm) | 165,3 |
| W (mm) | 103,2 |
| H (mm) | 18,2 |
| Color (Ral) |
9002 |
| Material | UG UV 0120 |
| MAX PCB L (mm) | 112 |
| MAX PCB W (mm) | 95 |
| Screws | |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MOK1.7 | 165,3 | 103,2 | 20,3 |
9002 |
UG UV 0120 | 112 | 95 | - |
PDF DWG |
View
|
||
|
|
MOK2.7 | 165,3 | 103,2 | 18,2 |
9002 |
UG UV 0120 | 112 | 95 | - |
PDF DWG |
View
|
