Description

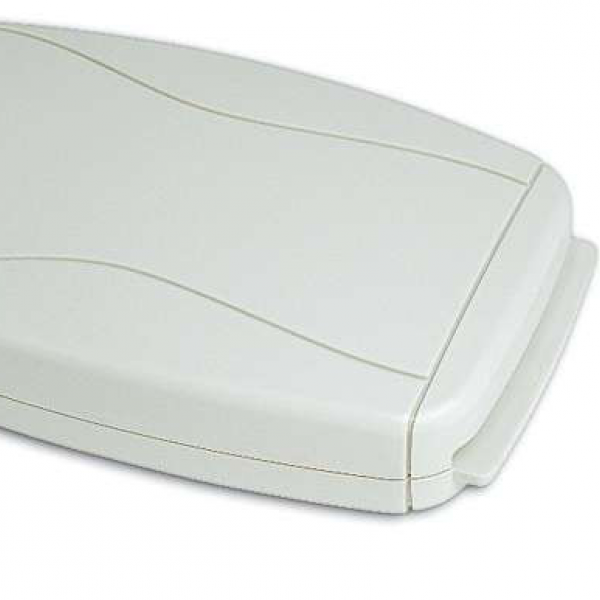

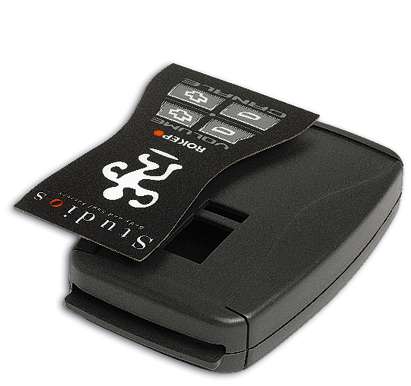

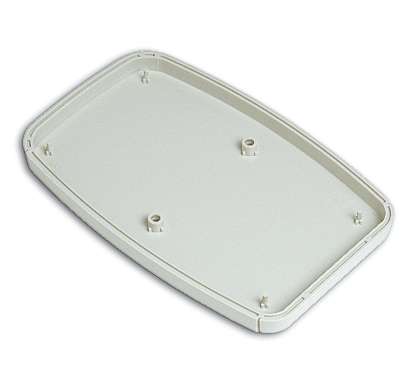

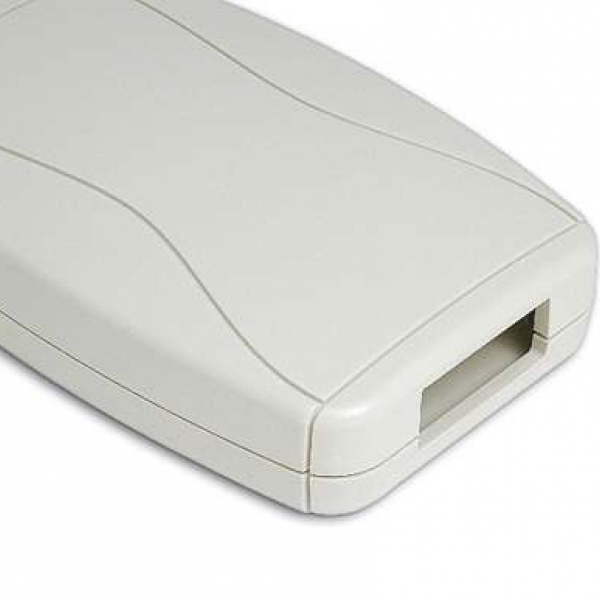

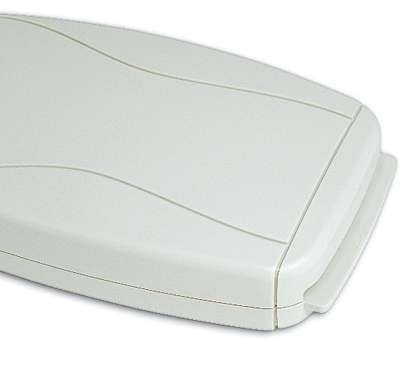

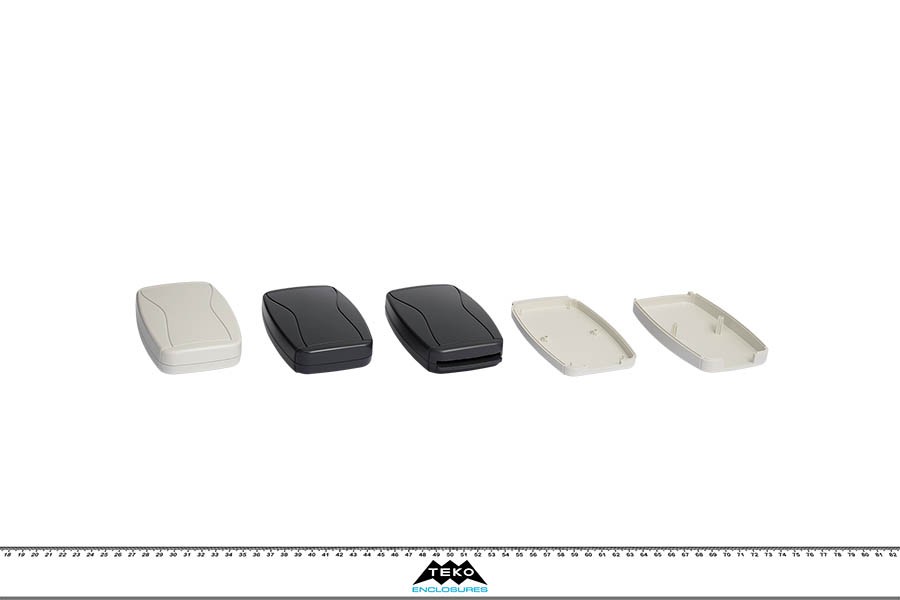

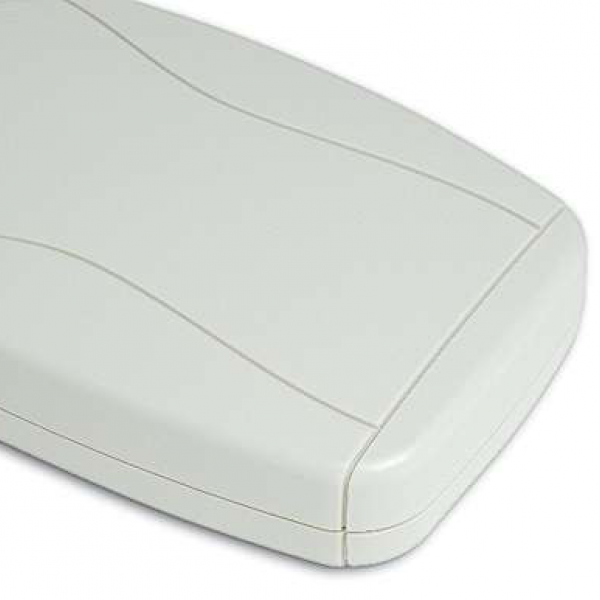

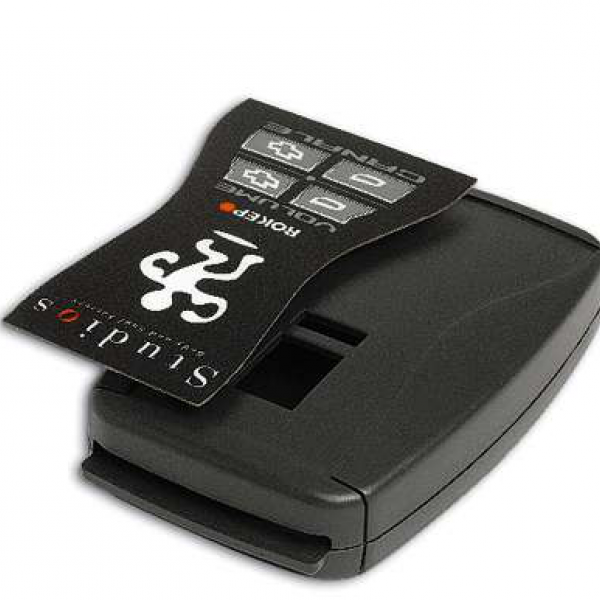

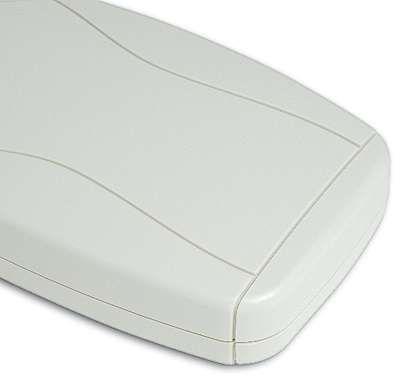

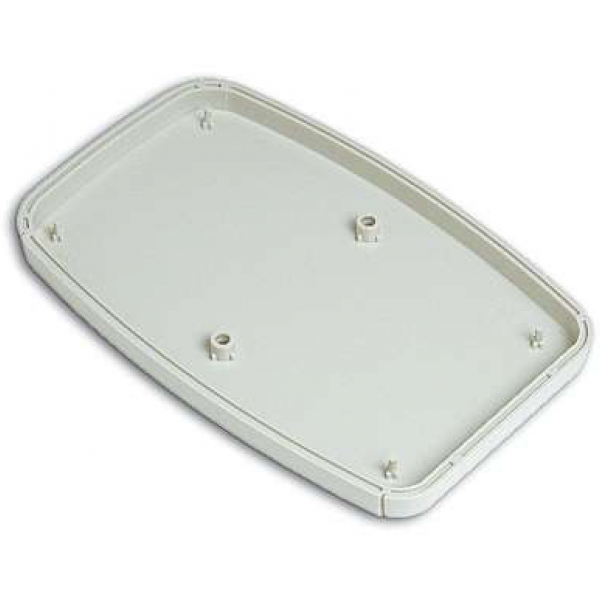

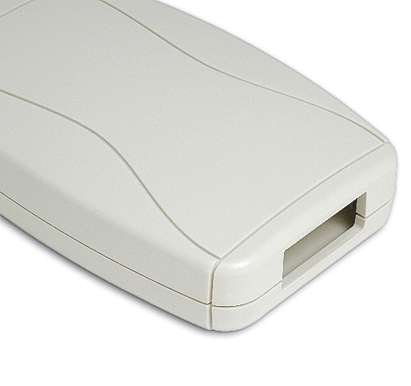

Ergonomic designed ABS enclosures. Pillars prepared for mounting PCBs in the base. Two models available. The model “ST1-C2” is specially designed for Smart Card readers with rear cutout (30mm X 11mm) for DB9 connector. Matt surface finish. Fixed by two screws.
Details
Products
| |
|---|---|

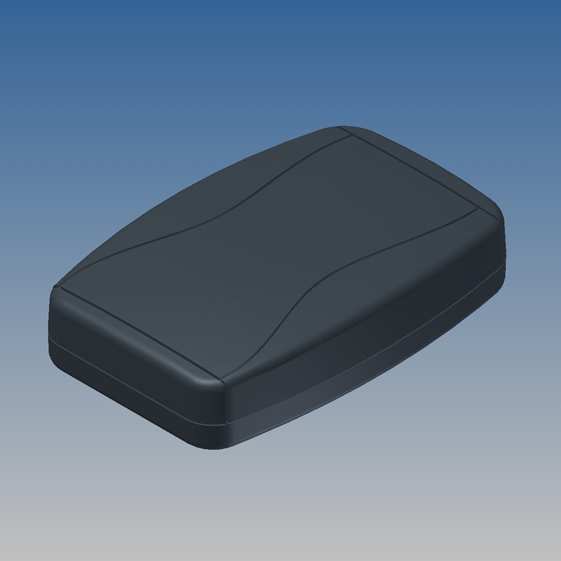

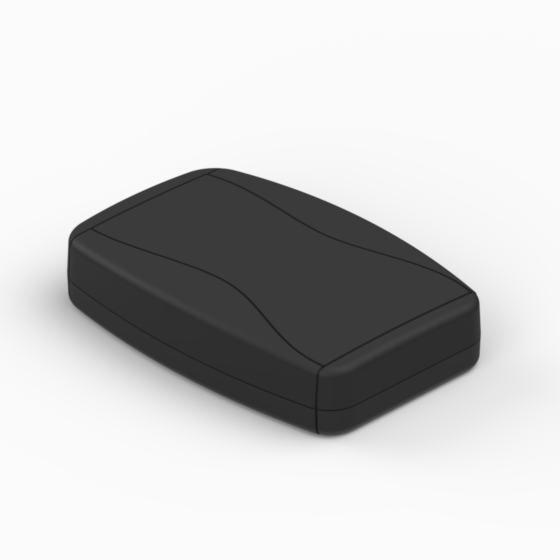

| Model | ST1.4 |
| L (mm) | 114 |
| W (mm) | 74 |
| H (mm) | 24,7 |
| Color (Ral) |
7016 |
| Material | GP40 |
| MAX PCB L (mm) | 100,5 |
| MAX PCB W (mm) | 53,5 |
| Screws | 2 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

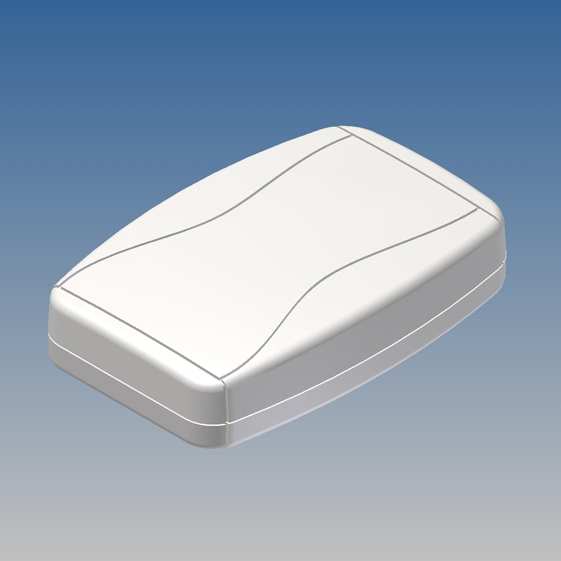

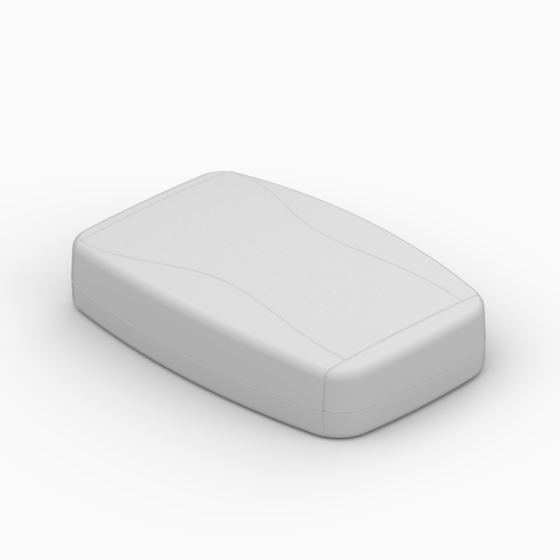

| Model | ST1.7 |
| L (mm) | 114 |
| W (mm) | 74 |
| H (mm) | 24,7 |
| Color (Ral) |
9002 |
| Material | TR-UV |
| MAX PCB L (mm) | 100,5 |
| MAX PCB W (mm) | 53,5 |
| Screws | 2 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

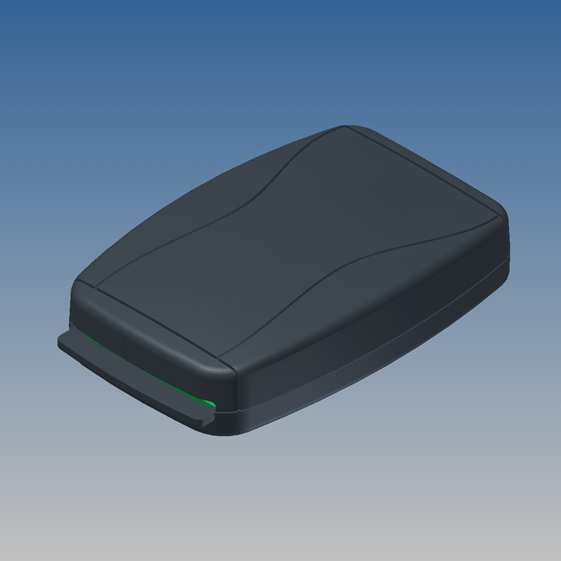

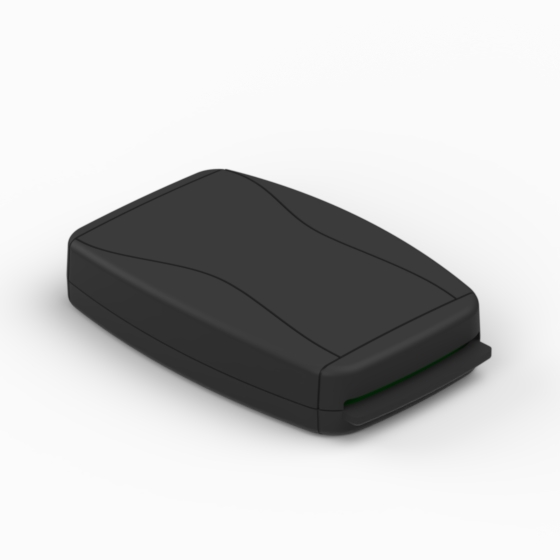

| Model | ST1-C2.4 |
| L (mm) | 114 |
| W (mm) | 74 |
| H (mm) | 24,7 |
| Color (Ral) |
7016 |
| Material | GP40 |
| MAX PCB L (mm) | 100,5 |
| MAX PCB W (mm) | 53,5 |
| Screws | 2 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

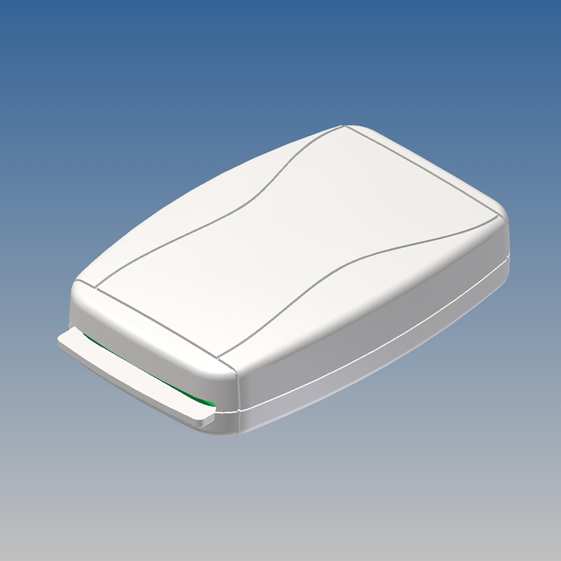

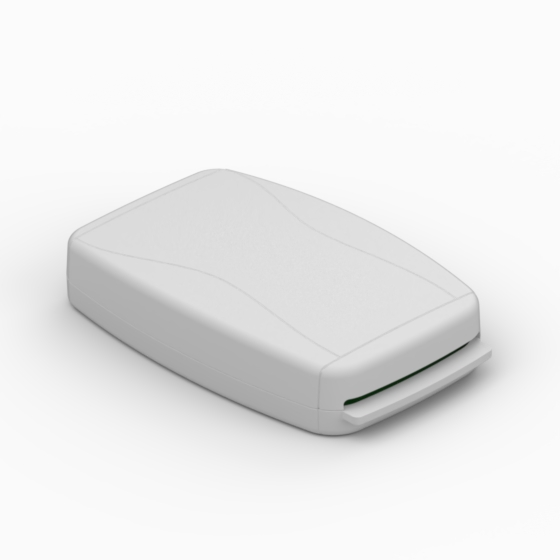

| Model | ST1-C2.7 |
| L (mm) | 114 |
| W (mm) | 74 |
| H (mm) | 24,7 |
| Color (Ral) |
9002 |
| Material | TR-UV |
| MAX PCB L (mm) | 100,5 |
| MAX PCB W (mm) | 53,5 |
| Screws | 2 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
ST1.4 | 114 | 74 | 24,7 |
7016 |
GP40 | 100,5 | 53,5 | 2 | - |
PDF DWG |
View
|
|
|
|
ST1.7 | 114 | 74 | 24,7 |
9002 |
TR-UV | 100,5 | 53,5 | 2 | - |
PDF DWG |
View
|
|
|
|
ST1-C2.4 | 114 | 74 | 24,7 |
7016 |
GP40 | 100,5 | 53,5 | 2 | - |
PDF DWG |
View
|
|
|
|
ST1-C2.7 | 114 | 74 | 24,7 |
9002 |
TR-UV | 100,5 | 53,5 | 2 | - |
PDF DWG |
View
|
