TB-SP

Family Handheld - Electronic enclosures - Plastic

Description

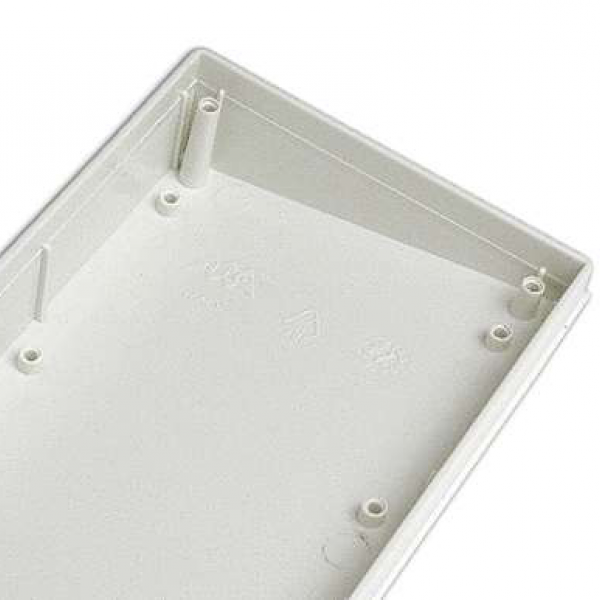

ABS enclosures with inclined cover and a recessed operating area 132 x 72 mm for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. Closing by four screws. Upon request ABS wall mounting tabs “MT1”.

Details

Products

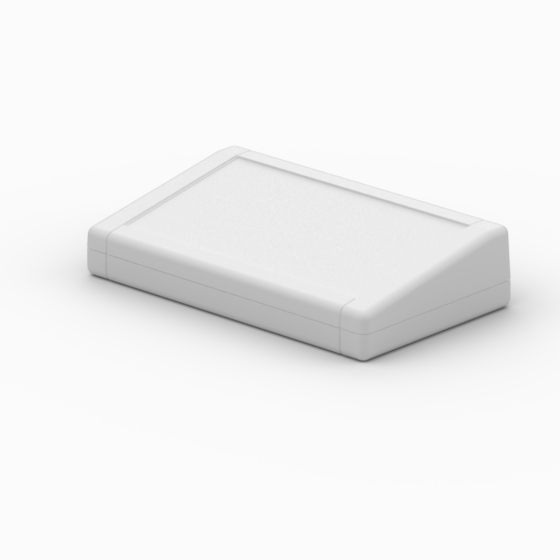

Model TB-1SP.7
L (mm)160
W (mm)94
H (mm)36,5
Color (Ral) 9002
Material FORMACROM 9249FC
MAX PCB L (mm)149
MAX PCB W (mm)80
Screws4
Battery-
Accessories MT1
Drawings PDF
DWG
Other
View

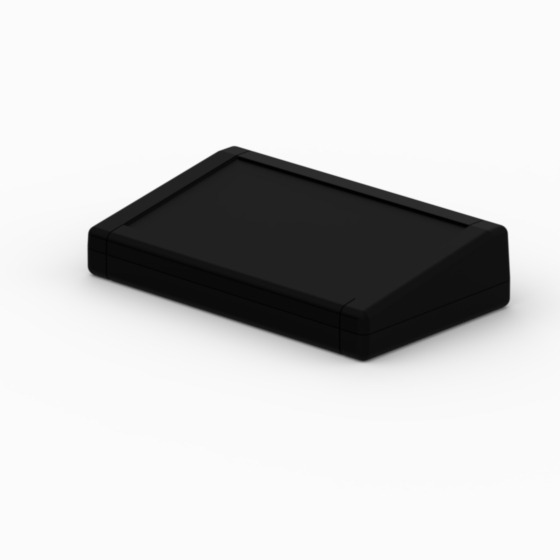

Model TB-1SP.9
L (mm)160
W (mm)94
H (mm)36,5
Color (Ral) 9004
Material TERLURAN GP-35
MAX PCB L (mm)149
MAX PCB W (mm)80
Screws4
Battery-
Accessories MT1
Drawings PDF
DWG
Other
View
Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
TB-1SP.7 160 94 36,5 9002
FORMACROM 9249FC 149 80 4 - MT1
PDF
DWG
View
TB-1SP.9 160 94 36,5 9004
TERLURAN GP-35 149 80 4 - MT1
PDF
DWG
View
