Description
New models from TEKNET series featuring a “T-shape”. ABS hand-held enclosures with elastomer grips (TPU) on the sides. Matt surface finishing. The recessed area on the cover is suitable to accept a keypad membrane. Internal pillars on top and bottom to fix PCB. Closing by four screws.
Details
Products
| |
|---|---|

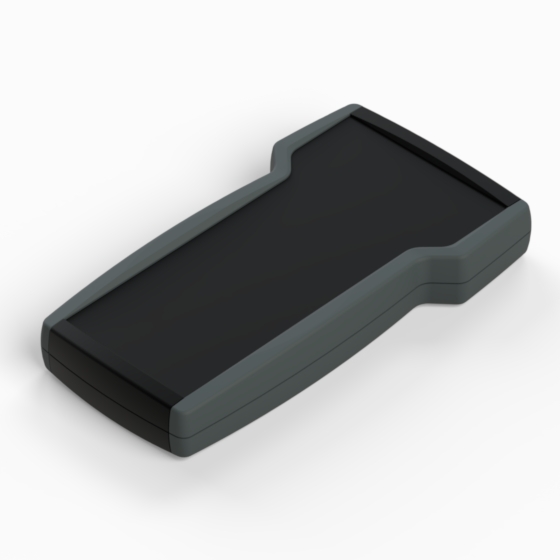

| Model | TNT22.29 |
| L (mm) | 208 |
| W (mm) | 117 |
| H (mm) | 30,3 |
| Color (Ral) |
9004 7012 |
| Material | P2H-AT - 8020 |
| MAX PCB L (mm) | 196 |
| MAX PCB W (mm) | 102 |
| Screws | |
| Battery | |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

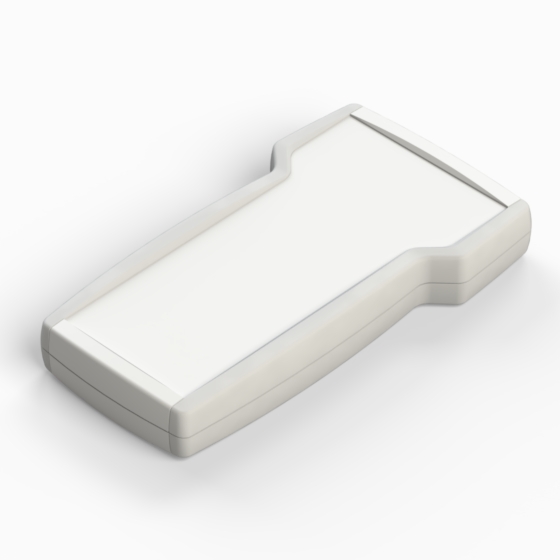

| Model | TNT22.30 |
| L (mm) | 208 |
| W (mm) | 117 |
| H (mm) | 30,3 |
| Color (Ral) |
9002 9018 |
| Material | P2H-AT - 8020 |
| MAX PCB L (mm) | 196 |
| MAX PCB W (mm) | 102 |
| Screws | |
| Battery | |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TNT22.29 | 208 | 117 | 30,3 |
9004 7012 |
P2H-AT - 8020 | 196 | 102 |
PDF DWG |
View
|
|||
|
|
TNT22.30 | 208 | 117 | 30,3 |
9002 9018 |
P2H-AT - 8020 | 196 | 102 |
PDF DWG |
View
|
