Description

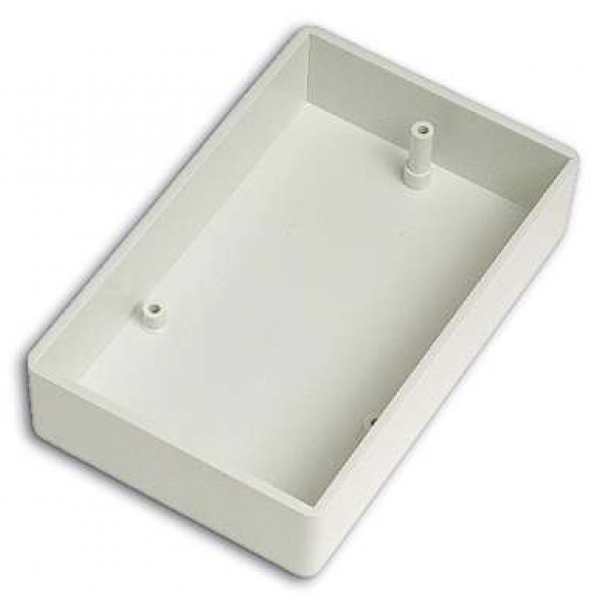

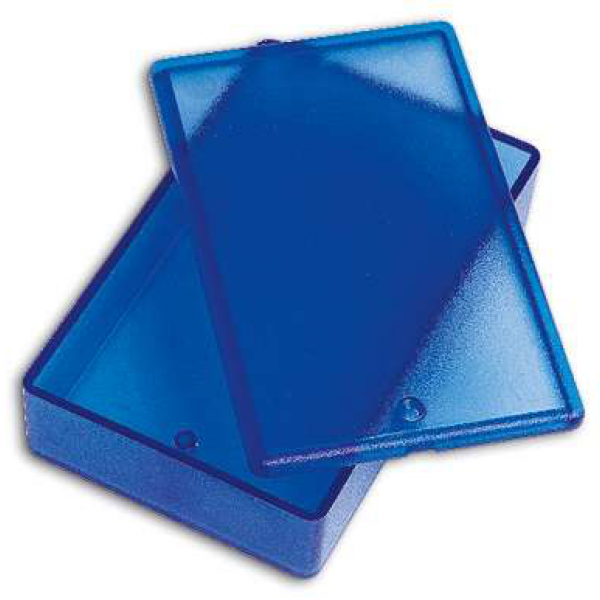

ABS enclosure with rounded corners. Base and cover have integral PCB mounting studs. They are moulded in white and transparent blue. Matt surface finish. Closing by one screw.
Details
Products
| |
|---|---|
| Model | 10016.33 |
| L (mm) | 90,6 |
| W (mm) | 57,2 |
| H (mm) | 23,8 |
| Color (Ral) |
- |
| Material | ZYLAR-631 |
| MAX PCB L (mm) | 76 |
| MAX PCB W (mm) | 49,7 |
| Screws | 1 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 10016.7 |
| L (mm) | 90,6 |
| W (mm) | 57,2 |
| H (mm) | 23,8 |
| Color (Ral) |
9002 |
| Material | L320 |
| MAX PCB L (mm) | 76 |
| MAX PCB W (mm) | 49,7 |
| Screws | 1 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
10016.33 | 90,6 | 57,2 | 23,8 |
- |
ZYLAR-631 | 76 | 49,7 | 1 | - |
PDF DWG |
View
|
|
|
|
10016.7 | 90,6 | 57,2 | 23,8 |
9002 |
L320 | 76 | 49,7 | 1 | - |
PDF DWG |
View
|
