Description

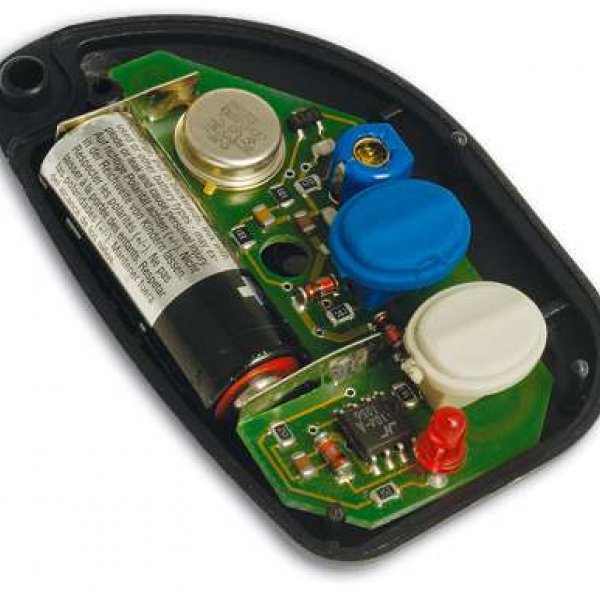

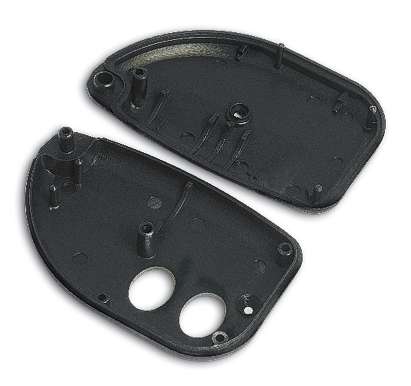

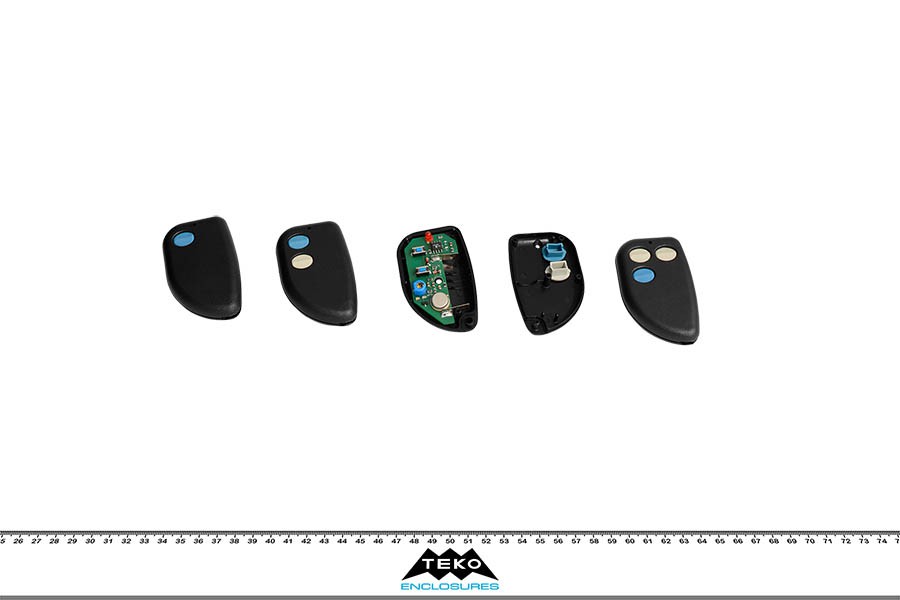

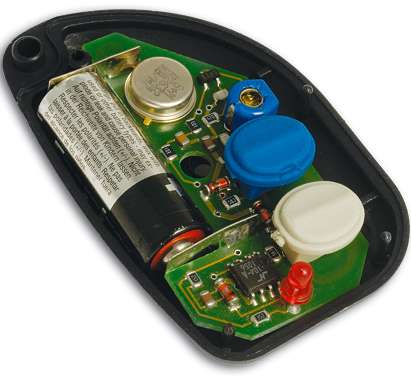

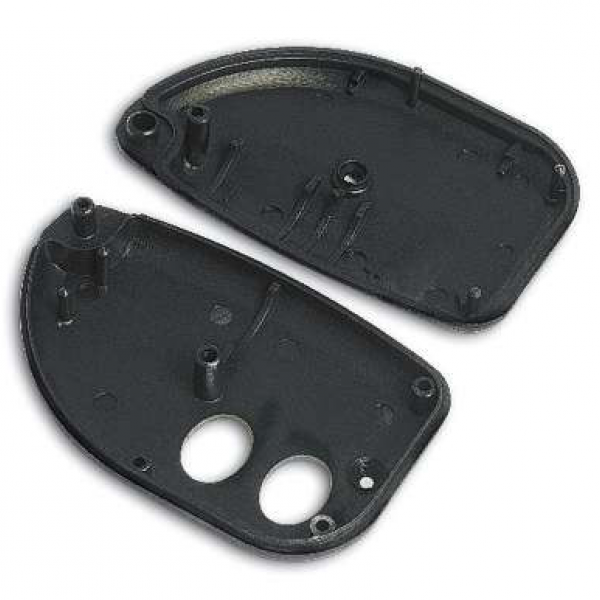

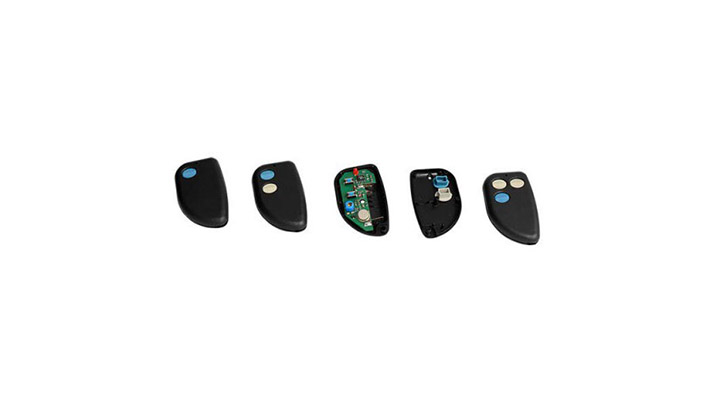

ABS enclosures with an innovative design. Three models available with one, two or three push-button configurations. The base has a integral PCB mounting studs. The enclosure is supplied with two metal contacts for 12V battery (Mod. ABM). Matt surface finish. Closing by one screw.
Products
![]() | |
---|---|

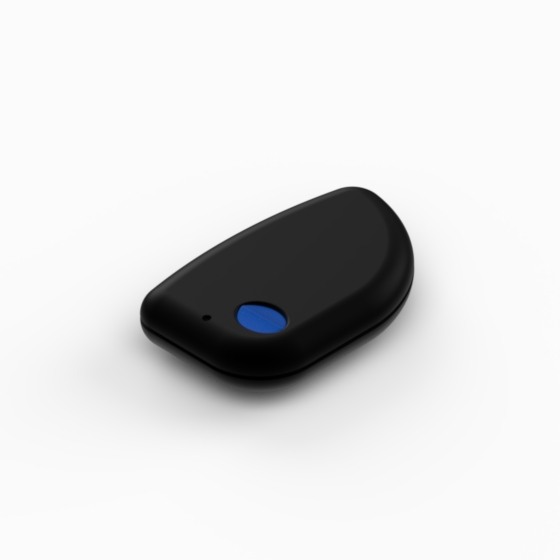

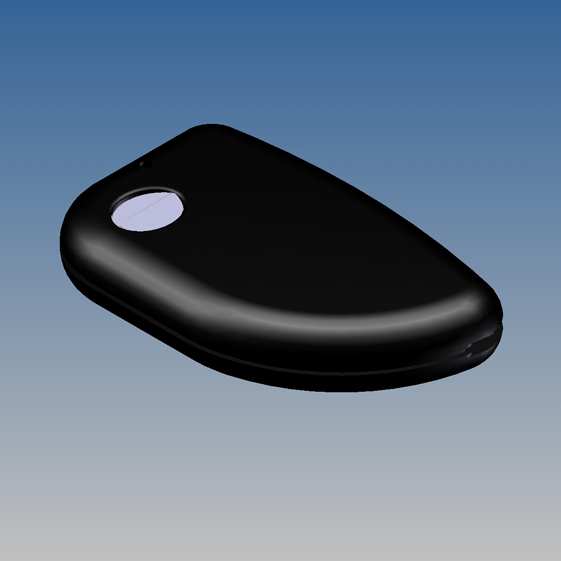

Model | 12121.9 |
L (mm) | 56,5 |
W (mm) | 35,5 |
H (mm) | 13,5 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 1 |
Battery | 1 x 12V |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

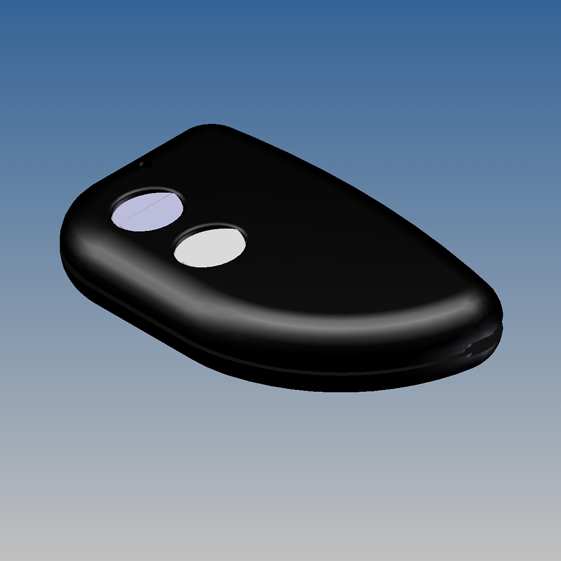

Model | 12122.9 |
L (mm) | 56,5 |
W (mm) | 35,5 |
H (mm) | 13,5 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 1 |
Battery | 1 x 12V |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
![]() | |

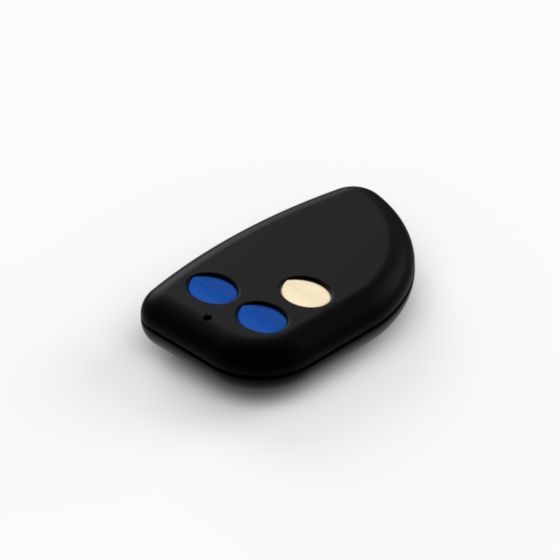

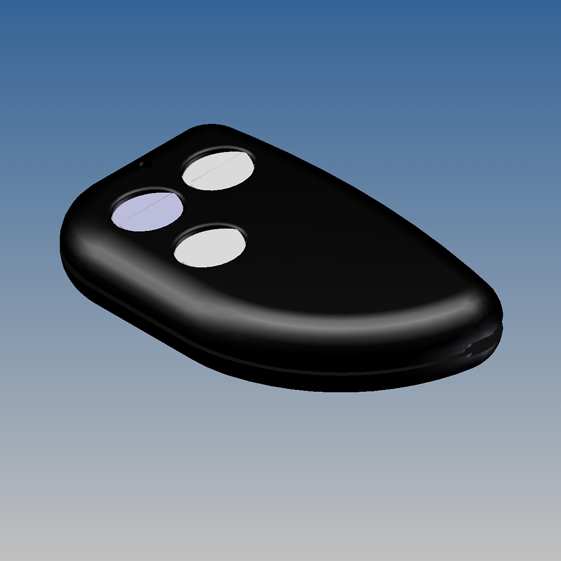

Model | 12123.9 |
L (mm) | 56,5 |
W (mm) | 35,5 |
H (mm) | 13,5 |
Color (Ral) |
9004 |
Material | P2H-AT |
MAX PCB L (mm) | - |
MAX PCB W (mm) | - |
Screws | 1 |
Battery | 1 x 12V |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
12121.9 | 56,5 | 35,5 | 13,5 |
9004 |
P2H-AT | - | - | 1 | 1 x 12V |
PDF DWG |
View
|
|
![]() |
12122.9 | 56,5 | 35,5 | 13,5 |
9004 |
P2H-AT | - | - | 1 | 1 x 12V |
PDF DWG |
View
|
|
![]() |
12123.9 | 56,5 | 35,5 | 13,5 |
9004 |
P2H-AT | - | - | 1 | 1 x 12V |
PDF DWG |
View
|
