Description

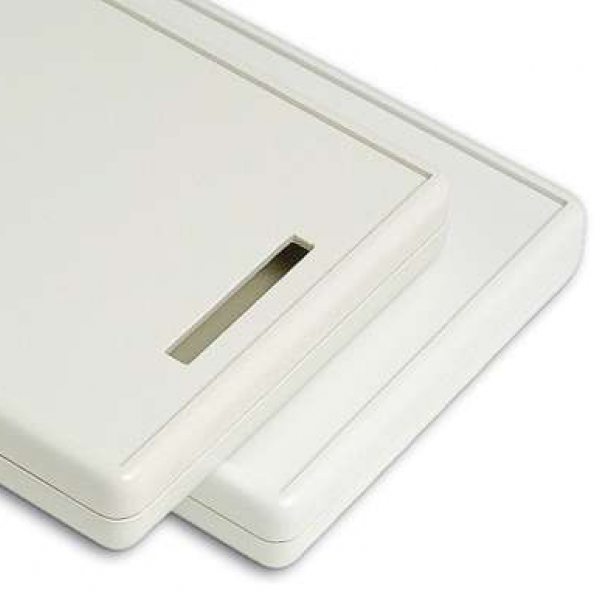

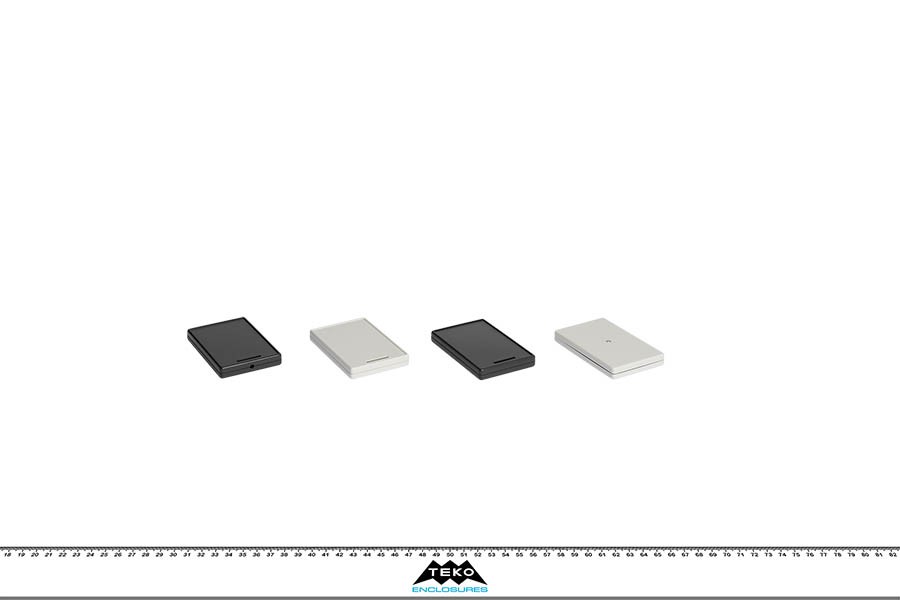

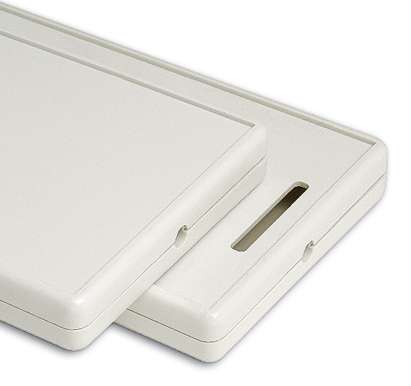

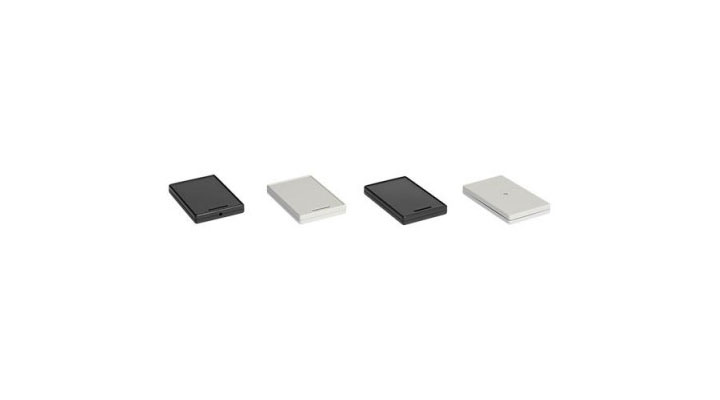

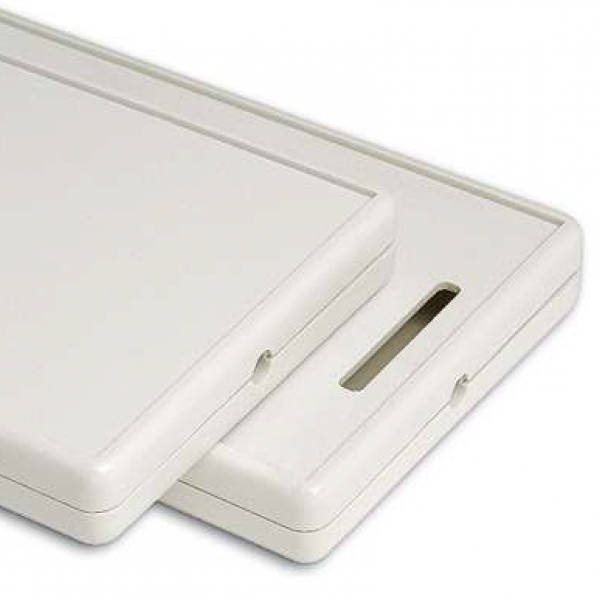

ABS enclosures with a innovative design. The top cover has a recessed operating area for membrane keyboards. Space for 3V small round cells. Four versions available: basic (PC), opening for flat cable (PC-1), LED front opening (PC-XIR) and opening for flat cable plus LED (PC-IR). Closing by only one screw.
Details
Products
| |
|---|---|

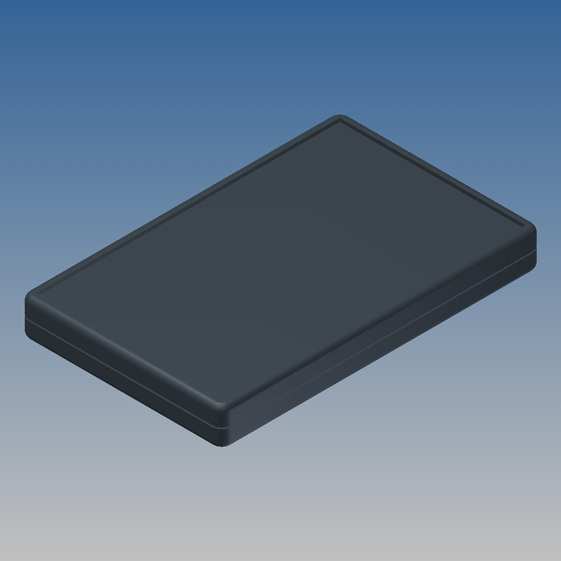

| Model | PC.4 |
| L (mm) | 85 |
| W (mm) | 54 |
| H (mm) | 10 |
| Color (Ral) |
7016 |
| Material | GP40 |
| MAX PCB L (mm) | 79,5 |
| MAX PCB W (mm) | 49,6 |
| Screws | 1 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | PC.7 |
| L (mm) | 85 |
| W (mm) | 54 |
| H (mm) | 10 |
| Color (Ral) |
9002 |
| Material | L320 |
| MAX PCB L (mm) | 79,5 |
| MAX PCB W (mm) | 49,6 |
| Screws | 1 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | PC-1.4 |
| L (mm) | 85 |
| W (mm) | 54 |
| H (mm) | 10 |
| Color (Ral) |
7016 |
| Material | GP40 |
| MAX PCB L (mm) | 79,5 |
| MAX PCB W (mm) | 49,6 |
| Screws | 1 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

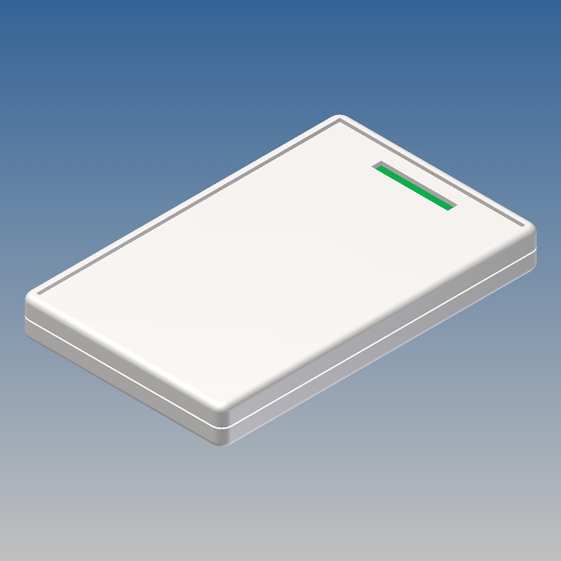

| Model | PC-1.7 |
| L (mm) | 85 |
| W (mm) | 54 |
| H (mm) | 10 |
| Color (Ral) |
9002 |
| Material | L320 |
| MAX PCB L (mm) | 79,5 |
| MAX PCB W (mm) | 49,6 |
| Screws | 1 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

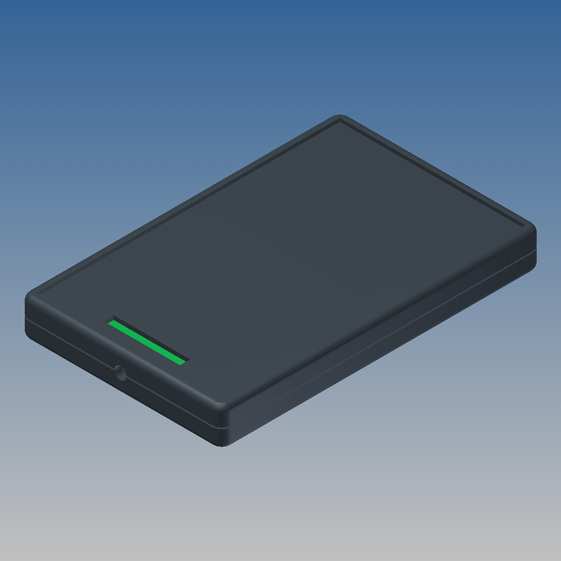

| Model | PC-IR.4 |
| L (mm) | 85 |
| W (mm) | 54 |
| H (mm) | 10 |
| Color (Ral) |
7016 |
| Material | GP40 |
| MAX PCB L (mm) | 79,5 |
| MAX PCB W (mm) | 49,6 |
| Screws | 1 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

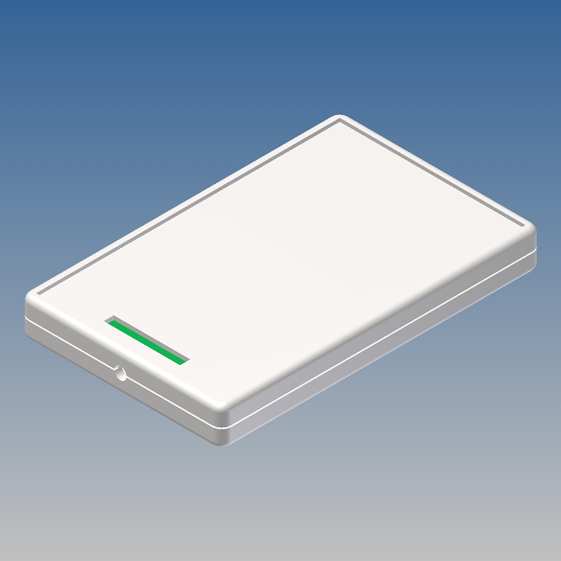

| Model | PC-IR.7 |
| L (mm) | 85 |
| W (mm) | 54 |
| H (mm) | 10 |
| Color (Ral) |
9002 |
| Material | L320 |
| MAX PCB L (mm) | 79,5 |
| MAX PCB W (mm) | 49,6 |
| Screws | 1 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

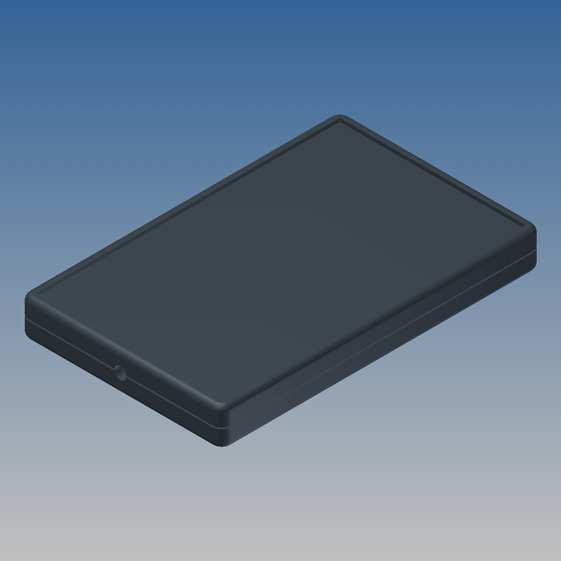

| Model | PC-XIR.4 |
| L (mm) | 85 |
| W (mm) | 54 |
| H (mm) | 10 |
| Color (Ral) |
7016 |
| Material | GP40 |
| MAX PCB L (mm) | 79,5 |
| MAX PCB W (mm) | 49,6 |
| Screws | 1 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

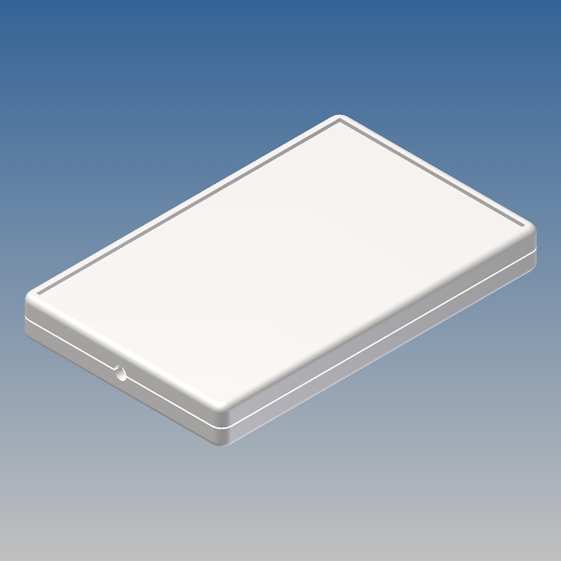

| Model | PC-XIR.7 |
| L (mm) | 85 |
| W (mm) | 54 |
| H (mm) | 10 |
| Color (Ral) |
9002 |
| Material | L320 |
| MAX PCB L (mm) | 79,5 |
| MAX PCB W (mm) | 49,6 |
| Screws | 1 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PC.4 | 85 | 54 | 10 |
7016 |
GP40 | 79,5 | 49,6 | 1 | - |
PDF DWG |
View
|
|
|
|
PC.7 | 85 | 54 | 10 |
9002 |
L320 | 79,5 | 49,6 | 1 | - |
PDF DWG |
View
|
|
|
|
PC-1.4 | 85 | 54 | 10 |
7016 |
GP40 | 79,5 | 49,6 | 1 | - |
PDF DWG |
View
|
|
|
|
PC-1.7 | 85 | 54 | 10 |
9002 |
L320 | 79,5 | 49,6 | 1 | - |
PDF DWG |
View
|
|
|
|
PC-IR.4 | 85 | 54 | 10 |
7016 |
GP40 | 79,5 | 49,6 | 1 | - |
PDF DWG |
View
|
|
|
|
PC-IR.7 | 85 | 54 | 10 |
9002 |
L320 | 79,5 | 49,6 | 1 | - |
PDF DWG |
View
|
|
|
|
PC-XIR.4 | 85 | 54 | 10 |
7016 |
GP40 | 79,5 | 49,6 | 1 | - |
PDF DWG |
View
|
|
|
|
PC-XIR.7 | 85 | 54 | 10 |
9002 |
L320 | 79,5 | 49,6 | 1 | - |
PDF DWG |
View
|
