Description

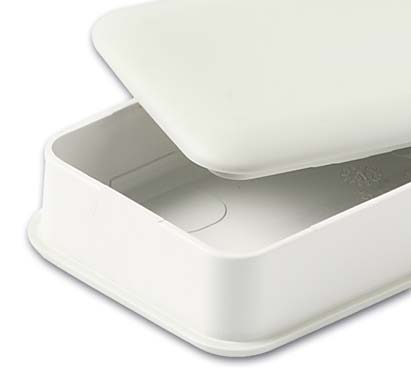

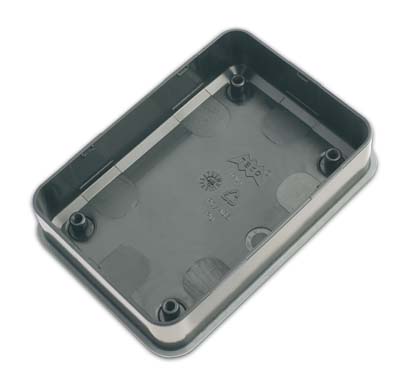

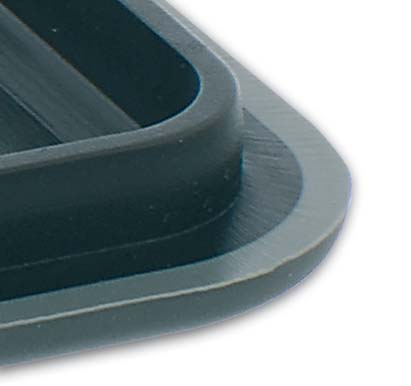

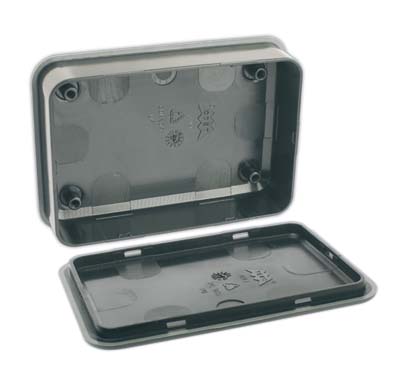

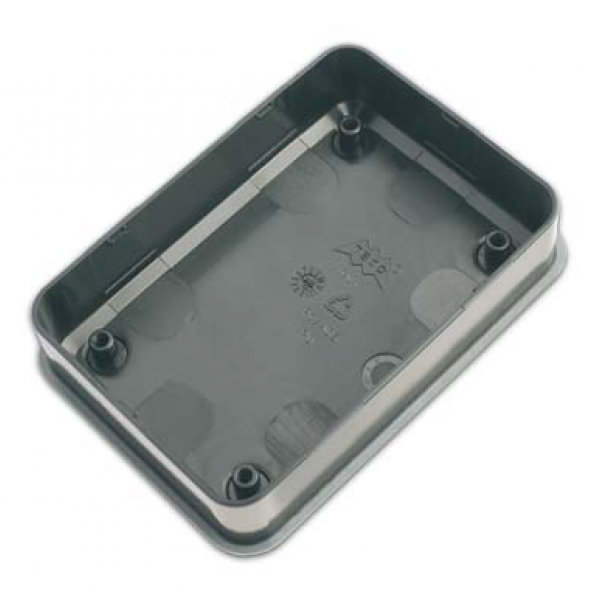

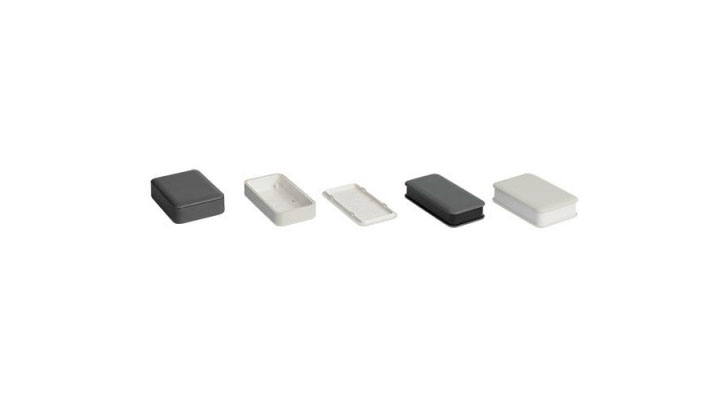

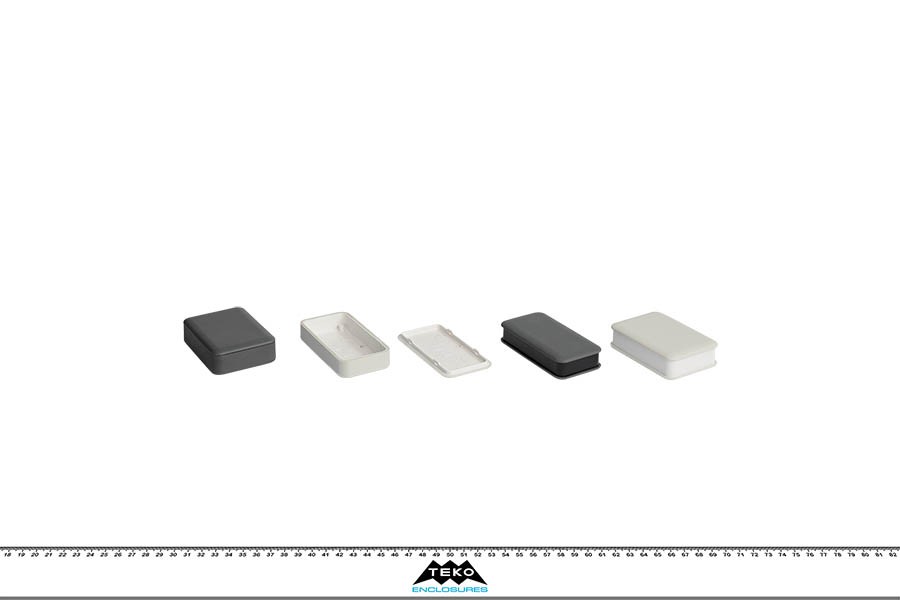

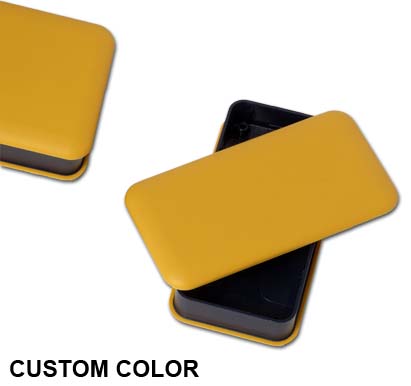

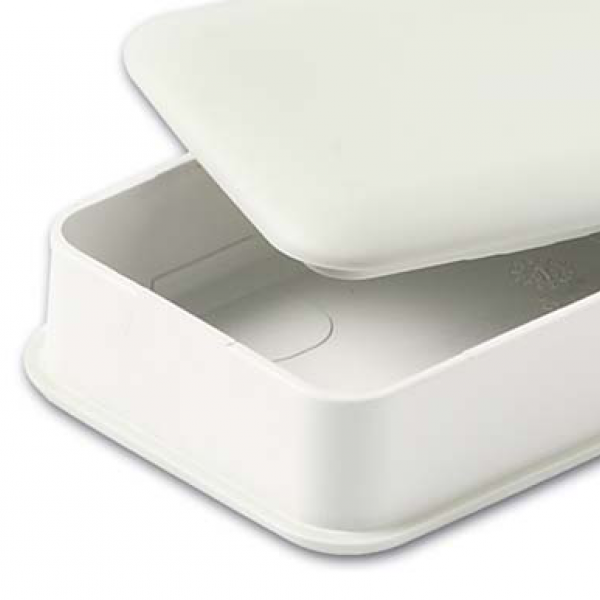

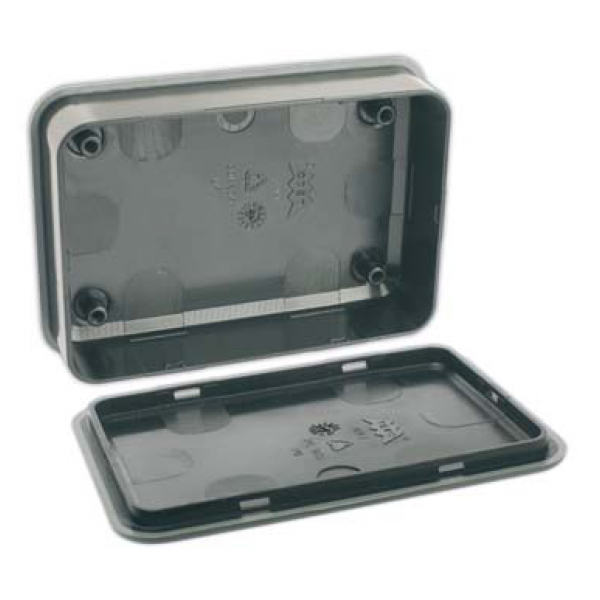

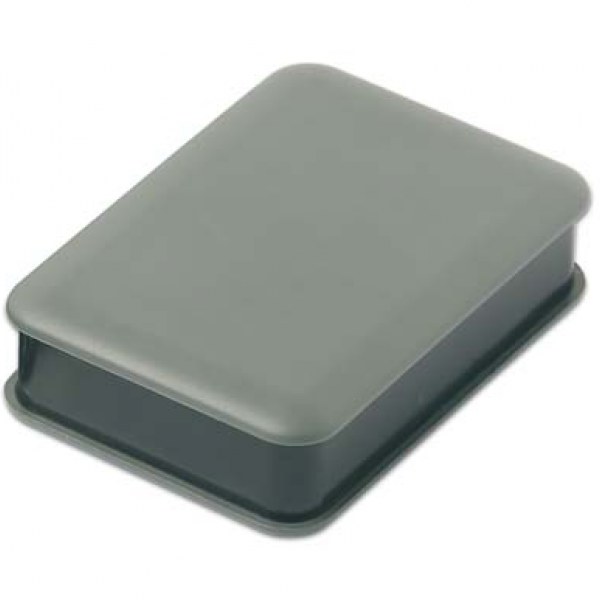

Series of enclosures moulded in two-materials (ABS/PC and TPU) with snap-on closing. Base with integral mounting studs for PCB. Two combinations of colours available: Black RAL 9004/Dark grey RAL 7012 - White RAL 9002/Light grey RAL 9018.
Details
Products
| |
|---|---|

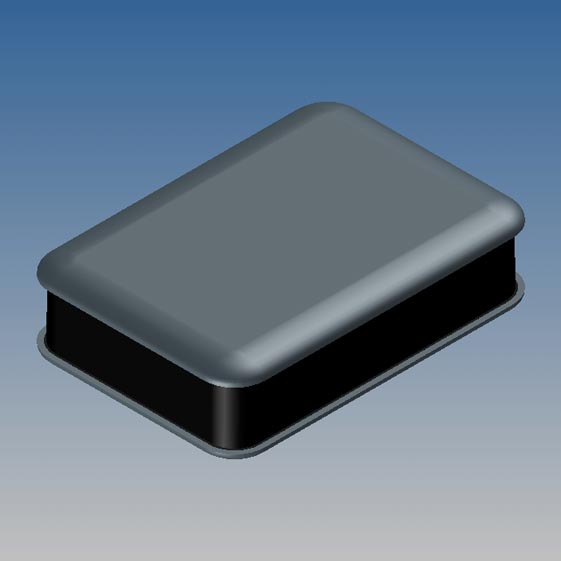

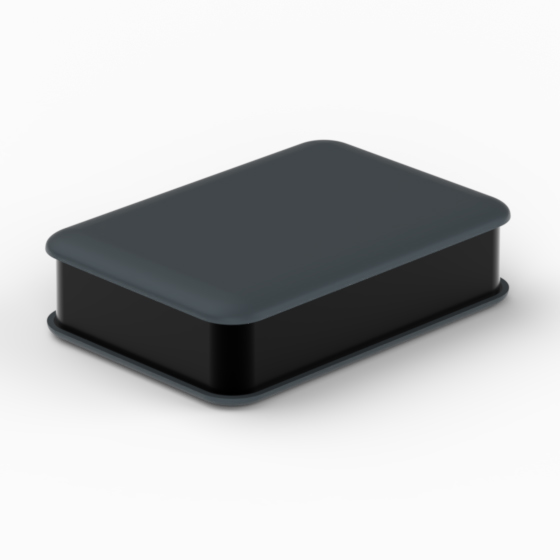

| Model | WK-2.29 |
| L (mm) | 80 |
| W (mm) | 56 |
| H (mm) | 22 |
| Color (Ral) |
9004 7012 |
| Material | P2H-AT - 8020 |
| MAX PCB L (mm) | 73 |
| MAX PCB W (mm) | 48 |
| Screws | - |
| Battery | - |
| Accessories |

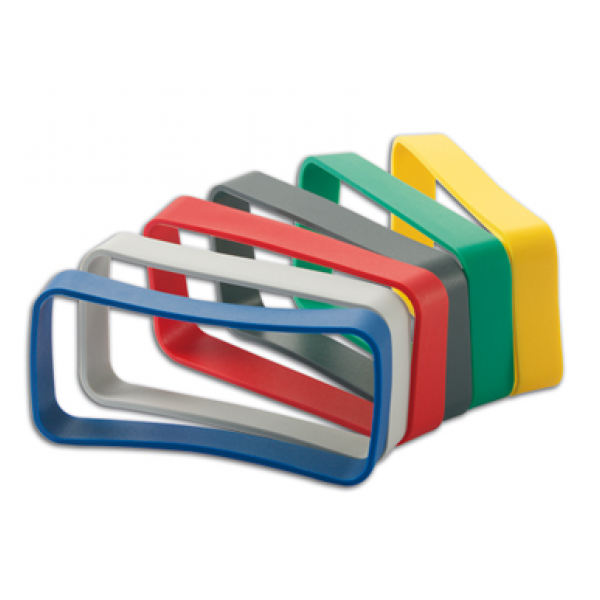

RWK-2 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

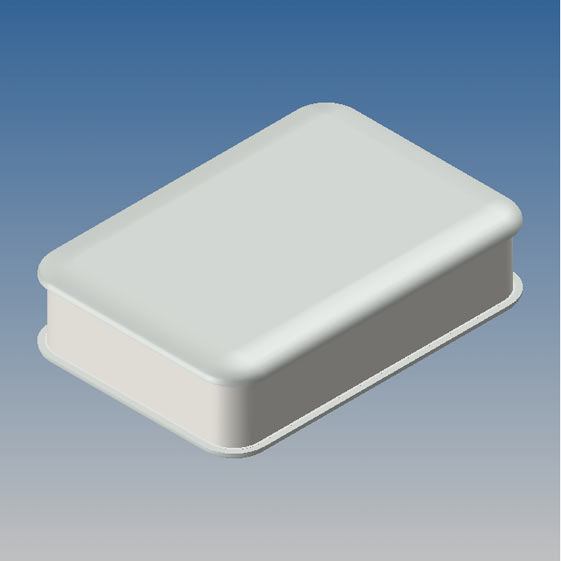

| Model | WK-2.30 |
| L (mm) | 80 |
| W (mm) | 56 |
| H (mm) | 22 |
| Color (Ral) |
9002 9018 |
| Material | P2H-AT - 8020 |
| MAX PCB L (mm) | 73 |
| MAX PCB W (mm) | 48 |
| Screws | - |
| Battery | - |
| Accessories |
RWK-2 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

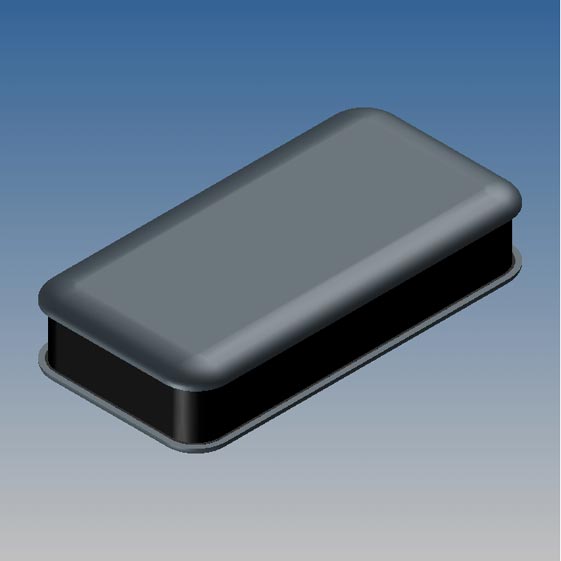

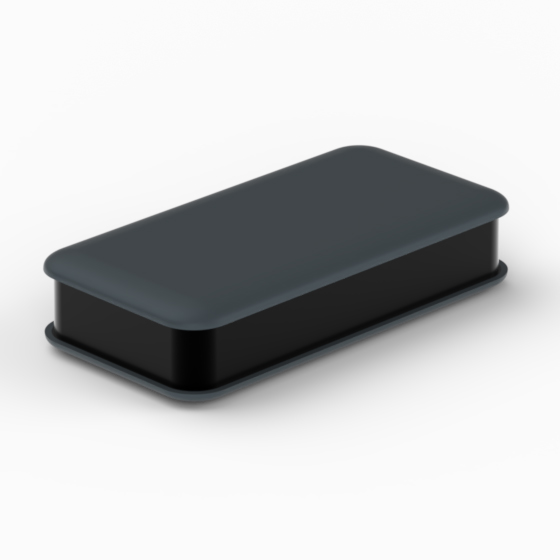

| Model | WK-3.29 |
| L (mm) | 90 |
| W (mm) | 46 |
| H (mm) | 20 |
| Color (Ral) |
9004 7012 |
| Material | P2H-AT - 8020 |
| MAX PCB L (mm) | 82 |
| MAX PCB W (mm) | 38 |
| Screws | - |
| Battery | - |
| Accessories |
RWK-3 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

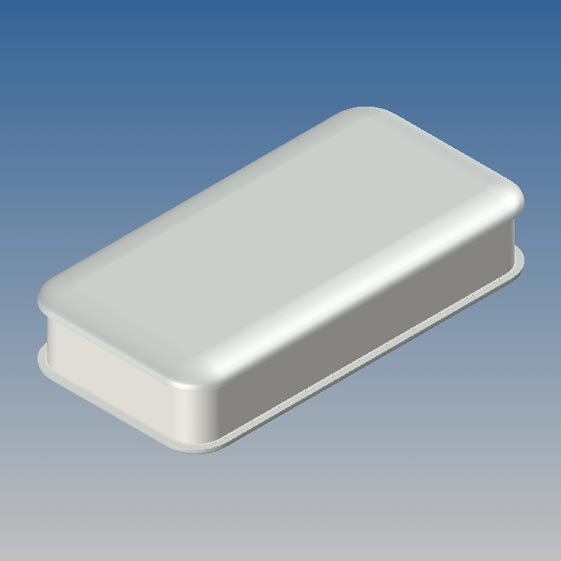

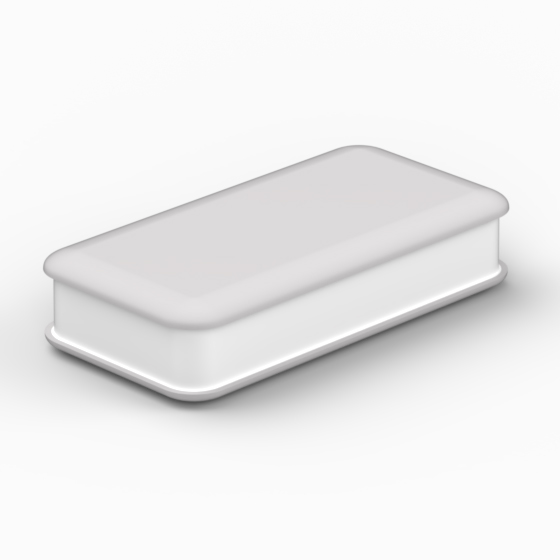

| Model | WK-3.30 |
| L (mm) | 90 |
| W (mm) | 46 |
| H (mm) | 20 |
| Color (Ral) |
9002 9018 |
| Material | P2H-AT - 8020 |
| MAX PCB L (mm) | 82 |
| MAX PCB W (mm) | 38 |
| Screws | - |
| Battery | - |
| Accessories |
RWK-3 |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
WK-2.29 | 80 | 56 | 22 |
9004 7012 |
P2H-AT - 8020 | 73 | 48 | - | - |
RWK-2 |
PDF DWG |
View
|
|
|
WK-2.30 | 80 | 56 | 22 |
9002 9018 |
P2H-AT - 8020 | 73 | 48 | - | - |
RWK-2 |
PDF DWG |
View
|
|
|
WK-3.29 | 90 | 46 | 20 |
9004 7012 |
P2H-AT - 8020 | 82 | 38 | - | - |
RWK-3 |
PDF DWG |
View
|
|
|
WK-3.30 | 90 | 46 | 20 |
9002 9018 |
P2H-AT - 8020 | 82 | 38 | - | - |
RWK-3 |
PDF DWG |
View
|
