Description

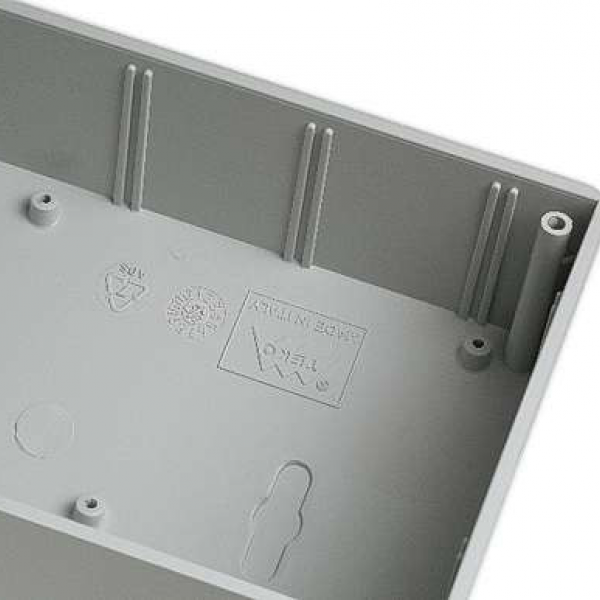

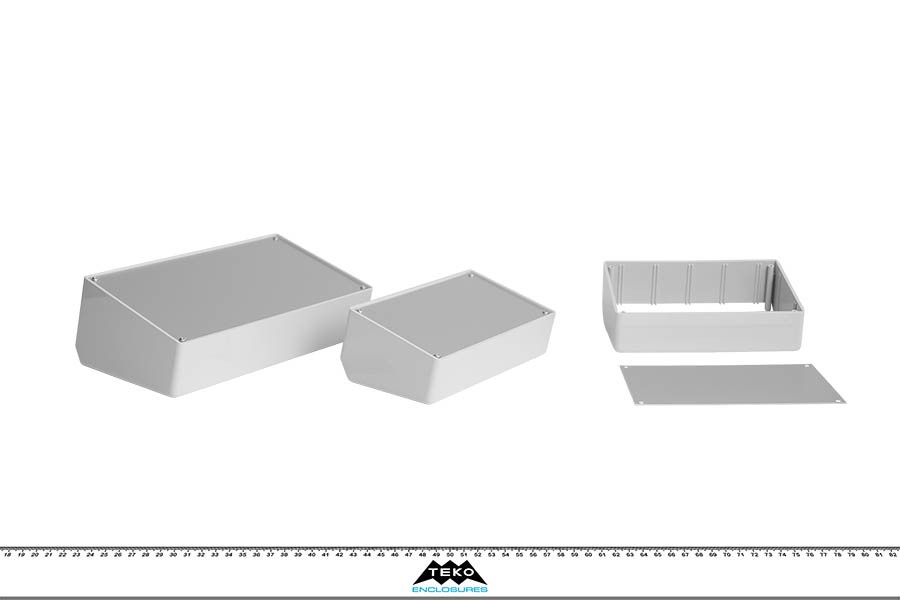

ABS enclosure with a 15° inclined 1mm aluminium panel. The base walls have integral PCB guides and mounting studs. Rounded corners. Glossy surfaces finish. Closing by four screws.
Details
Products
| |
|---|---|

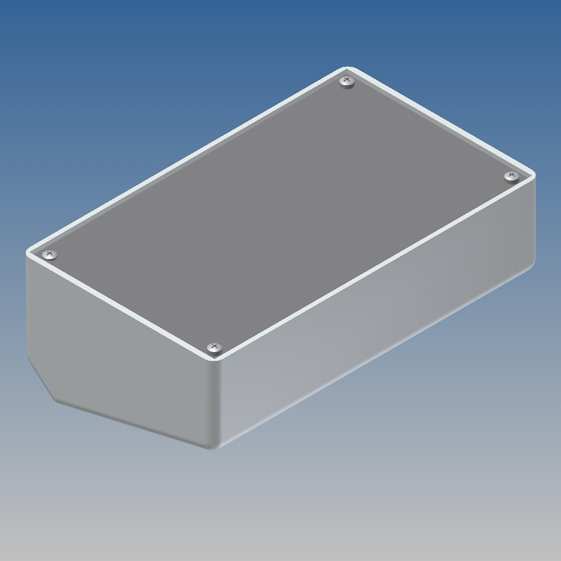

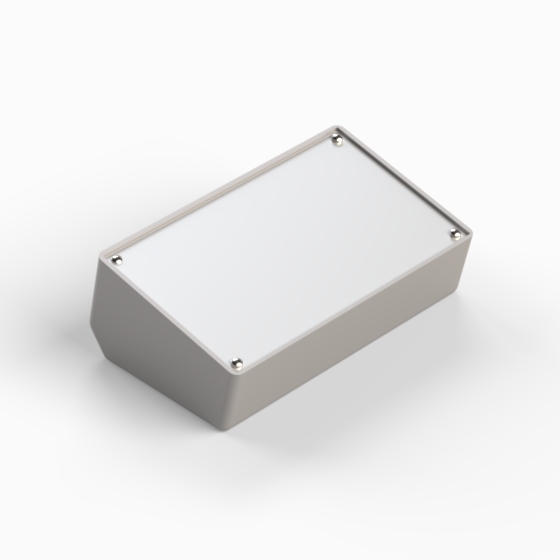

| Model | 115.5 |
| L (mm) | 161 |
| W (mm) | 95 |
| H (mm) | 60 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 153 |
| MAX PCB W (mm) | 81 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

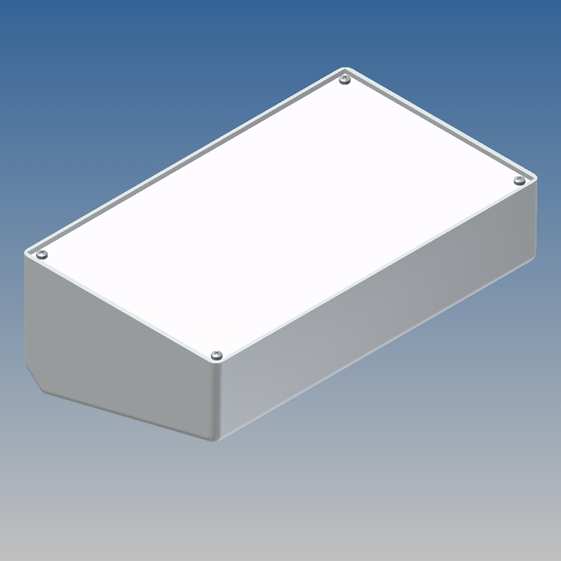

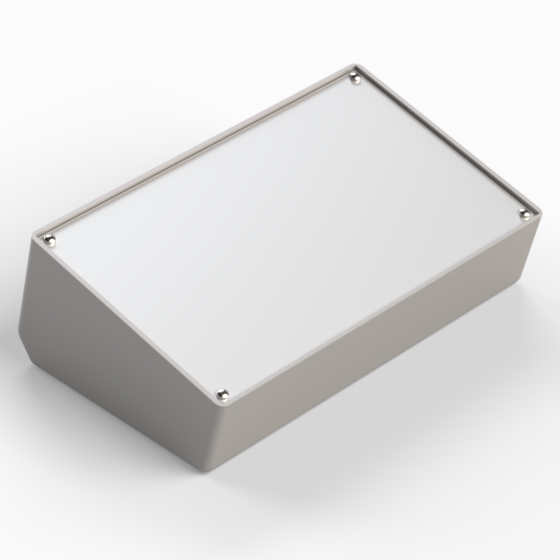

| Model | 215.5 |
| L (mm) | 216 |
| W (mm) | 130 |
| H (mm) | 77 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 208 |
| MAX PCB W (mm) | 118,5 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
115.5 | 161 | 95 | 60 |
9018 |
AG-ATY | 153 | 81 | 4 | - |
PDF DWG |
View
|
|
|
|
215.5 | 216 | 130 | 77 |
9018 |
AG-ATY | 208 | 118,5 | 4 | - |
PDF DWG |
View
|
