Description

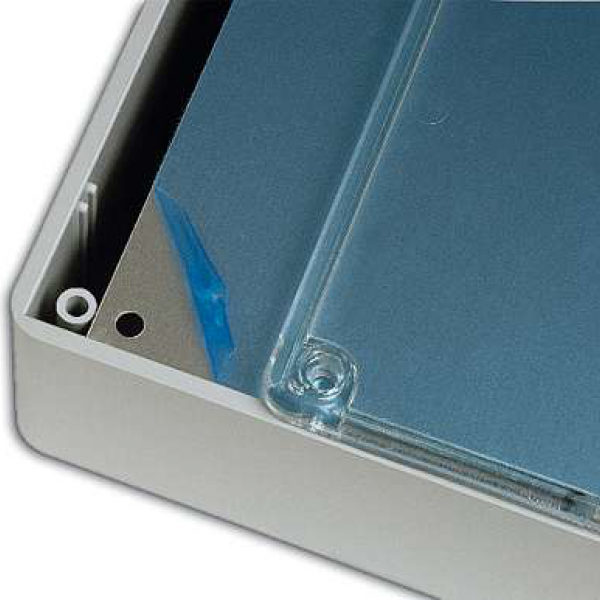

ABS enclosure with a 15° inclined transparent polycarbonate cover that protects an anodised 0.5 mm aluminium panel. The base walls have integral PCB guides and mounting studs. Rounded corners. Glossy surfaces finish. Closing by four screws.
Products
Model | 115TP.5 |
L (mm) | 161 |
W (mm) | 95 |
H (mm) | 64 |
Color (Ral) |
9018 |
Material | AG-ATY - 2407 |
MAX PCB L (mm) | 153 |
MAX PCB W (mm) | 81 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | 215TP.5 |
L (mm) | 216 |
W (mm) | 130 |
H (mm) | 80,5 |
Color (Ral) |
9018 |
Material | AG-ATY - 2407 |
MAX PCB L (mm) | 208 |
MAX PCB W (mm) | 118,5 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
115TP.5 | 161 | 95 | 64 |
9018 |
AG-ATY - 2407 | 153 | 81 | 4 | - |
PDF DWG |
View
|
||
215TP.5 | 216 | 130 | 80,5 |
9018 |
AG-ATY - 2407 | 208 | 118,5 | 4 | - |
PDF DWG |
View
|
