Description

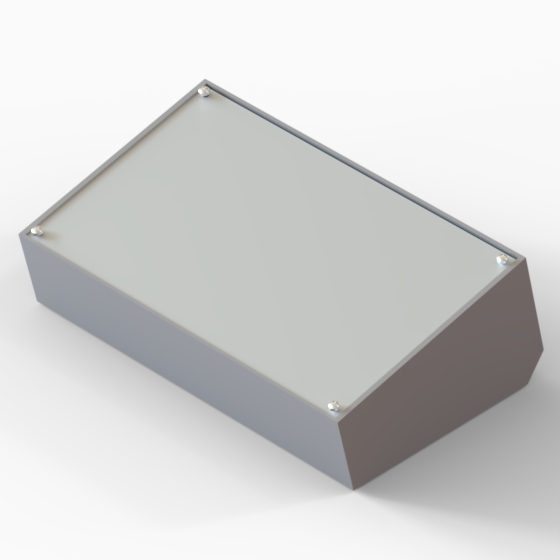

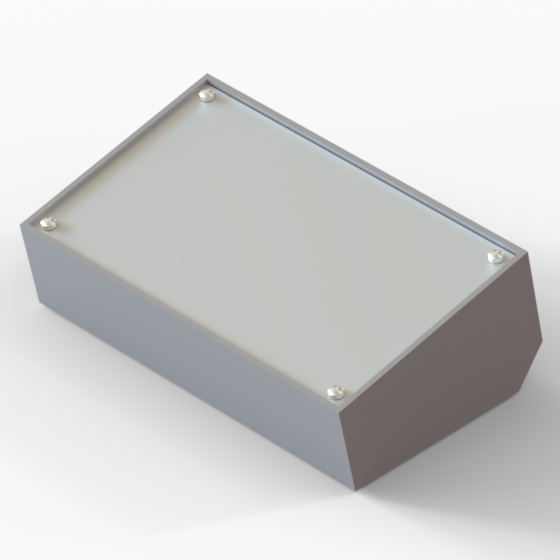

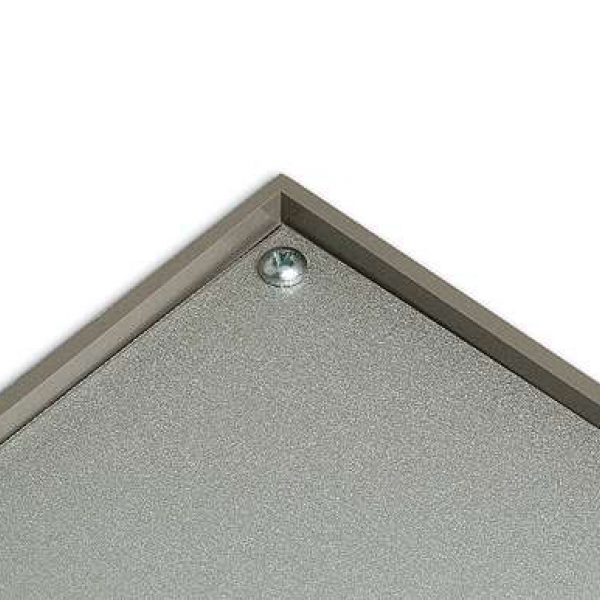

ABS enclosure with a 15° inclined 1mm aluminium panel. The base walls have integral PCB guides and mounting studs. Glossy surface finish. Closing by four screws.
Details
Products
| |
|---|---|
| Model | 362.8 |
| L (mm) | 161 |
| W (mm) | 97 |
| H (mm) | 61,1 |
| Color (Ral) |
7037 |
| Material | N-UT |
| MAX PCB L (mm) | 153 |
| MAX PCB W (mm) | 82 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 363.8 |
| L (mm) | 216 |
| W (mm) | 130 |
| H (mm) | 77,7 |
| Color (Ral) |
7037 |
| Material | N-UT |
| MAX PCB L (mm) | 207 |
| MAX PCB W (mm) | 118 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 364.8 |
| L (mm) | 311 |
| W (mm) | 170 |
| H (mm) | 89 |
| Color (Ral) |
7037 |
| Material | N-UT |
| MAX PCB L (mm) | 302 |
| MAX PCB W (mm) | 150 |
| Screws | 6 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
362.8 | 161 | 97 | 61,1 |
7037 |
N-UT | 153 | 82 | 4 | - |
PDF DWG |
View
|
|
|
|
363.8 | 216 | 130 | 77,7 |
7037 |
N-UT | 207 | 118 | 4 | - |
PDF DWG |
View
|
|
|
|
364.8 | 311 | 170 | 89 |
7037 |
N-UT | 302 | 150 | 6 | - |
PDF DWG |
View
|
