27-29

Family Rf - Electronic enclosures - Metal

Description

A hot tin-plated steel enclosure with two Snap-On, finger-flanged lids to allow access from top and bottom case.

Details

Products

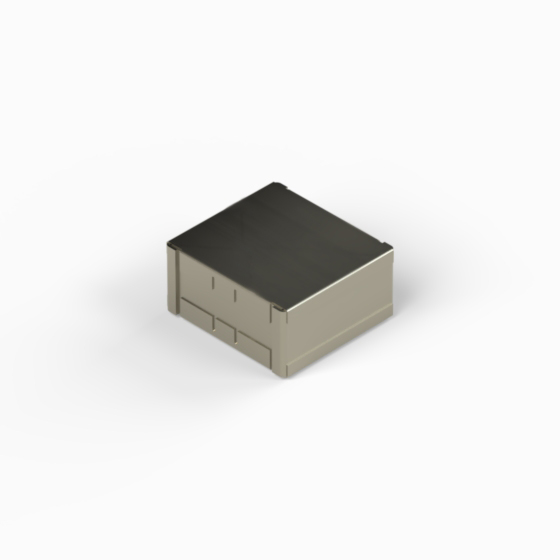

Model 271.16
L (mm)54
W (mm)50
H (mm)26
Color (Ral)  -
Material DC01
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
Battery-
Accessories
Drawings PDF
DWG
Other
View

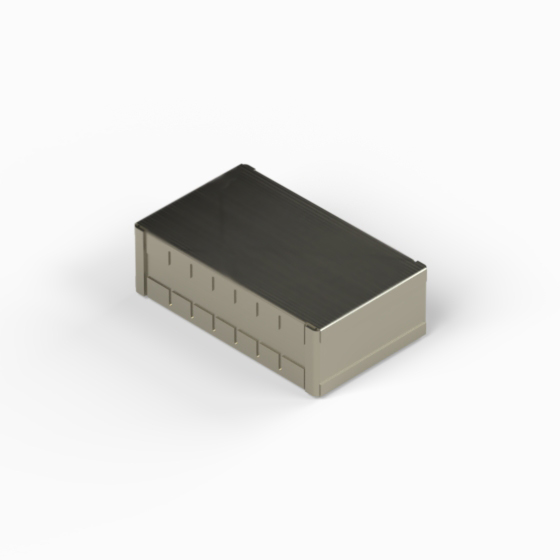

Model 272.16
L (mm)83
W (mm)50
H (mm)26
Color (Ral)  -
Material DC01
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
Battery-
Accessories
Drawings PDF
DWG
Other
View

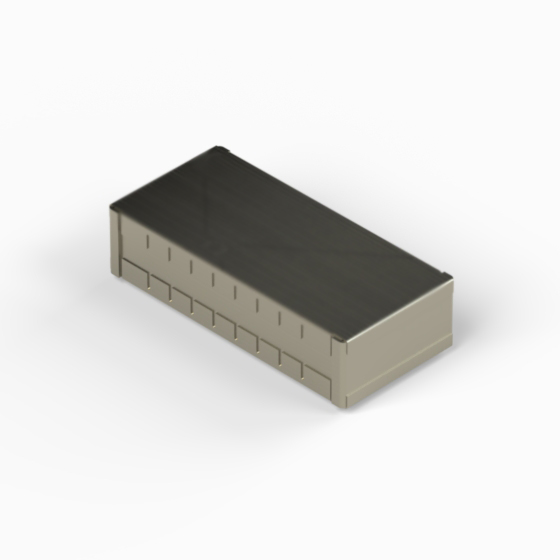

Model 273.16
L (mm)106
W (mm)50
H (mm)26
Color (Ral)  -
Material DC01
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
Battery-
Accessories
Drawings PDF
DWG
Other
View

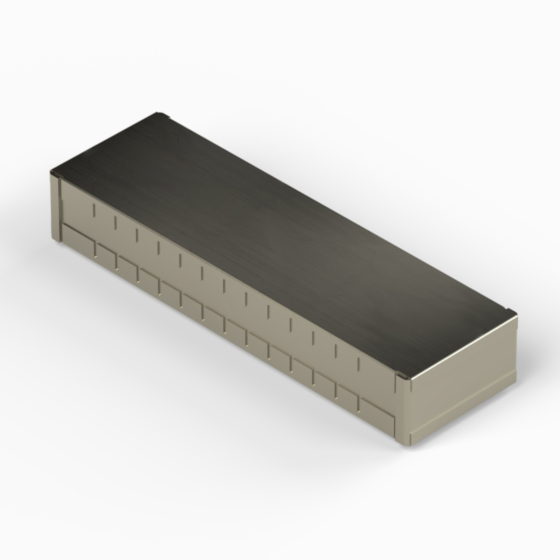

Model 274.16
L (mm)161
W (mm)50
H (mm)26
Color (Ral)  -
Material DC01
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
Battery-
Accessories
Drawings PDF
DWG
Other
View

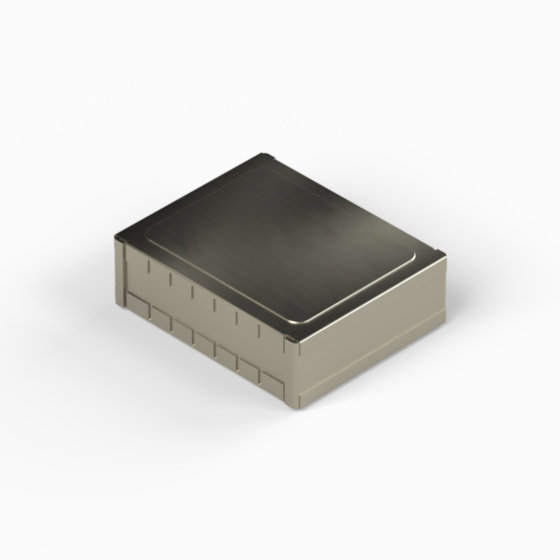

Model 292.16
L (mm)83
W (mm)68
H (mm)27
Color (Ral)  -
Material DC01
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
Battery-
Accessories
Drawings PDF
DWG
Other
View

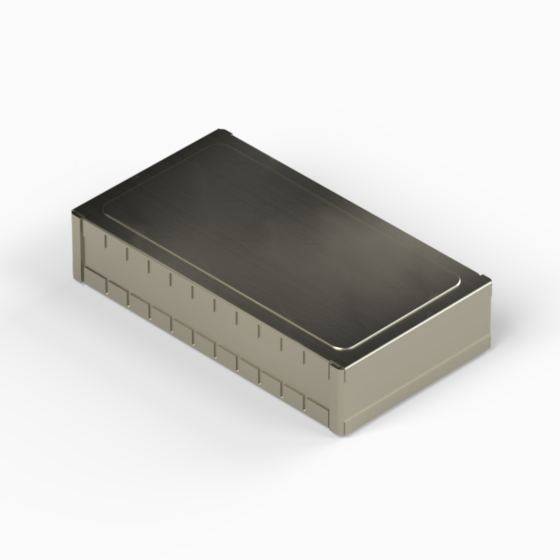

Model 293.16
L (mm)122
W (mm)68
H (mm)27
Color (Ral)  -
Material DC01
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
Battery-
Accessories
Drawings PDF
DWG
Other
View

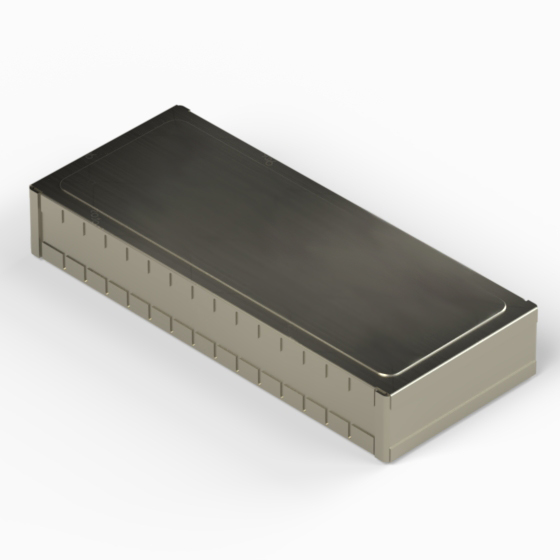

Model 294.16
L (mm)161
W (mm)68
H (mm)27
Color (Ral)  -
Material DC01
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
Battery-
Accessories
Drawings PDF
DWG
Other
View
Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
271.16 54 50 26  -
DC01 - - - - PDF
DWG
View
272.16 83 50 26  -
DC01 - - - - PDF
DWG
View
273.16 106 50 26  -
DC01 - - - - PDF
DWG
View
274.16 161 50 26  -
DC01 - - - - PDF
DWG
View
292.16 83 68 27  -
DC01 - - - - PDF
DWG
View
293.16 122 68 27  -
DC01 - - - - PDF
DWG
View
294.16 161 68 27  -
DC01 - - - - PDF
DWG
View
