MINI

Family Rf - Electronic enclosures - Metal

Description

Hot tin-plated steel enclosures for High/Frequency electronic components assembly. Volume of casing is suitable for easy assembly of professional and High-Technology circuits.

Products

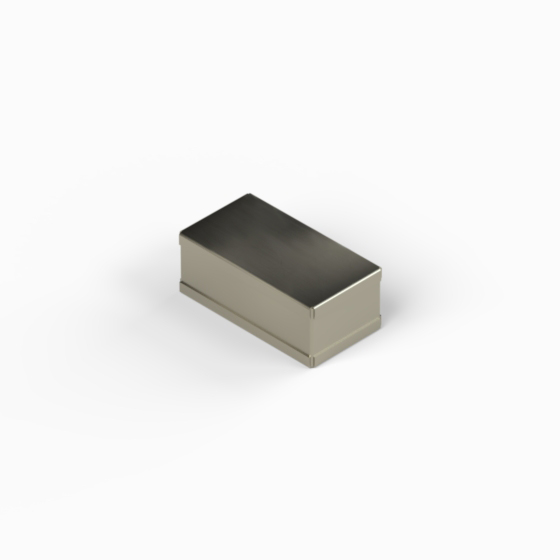

Model 402.16
L (mm)54
W (mm)29
H (mm)21
Color (Ral)  -
Material DC01
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
Battery-
Accessories
Drawings PDF
DWG
Other
View

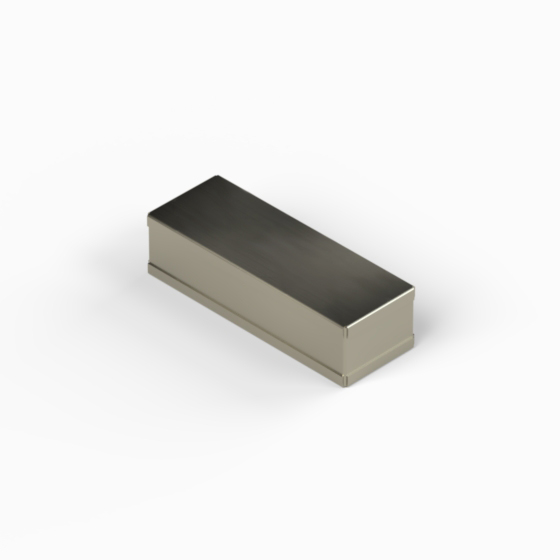

Model 403.16
L (mm)80
W (mm)29
H (mm)21
Color (Ral)  -
Material DC01
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
Battery-
Accessories
Drawings PDF
DWG
Other
View

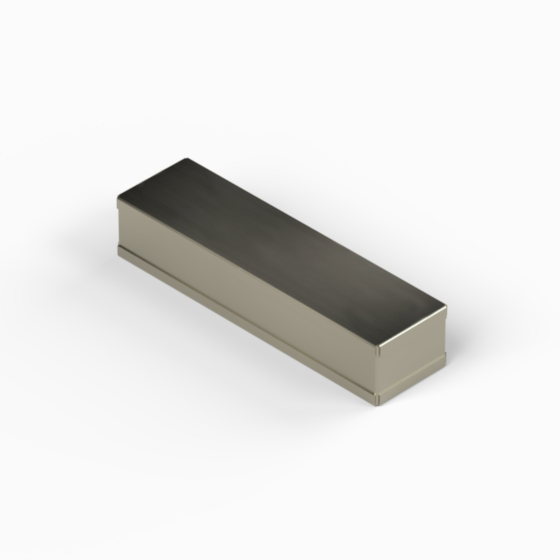

Model 404.16
L (mm)105
W (mm)29
H (mm)21
Color (Ral)  -
Material DC01
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
Battery-
Accessories
Drawings PDF
DWG
Other
View

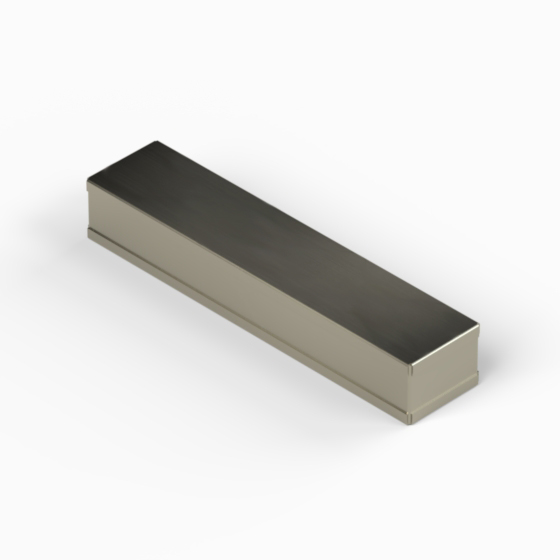

Model 405.16
L (mm)130
W (mm)29
H (mm)21
Color (Ral)  -
Material DC01
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
Battery-
Accessories
Drawings PDF
DWG
Other
View

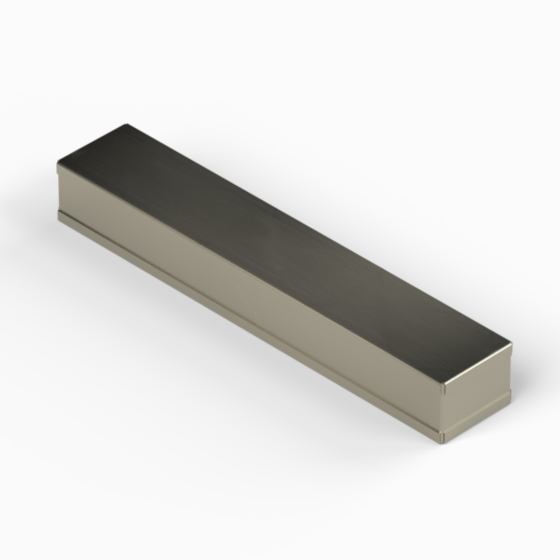

Model 406.16
L (mm)155
W (mm)29
H (mm)21
Color (Ral)  -
Material DC01
MAX PCB L (mm)-
MAX PCB W (mm)-
Screws-
Battery-
Accessories
Drawings PDF
DWG
Other
View
Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
402.16 54 29 21  -
DC01 - - - - PDF
DWG
View
403.16 80 29 21  -
DC01 - - - - PDF
DWG
View
404.16 105 29 21  -
DC01 - - - - PDF
DWG
View
405.16 130 29 21  -
DC01 - - - - PDF
DWG
View
406.16 155 29 21  -
DC01 - - - - PDF
DWG
View
12 product families, 152 series. You can't find what you're looking for? Contact us
