Description

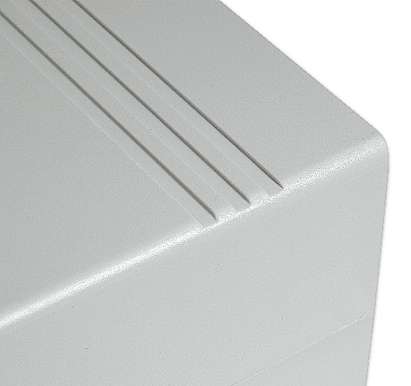

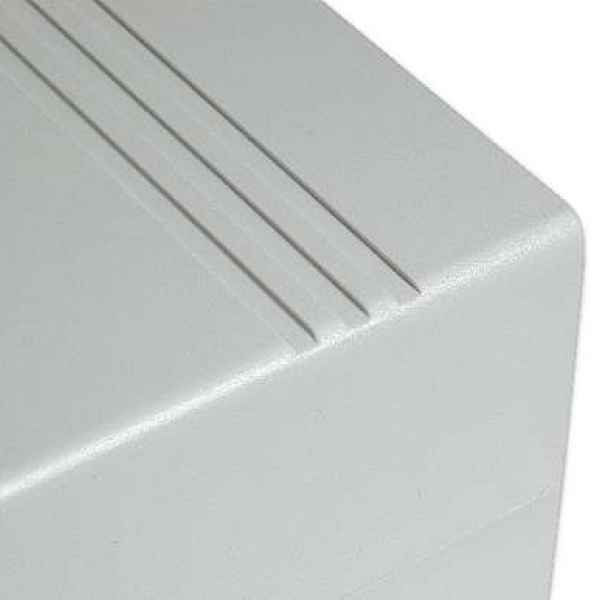

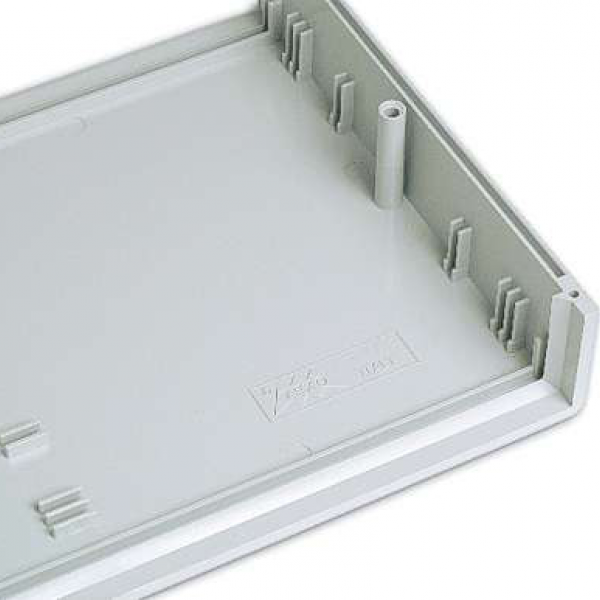

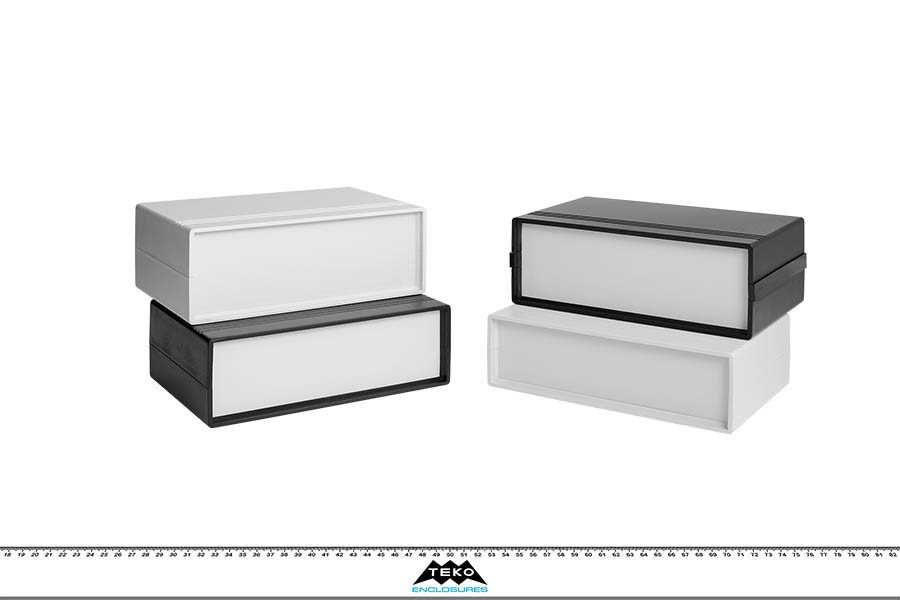

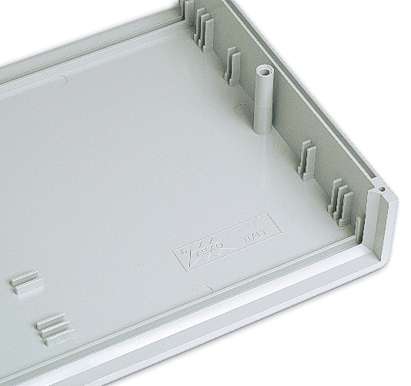

Cases with the front and rear panels moulded in ABS. The base and the cover have integral PCB guides and mounting studs. Closing by two screws.
Details
Products
| |
|---|---|

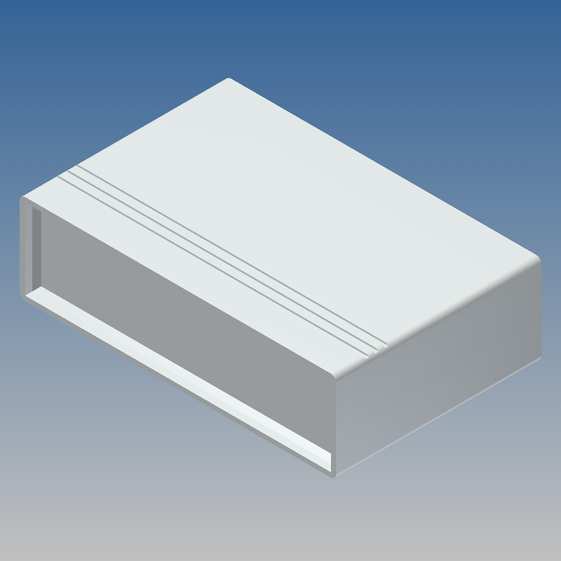

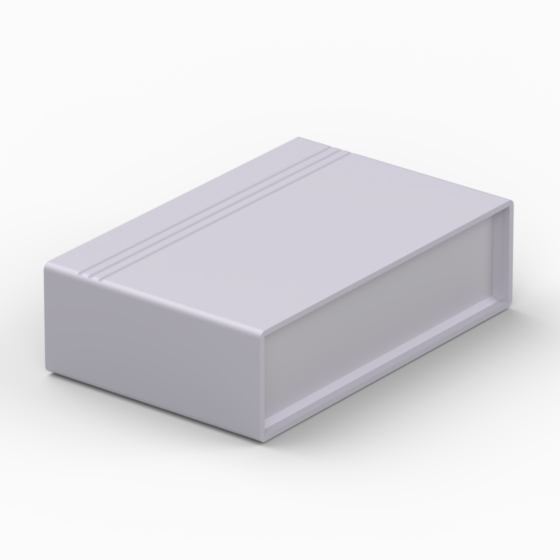

| Model | NE22.5 |
| L (mm) | 218 |
| W (mm) | 141,5 |
| H (mm) | 62 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 207,6 |
| MAX PCB W (mm) | 52,6 |
| Screws | 2 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

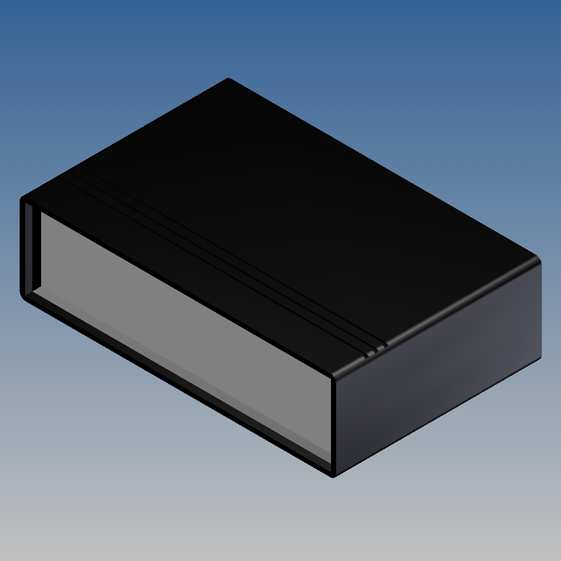

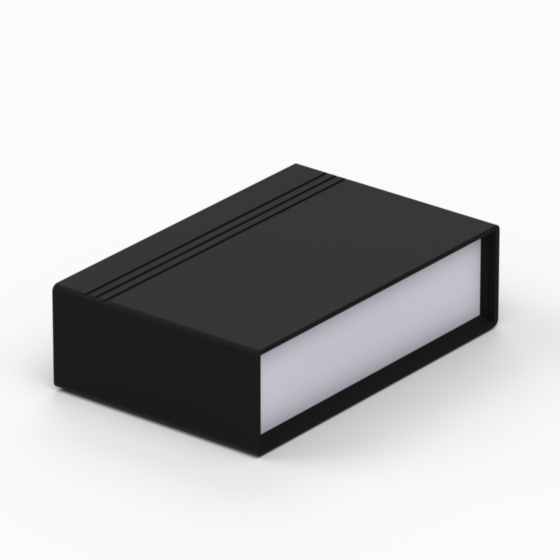

| Model | NE22.9 |
| L (mm) | 218 |
| W (mm) | 141,5 |
| H (mm) | 62 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 207,6 |
| MAX PCB W (mm) | 52,6 |
| Screws | 2 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

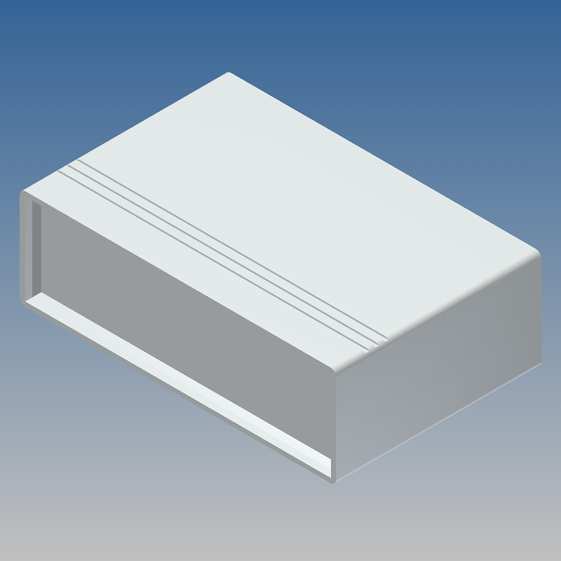

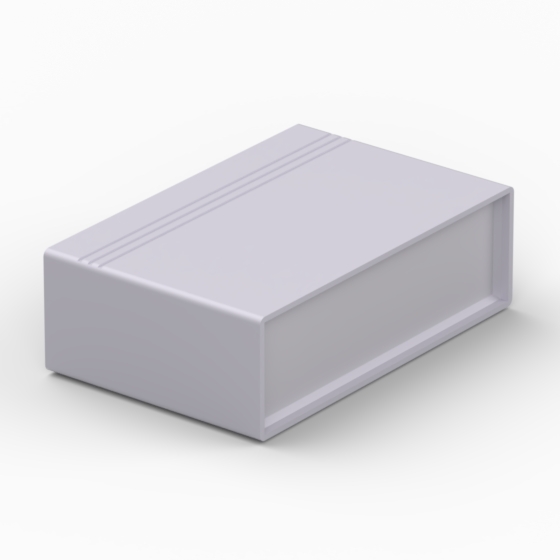

| Model | NE23.5 |
| L (mm) | 218 |
| W (mm) | 141,5 |
| H (mm) | 69 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 207,6 |
| MAX PCB W (mm) | 59,6 |
| Screws | 2 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

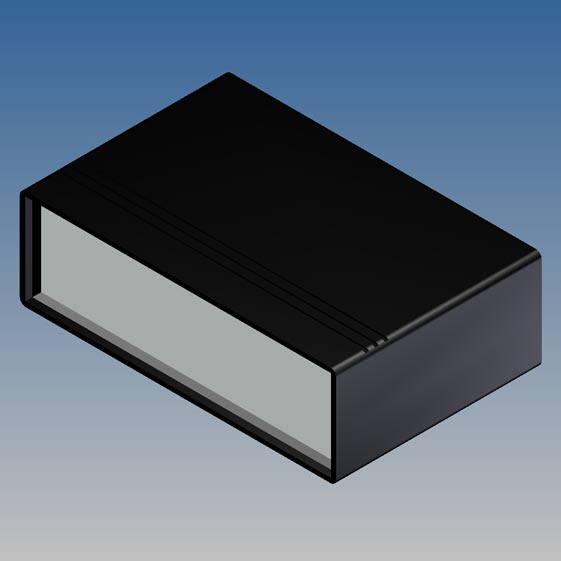

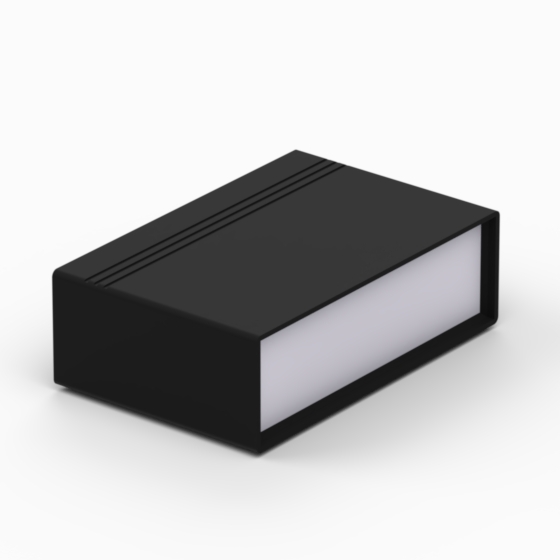

| Model | NE23.9 |
| L (mm) | 218 |
| W (mm) | 141,5 |
| H (mm) | 69 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 207,6 |
| MAX PCB W (mm) | 59,6 |
| Screws | 2 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

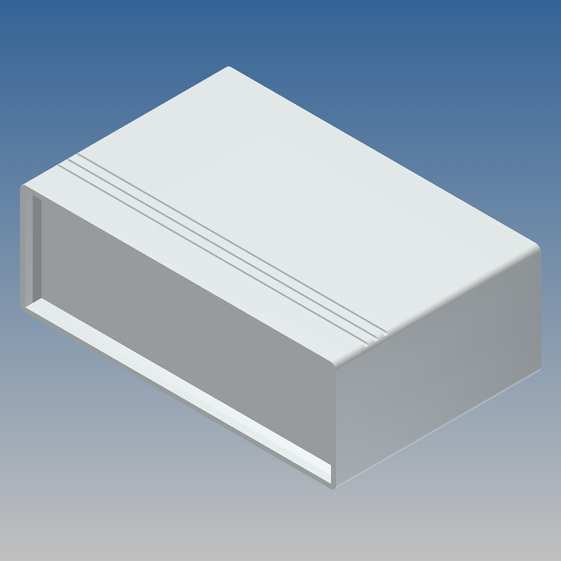

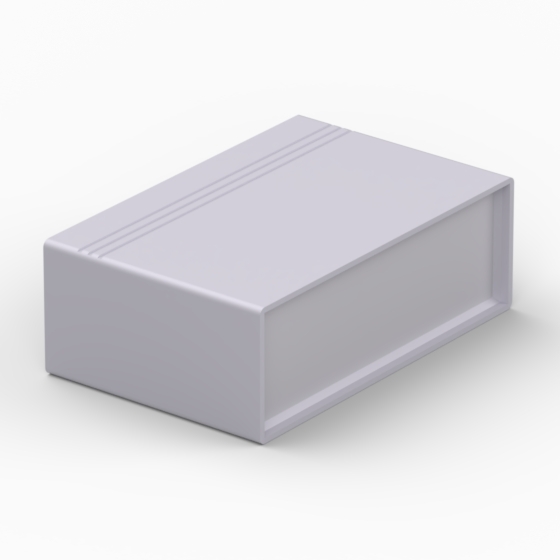

| Model | NE33.5 |
| L (mm) | 218 |
| W (mm) | 141,5 |
| H (mm) | 76 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 207,6 |
| MAX PCB W (mm) | 66,6 |
| Screws | 2 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

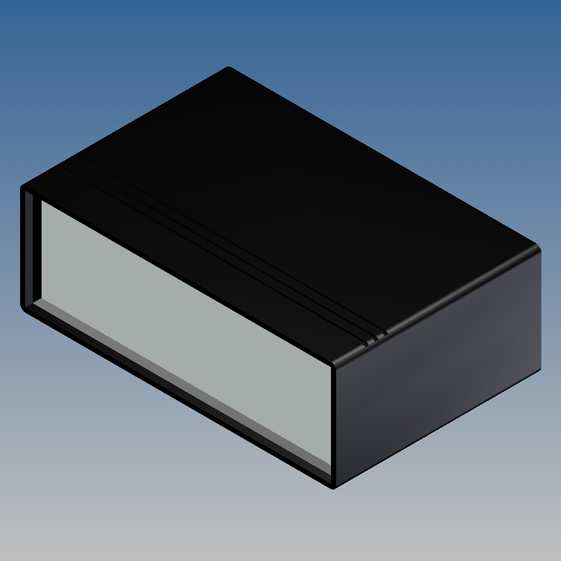

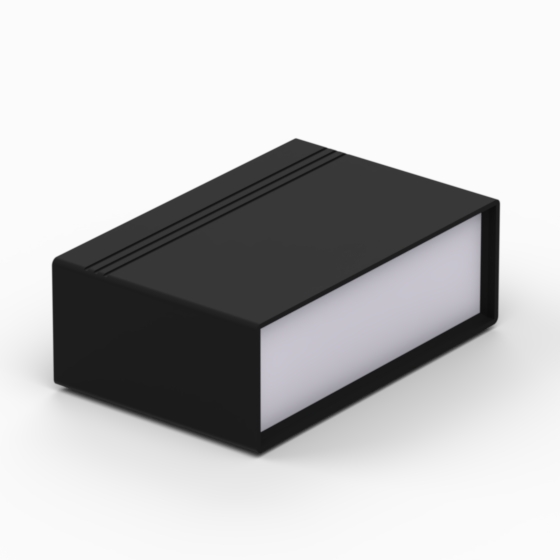

| Model | NE33.9 |
| L (mm) | 218 |
| W (mm) | 141,5 |
| H (mm) | 76 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 207,6 |
| MAX PCB W (mm) | 66,6 |
| Screws | 2 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

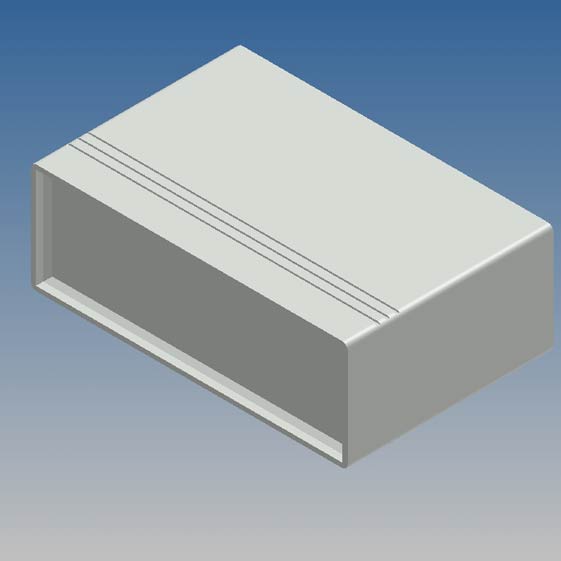

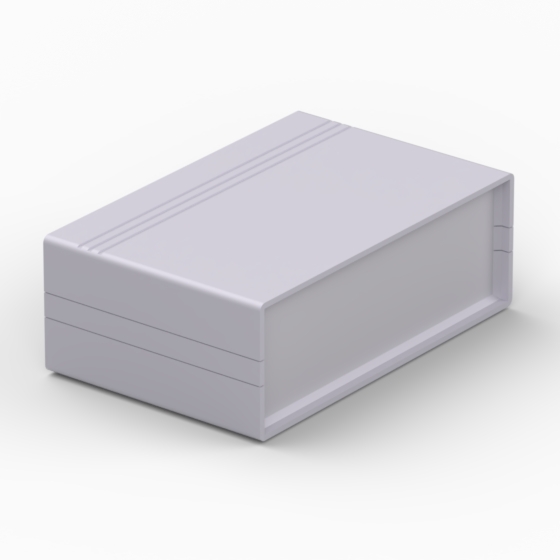

| Model | NE43.5 |
| L (mm) | 218 |
| W (mm) | 141,5 |
| H (mm) | 75,5 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 207,6 |
| MAX PCB W (mm) | 66 |
| Screws | 2 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

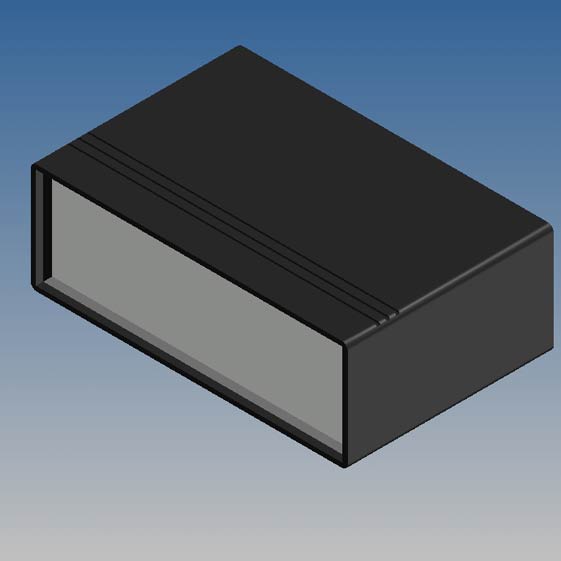

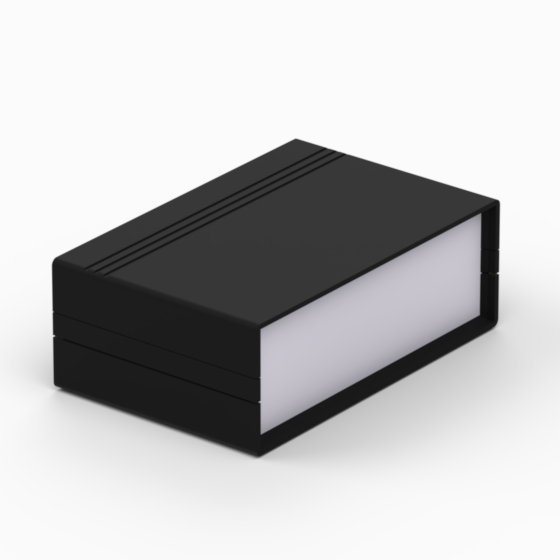

| Model | NE43.9 |
| L (mm) | 218 |
| W (mm) | 141,5 |
| H (mm) | 75,5 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 207,6 |
| MAX PCB W (mm) | 66 |
| Screws | 2 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
NE22.5 | 218 | 141,5 | 62 |
9018 |
AG-ATY | 207,6 | 52,6 | 2 | - |
PDF DWG |
View
|
|
|
|
NE22.9 | 218 | 141,5 | 62 |
9004 |
P2H-AT | 207,6 | 52,6 | 2 | - |
PDF DWG |
View
|
|
|
|
NE23.5 | 218 | 141,5 | 69 |
9018 |
AG-ATY | 207,6 | 59,6 | 2 | - |
PDF DWG |
View
|
|
|
|
NE23.9 | 218 | 141,5 | 69 |
9004 |
P2H-AT | 207,6 | 59,6 | 2 | - |
PDF DWG |
View
|
|
|
|
NE33.5 | 218 | 141,5 | 76 |
9018 |
AG-ATY | 207,6 | 66,6 | 2 | - |
PDF DWG |
View
|
|
|
|
NE33.9 | 218 | 141,5 | 76 |
9004 |
P2H-AT | 207,6 | 66,6 | 2 | - |
PDF DWG |
View
|
|
|
|
NE43.5 | 218 | 141,5 | 75,5 |
9018 |
AG-ATY | 207,6 | 66 | 2 | - |
PDF DWG |
View
|
|
|
|
NE43.9 | 218 | 141,5 | 75,5 |
9004 |
P2H-AT | 207,6 | 66 | 2 | - |
PDF DWG |
View
|
