STRUMENTALIA PULPIT

Family Strumentalia - Electronic enclosures - Plastic

Description

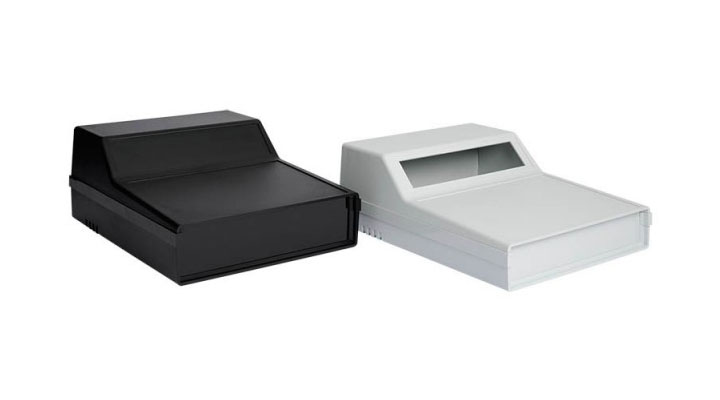

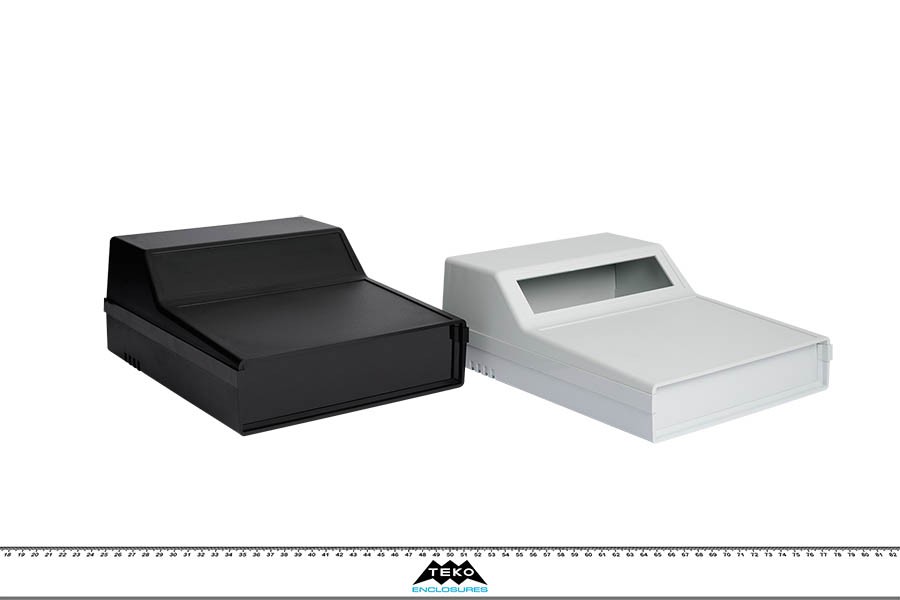

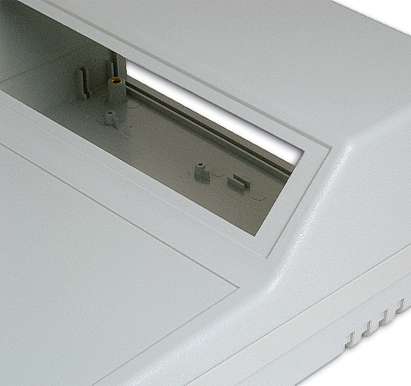

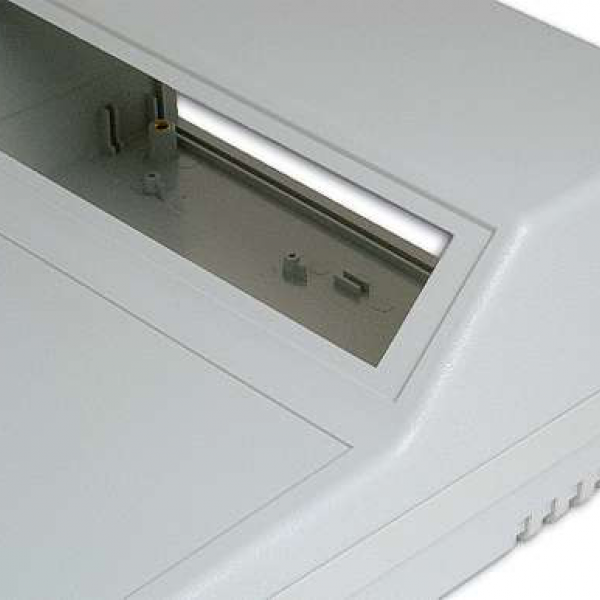

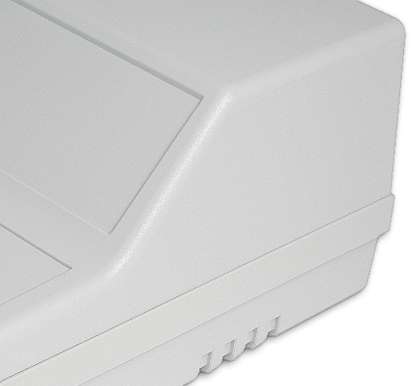

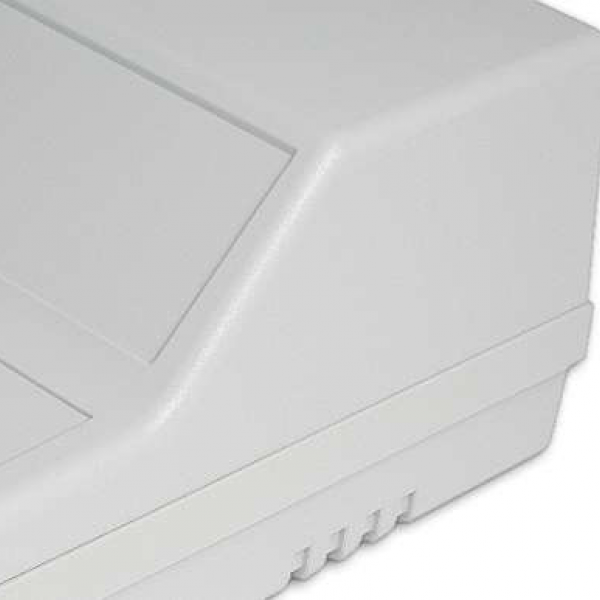

Cases with the front and rear panels moulded in ABS. The base and the cover have integral PCB guides and mounting studs. The models “763” and “764” have inclined cover with a recessed area or with cut-outs (175 x 35 mm.) for keyboard or display (Mod. 763/O and 764/O). Matt surface finish. Closing by four screws.

Details

Products

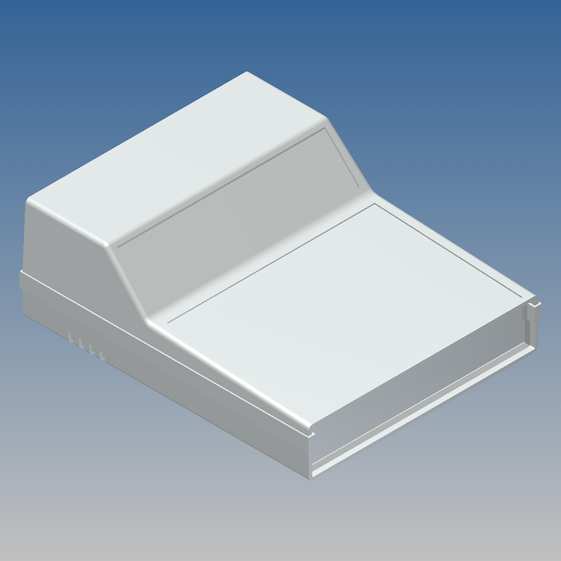

Model 763.5
L (mm)268
W (mm)216
H (mm)95,5
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)240
MAX PCB W (mm)200
Screws4
Battery-
Accessories
Drawings PDF
DWG
Other
View

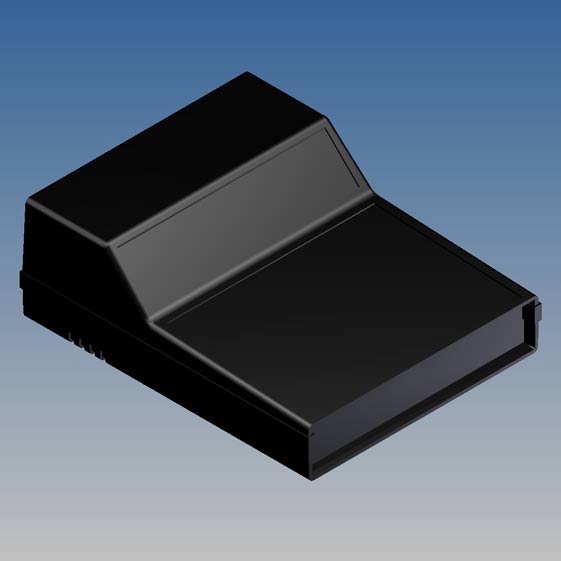

Model 763.9
L (mm)268
W (mm)216
H (mm)95,5
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)240
MAX PCB W (mm)200
Screws4
Battery-
Accessories
Drawings PDF
DWG
Other
View

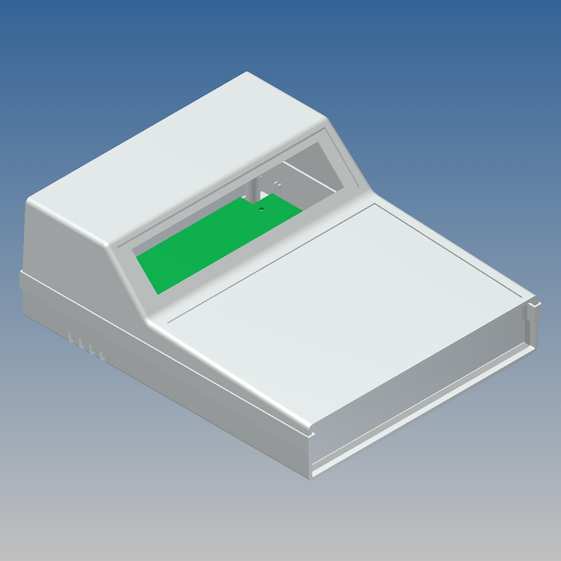

Model 763/O.5
L (mm)268
W (mm)216
H (mm)95,5
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)240
MAX PCB W (mm)200
Screws4
Battery-
Accessories
Drawings PDF
DWG
Other
View

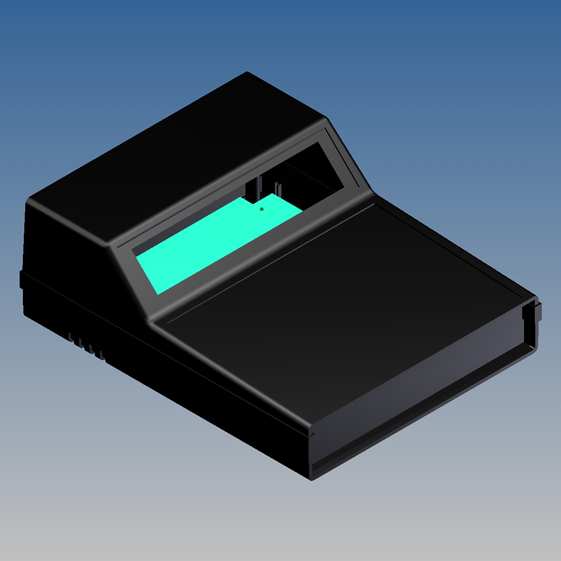

Model 763/O.9
L (mm)268
W (mm)216
H (mm)95,5
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)240
MAX PCB W (mm)200
Screws4
Battery-
Accessories
Drawings PDF
DWG
Other
View

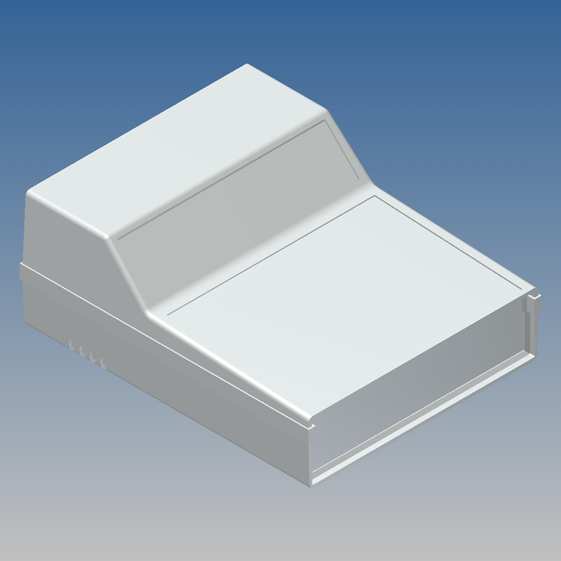

Model 764.5
L (mm)268
W (mm)216
H (mm)108,5
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)240
MAX PCB W (mm)200
Screws4
Battery-
Accessories
Drawings PDF
DWG
Other
View

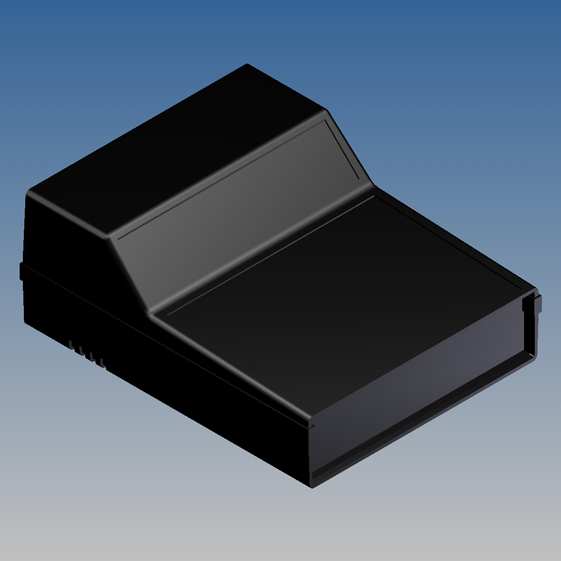

Model 764.9
L (mm)268
W (mm)216
H (mm)108,5
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)240
MAX PCB W (mm)200
Screws4
Battery-
Accessories
Drawings PDF
DWG
Other
View

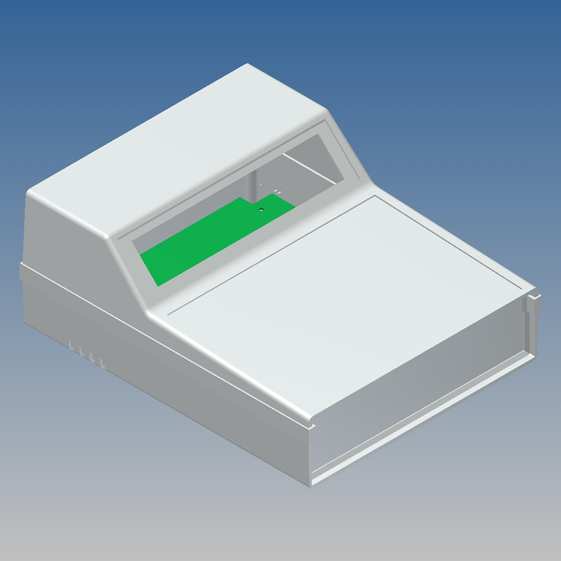

Model 764/O.5
L (mm)268
W (mm)216
H (mm)108,5
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)240
MAX PCB W (mm)200
Screws4
Battery-
Accessories
Drawings PDF
DWG
Other
View

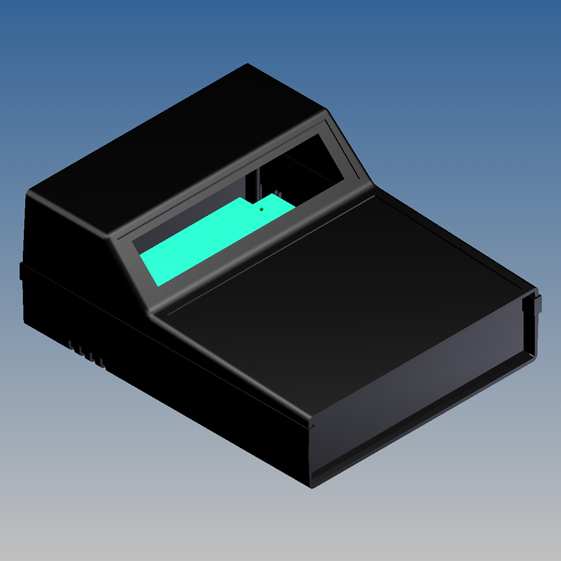

Model 764/O.9
L (mm)268
W (mm)216
H (mm)108,5
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)240
MAX PCB W (mm)200
Screws4
Battery-
Accessories
Drawings PDF
DWG
Other
View
Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
763.5 268 216 95,5 9018
AG-ATY 240 200 4 - PDF
DWG
View
763.9 268 216 95,5 9004
P2H-AT 240 200 4 - PDF
DWG
View
763/O.5 268 216 95,5 9018
AG-ATY 240 200 4 - PDF
DWG
View
763/O.9 268 216 95,5 9004
P2H-AT 240 200 4 - PDF
DWG
View
764.5 268 216 108,5 9018
AG-ATY 240 200 4 - PDF
DWG
View
764.9 268 216 108,5 9004
P2H-AT 240 200 4 - PDF
DWG
View
764/O.5 268 216 108,5 9018
AG-ATY 240 200 4 - PDF
DWG
View
764/O.9 268 216 108,5 9004
P2H-AT 240 200 4 - PDF
DWG
View
