Description
ABS enclosures with rounded corners. Glossy surface finish. The base walls have integral PCB guides.Closing by four screws.
Details
Products
| |
|---|---|

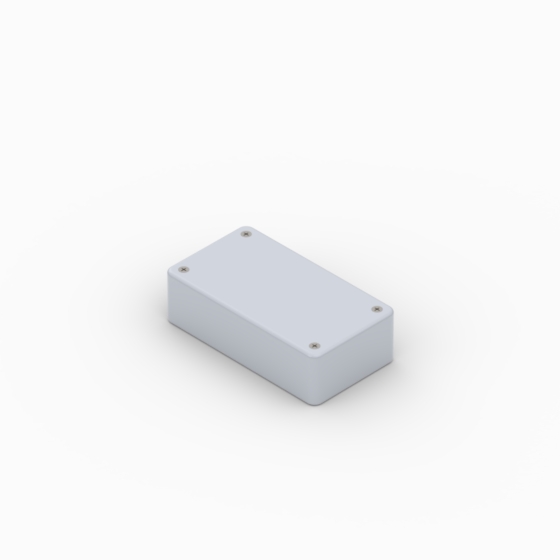

| Model | COFFER-1.5 |
| L (mm) | 100 |
| W (mm) | 55 |
| H (mm) | 29 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 95 |
| MAX PCB W (mm) | 19 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

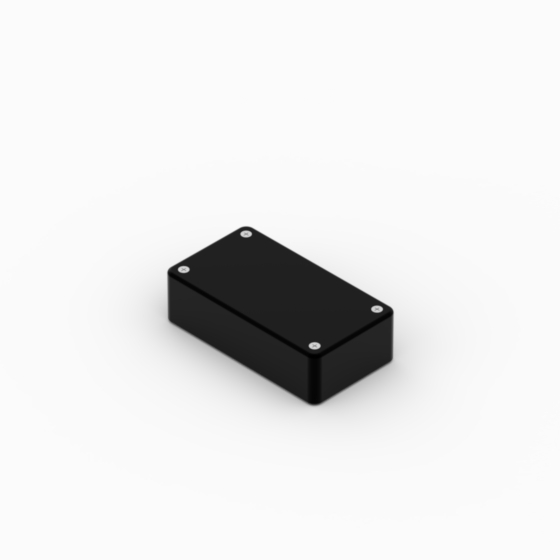

| Model | COFFER-1.9 |
| L (mm) | 100 |
| W (mm) | 55 |
| H (mm) | 29 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 95 |
| MAX PCB W (mm) | 19 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

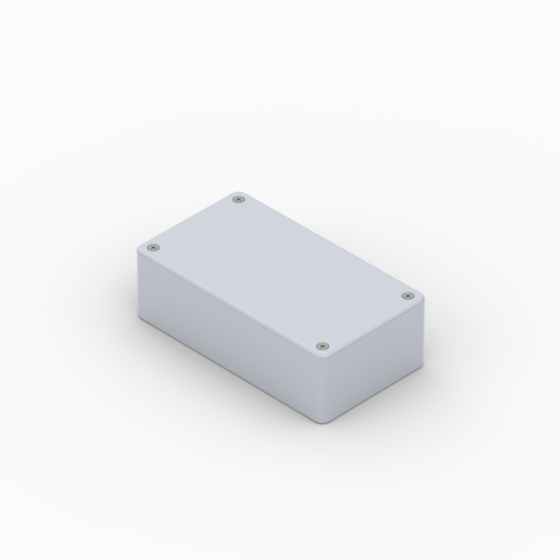

| Model | COFFER-2.5 |
| L (mm) | 125 |
| W (mm) | 70 |
| H (mm) | 39 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 120 |
| MAX PCB W (mm) | 29 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

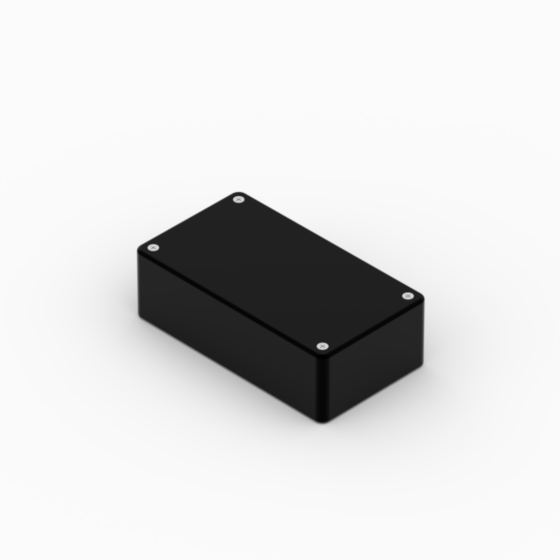

| Model | COFFER-2.9 |
| L (mm) | 125 |
| W (mm) | 70 |
| H (mm) | 39 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 120 |
| MAX PCB W (mm) | 29 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

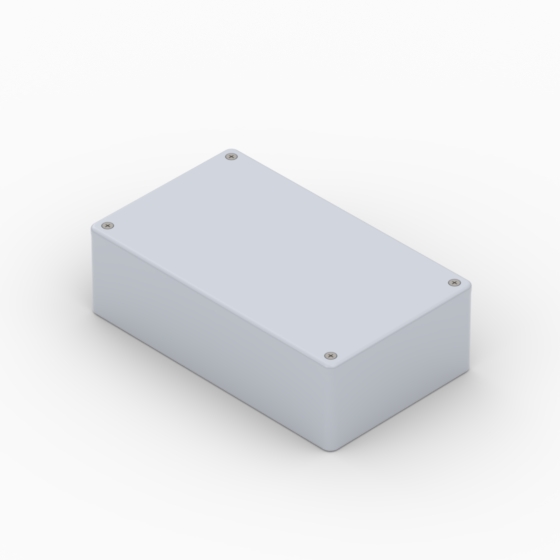

| Model | COFFER-3.5 |
| L (mm) | 160 |
| W (mm) | 95 |
| H (mm) | 49 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 155 |
| MAX PCB W (mm) | 39 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

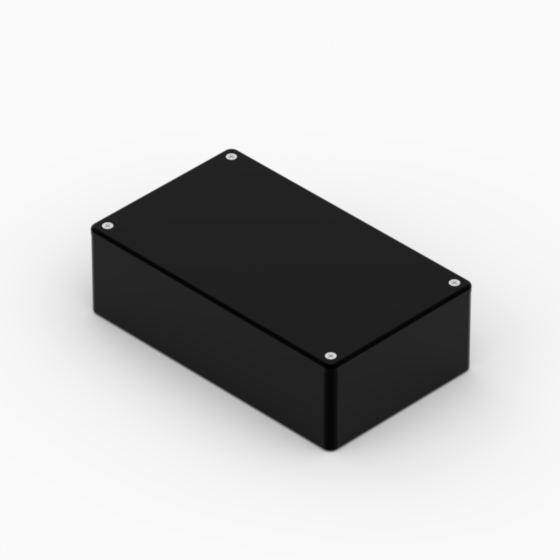

| Model | COFFER-3.9 |
| L (mm) | 160 |
| W (mm) | 95 |
| H (mm) | 49 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 155 |
| MAX PCB W (mm) | 39 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

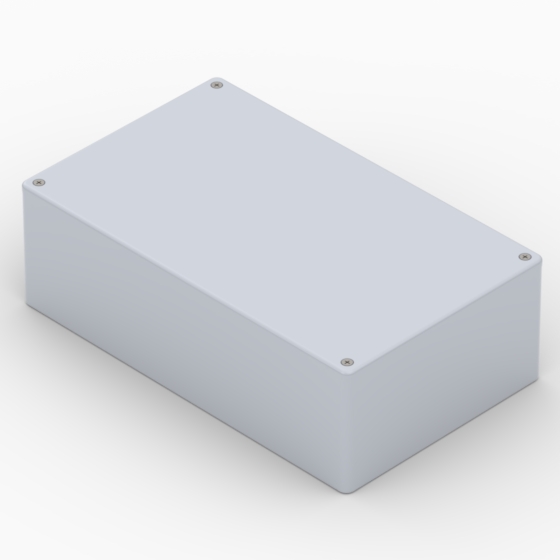

| Model | COFFER-4.5 |
| L (mm) | 215 |
| W (mm) | 130 |
| H (mm) | 68,5 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 209,5 |
| MAX PCB W (mm) | 58 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

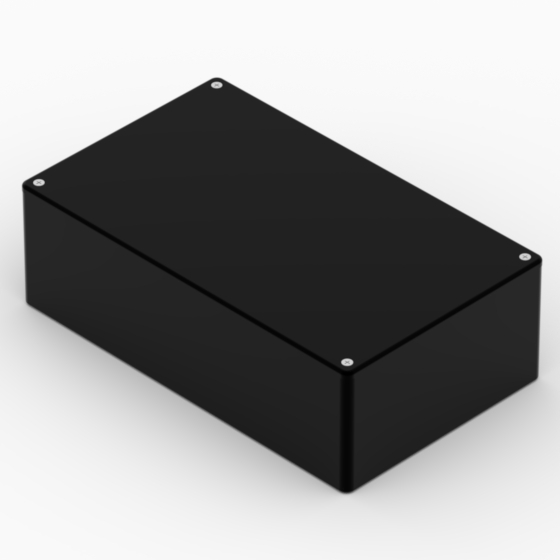

| Model | COFFER-4.9 |
| L (mm) | 215 |
| W (mm) | 130 |
| H (mm) | 68,5 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 209,5 |
| MAX PCB W (mm) | 58 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
COFFER-1.5 | 100 | 55 | 29 |
9018 |
AG-ATY | 95 | 19 | 4 | - |
PDF DWG |
View
|
|
|
|
COFFER-1.9 | 100 | 55 | 29 |
9004 |
P2H-AT | 95 | 19 | 4 | - |
PDF DWG |
View
|
|
|
|
COFFER-2.5 | 125 | 70 | 39 |
9018 |
AG-ATY | 120 | 29 | 4 | - |
PDF DWG |
View
|
|
|
|
COFFER-2.9 | 125 | 70 | 39 |
9004 |
P2H-AT | 120 | 29 | 4 | - |
PDF DWG |
View
|
|
|
|
COFFER-3.5 | 160 | 95 | 49 |
9018 |
AG-ATY | 155 | 39 | 4 | - |
PDF DWG |
View
|
|
|
|
COFFER-3.9 | 160 | 95 | 49 |
9004 |
P2H-AT | 155 | 39 | 4 | - |
PDF DWG |
View
|
|
|
|
COFFER-4.5 | 215 | 130 | 68,5 |
9018 |
AG-ATY | 209,5 | 58 | 4 | - |
PDF DWG |
View
|
|
|
|
COFFER-4.9 | 215 | 130 | 68,5 |
9004 |
P2H-AT | 209,5 | 58 | 4 | - |
PDF DWG |
View
|
