Description

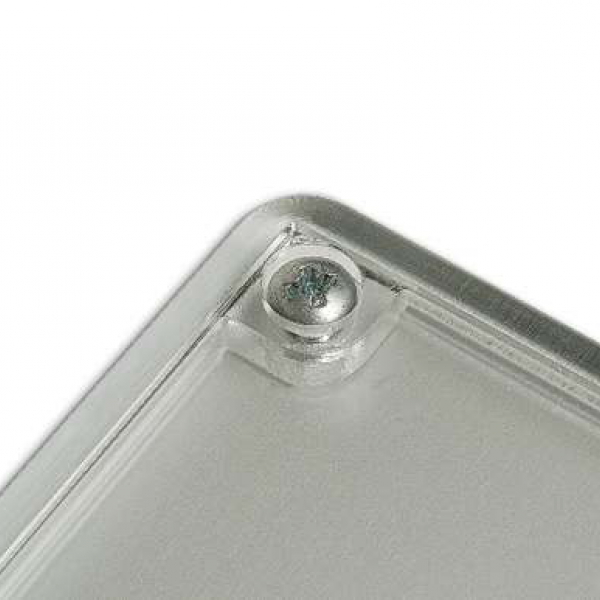

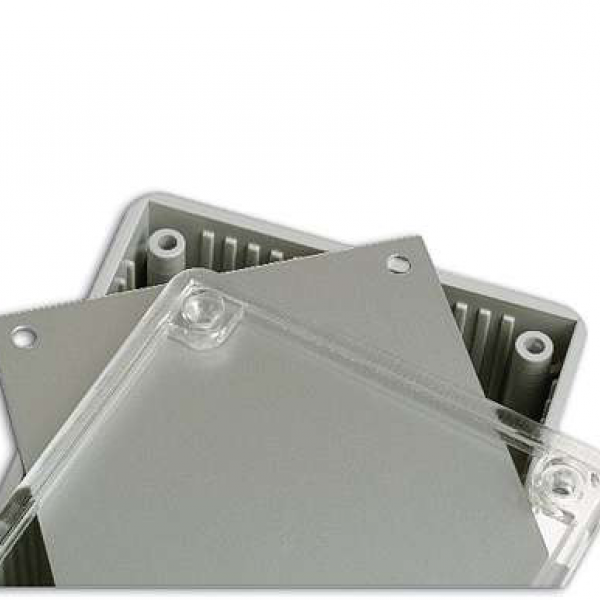

ABS enclosure with an 0.5 mm anodised aluminium panel and a transparent polycarbonate cover. The base walls have integral PCB guides in a high density configuration. Glossy surfaces finish. Closing by four screws.
Products

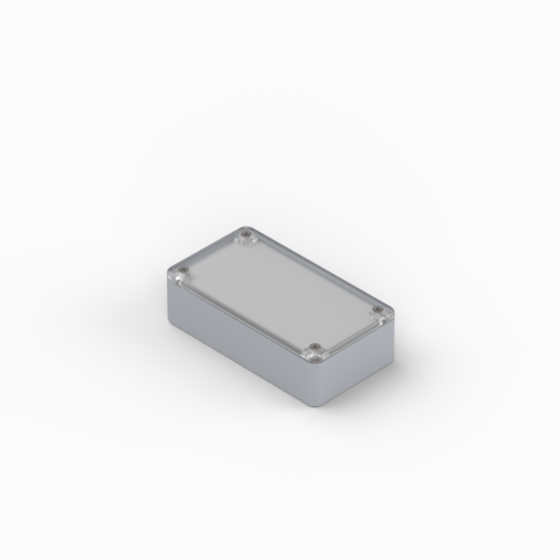

Model | COFFER-TP1.5 |
L (mm) | 100 |
W (mm) | 55 |
H (mm) | 29 |
Color (Ral) |
9018 |
Material | AG-ATY - 2407 |
MAX PCB L (mm) | 95 |
MAX PCB W (mm) | 19 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

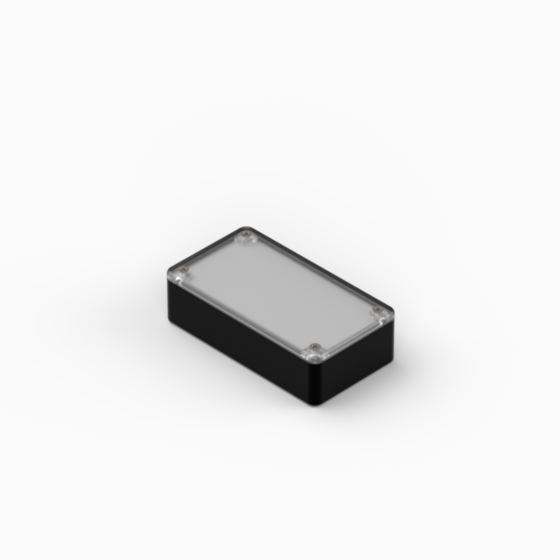

Model | COFFER-TP1.9 |
L (mm) | 100 |
W (mm) | 55 |
H (mm) | 29 |
Color (Ral) |
9004 |
Material | P2H-AT - 2407 |
MAX PCB L (mm) | 95 |
MAX PCB W (mm) | 19 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

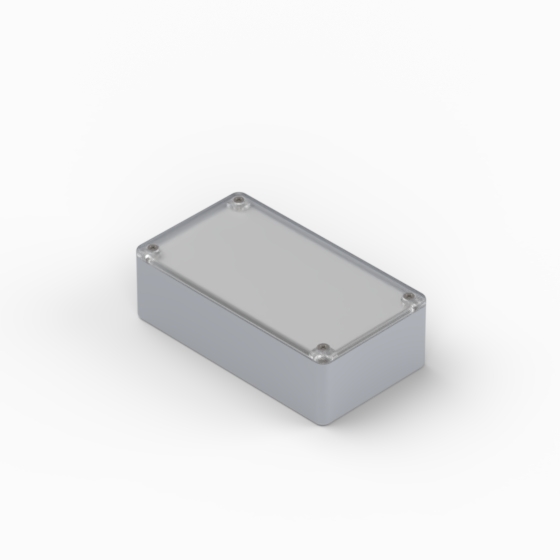

Model | COFFER-TP2.5 |
L (mm) | 125 |
W (mm) | 70 |
H (mm) | 39 |
Color (Ral) |
9018 |
Material | AG-ATY - 2407 |
MAX PCB L (mm) | 120 |
MAX PCB W (mm) | 29 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

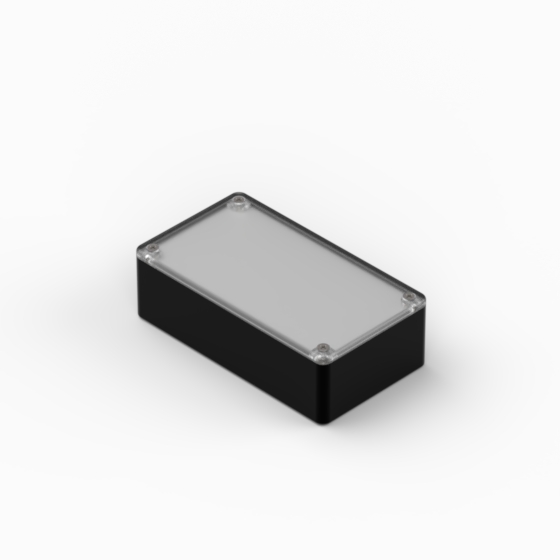

Model | COFFER-TP2.9 |
L (mm) | 125 |
W (mm) | 70 |
H (mm) | 39 |
Color (Ral) |
9004 |
Material | P2H-AT - 2407 |
MAX PCB L (mm) | 120 |
MAX PCB W (mm) | 29 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

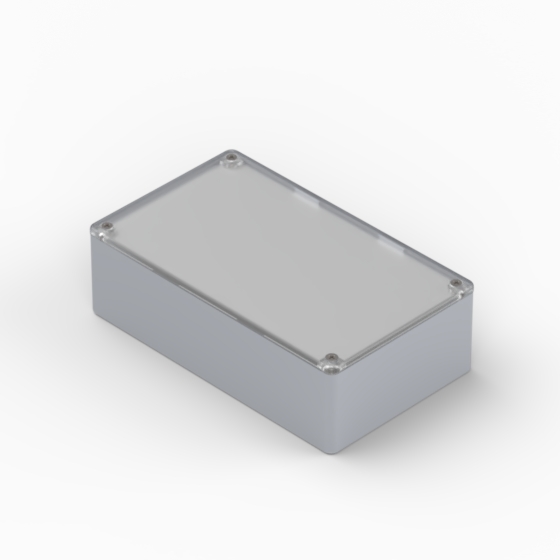

Model | COFFER-TP3.5 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 49 |
Color (Ral) |
9018 |
Material | AG-ATY - 2407 |
MAX PCB L (mm) | 155 |
MAX PCB W (mm) | 39 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

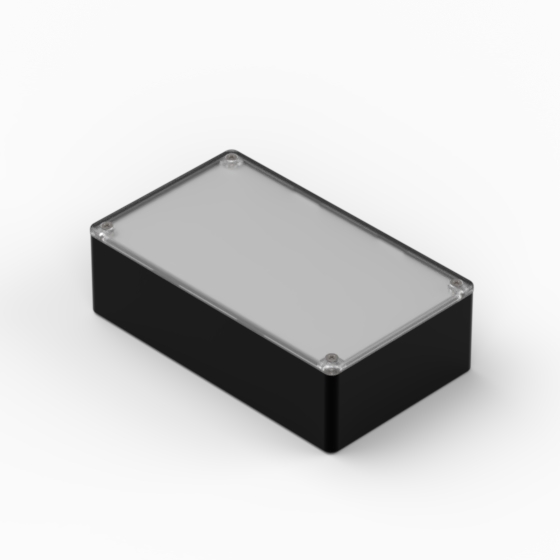

Model | COFFER-TP3.9 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 49 |
Color (Ral) |
9004 |
Material | P2H-AT - 2407 |
MAX PCB L (mm) | 155 |
MAX PCB W (mm) | 39 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

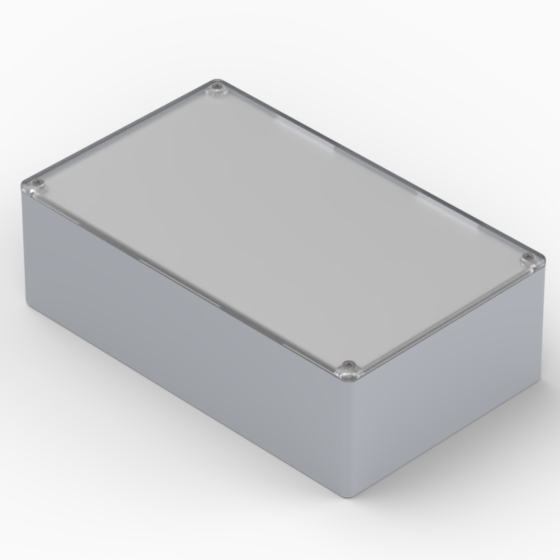

Model | COFFER-TP4.5 |
L (mm) | 215 |
W (mm) | 130 |
H (mm) | 68,5 |
Color (Ral) |
9018 |
Material | AG-ATY - 2407 |
MAX PCB L (mm) | 209,5 |
MAX PCB W (mm) | 58 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

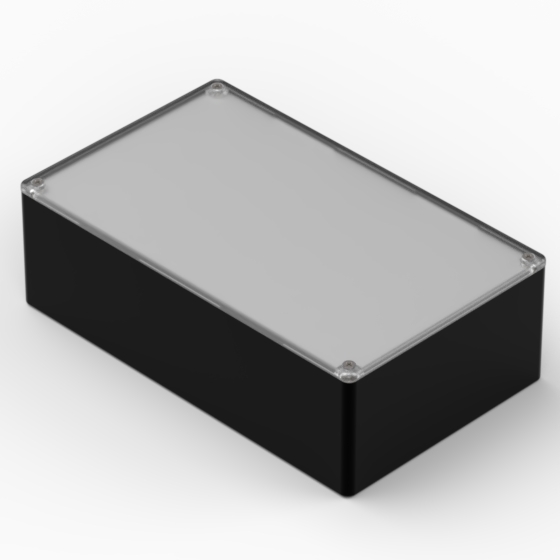

Model | COFFER-TP4.9 |
L (mm) | 215 |
W (mm) | 130 |
H (mm) | 68,5 |
Color (Ral) |
9004 |
Material | P2H-AT - 2407 |
MAX PCB L (mm) | 209,5 |
MAX PCB W (mm) | 58 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
COFFER-TP1.5 | 100 | 55 | 29 |
9018 |
AG-ATY - 2407 | 95 | 19 | 4 | - |
PDF DWG |
View
|
||
COFFER-TP1.9 | 100 | 55 | 29 |
9004 |
P2H-AT - 2407 | 95 | 19 | 4 | - |
PDF DWG |
View
|
||
COFFER-TP2.5 | 125 | 70 | 39 |
9018 |
AG-ATY - 2407 | 120 | 29 | 4 | - |
PDF DWG |
View
|
||
COFFER-TP2.9 | 125 | 70 | 39 |
9004 |
P2H-AT - 2407 | 120 | 29 | 4 | - |
PDF DWG |
View
|
||
COFFER-TP3.5 | 160 | 95 | 49 |
9018 |
AG-ATY - 2407 | 155 | 39 | 4 | - |
PDF DWG |
View
|
||
COFFER-TP3.9 | 160 | 95 | 49 |
9004 |
P2H-AT - 2407 | 155 | 39 | 4 | - |
PDF DWG |
View
|
||
COFFER-TP4.5 | 215 | 130 | 68,5 |
9018 |
AG-ATY - 2407 | 209,5 | 58 | 4 | - |
PDF DWG |
View
|
||
COFFER-TP4.9 | 215 | 130 | 68,5 |
9004 |
P2H-AT - 2407 | 209,5 | 58 | 4 | - |
PDF DWG |
View
|
