Description
ABS enclosures with square corners and glossy surface finish. The base walls have integral PCB guides. P series have 1 mm aluminium panel. The models “M1” and “M1/P” have a flanged panel for easy mounting. Closing by four screws. Upon request light gray Polystyrene panel suitable (Mod. PP1, PP2, PP3, PP4).
Products
| |
|---|---|

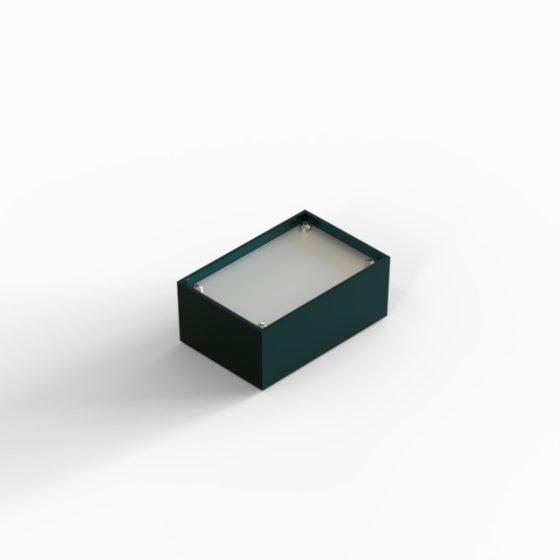

| Model | P/1.10 |
| L (mm) | 85 |
| W (mm) | 56 |
| H (mm) | 35,5 |
| Color (Ral) |
5020 |
| Material | N-UT |
| MAX PCB L (mm) | 80 |
| MAX PCB W (mm) | 25 |
| Screws | 4 |
| Battery | - |
| Accessories |
PP1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

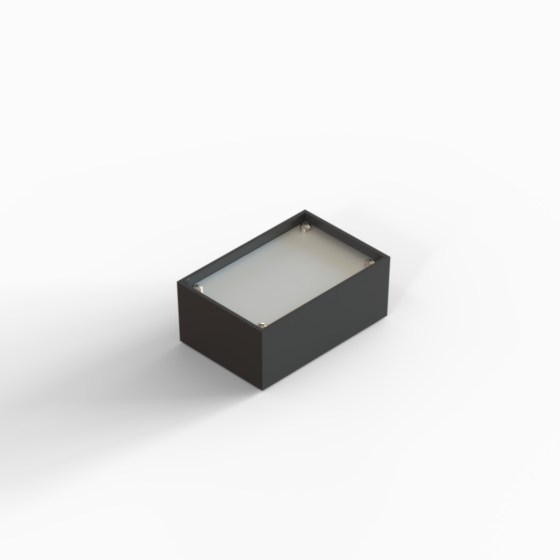

| Model | P/1.2 |
| L (mm) | 85 |
| W (mm) | 56 |
| H (mm) | 35,5 |
| Color (Ral) |
7012 |
| Material | N-UT |
| MAX PCB L (mm) | 80 |
| MAX PCB W (mm) | 25 |
| Screws | 4 |
| Battery | - |
| Accessories |
PP1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

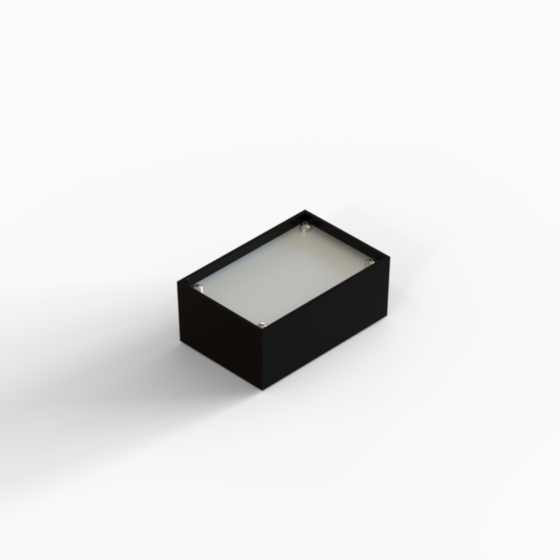

| Model | P/1.9 |
| L (mm) | 85 |
| W (mm) | 56 |
| H (mm) | 35,5 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 80 |
| MAX PCB W (mm) | 25 |
| Screws | 4 |
| Battery | - |
| Accessories |
PP1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

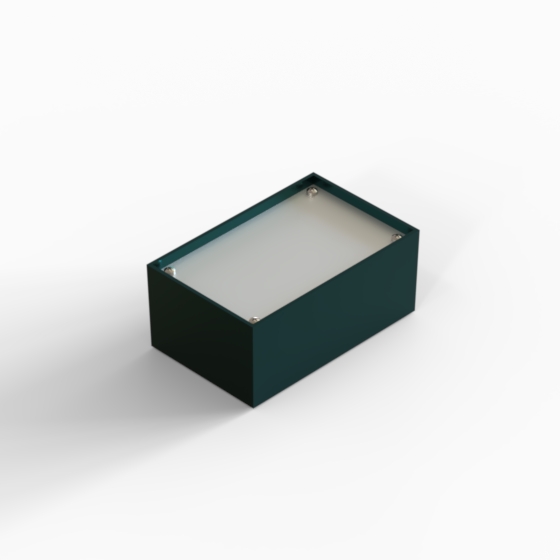

| Model | P/2.10 |
| L (mm) | 110 |
| W (mm) | 70 |
| H (mm) | 48 |
| Color (Ral) |
5020 |
| Material | N-UT |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 37 |
| Screws | 4 |
| Battery | - |
| Accessories |
PP2 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

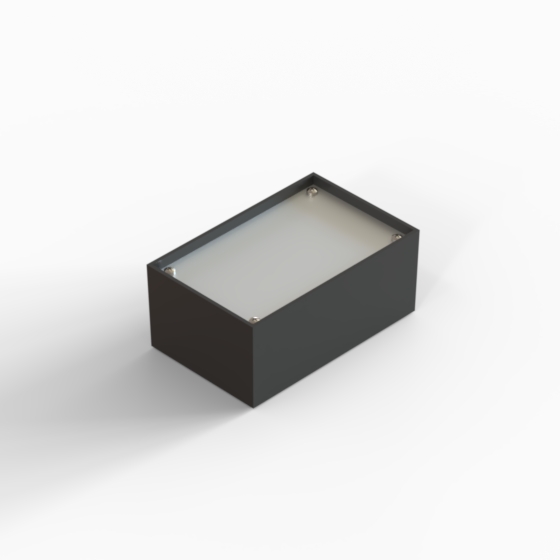

| Model | P/2.2 |
| L (mm) | 110 |
| W (mm) | 70 |
| H (mm) | 48 |
| Color (Ral) |
7012 |
| Material | N-UT |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 37 |
| Screws | 4 |
| Battery | - |
| Accessories |
PP2 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

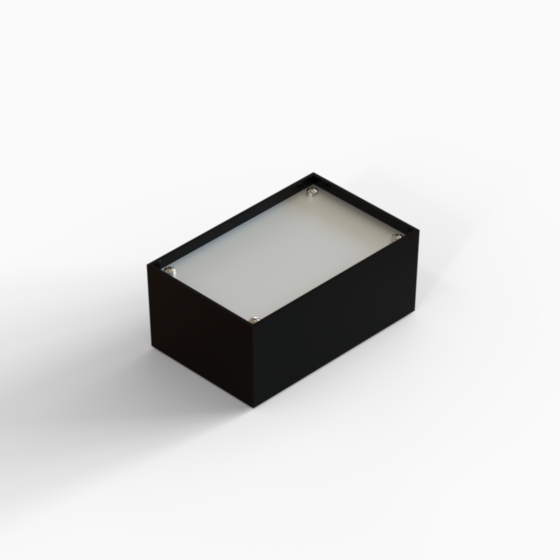

| Model | P/2.9 |
| L (mm) | 110 |
| W (mm) | 70 |
| H (mm) | 48 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 37 |
| Screws | 4 |
| Battery | - |
| Accessories |
PP2 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | P/3.10 |
| L (mm) | 160 |
| W (mm) | 96 |
| H (mm) | 61 |
| Color (Ral) |
5020 |
| Material | N-UT |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 49 |
| Screws | 4 |
| Battery | - |
| Accessories |
PP3 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

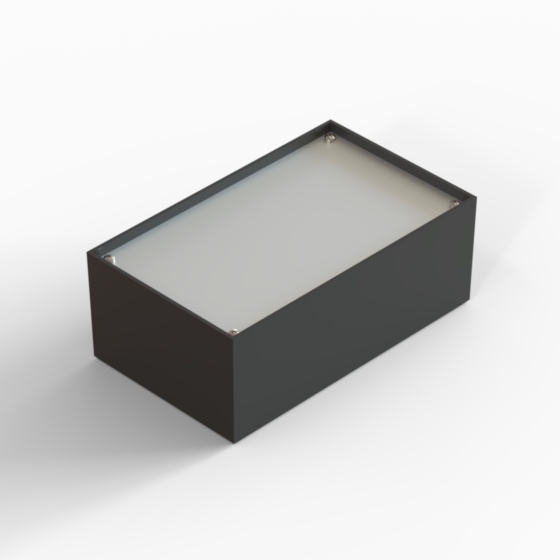

| Model | P/3.2 |
| L (mm) | 160 |
| W (mm) | 96 |
| H (mm) | 61 |
| Color (Ral) |
7012 |
| Material | N-UT |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 49 |
| Screws | 4 |
| Battery | - |
| Accessories |
PP3 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | P/3.9 |
| L (mm) | 160 |
| W (mm) | 96 |
| H (mm) | 61 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 49 |
| Screws | 4 |
| Battery | - |
| Accessories |
PP3 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

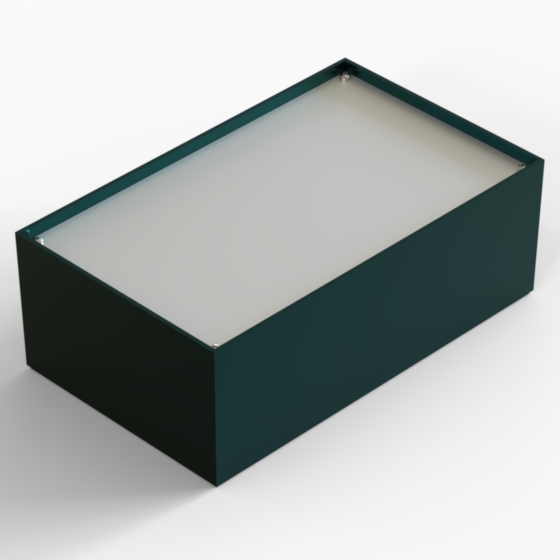

| Model | P/4.10 |
| L (mm) | 215 |
| W (mm) | 130 |
| H (mm) | 77 |
| Color (Ral) |
5020 |
| Material | N-UT |
| MAX PCB L (mm) | 208 |
| MAX PCB W (mm) | 64,5 |
| Screws | 4 |
| Battery | - |
| Accessories |
PP4 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

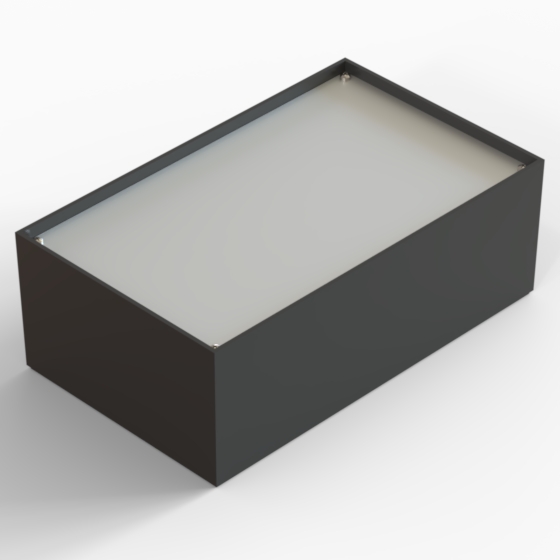

| Model | P/4.2 |
| L (mm) | 215 |
| W (mm) | 130 |
| H (mm) | 77 |
| Color (Ral) |
7012 |
| Material | N-UT |
| MAX PCB L (mm) | 208 |
| MAX PCB W (mm) | 64,5 |
| Screws | 4 |
| Battery | - |
| Accessories |
PP4 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

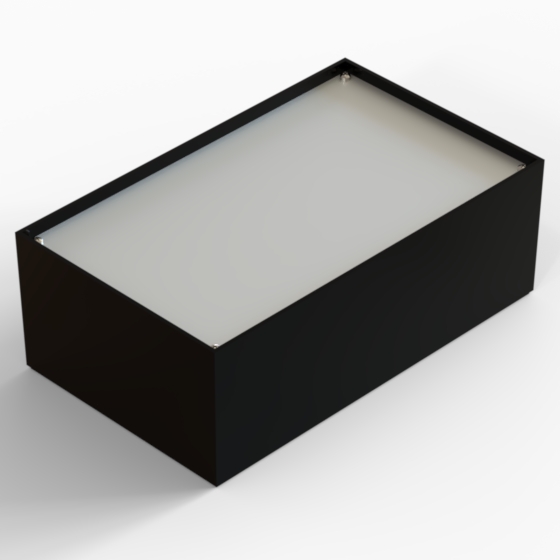

| Model | P/4.9 |
| L (mm) | 215 |
| W (mm) | 130 |
| H (mm) | 77 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 208 |
| MAX PCB W (mm) | 64,5 |
| Screws | 4 |
| Battery | - |
| Accessories |
PP4 |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
P/1.10 | 85 | 56 | 35,5 |
5020 |
N-UT | 80 | 25 | 4 | - |
PP1 |
PDF DWG |
View
|
|
|
P/1.2 | 85 | 56 | 35,5 |
7012 |
N-UT | 80 | 25 | 4 | - |
PP1 |
PDF DWG |
View
|
|
|
P/1.9 | 85 | 56 | 35,5 |
9004 |
P2H-AT | 80 | 25 | 4 | - |
PP1 |
PDF DWG |
View
|
|
|
P/2.10 | 110 | 70 | 48 |
5020 |
N-UT | 103,5 | 37 | 4 | - |
PP2 |
PDF DWG |
View
|
|
|
P/2.2 | 110 | 70 | 48 |
7012 |
N-UT | 103,5 | 37 | 4 | - |
PP2 |
PDF DWG |
View
|
|
|
P/2.9 | 110 | 70 | 48 |
9004 |
P2H-AT | 103,5 | 37 | 4 | - |
PP2 |
PDF DWG |
View
|
|
|
P/3.10 | 160 | 96 | 61 |
5020 |
N-UT | 154 | 49 | 4 | - |
PP3 |
PDF DWG |
View
|
|
|
P/3.2 | 160 | 96 | 61 |
7012 |
N-UT | 154 | 49 | 4 | - |
PP3 |
PDF DWG |
View
|
|
|
P/3.9 | 160 | 96 | 61 |
9004 |
P2H-AT | 154 | 49 | 4 | - |
PP3 |
PDF DWG |
View
|
|
|
P/4.10 | 215 | 130 | 77 |
5020 |
N-UT | 208 | 64,5 | 4 | - |
PP4 |
PDF DWG |
View
|
|
|
P/4.2 | 215 | 130 | 77 |
7012 |
N-UT | 208 | 64,5 | 4 | - |
PP4 |
PDF DWG |
View
|
|
|
P/4.9 | 215 | 130 | 77 |
9004 |
P2H-AT | 208 | 64,5 | 4 | - |
PP4 |
PDF DWG |
View
|
