Description

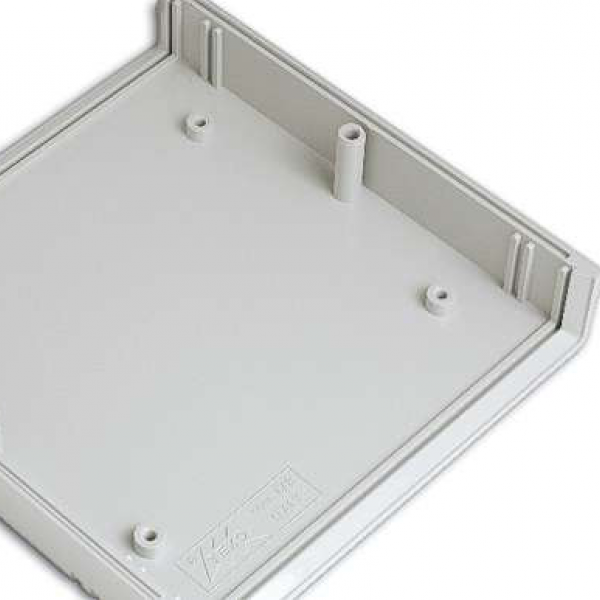

An ABS enclosure with a 9V battery compartment in the rear panel. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by only two screws. Available also ABS front panels (.13).
Details
Products
| |
|---|---|

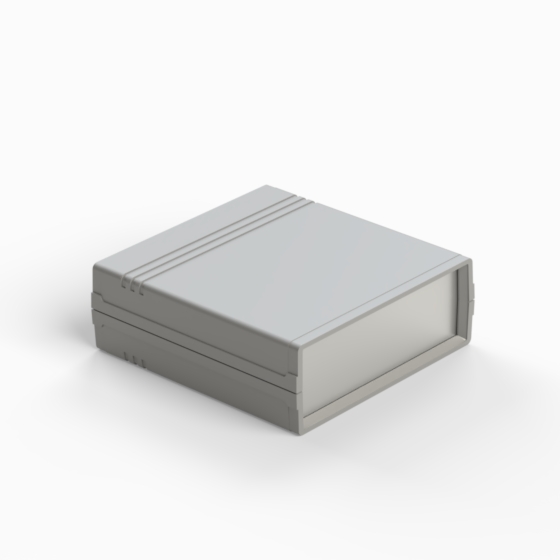

| Model | 011-B.5 |
| L (mm) | 134 |
| W (mm) | 129 |
| H (mm) | 47 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 116 |
| MAX PCB W (mm) | 115 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
AB9 PP11 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

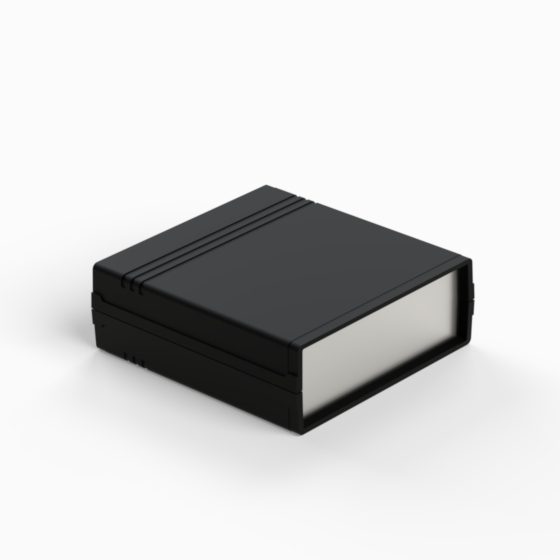

| Model | 011-B.9 |
| L (mm) | 134 |
| W (mm) | 129 |
| H (mm) | 47 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 116 |
| MAX PCB W (mm) | 115 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
AB9 PP11 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

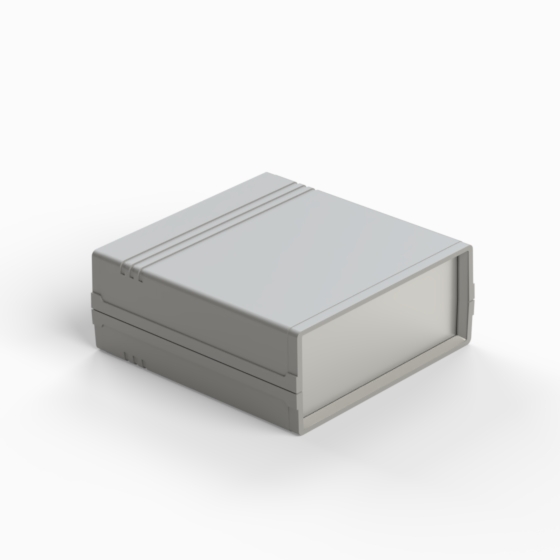

| Model | 012-B.5 |
| L (mm) | 134 |
| W (mm) | 129 |
| H (mm) | 54 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 116 |
| MAX PCB W (mm) | 115 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
AB9 PP12 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

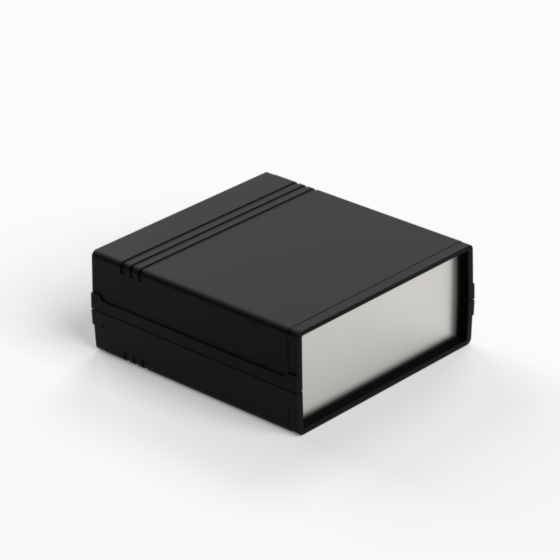

| Model | 012-B.9 |
| L (mm) | 134 |
| W (mm) | 129 |
| H (mm) | 54 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 116 |
| MAX PCB W (mm) | 115 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
AB9 PP12 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

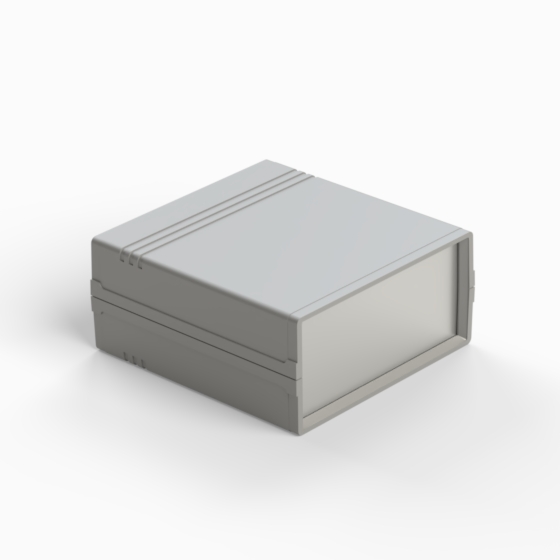

| Model | 022-B.5 |
| L (mm) | 134 |
| W (mm) | 129 |
| H (mm) | 61 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 116 |
| MAX PCB W (mm) | 115 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
AB9 PP22 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

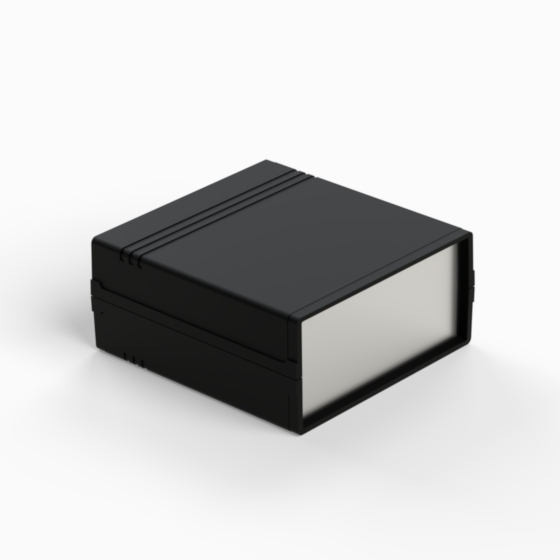

| Model | 022-B.9 |
| L (mm) | 134 |
| W (mm) | 129 |
| H (mm) | 61 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 116 |
| MAX PCB W (mm) | 115 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
AB9 PP22 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

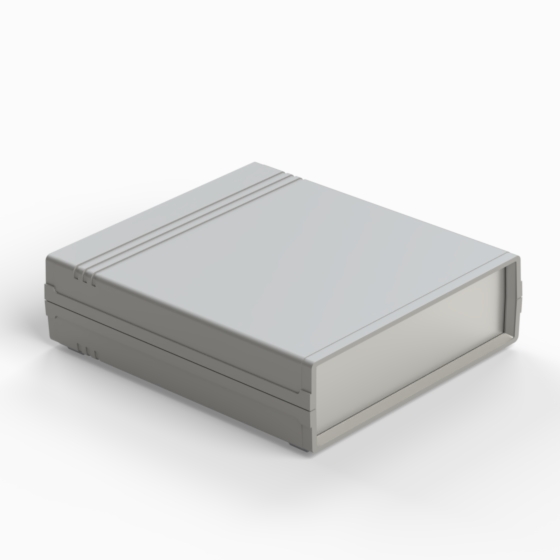

| Model | 222-B.5 |
| L (mm) | 173 |
| W (mm) | 154 |
| H (mm) | 47 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 140 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
AB9 PP222 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

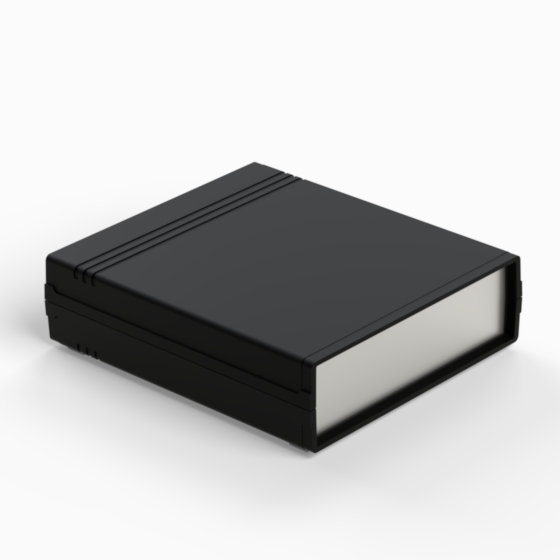

| Model | 222-B.9 |
| L (mm) | 173 |
| W (mm) | 154 |
| H (mm) | 47 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 140 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
AB9 PP222 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 223-B.5 |
| L (mm) | 173 |
| W (mm) | 154 |
| H (mm) | 54 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 140 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
AB9 PP223 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

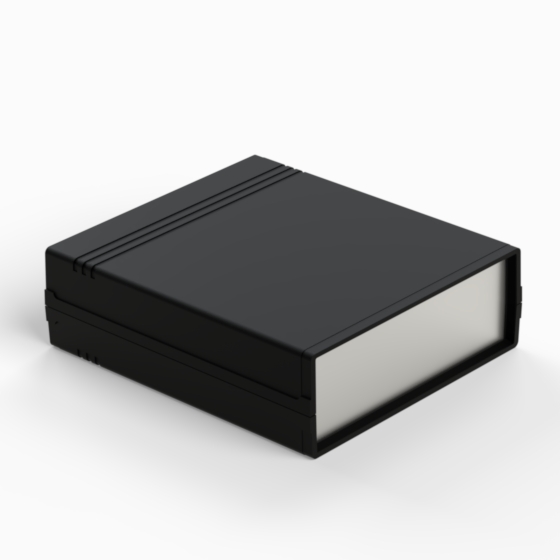

| Model | 223-B.9 |
| L (mm) | 173 |
| W (mm) | 154 |
| H (mm) | 54 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 140 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
AB9 PP223 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

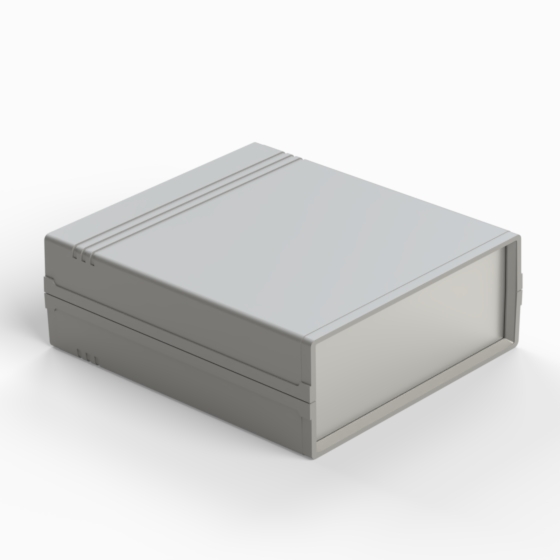

| Model | 233-B.5 |
| L (mm) | 173 |
| W (mm) | 154 |
| H (mm) | 61 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 140 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
AB9 PP233 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

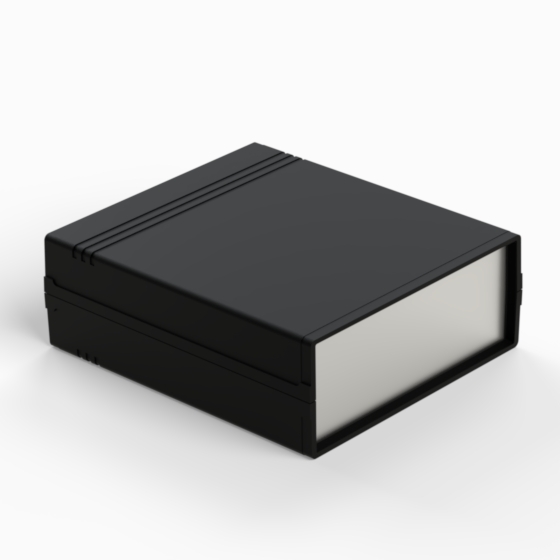

| Model | 233-B.9 |
| L (mm) | 173 |
| W (mm) | 154 |
| H (mm) | 61 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 154 |
| MAX PCB W (mm) | 140 |
| Screws | 2 |
| Battery | 1 x 9V |
| Accessories |
AB9 PP233 |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
011-B.5 | 134 | 129 | 47 |
9018 |
AG-ATY | 116 | 115 | 2 | 1 x 9V |
AB9 PP11 |
PDF DWG |
View
|
|
|
011-B.9 | 134 | 129 | 47 |
9004 |
P2H-AT | 116 | 115 | 2 | 1 x 9V |
AB9 PP11 |
PDF DWG |
View
|
|
|
012-B.5 | 134 | 129 | 54 |
9018 |
AG-ATY | 116 | 115 | 2 | 1 x 9V |
AB9 PP12 |
PDF DWG |
View
|
|
|
012-B.9 | 134 | 129 | 54 |
9004 |
P2H-AT | 116 | 115 | 2 | 1 x 9V |
AB9 PP12 |
PDF DWG |
View
|
|
|
022-B.5 | 134 | 129 | 61 |
9018 |
AG-ATY | 116 | 115 | 2 | 1 x 9V |
AB9 PP22 |
PDF DWG |
View
|
|
|
022-B.9 | 134 | 129 | 61 |
9004 |
P2H-AT | 116 | 115 | 2 | 1 x 9V |
AB9 PP22 |
PDF DWG |
View
|
|
|
222-B.5 | 173 | 154 | 47 |
9018 |
AG-ATY | 154 | 140 | 2 | 1 x 9V |
AB9 PP222 |
PDF DWG |
View
|
|
|
222-B.9 | 173 | 154 | 47 |
9004 |
P2H-AT | 154 | 140 | 2 | 1 x 9V |
AB9 PP222 |
PDF DWG |
View
|
|
|
223-B.5 | 173 | 154 | 54 |
9018 |
AG-ATY | 154 | 140 | 2 | 1 x 9V |
AB9 PP223 |
PDF DWG |
View
|
|
|
223-B.9 | 173 | 154 | 54 |
9004 |
P2H-AT | 154 | 140 | 2 | 1 x 9V |
AB9 PP223 |
PDF DWG |
View
|
|
|
233-B.5 | 173 | 154 | 61 |
9018 |
AG-ATY | 154 | 140 | 2 | 1 x 9V |
AB9 PP233 |
PDF DWG |
View
|
|
|
233-B.9 | 173 | 154 | 61 |
9004 |
P2H-AT | 154 | 140 | 2 | 1 x 9V |
AB9 PP233 |
PDF DWG |
View
|
12 product families, 152 series. You can't find what you're looking for? Contact us
