CAB PULPIT

Family Front Panel - Electronic enclosures - Plastic

Description

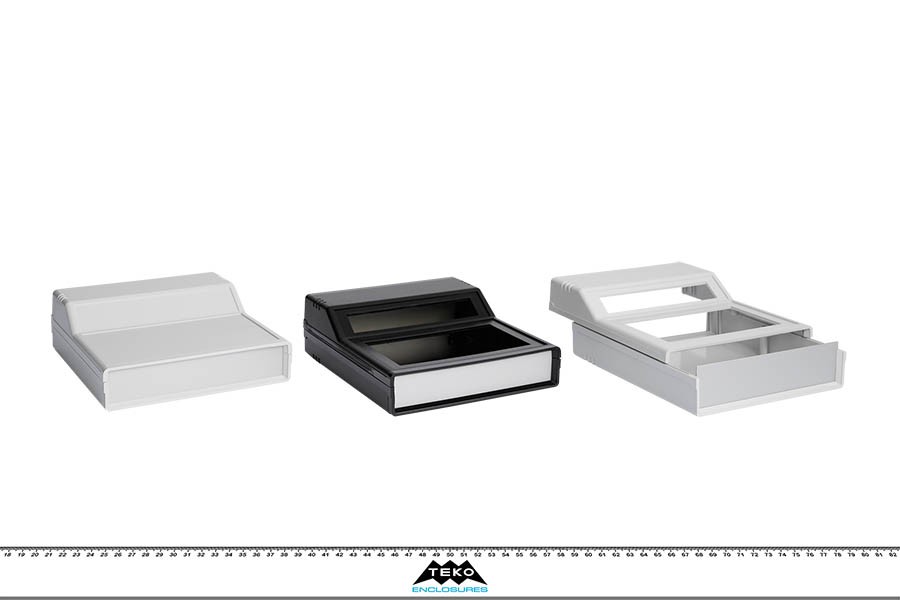

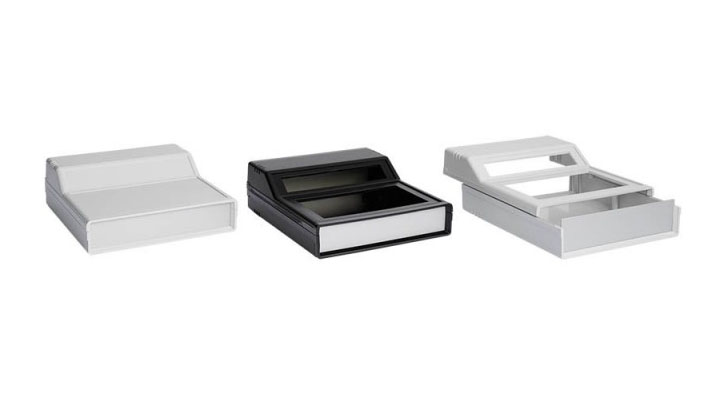

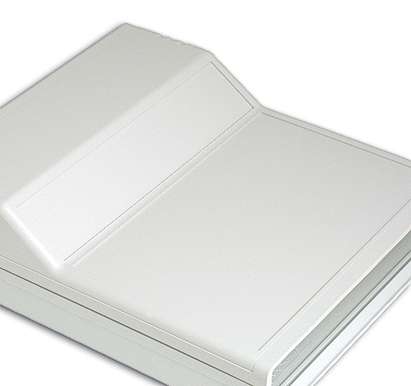

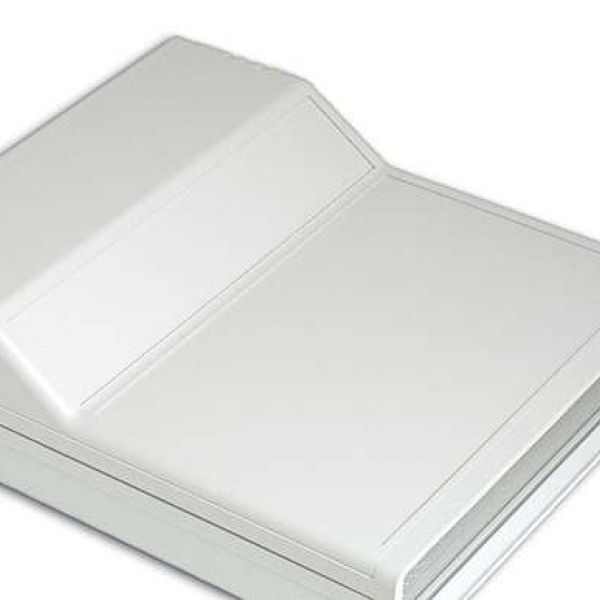

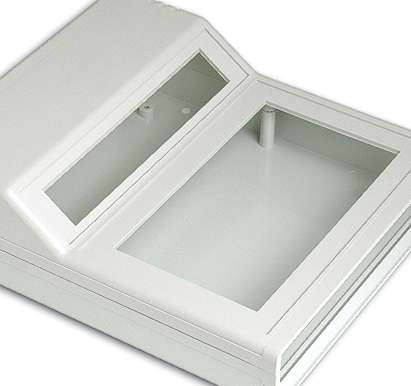

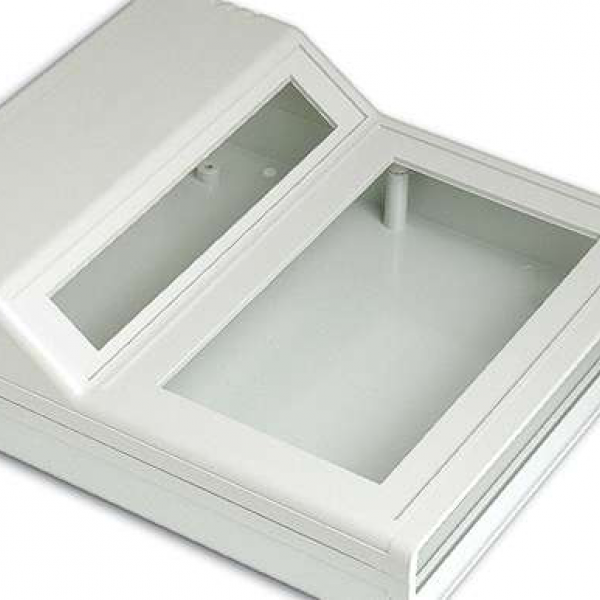

ABS enclosures with two 1 mm aluminium panels. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. The models “242” and “243” have a 45° inclined display area. The models “242/O” and “243/O” have two cutouts in the recessed areas. Closing by only two screws. Upon request dark gray ABS panels (Mod. PP11, PP12, PP22, PP222, PP223, PP233). Dual miniature clip for 9V battery (AB9).

Details

Products

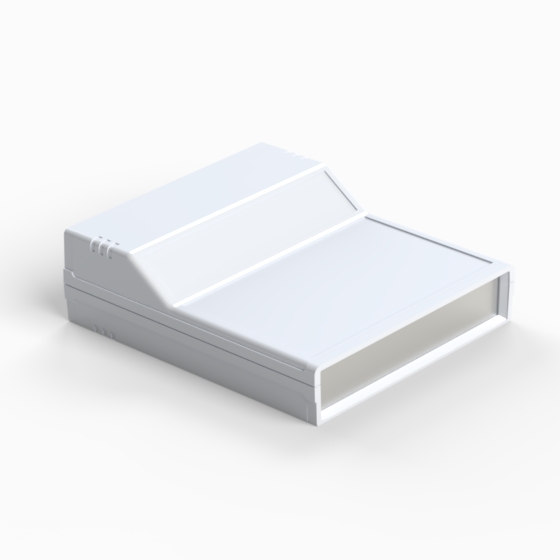

Model 242.5
L (mm)173
W (mm)154
H (mm)54
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)154
MAX PCB W (mm)140
Screws2
Battery-
Accessories PP223
Drawings PDF
DWG
Other
View
Model 242.9
L (mm)173
W (mm)154
H (mm)54
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)154
MAX PCB W (mm)140
Screws2
Battery-
Accessories PP223
Drawings PDF
DWG
Other
View

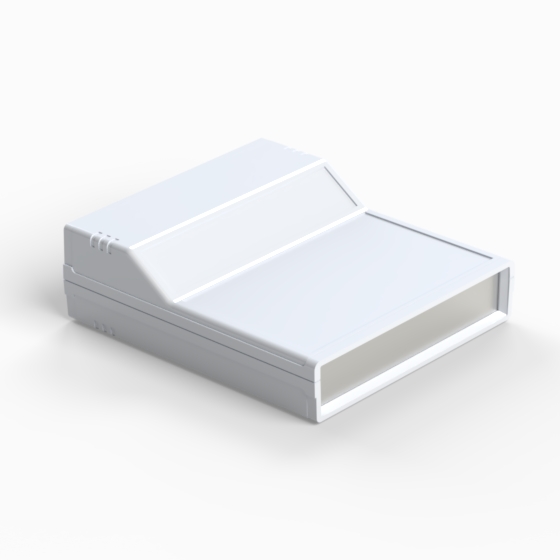

Model 242-B.5
L (mm)173
W (mm)154
H (mm)54
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)154
MAX PCB W (mm)140
Screws2
Battery1 x 9V
Accessories AB9
PP223
Drawings PDF
DWG
Other
View

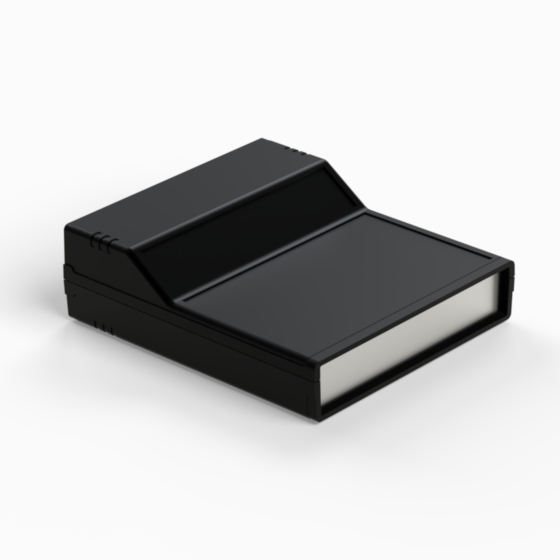

Model 242-B.9
L (mm)173
W (mm)154
H (mm)54
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)154
MAX PCB W (mm)140
Screws2
Battery1 x 9V
Accessories AB9
PP223
Drawings PDF
DWG
Other
View

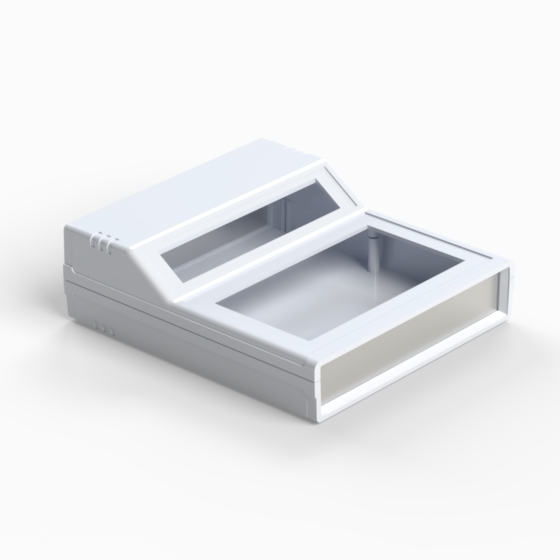

Model 242/O.5
L (mm)173
W (mm)154
H (mm)54
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)154
MAX PCB W (mm)140
Screws2
Battery-
Accessories PP223
Drawings PDF
DWG
Other
View
Model 242/O.9
L (mm)173
W (mm)154
H (mm)54
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)154
MAX PCB W (mm)140
Screws2
Battery-
Accessories PP223
Drawings PDF
DWG
Other
View

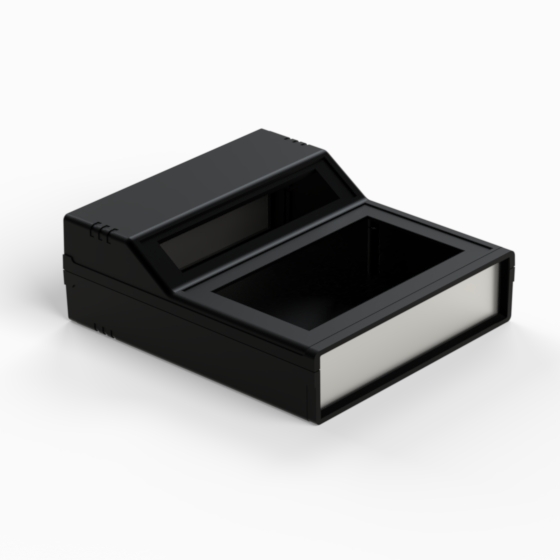

Model 243.5
L (mm)173
W (mm)154
H (mm)61
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)154
MAX PCB W (mm)140
Screws2
Battery-
Accessories PP233
Drawings PDF
DWG
Other
View

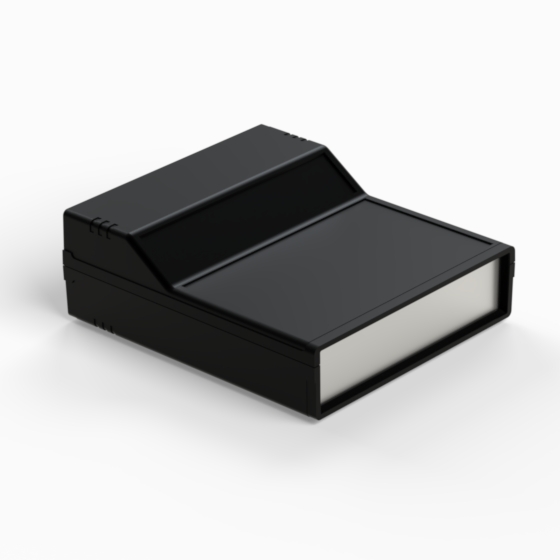

Model 243.9
L (mm)173
W (mm)154
H (mm)61
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)154
MAX PCB W (mm)140
Screws2
Battery-
Accessories PP233
Drawings PDF
DWG
Other
View

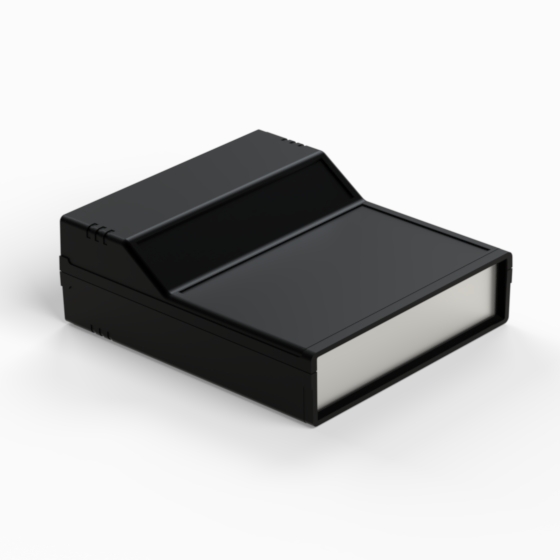

Model 243-B.5
L (mm)173
W (mm)154
H (mm)61
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)154
MAX PCB W (mm)140
Screws2
Battery1 x 9V
Accessories AB9
PP233
Drawings PDF
DWG
Other
View
Model 243-B.9
L (mm)173
W (mm)154
H (mm)61
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)154
MAX PCB W (mm)140
Screws2
Battery1 x 9V
Accessories AB9
PP233
Drawings PDF
DWG
Other
View
Model 243/O.5
L (mm)173
W (mm)154
H (mm)61
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)154
MAX PCB W (mm)140
Screws2
Battery-
Accessories PP233
Drawings PDF
DWG
Other
View
Model 243/O.9
L (mm)173
W (mm)154
H (mm)61
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)154
MAX PCB W (mm)140
Screws2
Battery-
Accessories PP233
Drawings PDF
DWG
Other
View
Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
242.5 173 154 54 9018
AG-ATY 154 140 2 - PP223
PDF
DWG
View
242.9 173 154 54 9004
P2H-AT 154 140 2 - PP223
PDF
DWG
View
242-B.5 173 154 54 9018
AG-ATY 154 140 2 1 x 9V AB9
PP223
PDF
DWG
View
242-B.9 173 154 54 9004
P2H-AT 154 140 2 1 x 9V AB9
PP223
PDF
DWG
View
242/O.5 173 154 54 9018
AG-ATY 154 140 2 - PP223
PDF
DWG
View
242/O.9 173 154 54 9004
P2H-AT 154 140 2 - PP223
PDF
DWG
View
243.5 173 154 61 9018
AG-ATY 154 140 2 - PP233
PDF
DWG
View
243.9 173 154 61 9004
P2H-AT 154 140 2 - PP233
PDF
DWG
View
243-B.5 173 154 61 9018
AG-ATY 154 140 2 1 x 9V AB9
PP233
PDF
DWG
View
243-B.9 173 154 61 9004
P2H-AT 154 140 2 1 x 9V AB9
PP233
PDF
DWG
View
243/O.5 173 154 61 9018
AG-ATY 154 140 2 - PP233
PDF
DWG
View
243/O.9 173 154 61 9004
P2H-AT 154 140 2 - PP233
PDF
DWG
View
