Description

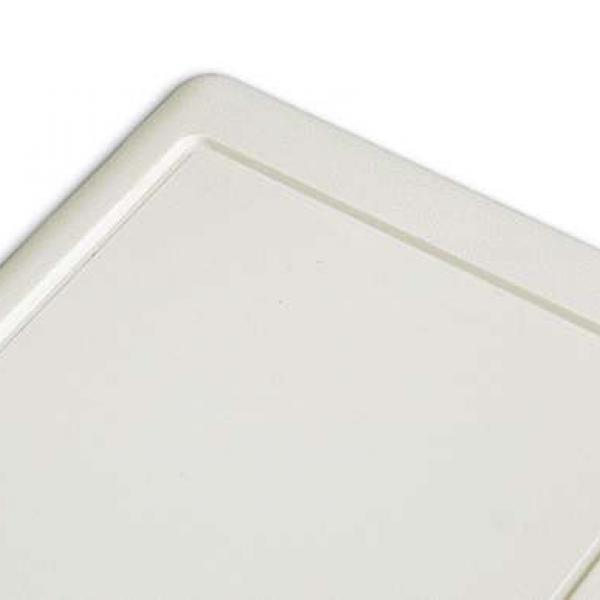

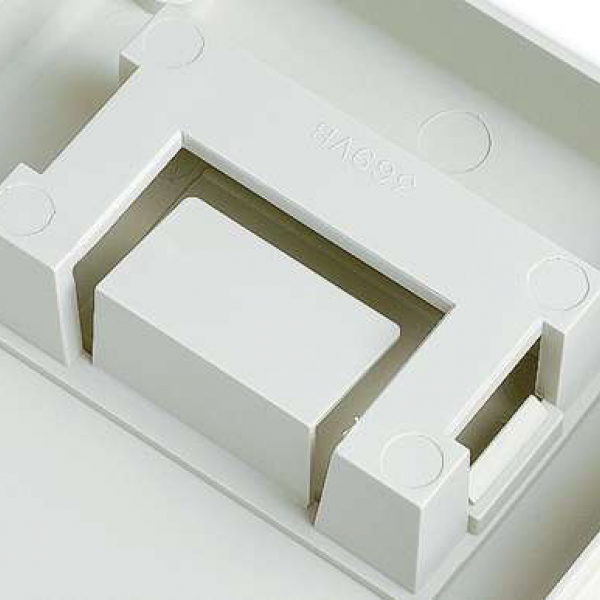

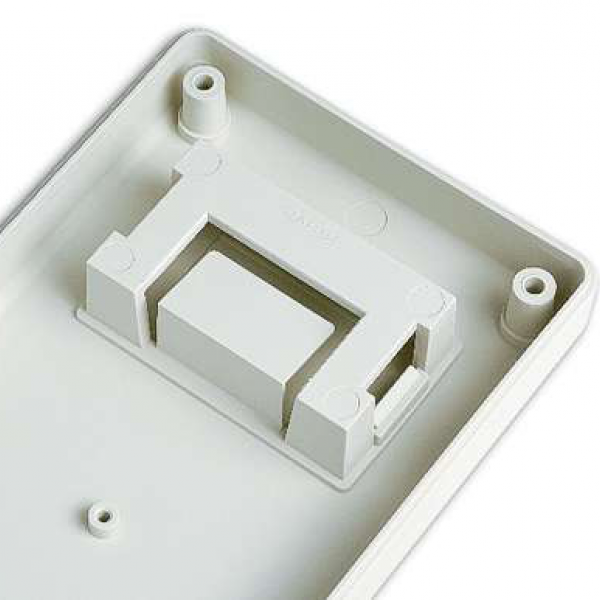

ABS enclosures with a recessed area suitable for a membrane keypad. The base has integral PCB mounting studs. The models with “-B” have a battery compartment. The “S” version has a slanted cover. Matt surface finish. Closing by four screws. Upon request a surround strip is available to increase height of 14 mm (Mod. XR13).
Products
Model | SM-B.7 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9002 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 96,5 |
MAX PCB W (mm) | 86 |
Screws | 4 |
Battery | 1 x 9V |
Accessories |
AB9 |
Drawings |
PDF DWG |
Other |
View
|

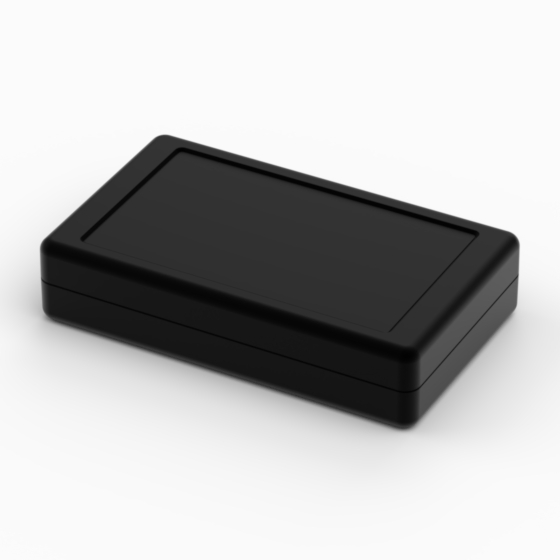

Model | SM-B.9 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 96,5 |
MAX PCB W (mm) | 86 |
Screws | 4 |
Battery | 1 x 9V |
Accessories |
AB9 |
Drawings |
PDF DWG |
Other |
View
|

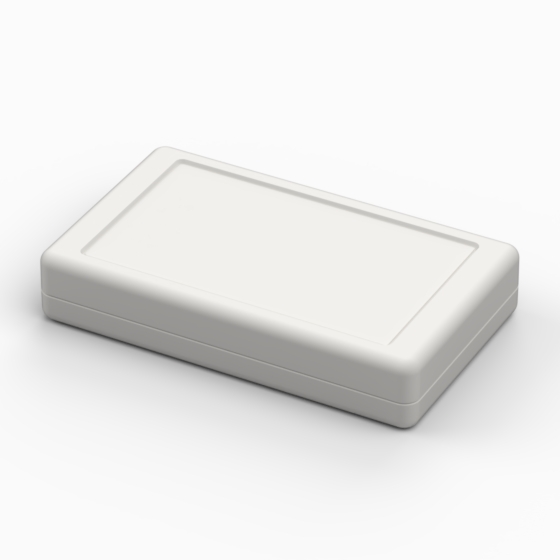

Model | SM1.7 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 30 |
Color (Ral) |
9002 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 151,1 |
MAX PCB W (mm) | 86,1 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

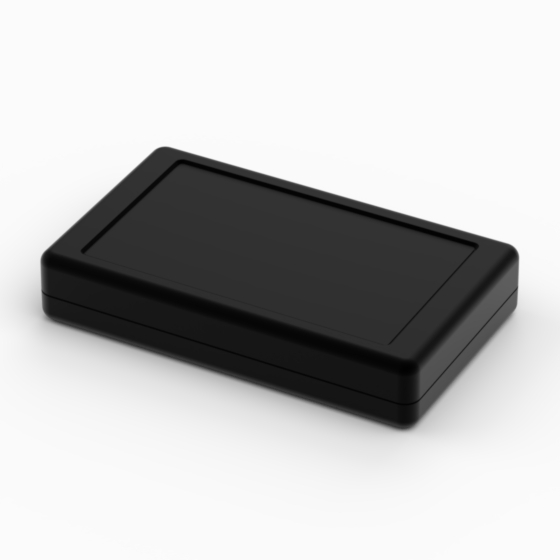

Model | SM1.9 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 30 |
Color (Ral) |
9004 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 151,1 |
MAX PCB W (mm) | 86,1 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

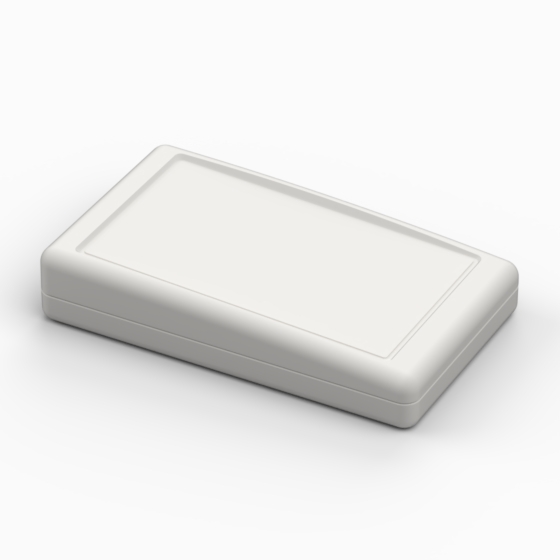

Model | SM1S.7 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 30 |
Color (Ral) |
9002 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 151,1 |
MAX PCB W (mm) | 86,1 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

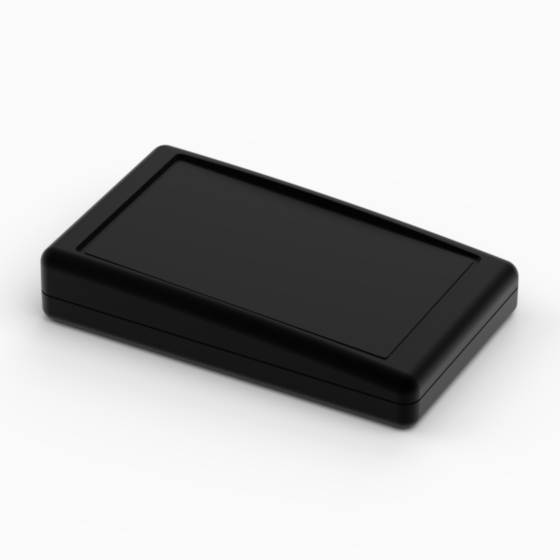

Model | SM1S.9 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 30 |
Color (Ral) |
9004 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 151,1 |
MAX PCB W (mm) | 86,1 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

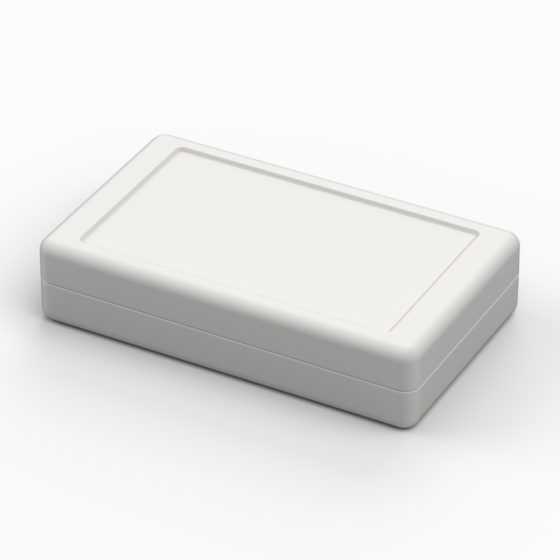

Model | SM2 - OUT OF STOCK.7 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9002 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 151,1 |
MAX PCB W (mm) | 86,1 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | SM2 - OUT OF STOCK.9 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 151,1 |
MAX PCB W (mm) | 86,1 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | SM2-2B.7 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9002 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 96,5 |
MAX PCB W (mm) | 86 |
Screws | 4 |
Battery | 2 x AA |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | SM2-2B.9 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 96,5 |
MAX PCB W (mm) | 86 |
Screws | 4 |
Battery | 2 x AA |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | SM2-4B - OUT OF STOCK.7 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9002 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 86 |
MAX PCB W (mm) | 66,5 |
Screws | 4 |
Battery | 4 x AA |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | SM2-4B - OUT OF STOCK.9 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 86 |
MAX PCB W (mm) | 66,5 |
Screws | 4 |
Battery | 4 x AA |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | SM2S - OUT OF STOCK.7 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9002 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 151,1 |
MAX PCB W (mm) | 86,1 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | SM2S - OUT OF STOCK.9 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 151,1 |
MAX PCB W (mm) | 86,1 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | SMS-2B - OUT OF STOCK.7 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9002 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 96,5 |
MAX PCB W (mm) | 86 |
Screws | 4 |
Battery | 2 x AA |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | SMS-2B - OUT OF STOCK.9 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 96,5 |
MAX PCB W (mm) | 86 |
Screws | 4 |
Battery | 2 x AA |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | SMS-4B - OUT OF STOCK.7 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9002 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 86 |
MAX PCB W (mm) | 66,5 |
Screws | 4 |
Battery | 4 x AA |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

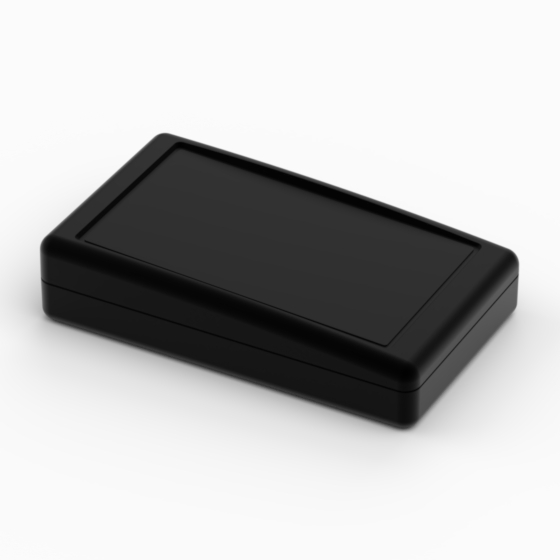

Model | SMS-4B - OUT OF STOCK.9 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 86 |
MAX PCB W (mm) | 66,5 |
Screws | 4 |
Battery | 4 x AA |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

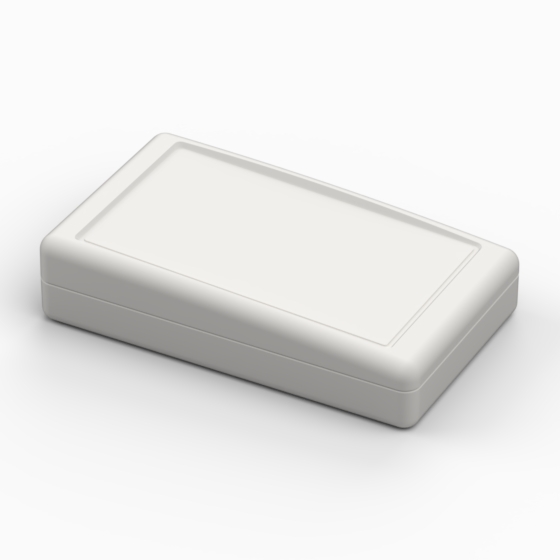

Model | SMS-B - OUT OF STOCK.7 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9002 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 96,5 |
MAX PCB W (mm) | 86 |
Screws | 4 |
Battery | 1 x 9V |
Accessories |
AB9 |
Drawings |
PDF DWG |
Other |
View
|
Model | SMS-B - OUT OF STOCK.9 |
L (mm) | 160 |
W (mm) | 95 |
H (mm) | 35,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-22 |
MAX PCB L (mm) | 96,5 |
MAX PCB W (mm) | 86 |
Screws | 4 |
Battery | 1 x 9V |
Accessories |
AB9 |
Drawings |
PDF DWG |
Other |
View
|
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SM-B.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 1 x 9V |
AB9 |
PDF DWG |
View
|
|
SM-B.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 1 x 9V |
AB9 |
PDF DWG |
View
|
|
SM1.7 | 160 | 95 | 30 |
9002 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||
SM1.9 | 160 | 95 | 30 |
9004 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||
SM1S.7 | 160 | 95 | 30 |
9002 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||
SM1S.9 | 160 | 95 | 30 |
9004 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||
SM2 - OUT OF STOCK.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||
SM2 - OUT OF STOCK.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||
SM2-2B.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 2 x AA |
PDF DWG |
View
|
||
SM2-2B.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 2 x AA |
PDF DWG |
View
|
||
SM2-4B - OUT OF STOCK.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 86 | 66,5 | 4 | 4 x AA |
PDF DWG |
View
|
||
SM2-4B - OUT OF STOCK.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 86 | 66,5 | 4 | 4 x AA |
PDF DWG |
View
|
||
SM2S - OUT OF STOCK.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||
SM2S - OUT OF STOCK.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 151,1 | 86,1 | 4 | - |
PDF DWG |
View
|
||
SMS-2B - OUT OF STOCK.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 2 x AA |
PDF DWG |
View
|
||
SMS-2B - OUT OF STOCK.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 2 x AA |
PDF DWG |
View
|
||
SMS-4B - OUT OF STOCK.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 86 | 66,5 | 4 | 4 x AA |
PDF DWG |
View
|
||
SMS-4B - OUT OF STOCK.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 86 | 66,5 | 4 | 4 x AA |
PDF DWG |
View
|
||
SMS-B - OUT OF STOCK.7 | 160 | 95 | 35,5 |
9002 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 1 x 9V |
AB9 |
PDF DWG |
View
|
|
SMS-B - OUT OF STOCK.9 | 160 | 95 | 35,5 |
9004 |
TERLURAN GP-22 | 96,5 | 86 | 4 | 1 x 9V |
AB9 |
PDF DWG |
View
|
