Description
ABS enclosures with inclined cover and a recessed operating area 132 x 72 mm for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. Closing by four screws. Upon request ABS wall mounting tabs “MT1”.
Products
Model | TB-1S.7 |
L (mm) | 160 |
W (mm) | 94 |
H (mm) | 36,5 |
Color (Ral) |
9002 |
Material | FORMACROM 9249FC |
MAX PCB L (mm) | 149 |
MAX PCB W (mm) | 80 |
Screws | 4 |
Battery | - |
Accessories |
M M58 M59 MT1 |
Drawings |
PDF DWG |
Other |
View
|

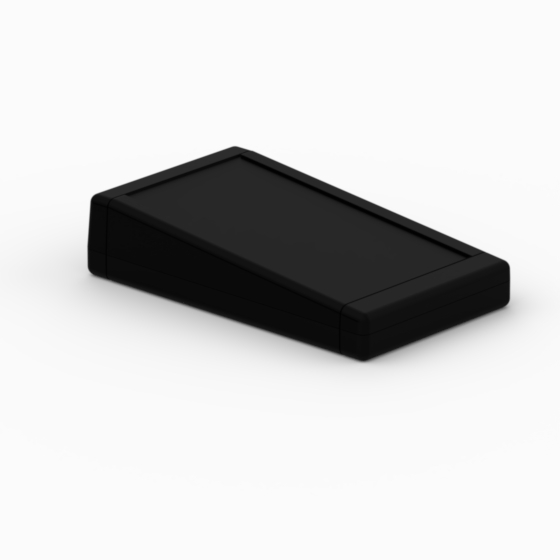

Model | TB-1S.9 |
L (mm) | 160 |
W (mm) | 94 |
H (mm) | 36,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-35 |
MAX PCB L (mm) | 149 |
MAX PCB W (mm) | 80 |
Screws | 4 |
Battery | - |
Accessories |
M M58 M59 MT1 |
Drawings |
PDF DWG |
Other |
View
|

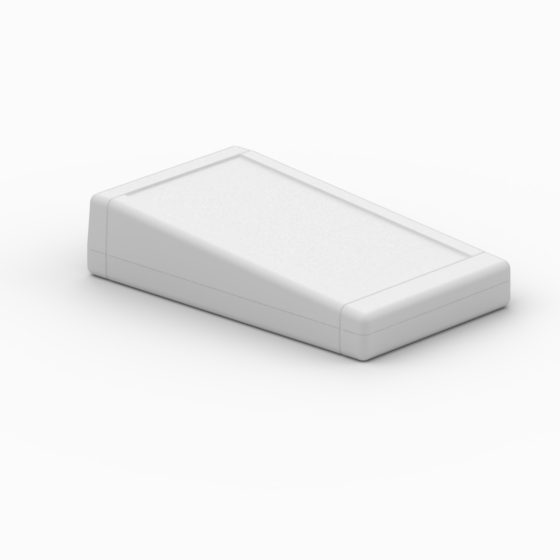

Model | TB-1SB.7 |
L (mm) | 160 |
W (mm) | 94 |
H (mm) | 36,5 |
Color (Ral) |
9002 |
Material | FORMACROM 9249FC |
MAX PCB L (mm) | 98 |
MAX PCB W (mm) | 80 |
Screws | 4 |
Battery | 2 x AA / 1 x 9V |
Accessories |
AB9 M M58 M59 MT1 |
Drawings |
PDF DWG |
Other |
View
|
Model | TB-1SB.9 |
L (mm) | 160 |
W (mm) | 94 |
H (mm) | 36,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-35 |
MAX PCB L (mm) | 98 |
MAX PCB W (mm) | 80 |
Screws | 4 |
Battery | 2 x AA / 1 x 9V |
Accessories |
AB9 M M58 M59 MT1 |
Drawings |
PDF DWG |
Other |
View
|
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TB-1S.7 | 160 | 94 | 36,5 |
9002 |
FORMACROM 9249FC | 149 | 80 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
View
|
|
TB-1S.9 | 160 | 94 | 36,5 |
9004 |
TERLURAN GP-35 | 149 | 80 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
View
|
|
TB-1SB.7 | 160 | 94 | 36,5 |
9002 |
FORMACROM 9249FC | 98 | 80 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 MT1 |
PDF DWG |
View
|
|
TB-1SB.9 | 160 | 94 | 36,5 |
9004 |
TERLURAN GP-35 | 98 | 80 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 MT1 |
PDF DWG |
View
|
