Description
ABS enclosures with a recessed operating area for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. The models with “-B” have a battery compartment for two mignon-cells 1.5V or one flat battery 9V. The models with “K” are able to accept the IP65 sealing kit. Closing by four screws. Upon request ABS wall mounting tabs “MT1”, aluminium panels “APTB”, Keypad membrane “M” and “MW” (with transparent display area).
Details
Products
| |
|---|---|
| Model | TBL-1.7 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 25 |
| Color (Ral) |
9002 |
| Material | FORMACROM 9249FC |
| MAX PCB L (mm) | 190 |
| MAX PCB W (mm) | 83 |
| Screws | 4 |
| Battery | - |
| Accessories |
M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | TBL-1.9 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 25 |
| Color (Ral) |
9004 |
| Material | TERLURAN GP-35 |
| MAX PCB L (mm) | 190 |
| MAX PCB W (mm) | 83 |
| Screws | 4 |
| Battery | - |
| Accessories |
M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

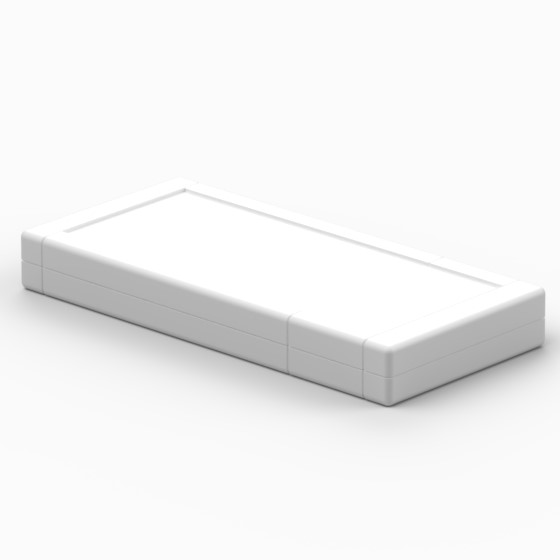

| Model | TBL-1B.7 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 25 |
| Color (Ral) |
9002 |
| Material | FORMACROM 9249FC |
| MAX PCB L (mm) | 140 |
| MAX PCB W (mm) | 80 |
| Screws | 4 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

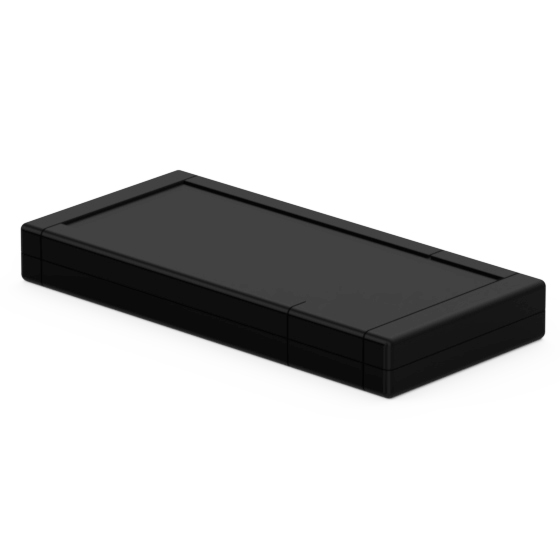

| Model | TBL-1B.9 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 25 |
| Color (Ral) |
9004 |
| Material | TERLURAN GP-35 |
| MAX PCB L (mm) | 140 |
| MAX PCB W (mm) | 80 |
| Screws | 4 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | TBL-1BK.7 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 25 |
| Color (Ral) |
9002 |
| Material | FORMACROM 9249FC |
| MAX PCB L (mm) | 140 |
| MAX PCB W (mm) | 80 |
| Screws | 4 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | TBL-1BK.9 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 25 |
| Color (Ral) |
9004 |
| Material | TERLURAN GP-35 |
| MAX PCB L (mm) | 140 |
| MAX PCB W (mm) | 80 |
| Screws | 4 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | TBL-1K.7 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 25 |
| Color (Ral) |
9002 |
| Material | FORMACROM 9249FC |
| MAX PCB L (mm) | 190 |
| MAX PCB W (mm) | 83 |
| Screws | 4 |
| Battery | - |
| Accessories |
M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | TBL-1K.9 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 25 |
| Color (Ral) |
9004 |
| Material | TERLURAN GP-35 |
| MAX PCB L (mm) | 190 |
| MAX PCB W (mm) | 83 |
| Screws | 4 |
| Battery | - |
| Accessories |
M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | TBL-2.7 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 31,5 |
| Color (Ral) |
9002 |
| Material | FORMACROM 9249FC |
| MAX PCB L (mm) | 190 |
| MAX PCB W (mm) | 83 |
| Screws | 4 |
| Battery | - |
| Accessories |
M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | TBL-2.9 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 31,5 |
| Color (Ral) |
9004 |
| Material | TERLURAN GP-35 |
| MAX PCB L (mm) | 190 |
| MAX PCB W (mm) | 83 |
| Screws | 4 |
| Battery | - |
| Accessories |
M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | TBL-2B.7 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 31,5 |
| Color (Ral) |
9002 |
| Material | FORMACROM 9249FC |
| MAX PCB L (mm) | 140 |
| MAX PCB W (mm) | 80 |
| Screws | 4 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

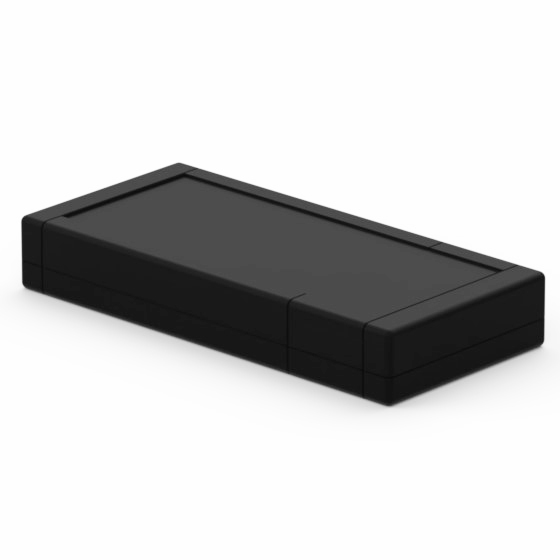

| Model | TBL-2B.9 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 31,5 |
| Color (Ral) |
9004 |
| Material | TERLURAN GP-35 |
| MAX PCB L (mm) | 140 |
| MAX PCB W (mm) | 80 |
| Screws | 4 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | TBL-2BK.7 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 31,5 |
| Color (Ral) |
9002 |
| Material | FORMACROM 9249FC |
| MAX PCB L (mm) | 140 |
| MAX PCB W (mm) | 80 |
| Screws | 4 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | TBL-2BK.9 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 31,5 |
| Color (Ral) |
9004 |
| Material | TERLURAN GP-35 |
| MAX PCB L (mm) | 140 |
| MAX PCB W (mm) | 80 |
| Screws | 4 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

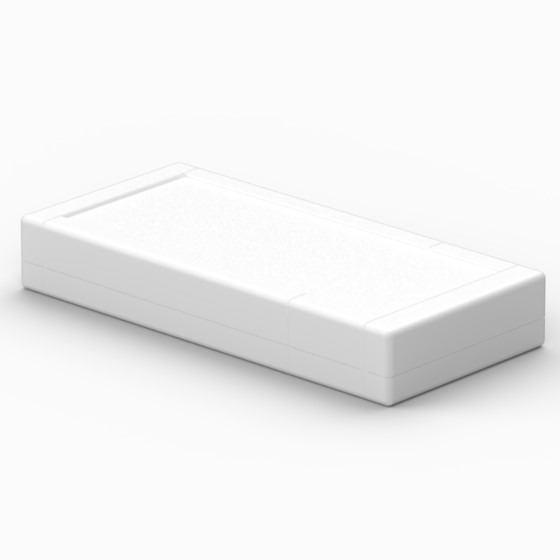

| Model | TBL-2K.7 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 31,5 |
| Color (Ral) |
9002 |
| Material | FORMACROM 9249FC |
| MAX PCB L (mm) | 190 |
| MAX PCB W (mm) | 83 |
| Screws | 4 |
| Battery | - |
| Accessories |
M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | TBL-2K.9 |
| L (mm) | 200 |
| W (mm) | 94 |
| H (mm) | 31,5 |
| Color (Ral) |
9004 |
| Material | TERLURAN GP-35 |
| MAX PCB L (mm) | 190 |
| MAX PCB W (mm) | 83 |
| Screws | 4 |
| Battery | - |
| Accessories |
M M58 M59 MT1 MW61 |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TBL-1.7 | 200 | 94 | 25 |
9002 |
FORMACROM 9249FC | 190 | 83 | 4 | - |
M M58 M59 MT1 MW61 |
PDF DWG |
View
|
|
|
TBL-1.9 | 200 | 94 | 25 |
9004 |
TERLURAN GP-35 | 190 | 83 | 4 | - |
M M58 M59 MT1 MW61 |
PDF DWG |
View
|
|
|
TBL-1B.7 | 200 | 94 | 25 |
9002 |
FORMACROM 9249FC | 140 | 80 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 MT1 MW61 |
PDF DWG |
View
|
|
|
TBL-1B.9 | 200 | 94 | 25 |
9004 |
TERLURAN GP-35 | 140 | 80 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 MT1 MW61 |
PDF DWG |
View
|
|
|
TBL-1BK.7 | 200 | 94 | 25 |
9002 |
FORMACROM 9249FC | 140 | 80 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 MT1 MW61 |
PDF DWG |
View
|
|
|
TBL-1BK.9 | 200 | 94 | 25 |
9004 |
TERLURAN GP-35 | 140 | 80 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 MT1 MW61 |
PDF DWG |
View
|
|
|
TBL-1K.7 | 200 | 94 | 25 |
9002 |
FORMACROM 9249FC | 190 | 83 | 4 | - |
M M58 M59 MT1 MW61 |
PDF DWG |
View
|
|
|
TBL-1K.9 | 200 | 94 | 25 |
9004 |
TERLURAN GP-35 | 190 | 83 | 4 | - |
M M58 M59 MT1 MW61 |
PDF DWG |
View
|
|
|
TBL-2.7 | 200 | 94 | 31,5 |
9002 |
FORMACROM 9249FC | 190 | 83 | 4 | - |
M M58 M59 MT1 MW61 |
PDF DWG |
View
|
|
|
TBL-2.9 | 200 | 94 | 31,5 |
9004 |
TERLURAN GP-35 | 190 | 83 | 4 | - |
M M58 M59 MT1 MW61 |
PDF DWG |
View
|
|
|
TBL-2B.7 | 200 | 94 | 31,5 |
9002 |
FORMACROM 9249FC | 140 | 80 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 MT1 MW61 |
PDF DWG |
View
|
|
|
TBL-2B.9 | 200 | 94 | 31,5 |
9004 |
TERLURAN GP-35 | 140 | 80 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 MT1 MW61 |
PDF DWG |
View
|
|
|
TBL-2BK.7 | 200 | 94 | 31,5 |
9002 |
FORMACROM 9249FC | 140 | 80 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 MT1 MW61 |
PDF DWG |
View
|
|
|
TBL-2BK.9 | 200 | 94 | 31,5 |
9004 |
TERLURAN GP-35 | 140 | 80 | 4 | 2 x AA / 1 x 9V |
AB9 M M58 M59 MT1 MW61 |
PDF DWG |
View
|
|
|
TBL-2K.7 | 200 | 94 | 31,5 |
9002 |
FORMACROM 9249FC | 190 | 83 | 4 | - |
M M58 M59 MT1 MW61 |
PDF DWG |
View
|
|
|
TBL-2K.9 | 200 | 94 | 31,5 |
9004 |
TERLURAN GP-35 | 190 | 83 | 4 | - |
M M58 M59 MT1 MW61 |
PDF DWG |
View
|
