Description

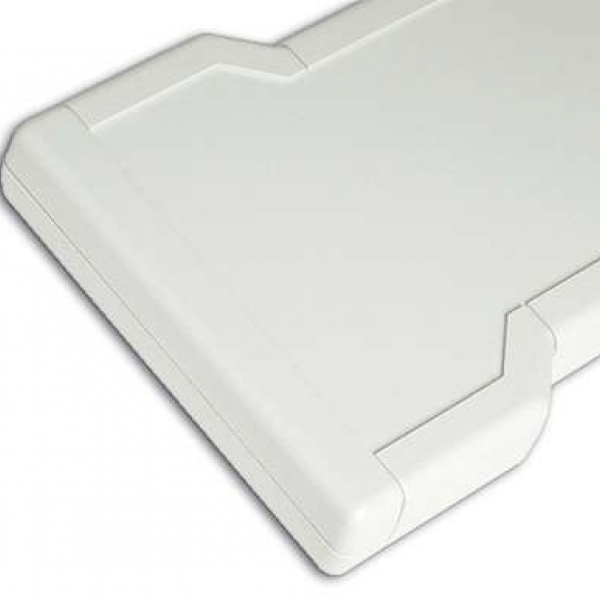

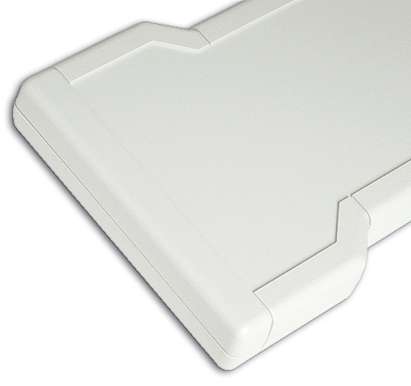

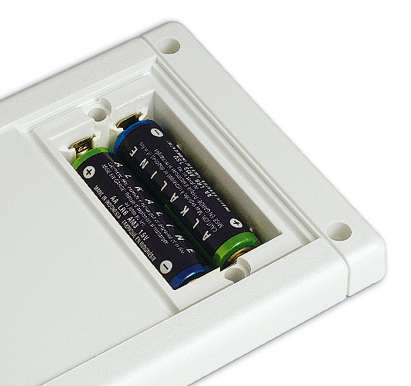

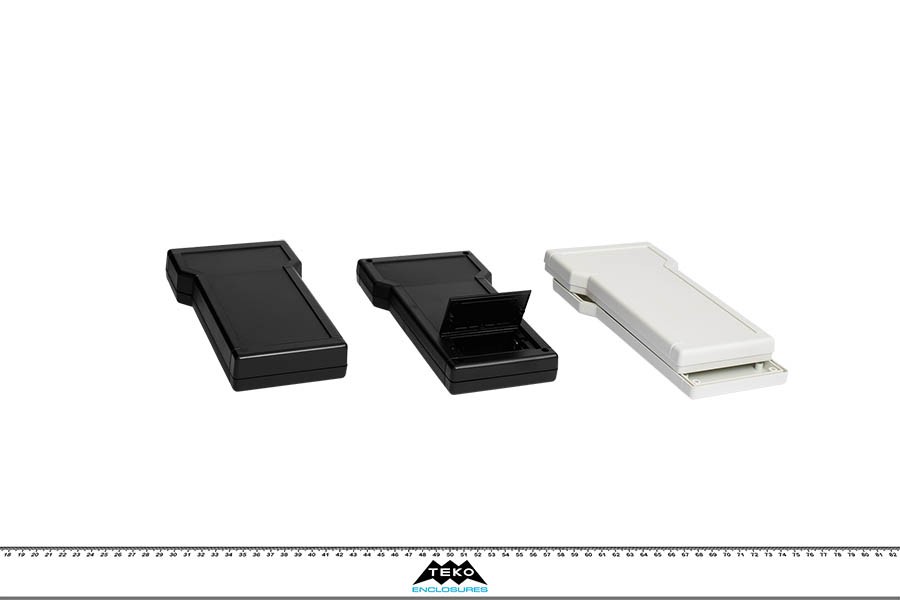

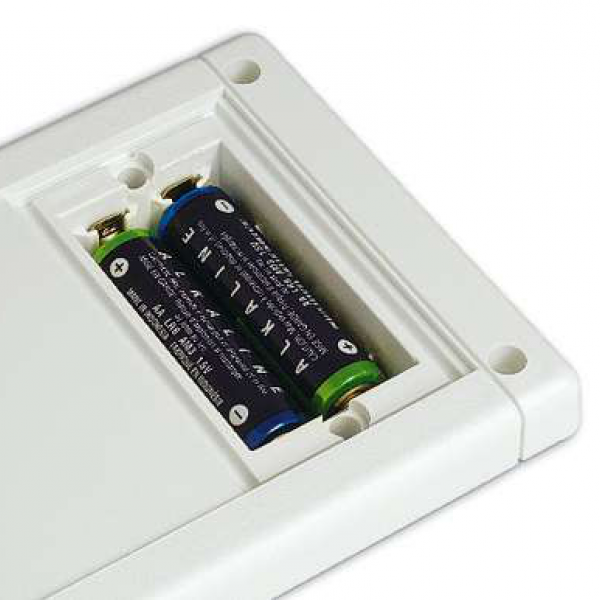

ABS enclosures with a recessed operating area for membrane keyboards. Base and cover have integral PCB guides and mounting studs. Matt surface finish. The models with “B” have a battery compartment for two mignon-cells 1.5V or one flat battery 9V. The models with “K” are able to accept the IP65 sealing kit. Closing by four screws.

Details

Products

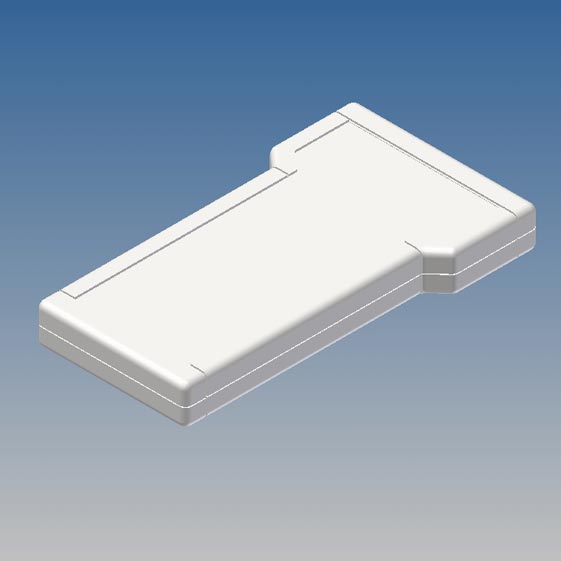

Model	TBT-1.7
L (mm)	210
W (mm)	116
H (mm)	25
Color (Ral)	9002
Material	FORMACROM 9249FC
MAX PCB L (mm)	196
MAX PCB W (mm)	80/102
Screws	4
Battery	-
Accessories	M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG

Model	TBT-1.9
L (mm)	210
W (mm)	116
H (mm)	25
Color (Ral)	9004
Material	TERLURAN GP-35
MAX PCB L (mm)	196
MAX PCB W (mm)	80/102
Screws	4
Battery	-
Accessories	M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG

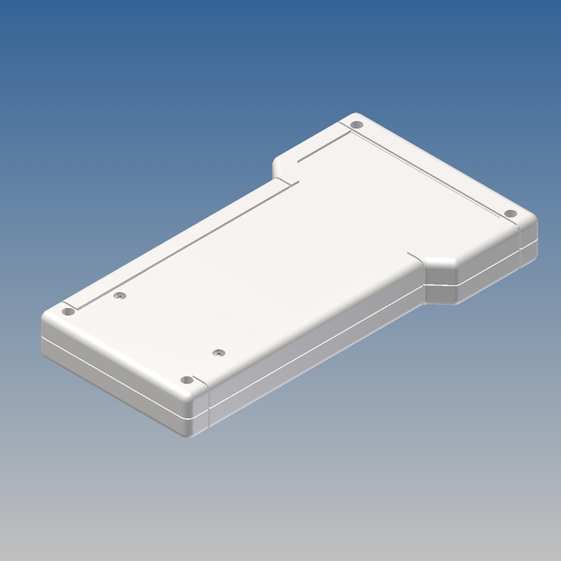

Model	TBT-1B.7
L (mm)	210
W (mm)	116
H (mm)	25
Color (Ral)	9002
Material	FORMACROM 9249FC
MAX PCB L (mm)	148,2
MAX PCB W (mm)	80/102
Screws	4
Battery	2 x AA / 1 x 9V
Accessories	AB9 M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG

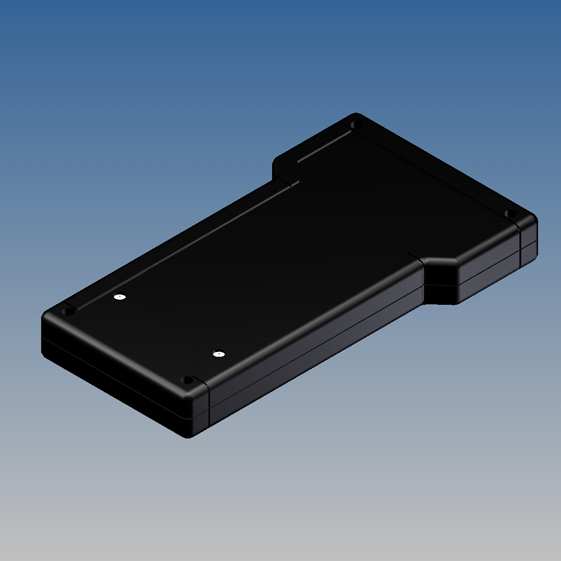

Model	TBT-1B.9
L (mm)	210
W (mm)	116
H (mm)	25
Color (Ral)	9004
Material	TERLURAN GP-35
MAX PCB L (mm)	148,2
MAX PCB W (mm)	80/102
Screws	4
Battery	2 x AA / 1 x 9V
Accessories	AB9 M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG

Model	TBT-1BK.7
L (mm)	210
W (mm)	116
H (mm)	25
Color (Ral)	9002
Material	FORMACROM 9249FC
MAX PCB L (mm)	148,2
MAX PCB W (mm)	80/102
Screws	4
Battery	2 x AA / 1 x 9V
Accessories	AB9 M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG

Model	TBT-1BK.9
L (mm)	210
W (mm)	116
H (mm)	25
Color (Ral)	9004
Material	TERLURAN GP-35
MAX PCB L (mm)	148,2
MAX PCB W (mm)	80/102
Screws	4
Battery	2 x AA / 1 x 9V
Accessories	AB9 M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG

Model	TBT-1K.7
L (mm)	210
W (mm)	116
H (mm)	25
Color (Ral)	9002
Material	FORMACROM 9249FC
MAX PCB L (mm)	196
MAX PCB W (mm)	80/102
Screws	4
Battery	-
Accessories	M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG

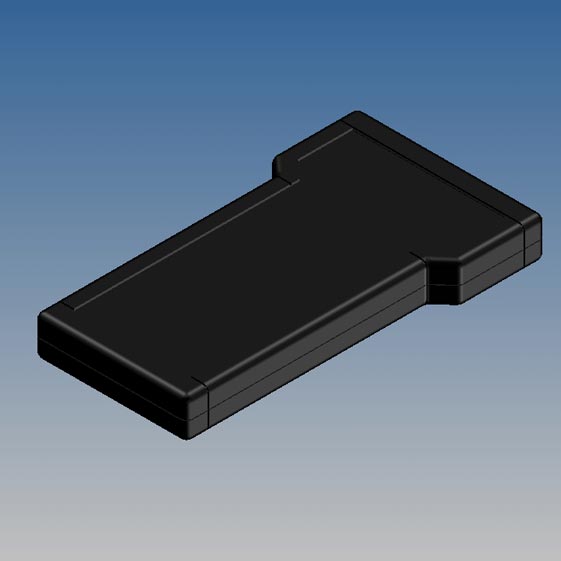

Model	TBT-1K.9
L (mm)	210
W (mm)	116
H (mm)	25
Color (Ral)	9004
Material	TERLURAN GP-35
MAX PCB L (mm)	196
MAX PCB W (mm)	80/102
Screws	4
Battery	-
Accessories	M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG

Model	TBT-2.7
L (mm)	210
W (mm)	116
H (mm)	31,5
Color (Ral)	9002
Material	FORMACROM 9249FC
MAX PCB L (mm)	196
MAX PCB W (mm)	80/102
Screws	4
Battery	-
Accessories	M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG

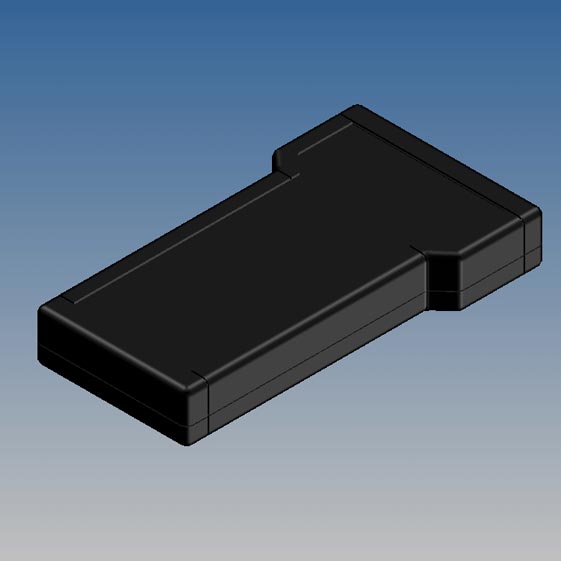

Model	TBT-2.9
L (mm)	210
W (mm)	116
H (mm)	31,5
Color (Ral)	9004
Material	TERLURAN GP-35
MAX PCB L (mm)	196
MAX PCB W (mm)	80/102
Screws	4
Battery	-
Accessories	M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG

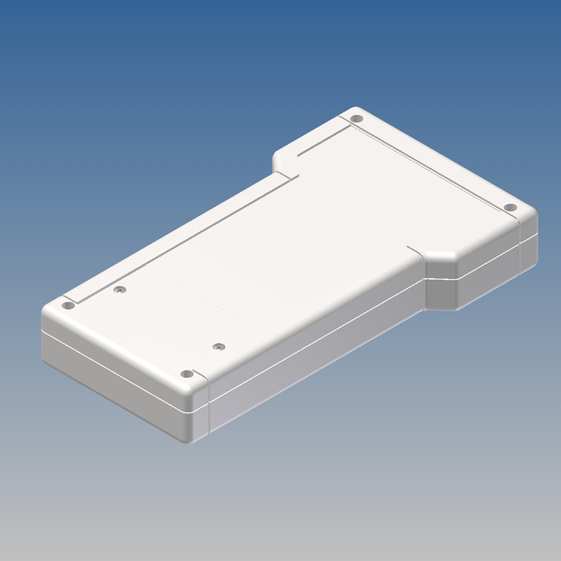

Model	TBT-2B.7
L (mm)	210
W (mm)	116
H (mm)	31,5
Color (Ral)	9002
Material	FORMACROM 9249FC
MAX PCB L (mm)	148,2
MAX PCB W (mm)	80/102
Screws	4
Battery	2 x AA / 1 x 9V
Accessories	AB9 M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG

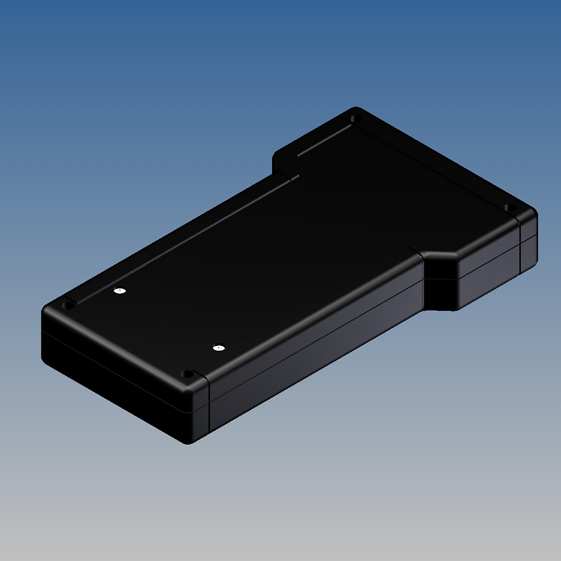

Model	TBT-2B.9
L (mm)	210
W (mm)	116
H (mm)	31,5
Color (Ral)	9004
Material	TERLURAN GP-35
MAX PCB L (mm)	148,2
MAX PCB W (mm)	80/102
Screws	4
Battery	2 x AA / 1 x 9V
Accessories	AB9 M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG

Model	TBT-2BK.7
L (mm)	210
W (mm)	116
H (mm)	31,5
Color (Ral)	9002
Material	FORMACROM 9249FC
MAX PCB L (mm)	148,2
MAX PCB W (mm)	80/102
Screws	4
Battery	2 x AA / 1 x 9V
Accessories	AB9 M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG

Model	TBT-2BK.9
L (mm)	210
W (mm)	116
H (mm)	31,5
Color (Ral)	9004
Material	TERLURAN GP-35
MAX PCB L (mm)	148,2
MAX PCB W (mm)	80/102
Screws	4
Battery	2 x AA / 1 x 9V
Accessories	AB9 M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG

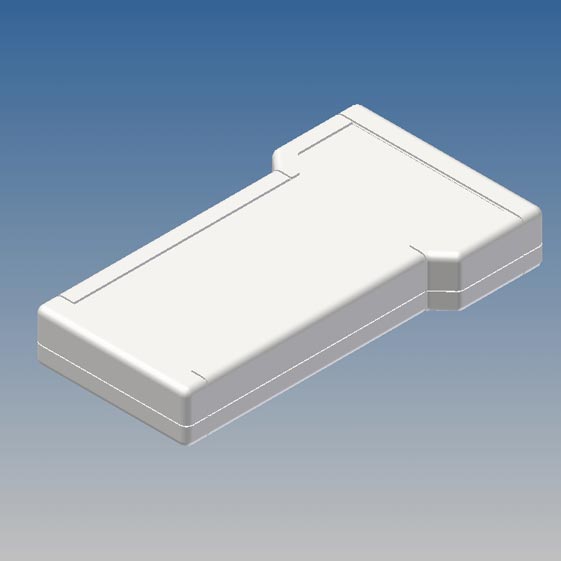

Model	TBT-2K.7
L (mm)	210
W (mm)	116
H (mm)	31,5
Color (Ral)	9002
Material	FORMACROM 9249FC
MAX PCB L (mm)	196
MAX PCB W (mm)	80/102
Screws	4
Battery	-
Accessories	M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG

Model	TBT-2K.9
L (mm)	210
W (mm)	116
H (mm)	31,5
Color (Ral)	9004
Material	TERLURAN GP-35
MAX PCB L (mm)	196
MAX PCB W (mm)	80/102
Screws	4
Battery	-
Accessories	M M58 M59 MT1 MW60
Drawings
Other	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG

Model	L (mm)	W (mm)	H (mm)	Color (Ral)	Material	MAX PCB L (mm)	MAX PCB W (mm)	Screws	Battery	Accessories	Other
TBT-1.7	210	116	25	9002	FORMACROM 9249FC	196	80/102	4	-	M M58 M59 MT1 MW60	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG
TBT-1.9	210	116	25	9004	TERLURAN GP-35	196	80/102	4	-	M M58 M59 MT1 MW60	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG
TBT-1B.7	210	116	25	9002	FORMACROM 9249FC	148,2	80/102	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW60	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG
TBT-1B.9	210	116	25	9004	TERLURAN GP-35	148,2	80/102	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW60	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG
TBT-1BK.7	210	116	25	9002	FORMACROM 9249FC	148,2	80/102	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW60	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG
TBT-1BK.9	210	116	25	9004	TERLURAN GP-35	148,2	80/102	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW60	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG
TBT-1K.7	210	116	25	9002	FORMACROM 9249FC	196	80/102	4	-	M M58 M59 MT1 MW60	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG
TBT-1K.9	210	116	25	9004	TERLURAN GP-35	196	80/102	4	-	M M58 M59 MT1 MW60	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG
TBT-2.7	210	116	31,5	9002	FORMACROM 9249FC	196	80/102	4	-	M M58 M59 MT1 MW60	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG
TBT-2.9	210	116	31,5	9004	TERLURAN GP-35	196	80/102	4	-	M M58 M59 MT1 MW60	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG
TBT-2B.7	210	116	31,5	9002	FORMACROM 9249FC	148,2	80/102	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW60	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG
TBT-2B.9	210	116	31,5	9004	TERLURAN GP-35	148,2	80/102	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW60	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG
TBT-2BK.7	210	116	31,5	9002	FORMACROM 9249FC	148,2	80/102	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW60	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG
TBT-2BK.9	210	116	31,5	9004	TERLURAN GP-35	148,2	80/102	4	2 x AA / 1 x 9V	AB9 M M58 M59 MT1 MW60	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 148,2 MAX PCB W (mm): 80/102 Screws: 4 Battery: 2 x AA / 1 x 9V Accessories: AB9 M M58 M59 MT1 MW60 Drawings: PDF DWG
TBT-2K.7	210	116	31,5	9002	FORMACROM 9249FC	196	80/102	4	-	M M58 M59 MT1 MW60	View Color (Ral): 9002 Material: FORMACROM 9249FC MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG
TBT-2K.9	210	116	31,5	9004	TERLURAN GP-35	196	80/102	4	-	M M58 M59 MT1 MW60	View Color (Ral): 9004 Material: TERLURAN GP-35 MAX PCB L (mm): 196 MAX PCB W (mm): 80/102 Screws: 4 Battery: - Accessories: M M58 M59 MT1 MW60 Drawings: PDF DWG
