Description

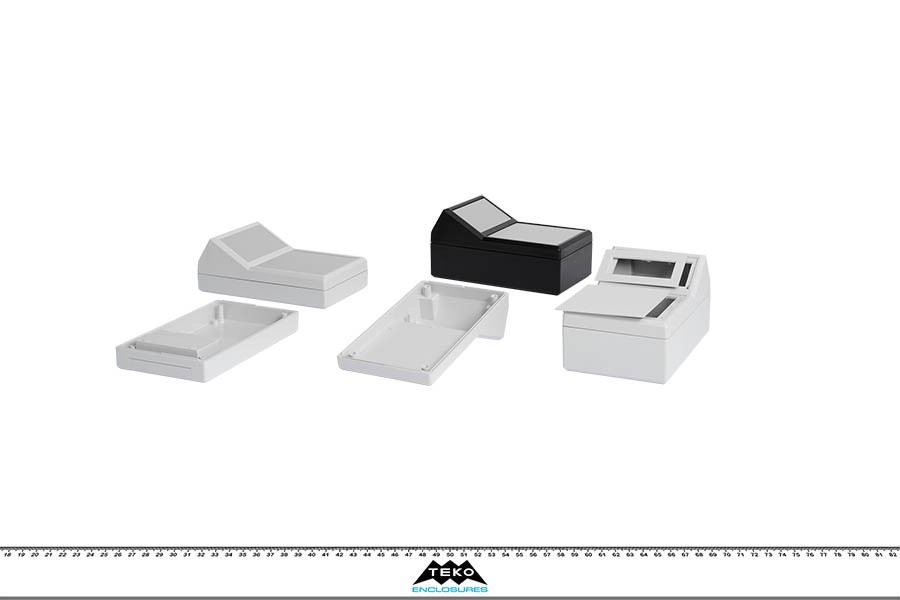

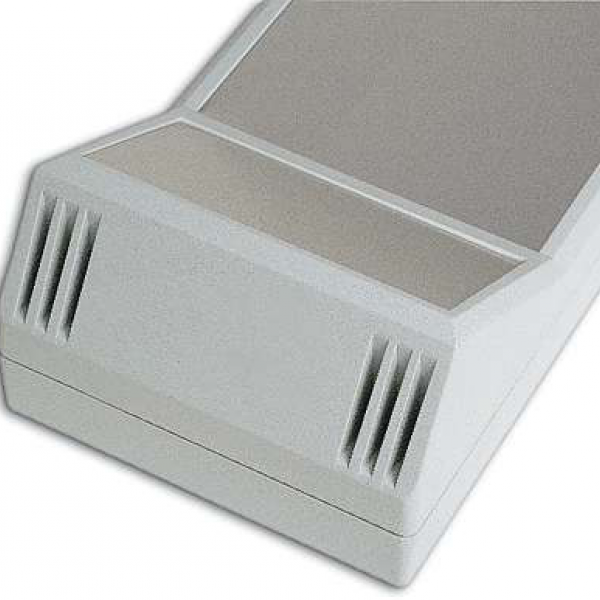

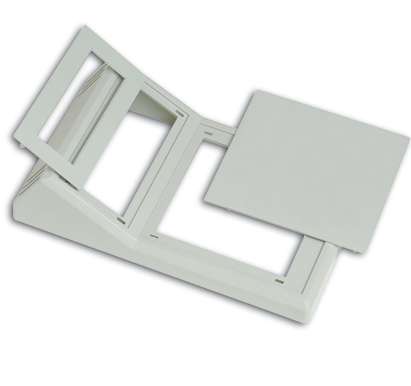

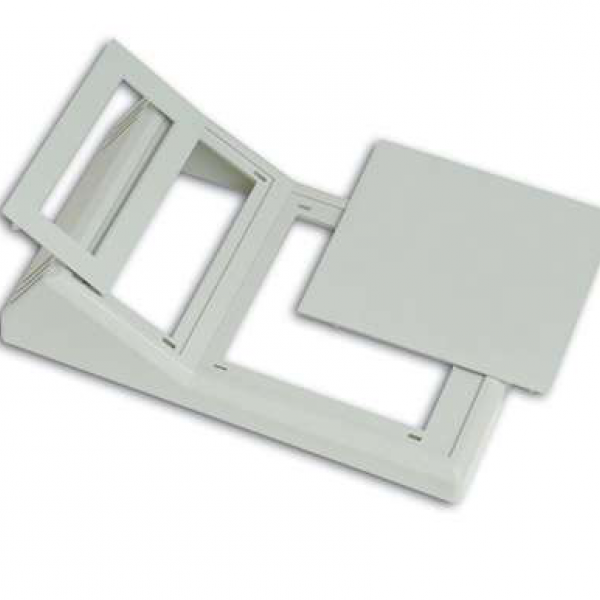

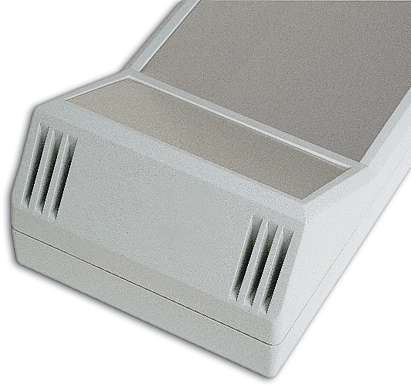

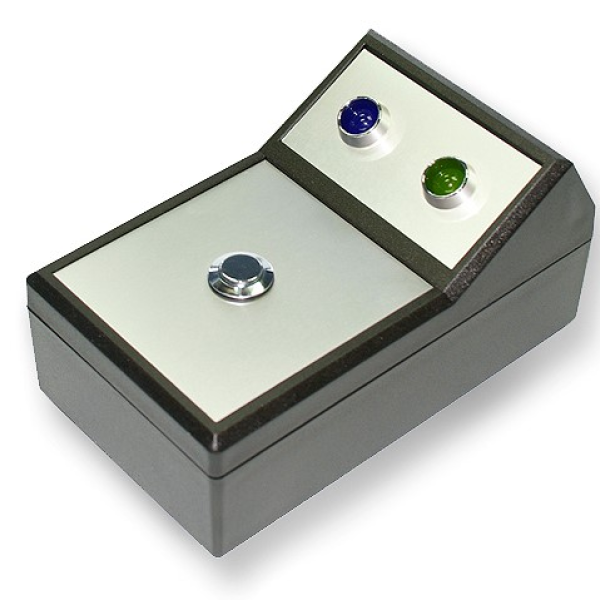

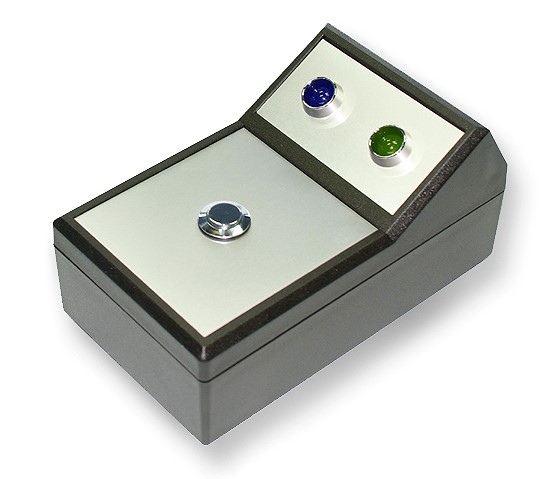

ABS enclosures with inclined cover. Matt surfaces finish. The base has integral PCB mounting studs. The models with “-B” have a 9V battery compartment with snap-on cover. The models with “D” have plastic punch-out lids for display (55 x 20 mm). Closing by four screws. Upon request ABS mounting tabs (Mod. MT1).
Details
Products
| |
|---|---|

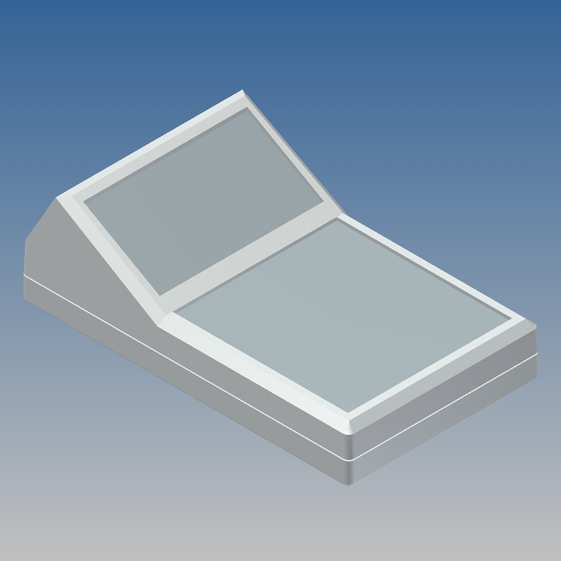

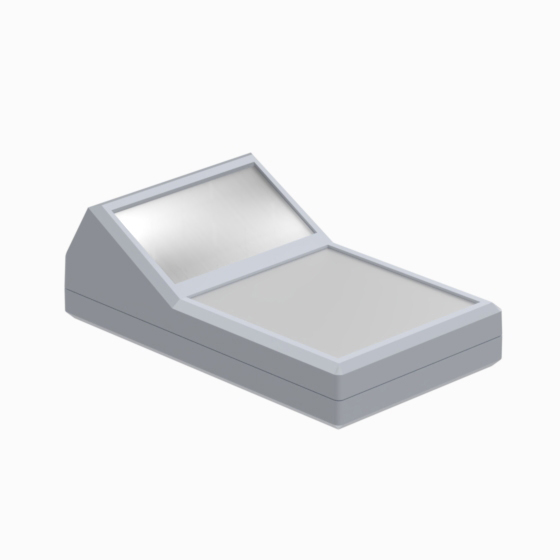

| Model | 590.5 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 49 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | - |
| Accessories |
MT1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

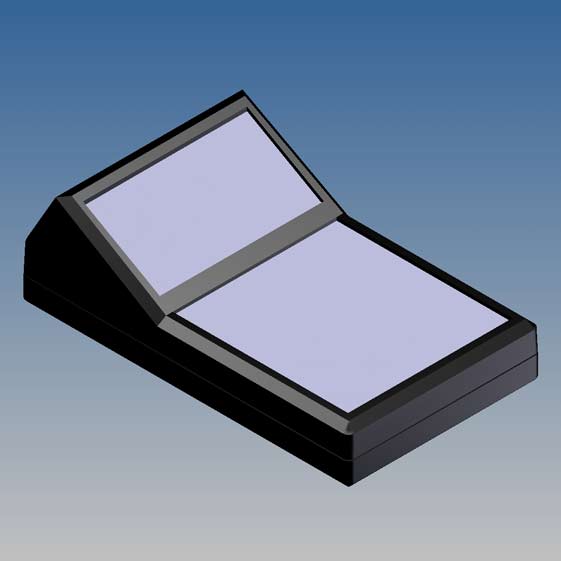

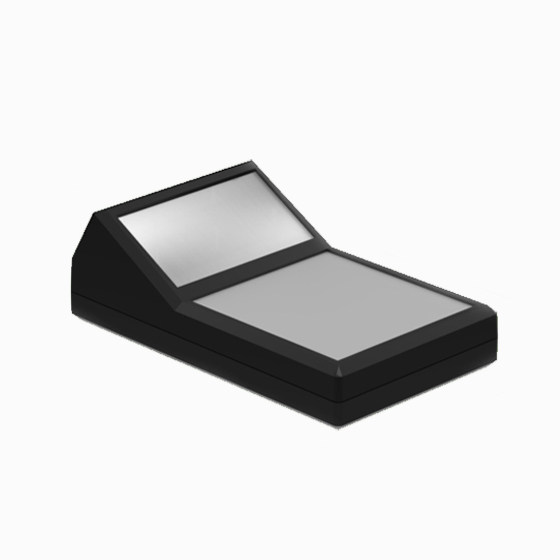

| Model | 590.9 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 49 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | - |
| Accessories |
MT1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

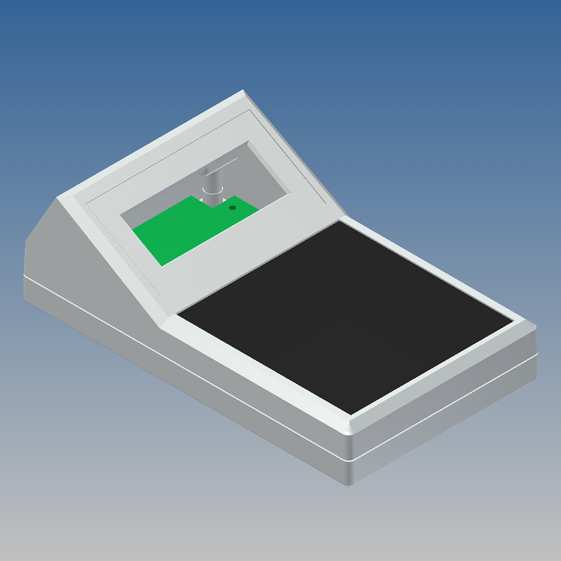

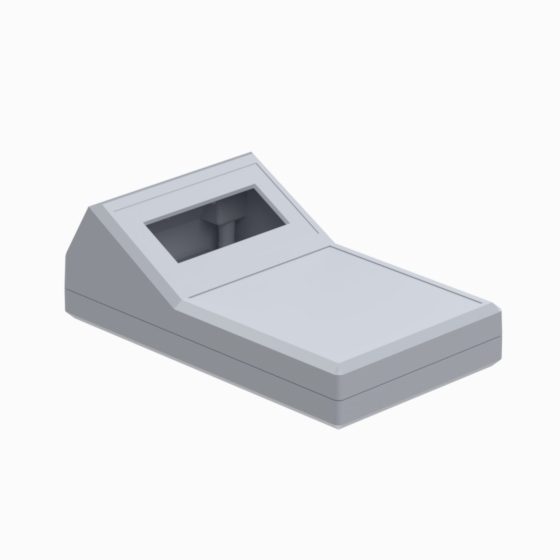

| Model | 590/D.5 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 49 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | - |
| Accessories |
MT1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

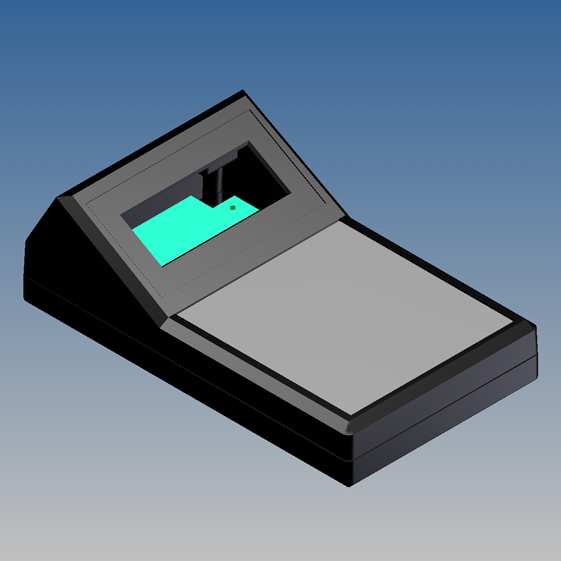

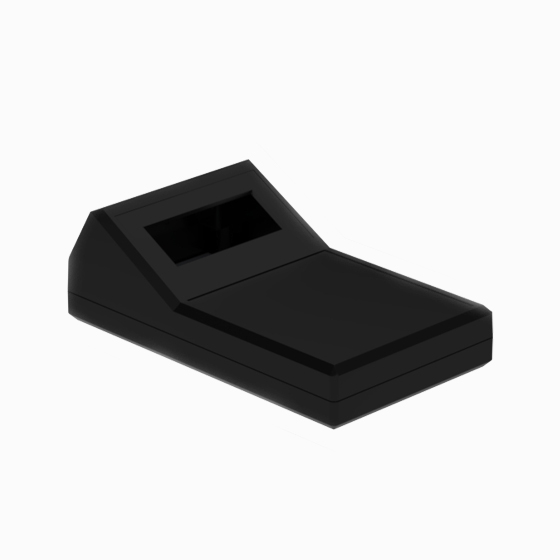

| Model | 590/D.9 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 49 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | - |
| Accessories |
MT1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

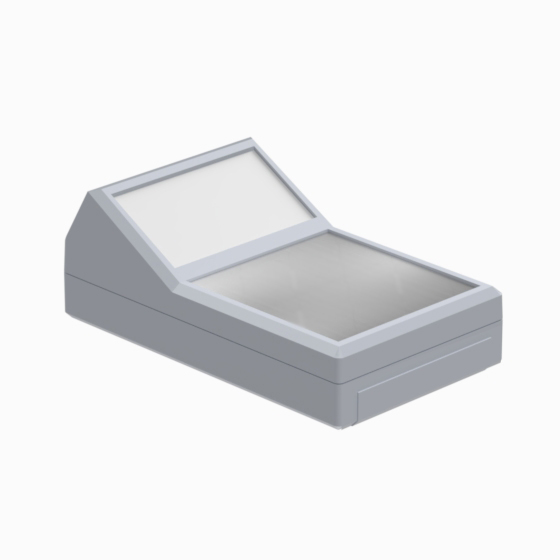

| Model | 680-B.5 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 55 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | 1 x 9V |
| Accessories |
AB9 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

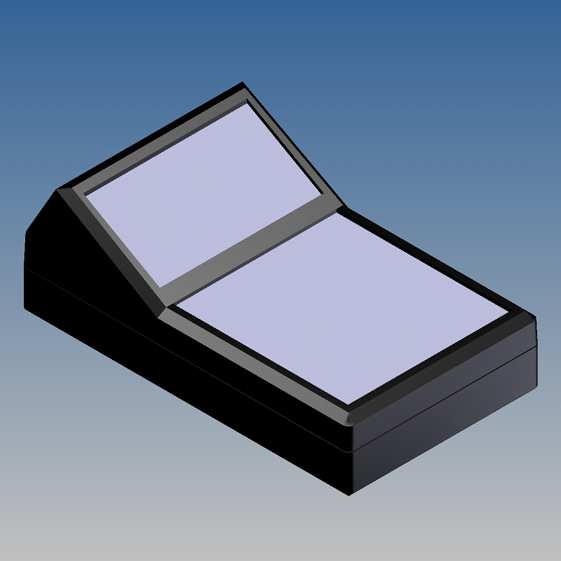

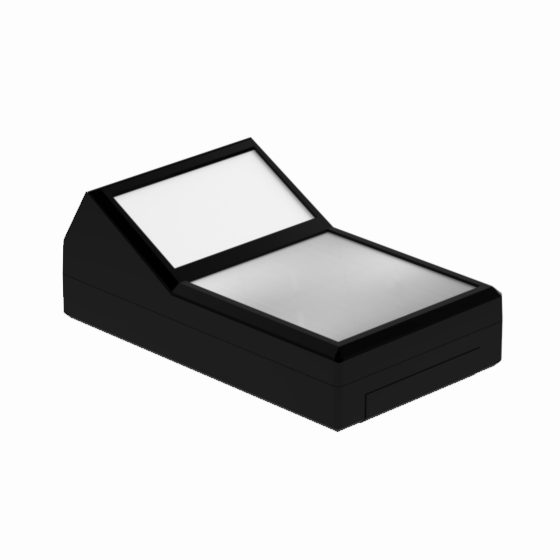

| Model | 680-B.9 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 55 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | 1 x 9V |
| Accessories |
AB9 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

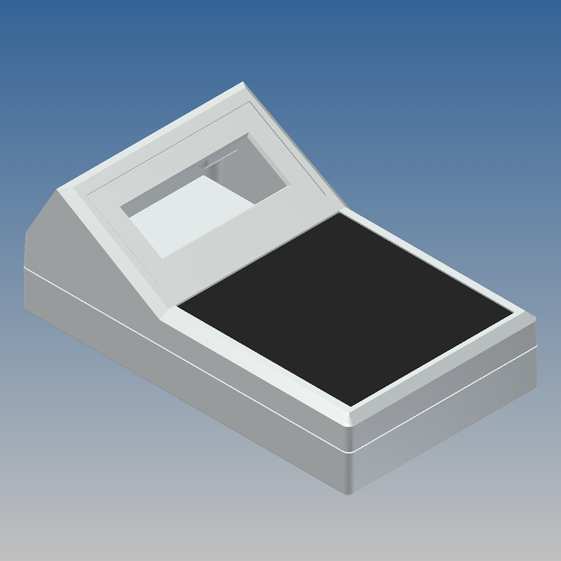

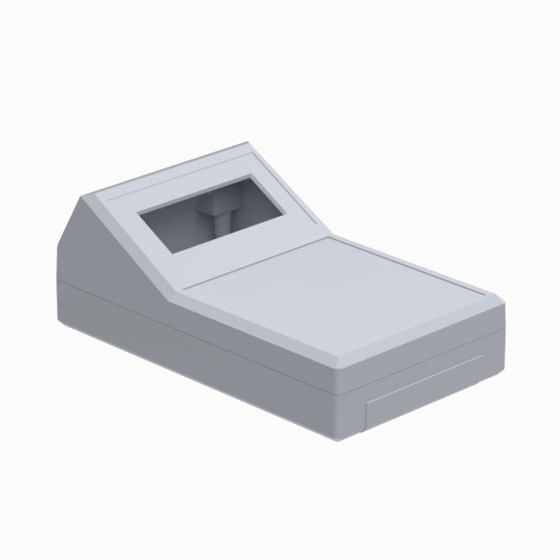

| Model | 680D-B.5 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 55 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | 1 x 9V |
| Accessories |
AB9 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

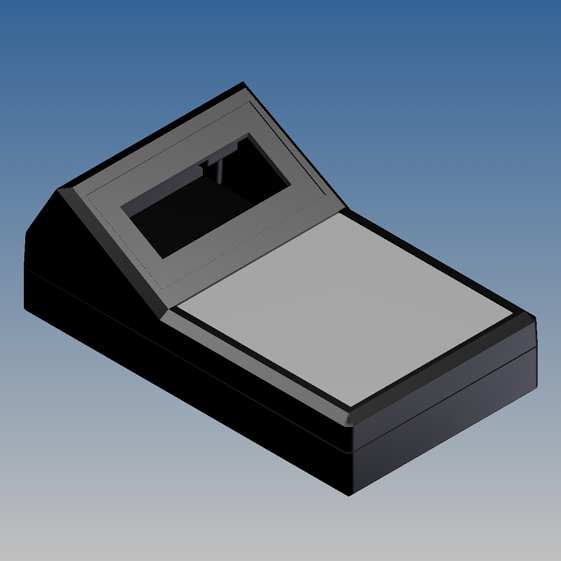

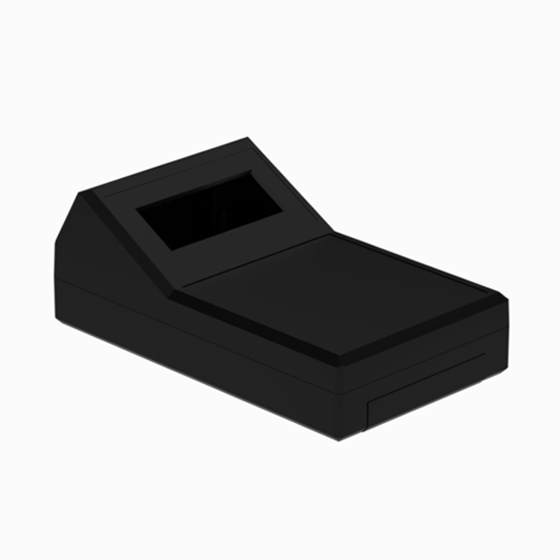

| Model | 680D-B.9 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 55 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | 1 x 9V |
| Accessories |
AB9 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

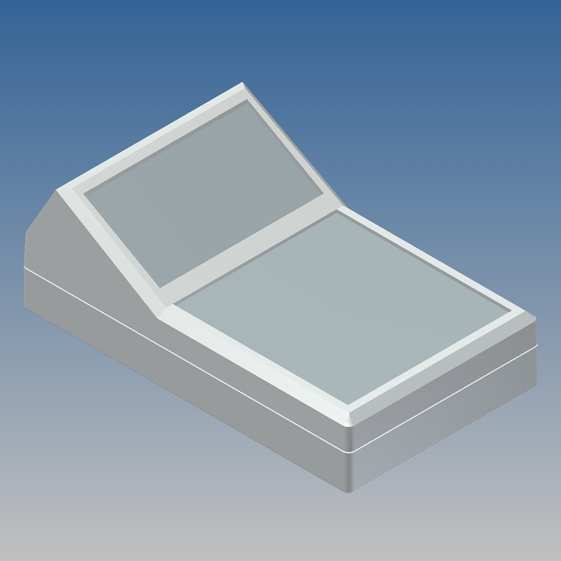

| Model | 690.5 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 55 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | - |
| Accessories |
MT1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 690.9 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 55 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | - |
| Accessories |
MT1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

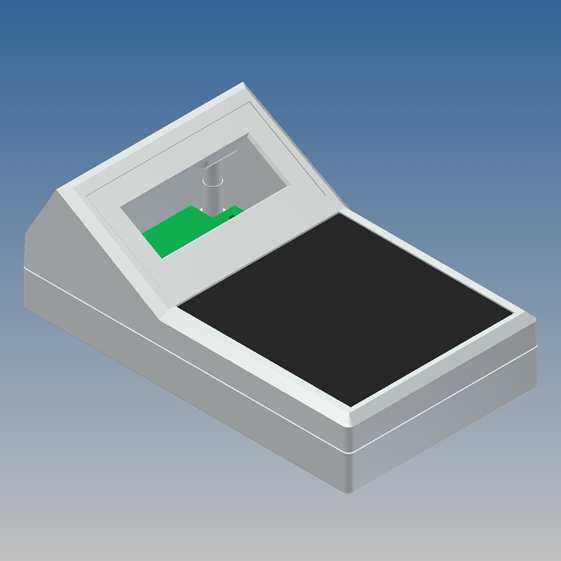

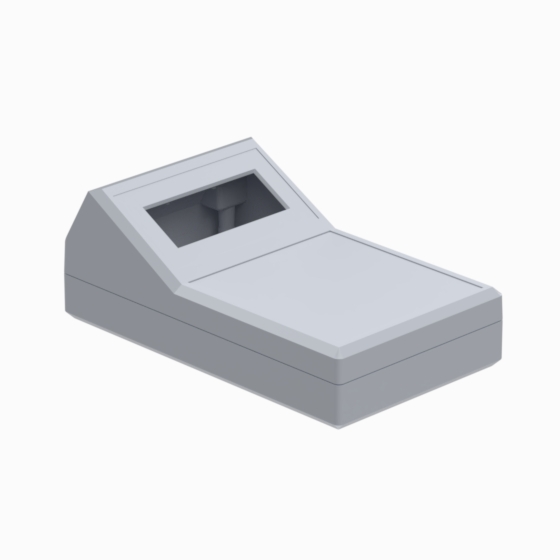

| Model | 690/D.5 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 55 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | - |
| Accessories |
MT1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

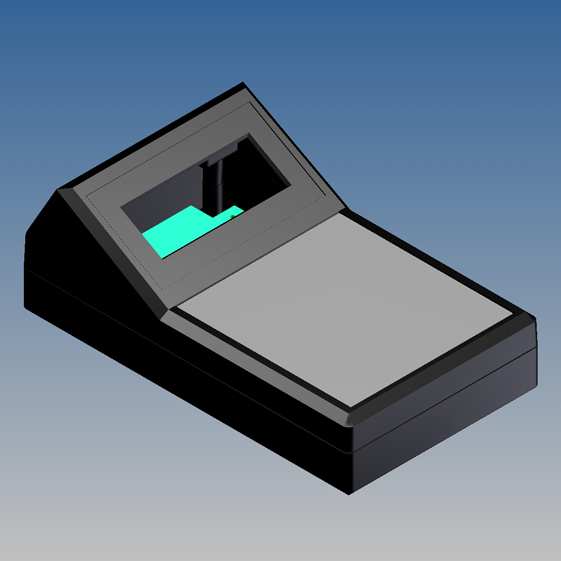

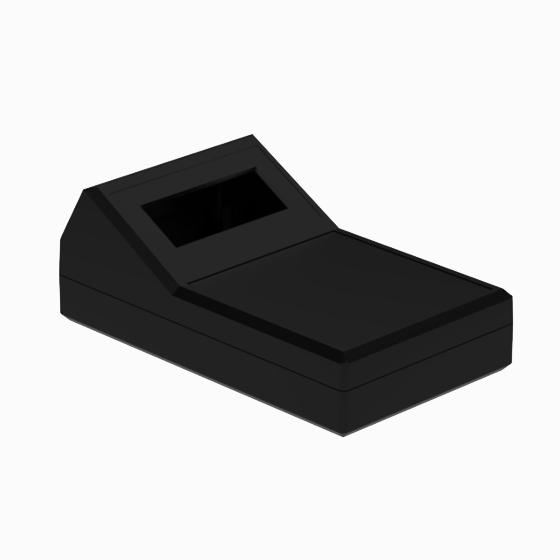

| Model | 690/D.9 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 55 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | - |
| Accessories |
MT1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

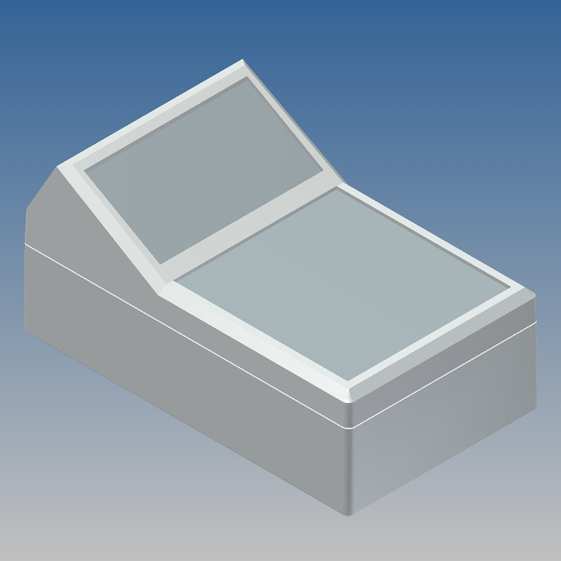

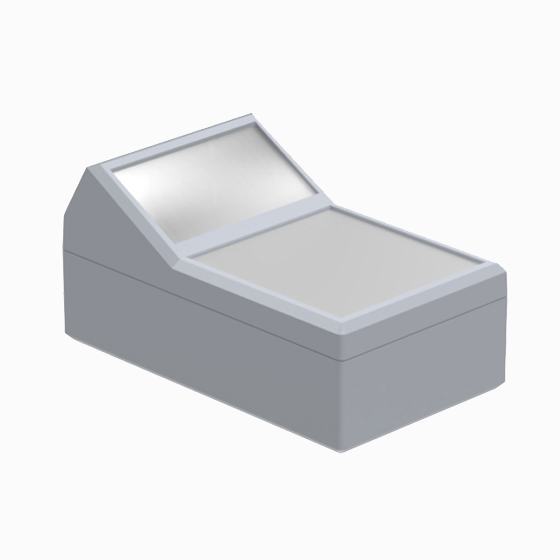

| Model | 790.5 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 73 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | - |
| Accessories |
MT1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

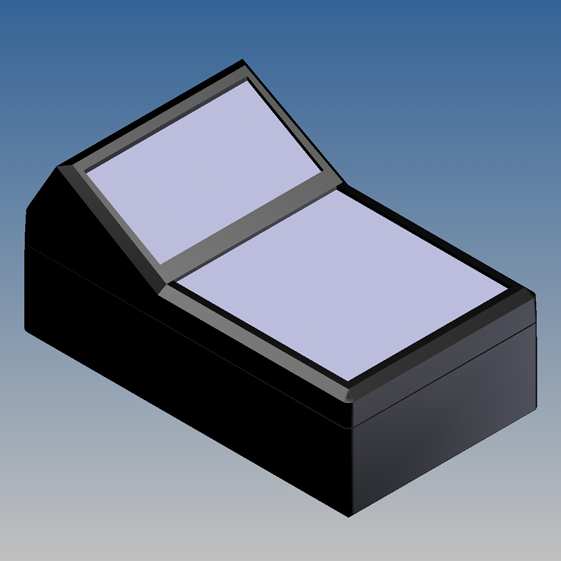

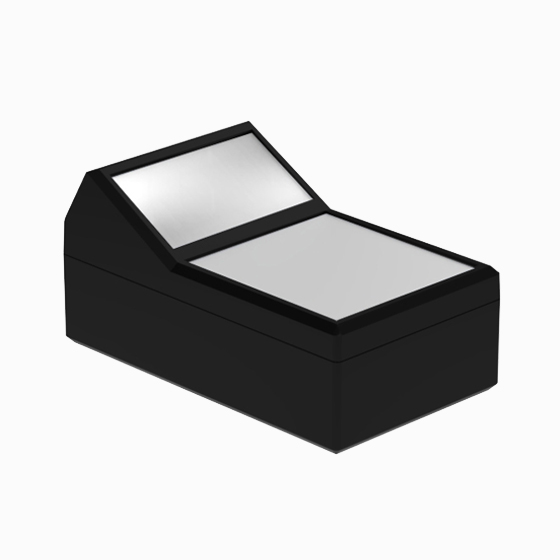

| Model | 790.9 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 73 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | - |
| Accessories |
MT1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

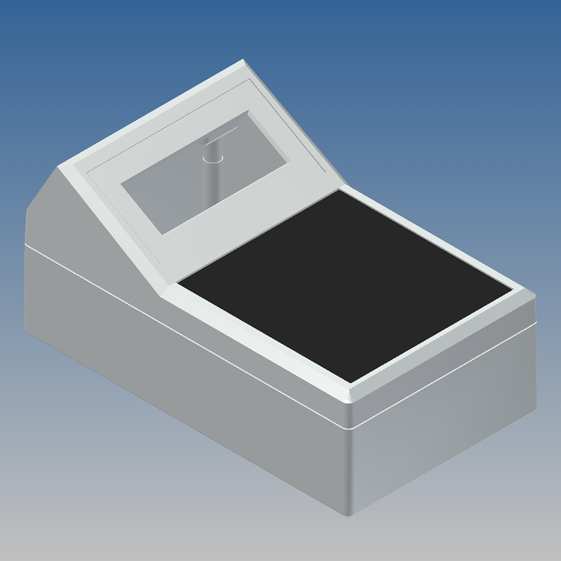

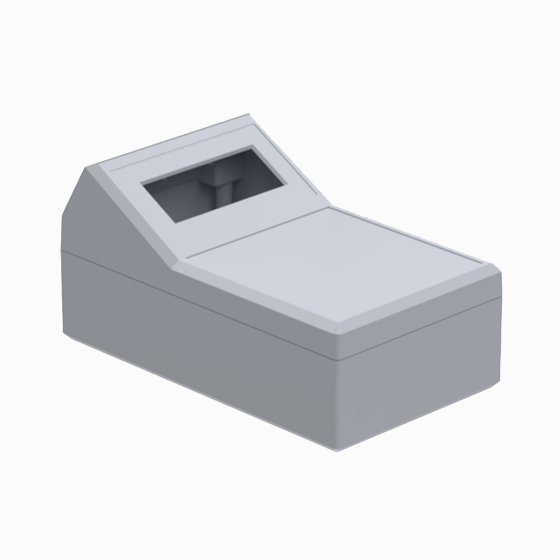

| Model | 790/D.5 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 73 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | - |
| Accessories |
MT1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

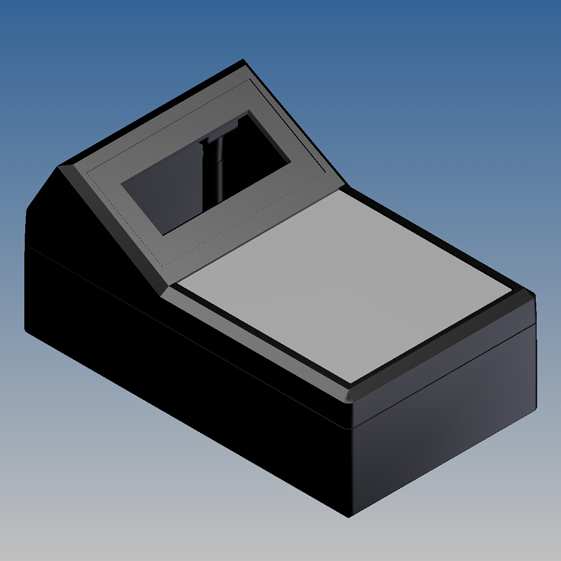

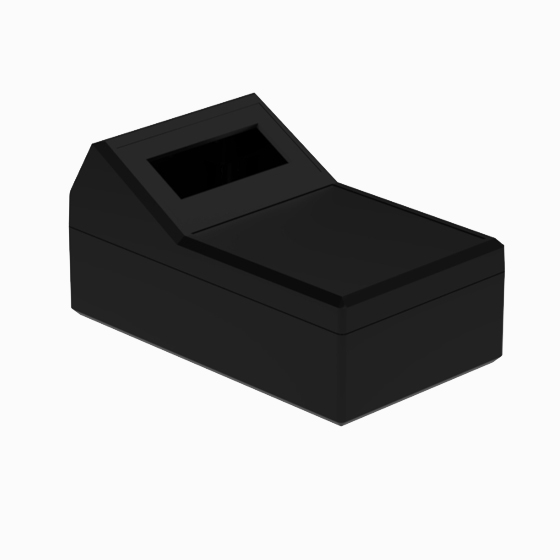

| Model | 790/D.9 |
| L (mm) | 145 |
| W (mm) | 85 |
| H (mm) | 73 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 97,6 |
| MAX PCB W (mm) | 75,2 |
| Screws | 4 |
| Battery | - |
| Accessories |
MT1 |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
590.5 | 145 | 85 | 49 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | - |
MT1 |
PDF DWG |
View
|
|
|
590.9 | 145 | 85 | 49 |
9004 |
P2H-AT | 97,6 | 75,2 | 4 | - |
MT1 |
PDF DWG |
View
|
|
|
590/D.5 | 145 | 85 | 49 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | - |
MT1 |
PDF DWG |
View
|
|
|
590/D.9 | 145 | 85 | 49 |
9004 |
P2H-AT | 97,6 | 75,2 | 4 | - |
MT1 |
PDF DWG |
View
|
|
|
680-B.5 | 145 | 85 | 55 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 |
PDF DWG |
View
|
|
|
680-B.9 | 145 | 85 | 55 |
9004 |
P2H-AT | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 |
PDF DWG |
View
|
|
|
680D-B.5 | 145 | 85 | 55 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 |
PDF DWG |
View
|
|
|
680D-B.9 | 145 | 85 | 55 |
9004 |
P2H-AT | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 |
PDF DWG |
View
|
|
|
690.5 | 145 | 85 | 55 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | - |
MT1 |
PDF DWG |
View
|
|
|
690.9 | 145 | 85 | 55 |
9004 |
P2H-AT | 97,6 | 75,2 | 4 | - |
MT1 |
PDF DWG |
View
|
|
|
690/D.5 | 145 | 85 | 55 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | - |
MT1 |
PDF DWG |
View
|
|
|
690/D.9 | 145 | 85 | 55 |
9004 |
P2H-AT | 97,6 | 75,2 | 4 | - |
MT1 |
PDF DWG |
View
|
|
|
790.5 | 145 | 85 | 73 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | - |
MT1 |
PDF DWG |
View
|
|
|
790.9 | 145 | 85 | 73 |
9004 |
P2H-AT | 97,6 | 75,2 | 4 | - |
MT1 |
PDF DWG |
View
|
|
|
790/D.5 | 145 | 85 | 73 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | - |
MT1 |
PDF DWG |
View
|
|
|
790/D.9 | 145 | 85 | 73 |
9004 |
P2H-AT | 97,6 | 75,2 | 4 | - |
MT1 |
PDF DWG |
View
|
