Description

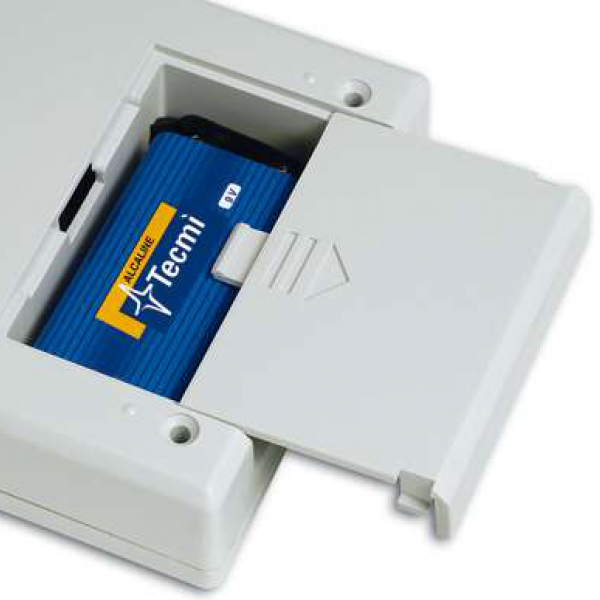

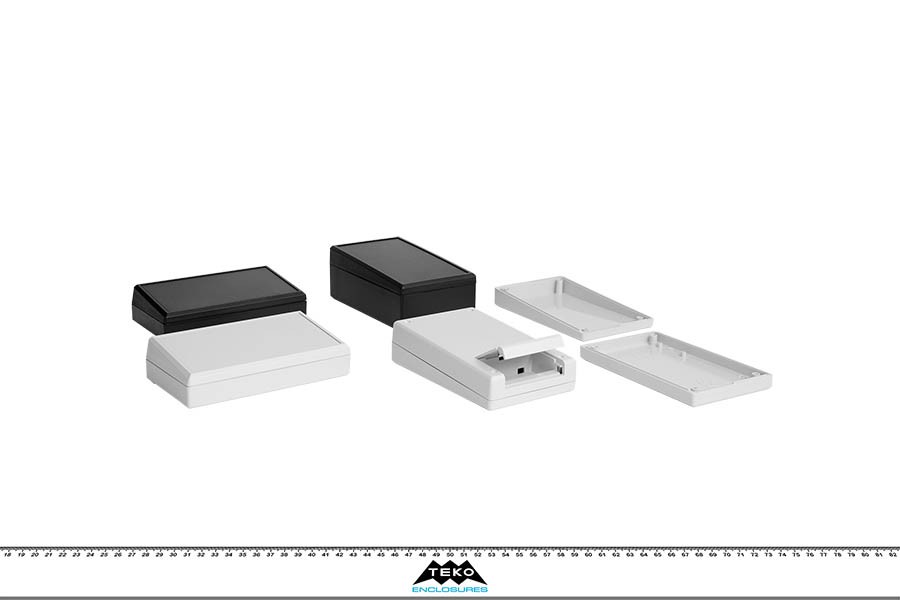

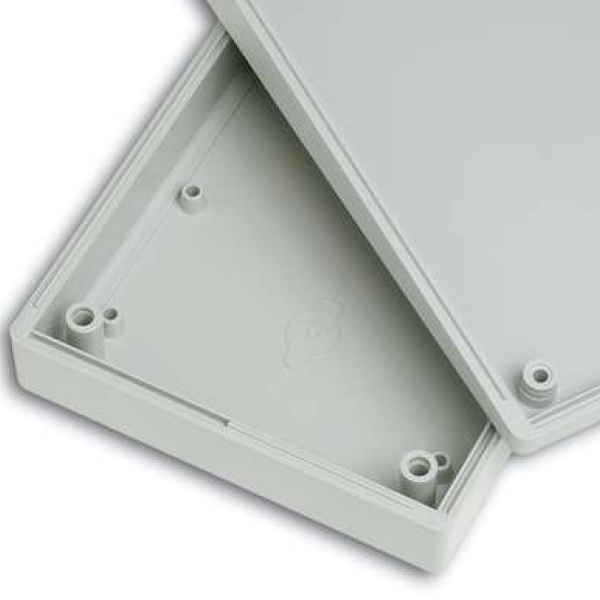

ABS enclosures with inclined cover. Matt surfaces finish. The base has integral PCB mounting studs. The models with “-B” have a 9V battery compartment with snap-on cover. Closing by four screws. Upon request ABS mounting tabs (Mod. MT1), Anodised aluminium panel (Mod. APTB).
Products

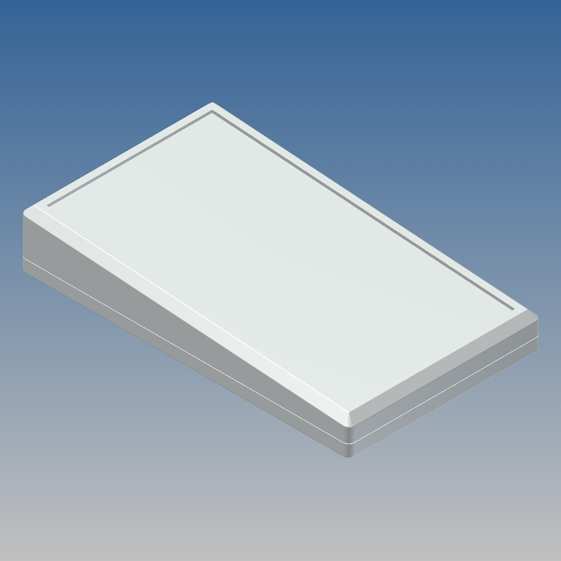

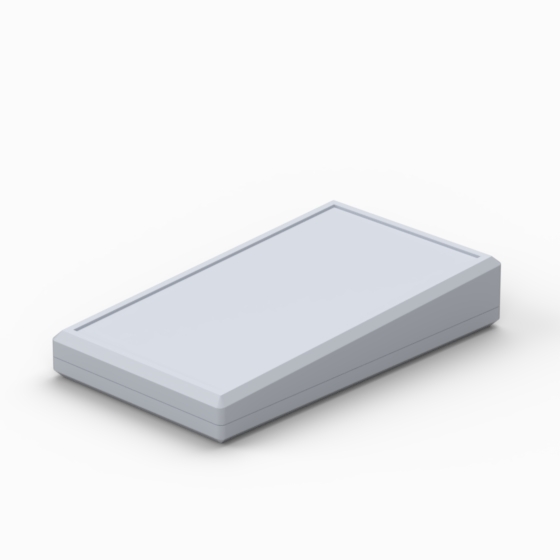

Model | 450S.5 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 27,5 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 135,2 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB M M58 M59 MT1 |
Drawings |
PDF DWG |
Other |
View
|

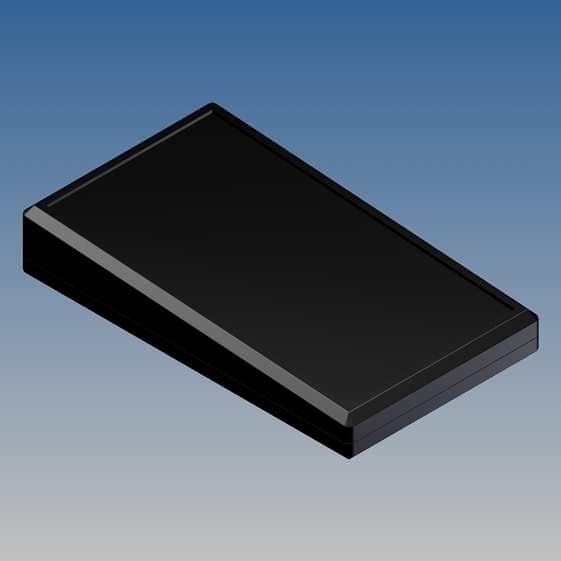

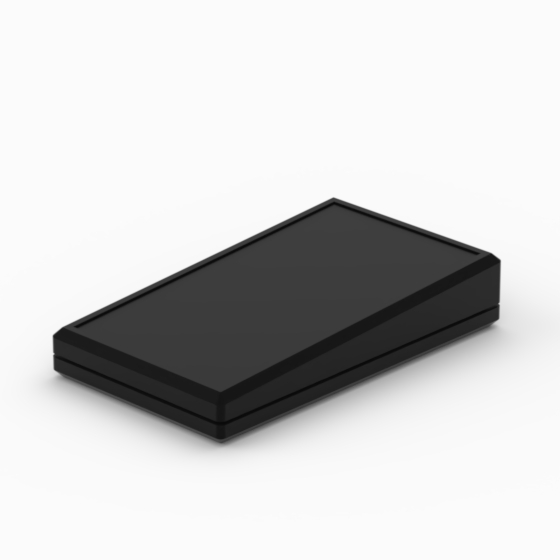

Model | 450S.9 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 27,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-35 |
MAX PCB L (mm) | 135,2 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB M M58 M59 MT1 |
Drawings |
PDF DWG |
Other |
View
|
Model | 450SP.5 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 27,5 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 135,2 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB MT1 |
Drawings |
PDF DWG |
Other |
View
|

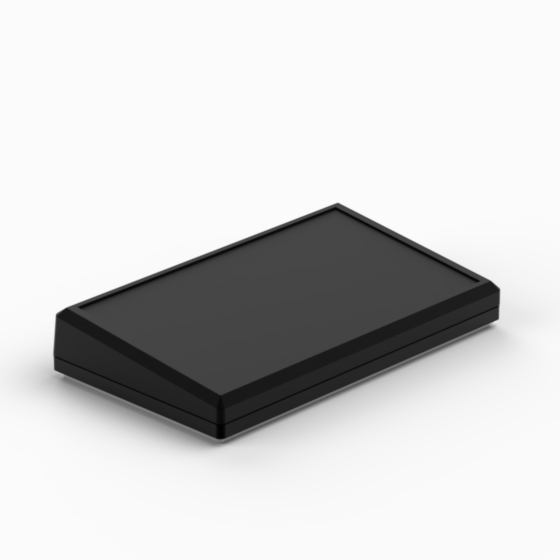

Model | 450SP.9 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 27,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-35 |
MAX PCB L (mm) | 135,2 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB MT1 |
Drawings |
PDF DWG |
Other |
View
|

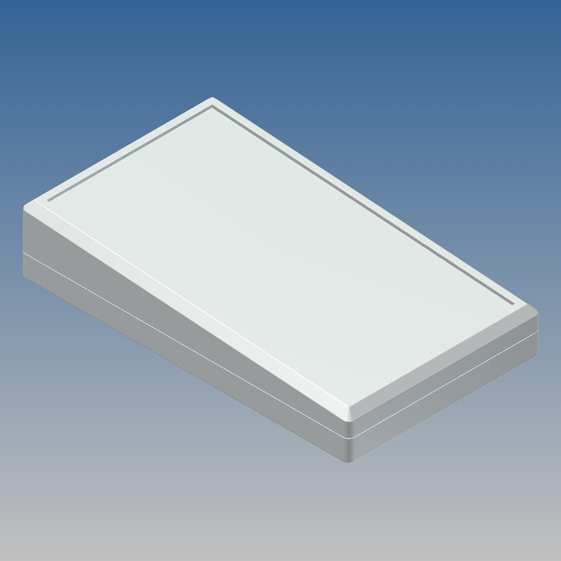

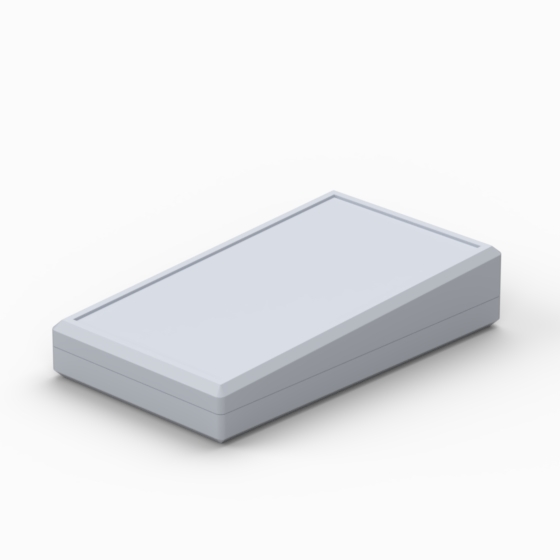

Model | 550S.5 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 31,5 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 135,2 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB M M58 M59 MT1 |
Drawings |
PDF DWG |
Other |
View
|

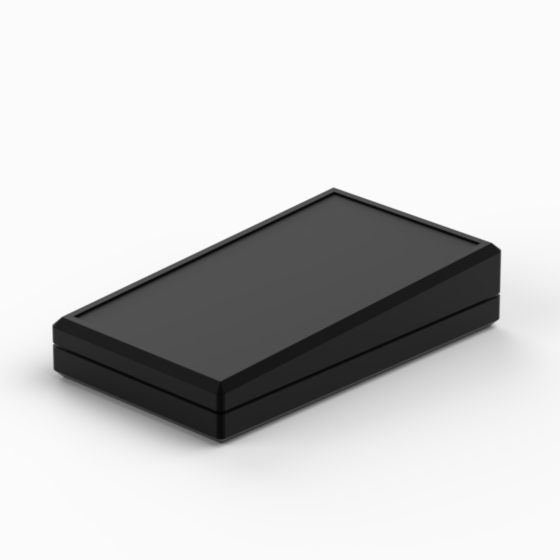

Model | 550S.9 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 31,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-35 |
MAX PCB L (mm) | 135,2 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB M M58 M59 MT1 |
Drawings |
PDF DWG |
Other |
View
|

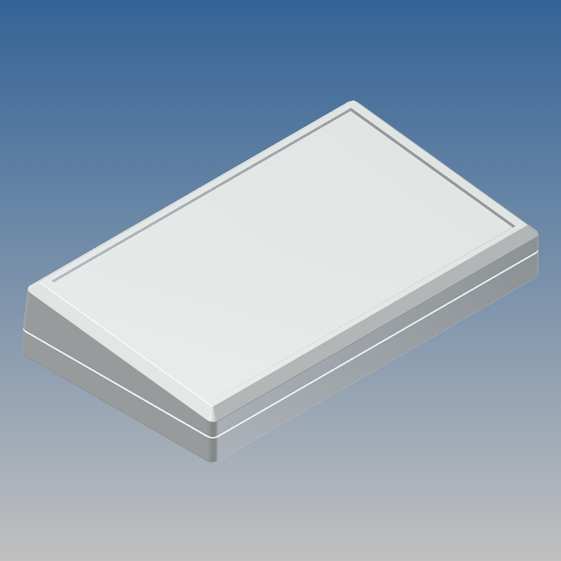

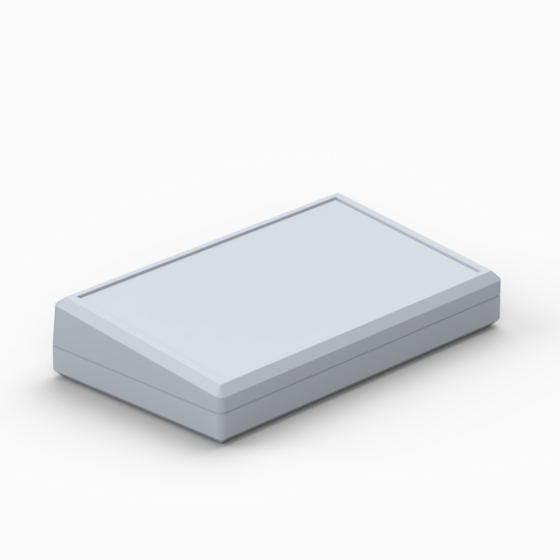

Model | 550SP.5 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 31,5 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 135,2 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB MT1 |
Drawings |
PDF DWG |
Other |
View
|

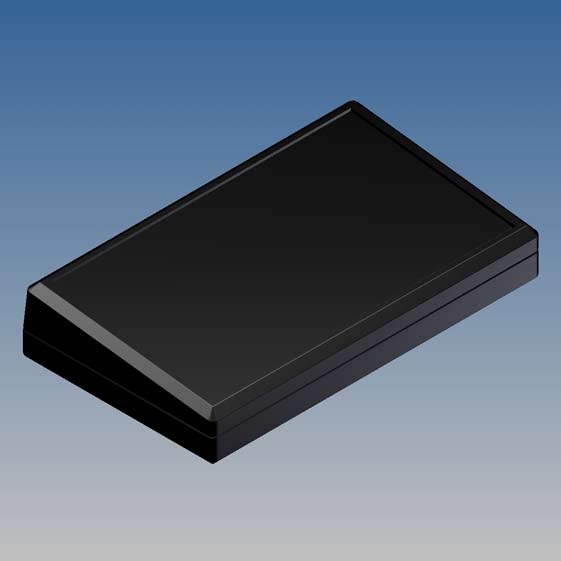

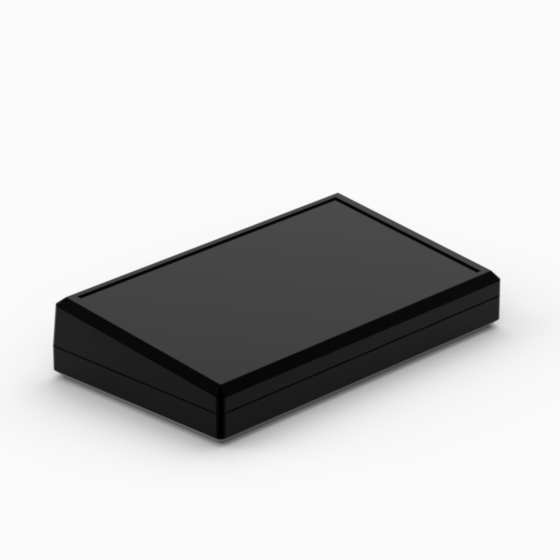

Model | 550SP.9 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 31,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-35 |
MAX PCB L (mm) | 135,2 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB MT1 |
Drawings |
PDF DWG |
Other |
View
|

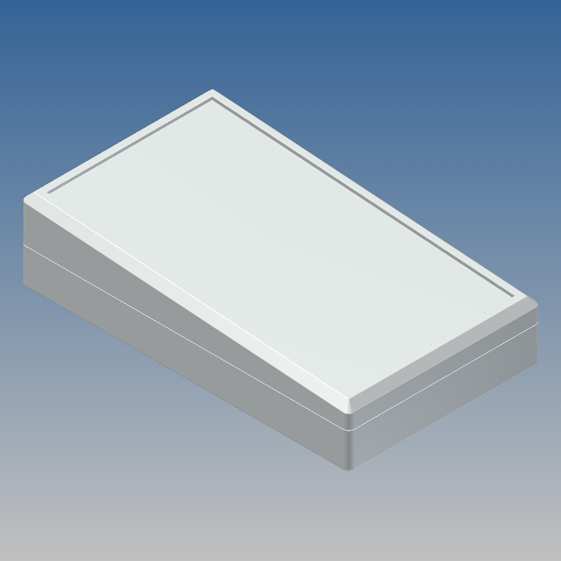

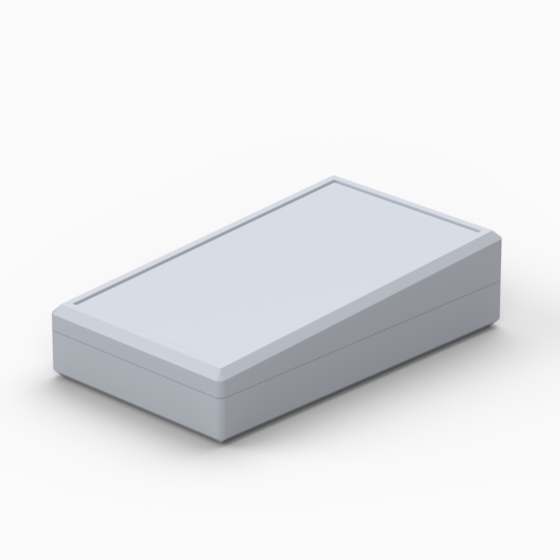

Model | 660S.5 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 37,5 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 135,2 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB M M58 M59 MT1 |
Drawings |
PDF DWG |
Other |
View
|

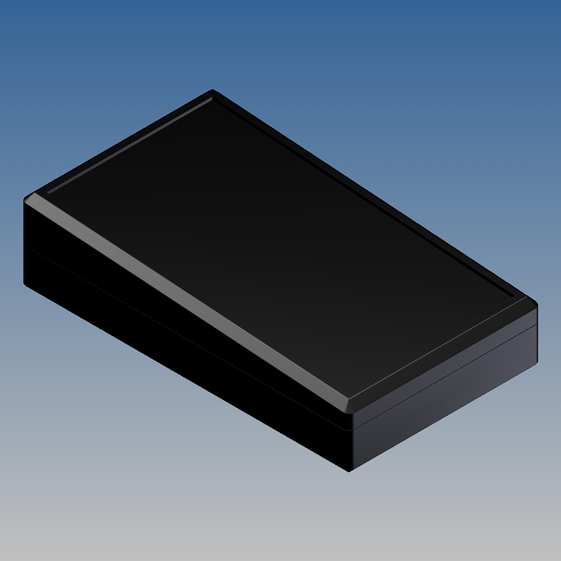

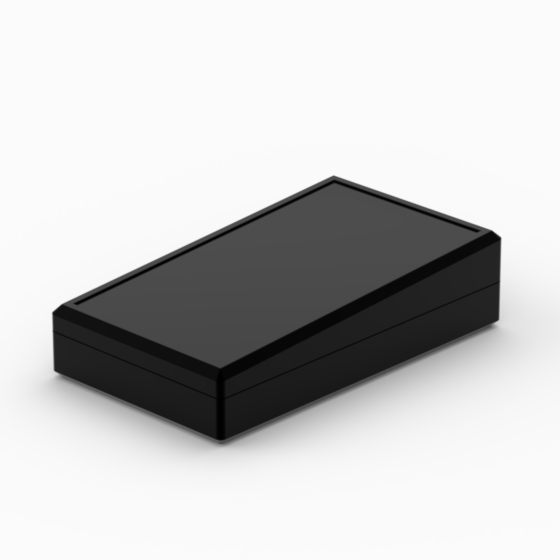

Model | 660S.9 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 37,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-35 |
MAX PCB L (mm) | 135,2 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB M M58 M59 MT1 |
Drawings |
PDF DWG |
Other |
View
|

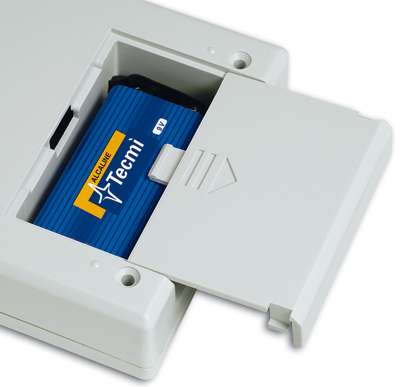

Model | 660S-B.5 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 37,5 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 135,2 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | 1 x 9V |
Accessories |
AB9 APTB M M58 M59 |
Drawings |
PDF DWG |
Other |
View
|

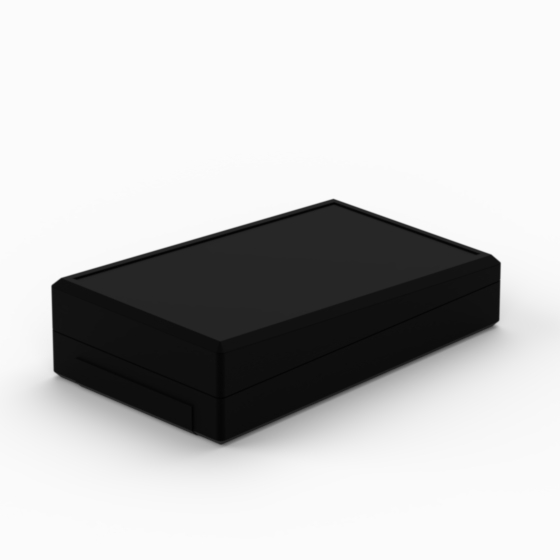

Model | 660S-B.9 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 37,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-35 |
MAX PCB L (mm) | 135,2 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | 1 x 9V |
Accessories |
AB9 APTB M M58 M59 |
Drawings |
PDF DWG |
Other |
View
|

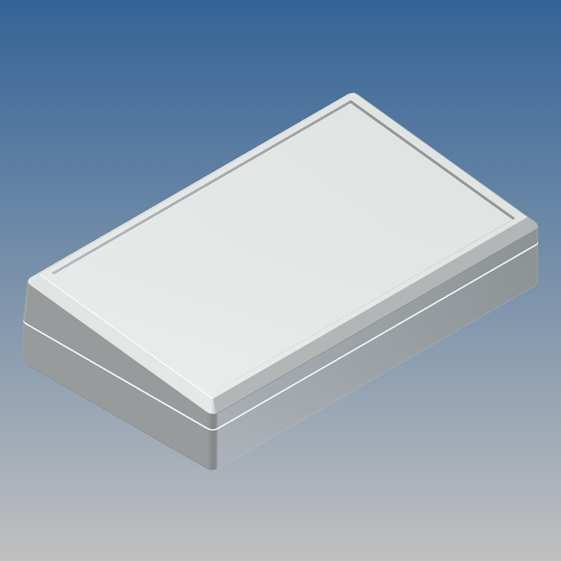

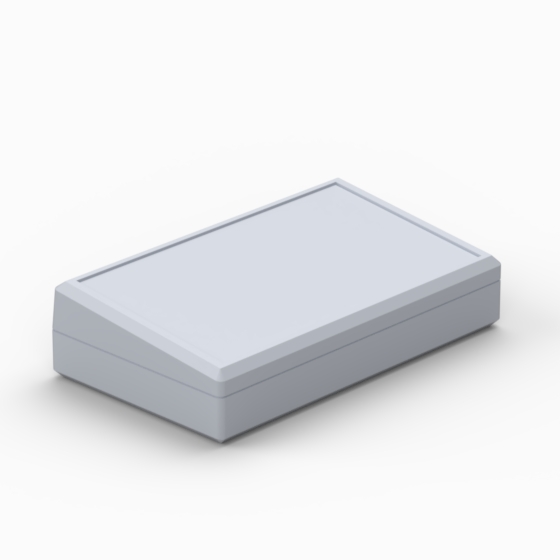

Model | 660SP.5 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 37,5 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 97,6 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB MT1 |
Drawings |
PDF DWG |
Other |
View
|

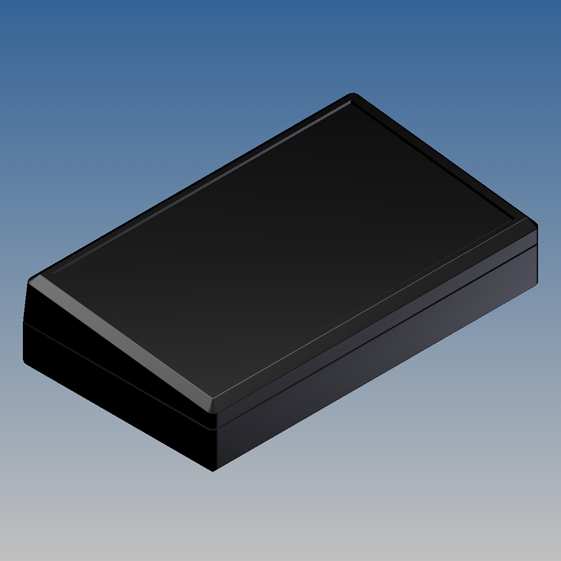

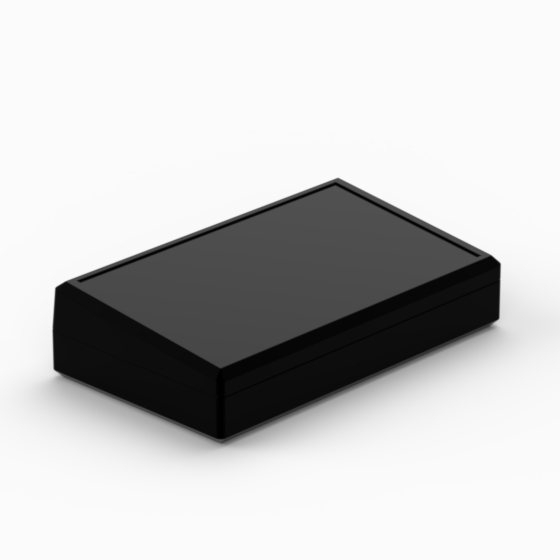

Model | 660SP.9 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 37,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-35 |
MAX PCB L (mm) | 97,6 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB MT1 |
Drawings |
PDF DWG |
Other |
View
|

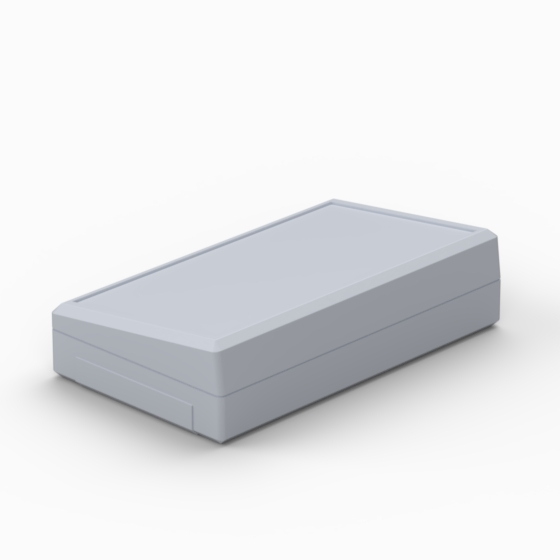

Model | 660SP-B.5 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 37,5 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 97,6 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | 1 x 9V |
Accessories |
AB9 APTB |
Drawings |
PDF DWG |
Other |
View
|

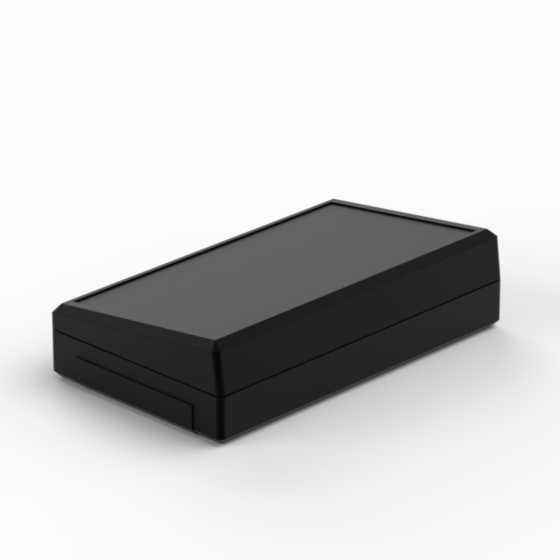

Model | 660SP-B.9 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 37,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-35 |
MAX PCB L (mm) | 97,6 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | 1 x 9V |
Accessories |
AB9 APTB |
Drawings |
PDF DWG |
Other |
View
|

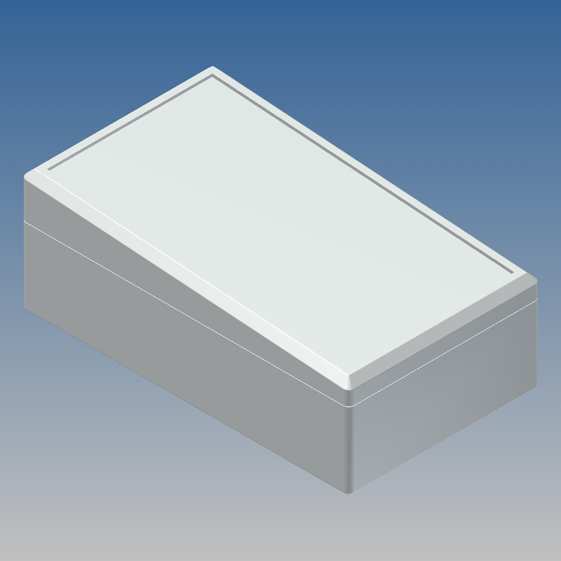

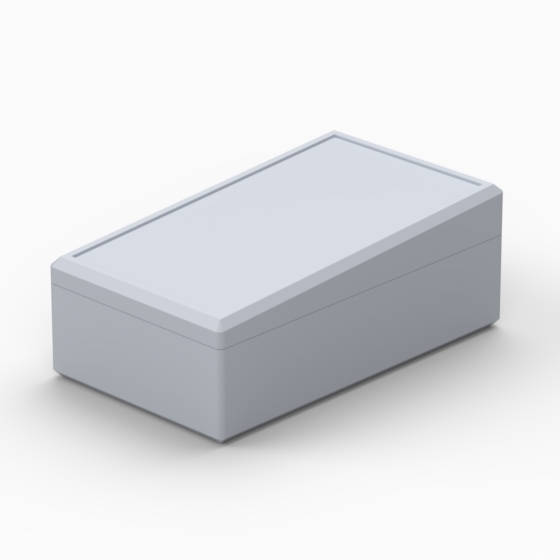

Model | 770S.5 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 55,5 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 135,2 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB M M58 M59 MT1 |
Drawings |
PDF DWG |
Other |
View
|

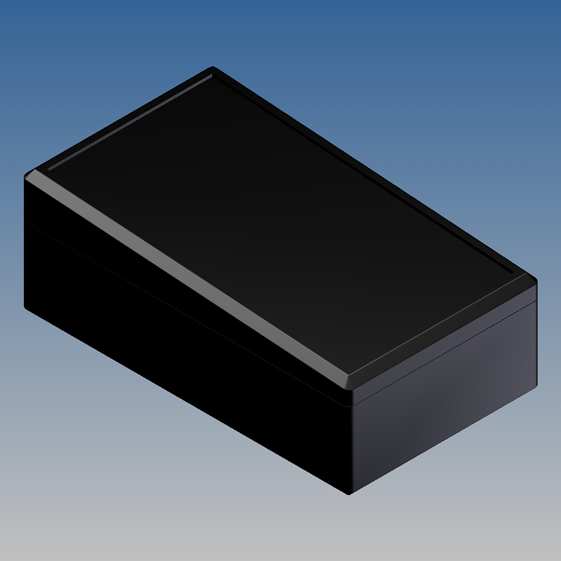

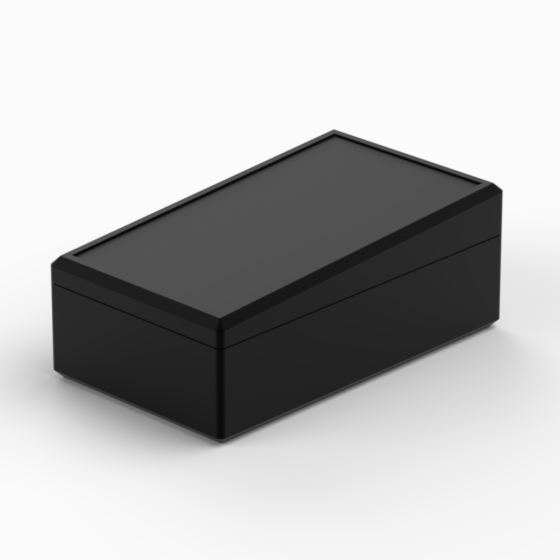

Model | 770S.9 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 55,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-35 |
MAX PCB L (mm) | 135,2 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB M M58 M59 MT1 |
Drawings |
PDF DWG |
Other |
View
|

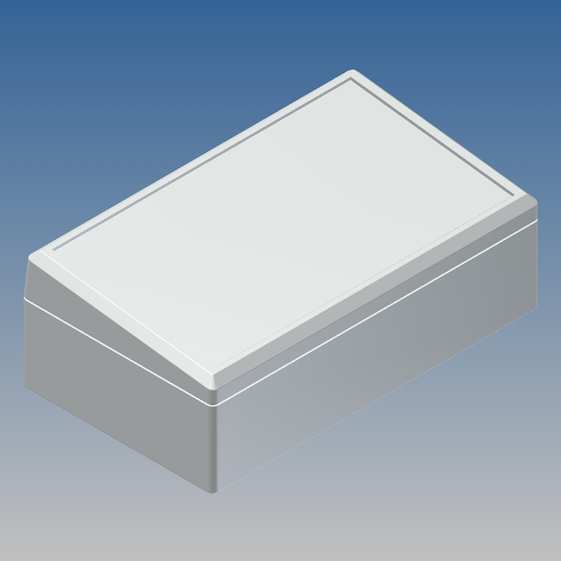

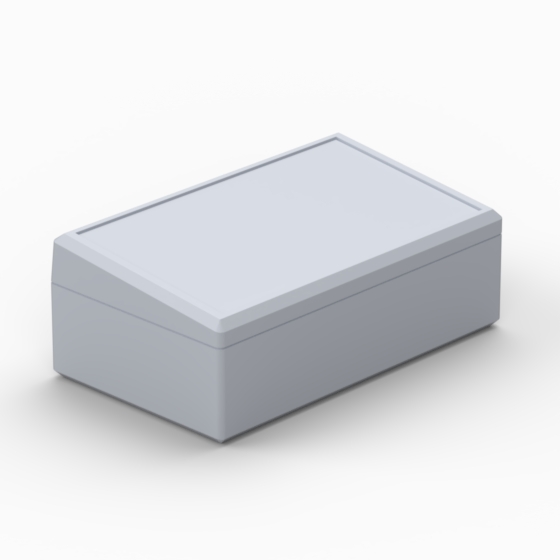

Model | 770SP.5 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 55,5 |
Color (Ral) |
9018 |
Material | AG-ATY |
MAX PCB L (mm) | 97,6 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB MT1 |
Drawings |
PDF DWG |
Other |
View
|

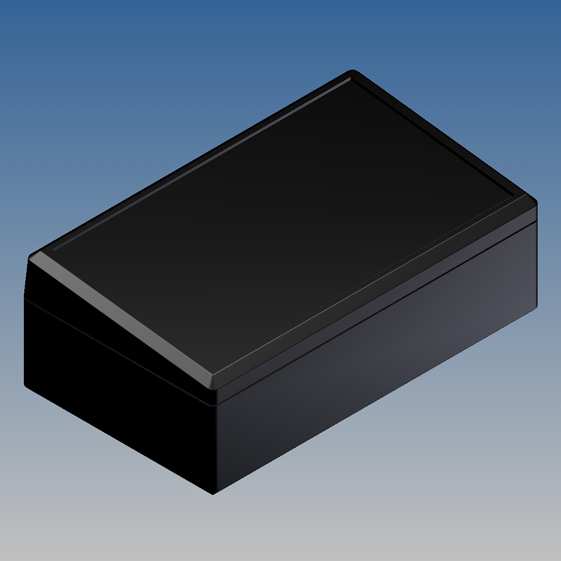

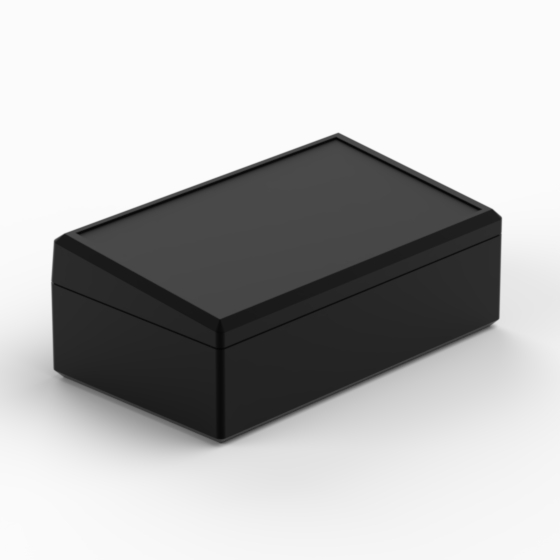

Model | 770SP.9 |
L (mm) | 145 |
W (mm) | 85 |
H (mm) | 55,5 |
Color (Ral) |
9004 |
Material | TERLURAN GP-35 |
MAX PCB L (mm) | 97,6 |
MAX PCB W (mm) | 75,2 |
Screws | 4 |
Battery | - |
Accessories |
APTB MT1 |
Drawings |
PDF DWG |
Other |
View
|
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
450S.5 | 145 | 85 | 27,5 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
View
|
|
450S.9 | 145 | 85 | 27,5 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
View
|
|
450SP.5 | 145 | 85 | 27,5 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB MT1 |
PDF DWG |
View
|
|
450SP.9 | 145 | 85 | 27,5 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB MT1 |
PDF DWG |
View
|
|
550S.5 | 145 | 85 | 31,5 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
View
|
|
550S.9 | 145 | 85 | 31,5 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
View
|
|
550SP.5 | 145 | 85 | 31,5 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB MT1 |
PDF DWG |
View
|
|
550SP.9 | 145 | 85 | 31,5 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB MT1 |
PDF DWG |
View
|
|
660S.5 | 145 | 85 | 37,5 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
View
|
|
660S.9 | 145 | 85 | 37,5 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
View
|
|
660S-B.5 | 145 | 85 | 37,5 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | 1 x 9V |
AB9 APTB M M58 M59 |
PDF DWG |
View
|
|
660S-B.9 | 145 | 85 | 37,5 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | 1 x 9V |
AB9 APTB M M58 M59 |
PDF DWG |
View
|
|
660SP.5 | 145 | 85 | 37,5 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | - |
APTB MT1 |
PDF DWG |
View
|
|
660SP.9 | 145 | 85 | 37,5 |
9004 |
TERLURAN GP-35 | 97,6 | 75,2 | 4 | - |
APTB MT1 |
PDF DWG |
View
|
|
660SP-B.5 | 145 | 85 | 37,5 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 APTB |
PDF DWG |
View
|
|
660SP-B.9 | 145 | 85 | 37,5 |
9004 |
TERLURAN GP-35 | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 APTB |
PDF DWG |
View
|
|
770S.5 | 145 | 85 | 55,5 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
View
|
|
770S.9 | 145 | 85 | 55,5 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
APTB M M58 M59 MT1 |
PDF DWG |
View
|
|
770SP.5 | 145 | 85 | 55,5 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | - |
APTB MT1 |
PDF DWG |
View
|
|
770SP.9 | 145 | 85 | 55,5 |
9004 |
TERLURAN GP-35 | 97,6 | 75,2 | 4 | - |
APTB MT1 |
PDF DWG |
View
|
