Description

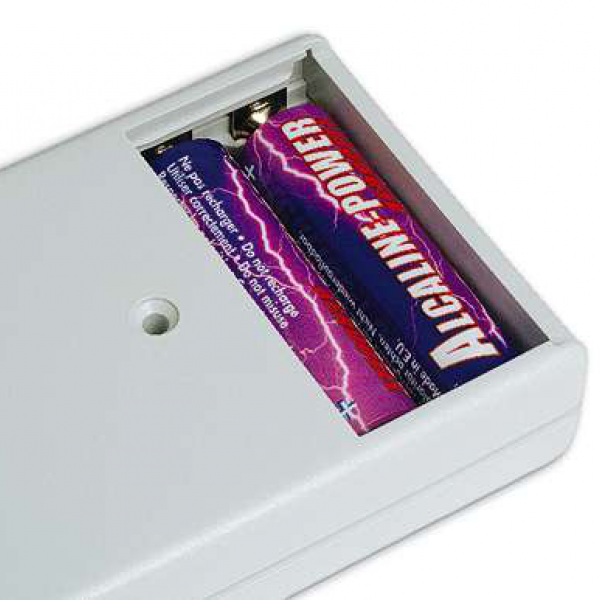

ABS enclosures with ergonomic design. The base and cover have integral PCB guides and mounting pillars. The base has a compartment with snap fit sliding door for housing either a single 9V battery or two 1.5V batteries. Available also a front panel permeable to infrared light (Mod. SQ2-IR). The models “SQ22” and “SQ22-IR” have a recessed area suitable for keypad membrane. Closing by three screws. Upon request dual miniature clip for 9V battery (Mod. AB9), Self adhesive spacer for batteries (Mod. DSA).
Details
Products
| |
|---|---|
| Model | SQ2.5 |
| L (mm) | 174 |
| W (mm) | 60,5 |
| H (mm) | 23 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 110 |
| MAX PCB W (mm) | 52 |
| Screws | 3 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 DSA |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | SQ2.9 |
| L (mm) | 174 |
| W (mm) | 60,5 |
| H (mm) | 23 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 110 |
| MAX PCB W (mm) | 52 |
| Screws | 3 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 DSA |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | SQ2-IR.5 |
| L (mm) | 174 |
| W (mm) | 60,5 |
| H (mm) | 23 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 110 |
| MAX PCB W (mm) | 52 |
| Screws | 3 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 DSA |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | SQ2-IR.9 |
| L (mm) | 174 |
| W (mm) | 60,5 |
| H (mm) | 23 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 110 |
| MAX PCB W (mm) | 52 |
| Screws | 3 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 DSA |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | SQ22.5 |
| L (mm) | 174 |
| W (mm) | 60,5 |
| H (mm) | 23 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 110 |
| MAX PCB W (mm) | 52 |
| Screws | 3 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 DSA |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | SQ22.9 |
| L (mm) | 174 |
| W (mm) | 60,5 |
| H (mm) | 23 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 110 |
| MAX PCB W (mm) | 52 |
| Screws | 3 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 DSA |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | SQ22-IR.5 |
| L (mm) | 174 |
| W (mm) | 60,5 |
| H (mm) | 23 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 110 |
| MAX PCB W (mm) | 52 |
| Screws | 3 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 DSA |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | SQ22-IR.9 |
| L (mm) | 174 |
| W (mm) | 60,5 |
| H (mm) | 23 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 110 |
| MAX PCB W (mm) | 52 |
| Screws | 3 |
| Battery | 2 x AA / 1 x 9V |
| Accessories |
AB9 DSA |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SQ2.5 | 174 | 60,5 | 23 |
9018 |
AG-ATY | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
View
|
|
|
SQ2.9 | 174 | 60,5 | 23 |
9004 |
P2H-AT | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
View
|
|
|
SQ2-IR.5 | 174 | 60,5 | 23 |
9018 |
AG-ATY | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
View
|
|
|
SQ2-IR.9 | 174 | 60,5 | 23 |
9004 |
P2H-AT | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
View
|
|
|
SQ22.5 | 174 | 60,5 | 23 |
9018 |
AG-ATY | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
View
|
|
|
SQ22.9 | 174 | 60,5 | 23 |
9004 |
P2H-AT | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
View
|
|
|
SQ22-IR.5 | 174 | 60,5 | 23 |
9018 |
AG-ATY | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
View
|
|
|
SQ22-IR.9 | 174 | 60,5 | 23 |
9004 |
P2H-AT | 110 | 52 | 3 | 2 x AA / 1 x 9V |
AB9 DSA |
PDF DWG |
View
|
